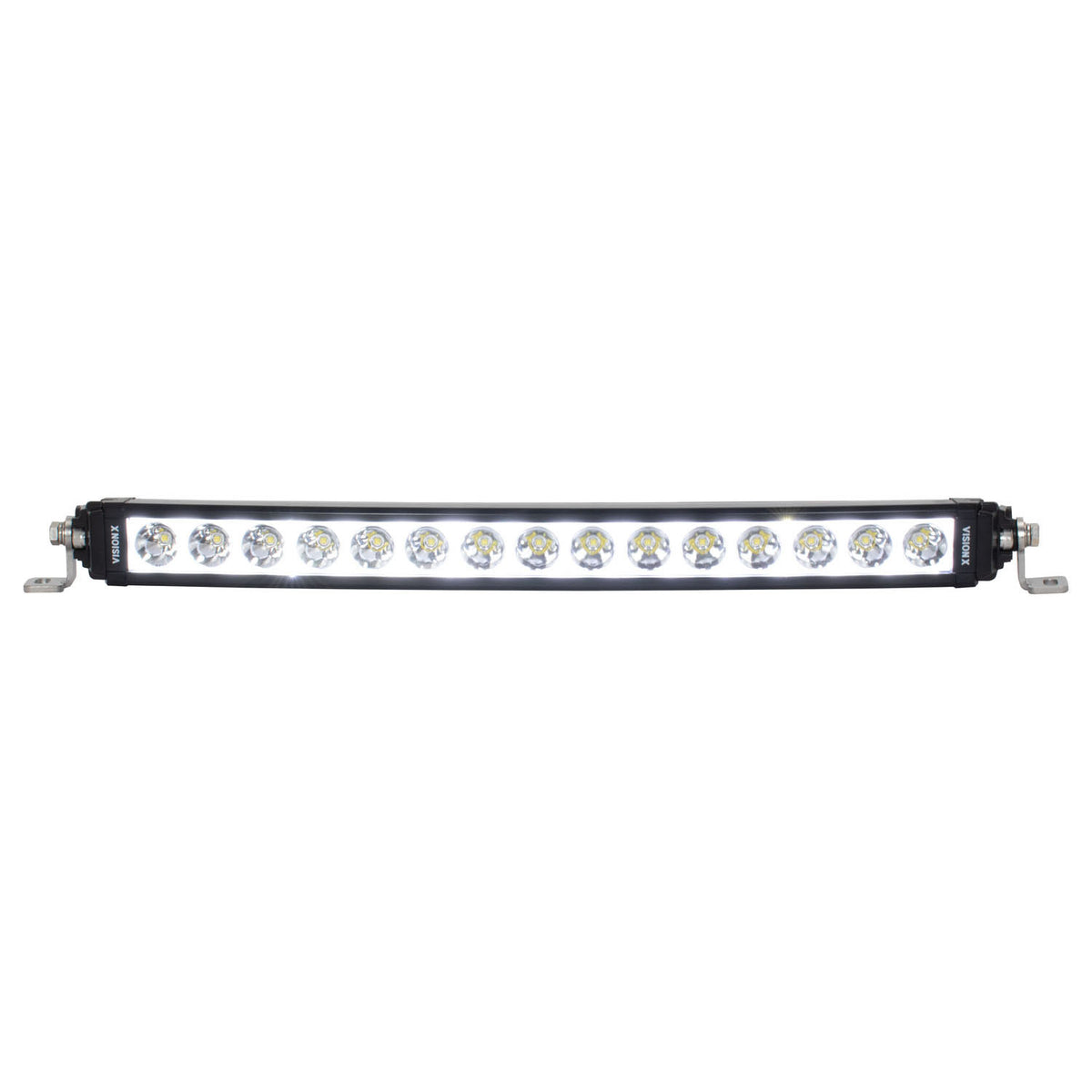

XPL 20″ Curved Halo Light Bar – main (Vision X Lighting XPL-HC15EMH)

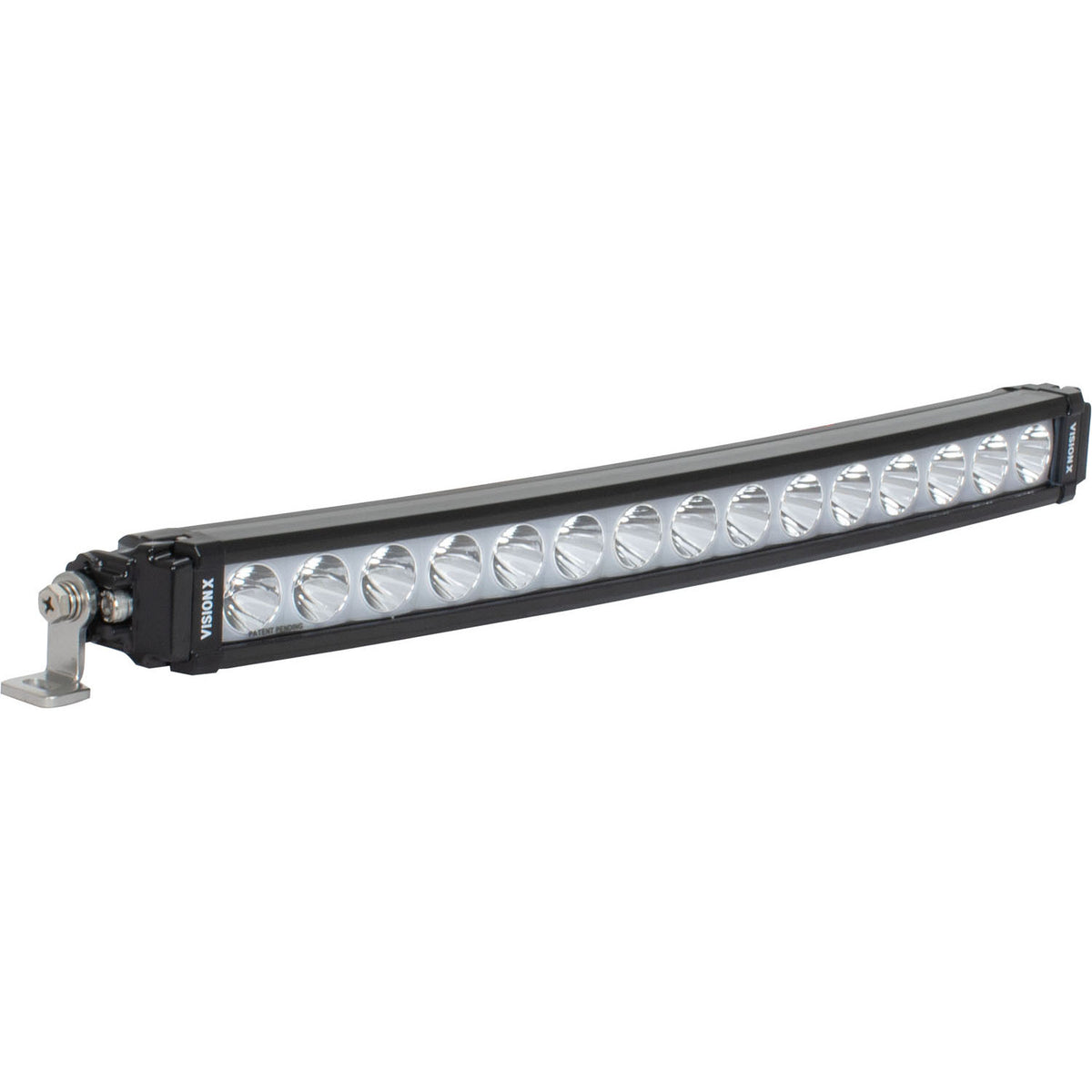

XPL 20″ Curved Halo Light Bar – Vision X Lighting XPL-HC15EMH, photo 3 of 9

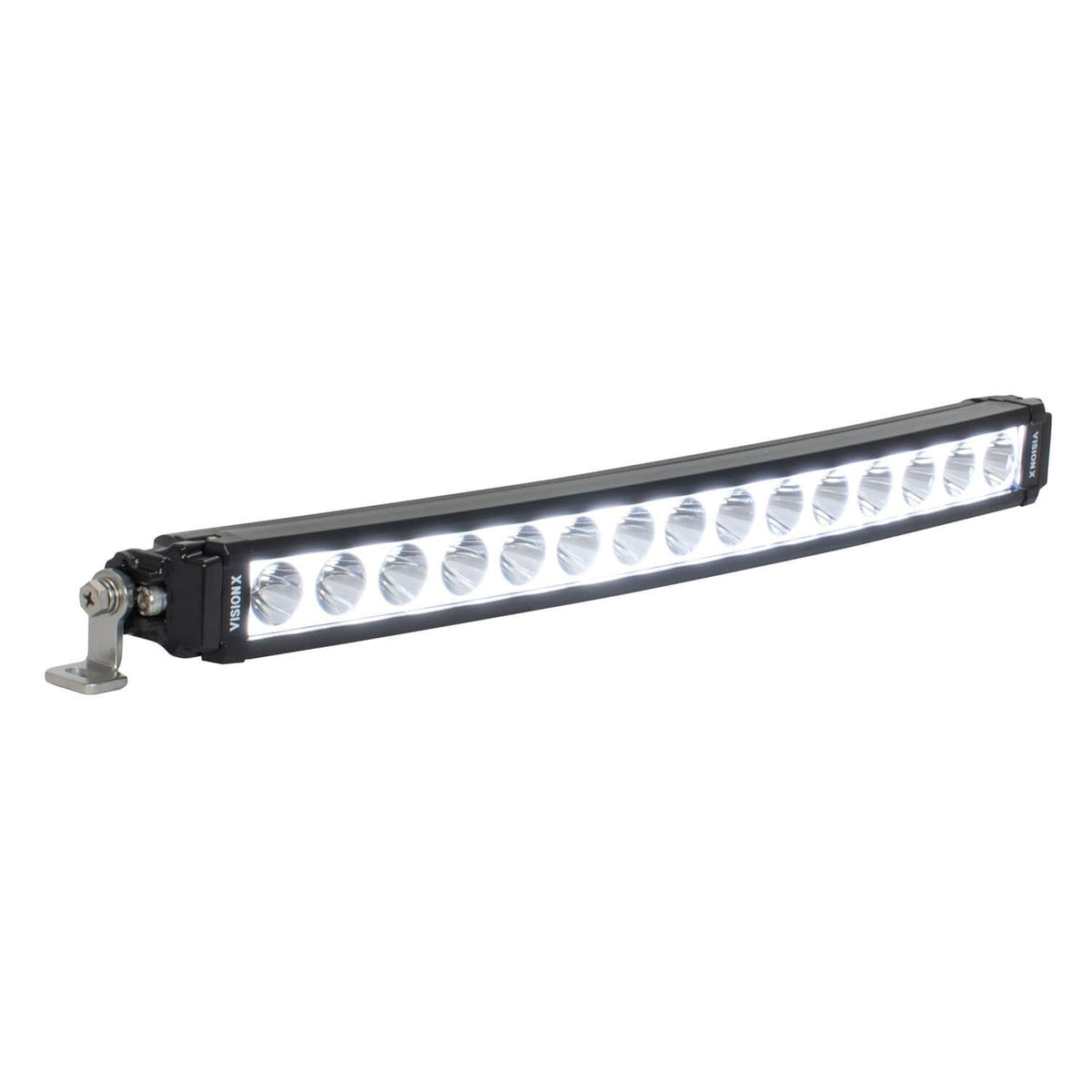

XPL 20″ Curved Halo Light Bar – xpl curved led light bar (Vision X Lighting XPL-HC15EMH)
XPL 20″ Curved Halo Light Bar – xpl curved led light bar (Vision X Lighting XPL-HC15EMH) – photo 5

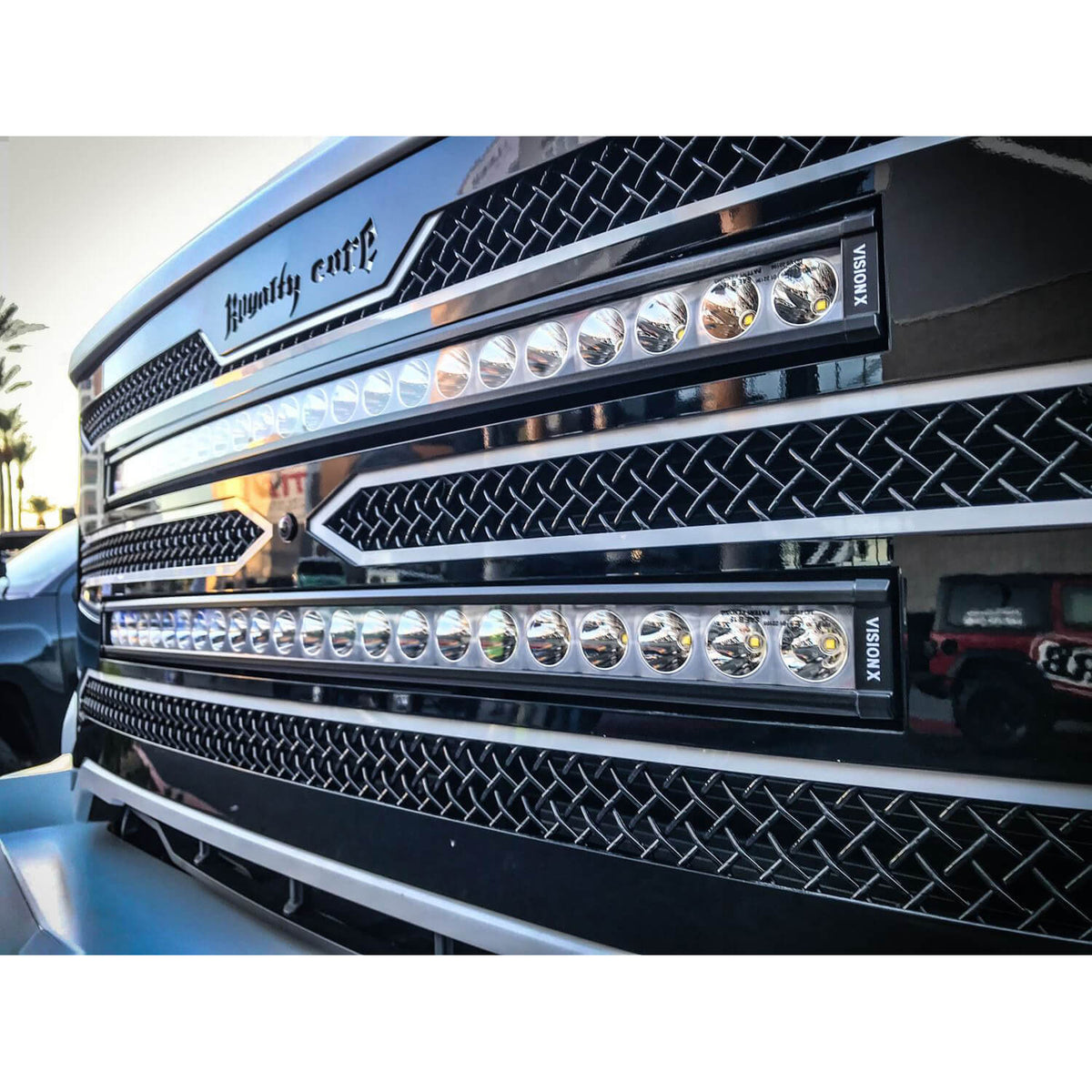

XPL 20″ Curved Halo Light Bar – vision x xpl curved led light bar (Vision X Lighting XPL-HC15EMH)

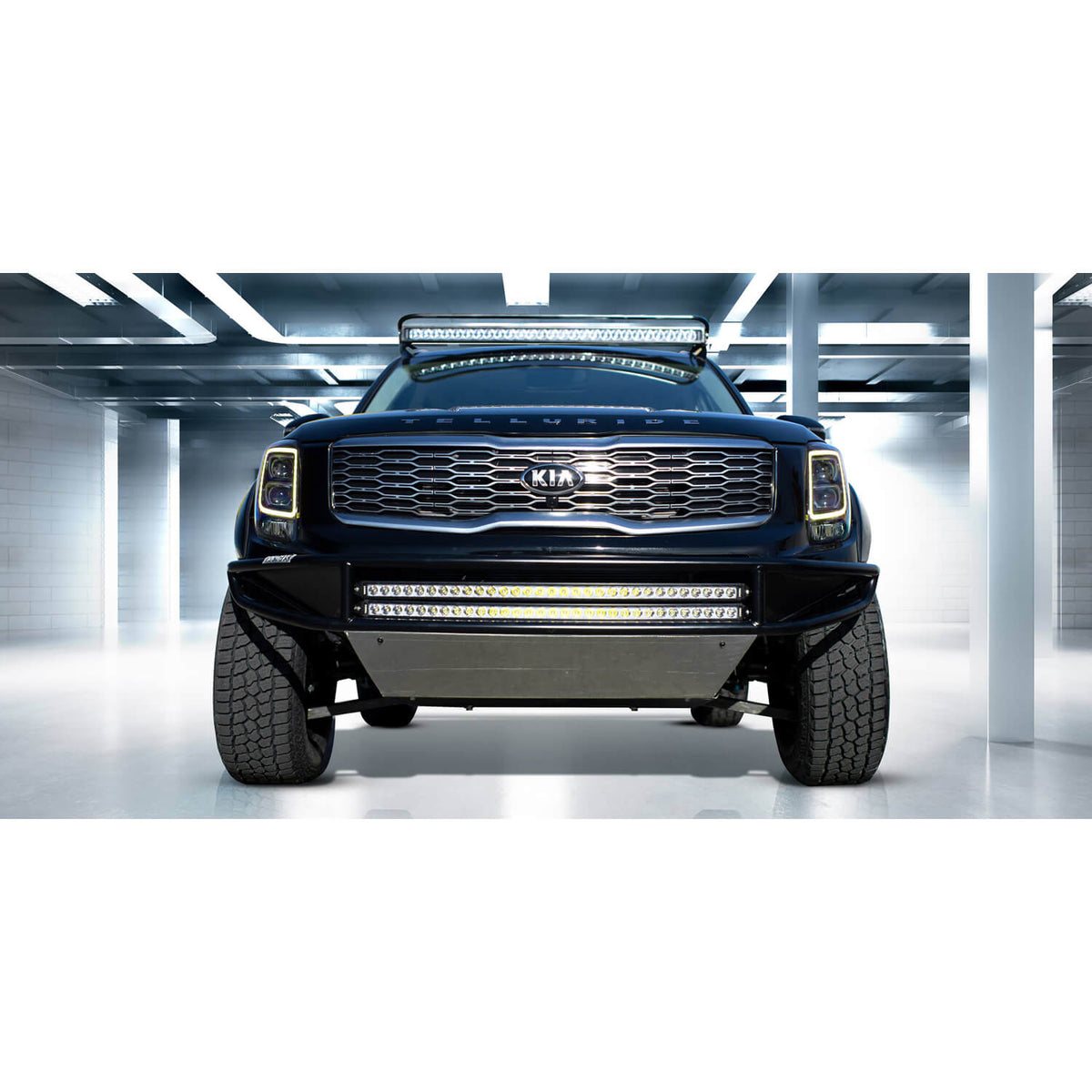

XPL 20″ Curved Halo Light Bar – vision x xpl curved led light bar (Vision X Lighting XPL-HC15EMH) – photo 7

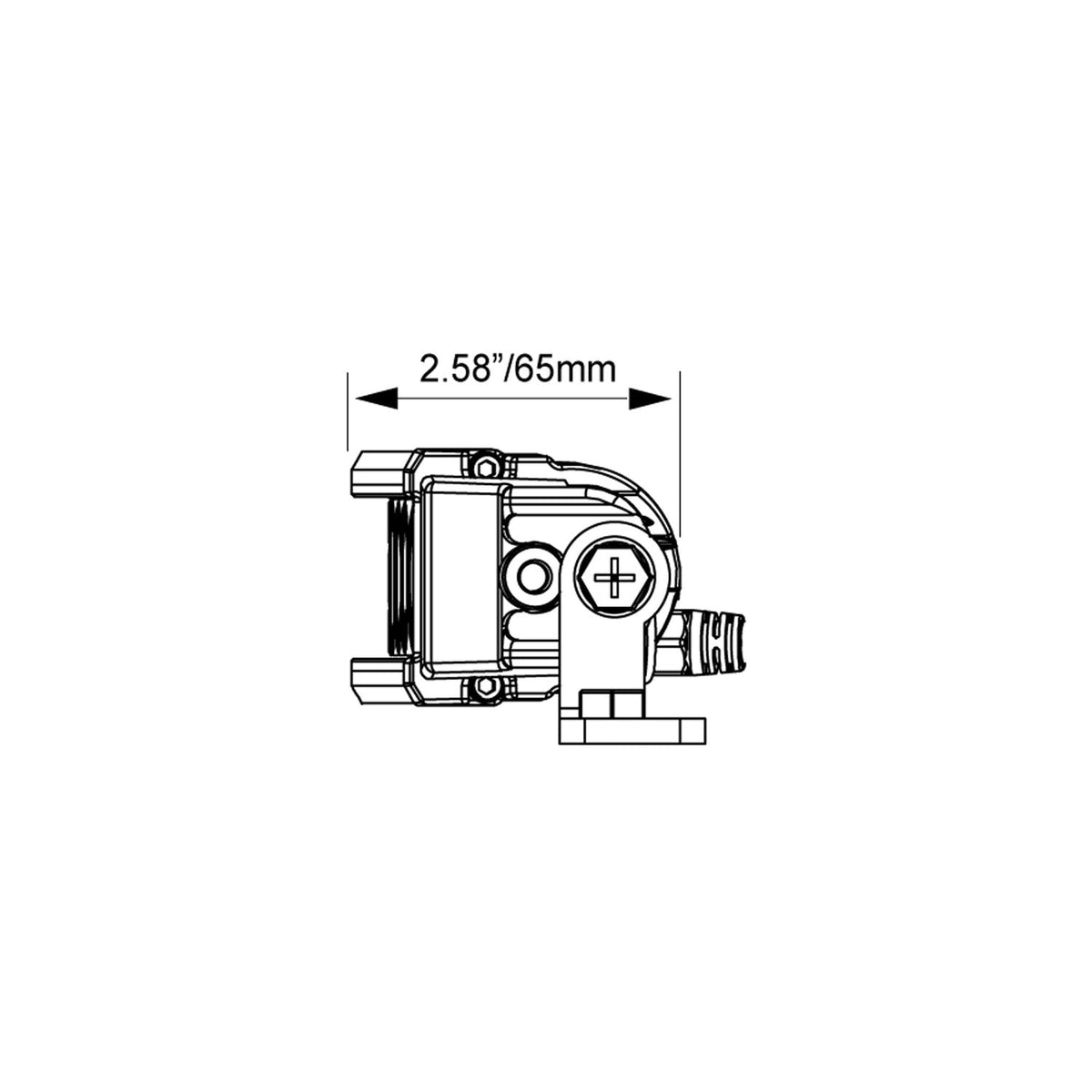

XPL 20″ Curved Halo Light Bar – xpl side (Vision X Lighting XPL-HC15EMH)

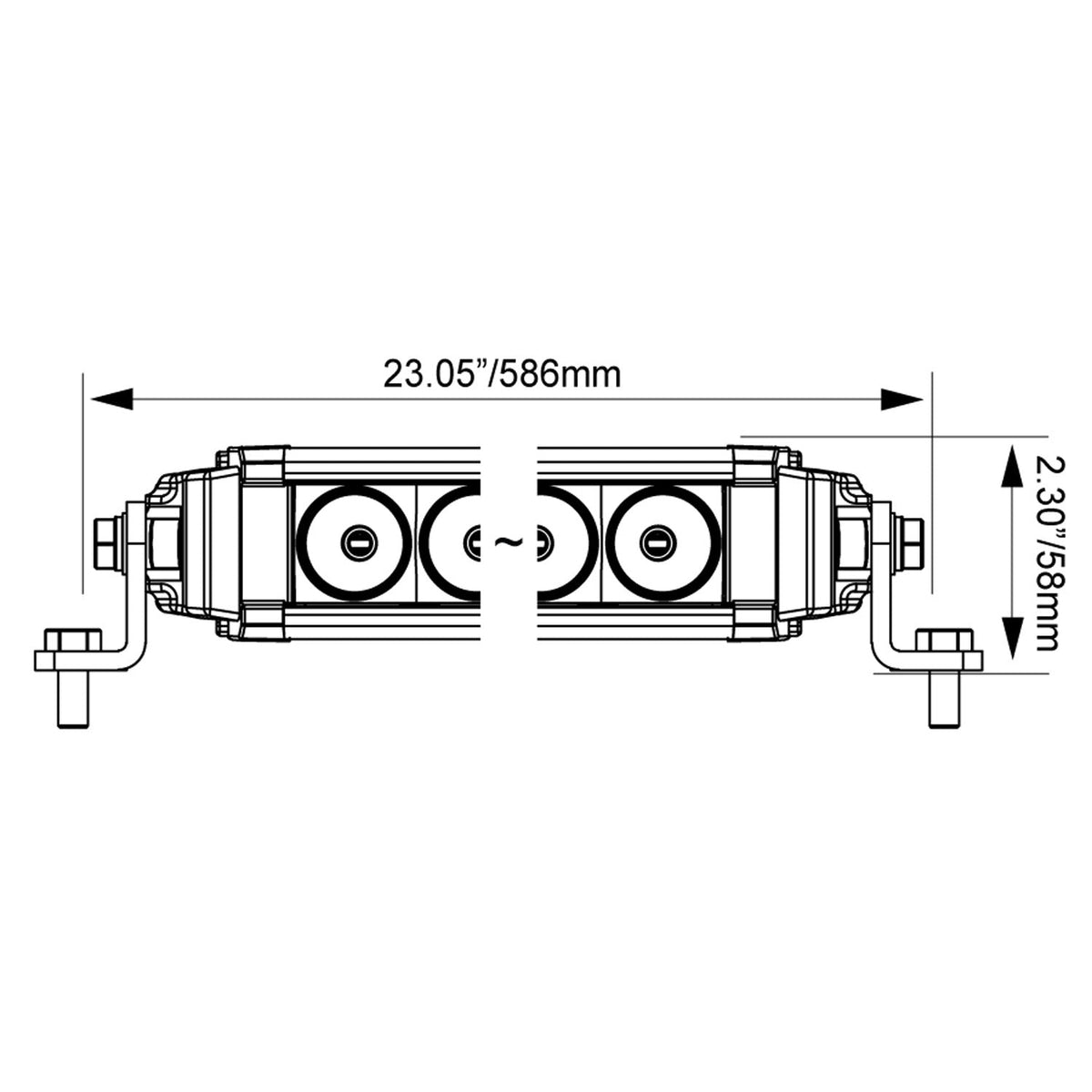

XPL 20″ Curved Halo Light Bar – xpl front (Vision X Lighting XPL-HC15EMH)
XPL 20″ Curved Halo Light Bar – catalog (Vision X Lighting XPL-HC15EMH)
XPL 20″ Curved Halo Light Bar – main (Vision X Lighting XPL-HC15EMH)
XPL 20″ Curved Halo Light Bar – Vision X Lighting XPL-HC15EMH, photo 3 of 9
XPL 20″ Curved Halo Light Bar – xpl curved led light bar (Vision X Lighting XPL-HC15EMH)
XPL 20″ Curved Halo Light Bar – xpl curved led light bar (Vision X Lighting XPL-HC15EMH) – photo 5
XPL 20″ Curved Halo Light Bar – vision x xpl curved led light bar (Vision X Lighting XPL-HC15EMH)
XPL 20″ Curved Halo Light Bar – vision x xpl curved led light bar (Vision X Lighting XPL-HC15EMH) – photo 7
XPL 20″ Curved Halo Light Bar – xpl side (Vision X Lighting XPL-HC15EMH)
XPL 20″ Curved Halo Light Bar – xpl front (Vision X Lighting XPL-HC15EMH)
Ask an expert

We can help you find the part you need

(888) 723-0041
Mon–Fri: 8:30 AM–5:00 PM ET
Sat: 8:30 AM–12:00 PM ET
Sunday: Closed
Email us (24/7)

XPL 20″ Curved Halo Light Bar

Part #: XPL-HC15EMH

Vision X Lighting
$73999
This Product:
Find your Fit
Universal Fit Note: Check product details - this product may require modification

Description

The Vision X XPL 20″ Curved Halo is a curved LED light bar with a spot beam that reaches far down the trail. Point it down a dark trail or across open ground and the focused spot pushes usable light well past your headlights, so you can carry speed and read what's coming. The bar's gentle arc follows the natural line of a bumper or roof, so it reads as part of the truck instead of an add-on.

Features

  • Iris Reflector optics keep light precise and glare-controlled
  • Backlit halo doubles as a daytime running light
  • End-cap L-bracket mounting with multiple positions for bumpers, bars, and roofs
  • Ultra-slim, low-profile housing keeps visual bulk to a minimum
  • Plug-and-play harness included
Amp Draw 6.25A
Beam Distance 1,070 ft (326 m)
Beam Pattern Spot
Effective Lumens 5,618 lm
Housing Color Black
Input Voltage 9-32V DC
IP Rating IP67/69K
LEDs 15 x 5W
Operating Temperature -40°C to +80°C
Product Dimensions 20.08" x 2.17" x 2.01"
Raw Lumens 8,025 lm
Recommended Fuse 10A
Vibration Rating 21.2 G-rms
Warranty Limited Lifetime
Watts 75W
Product ConditionNEW
