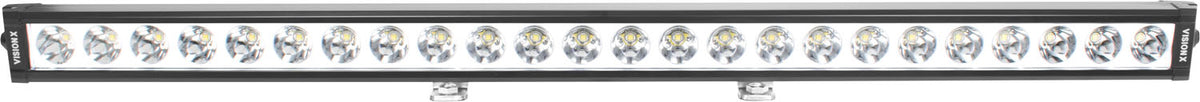

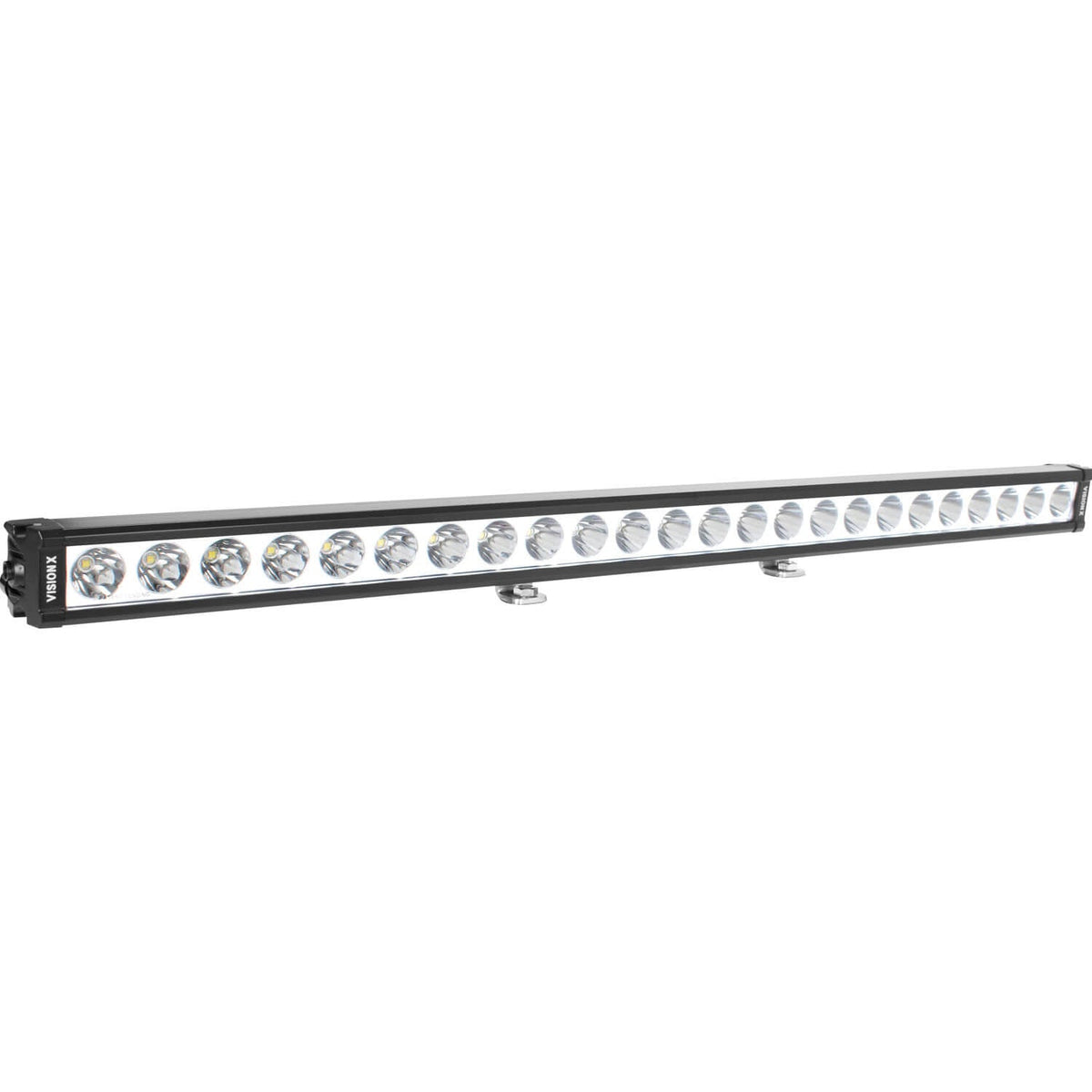

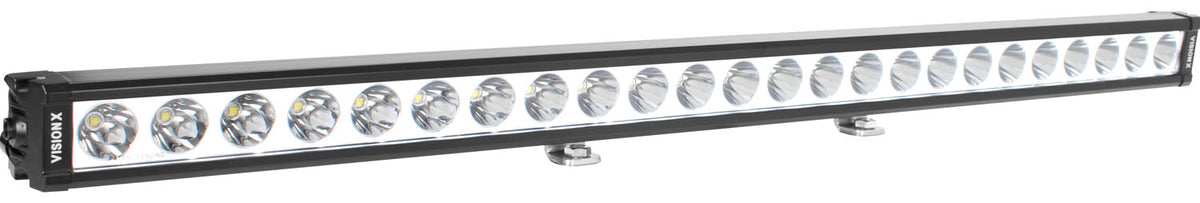

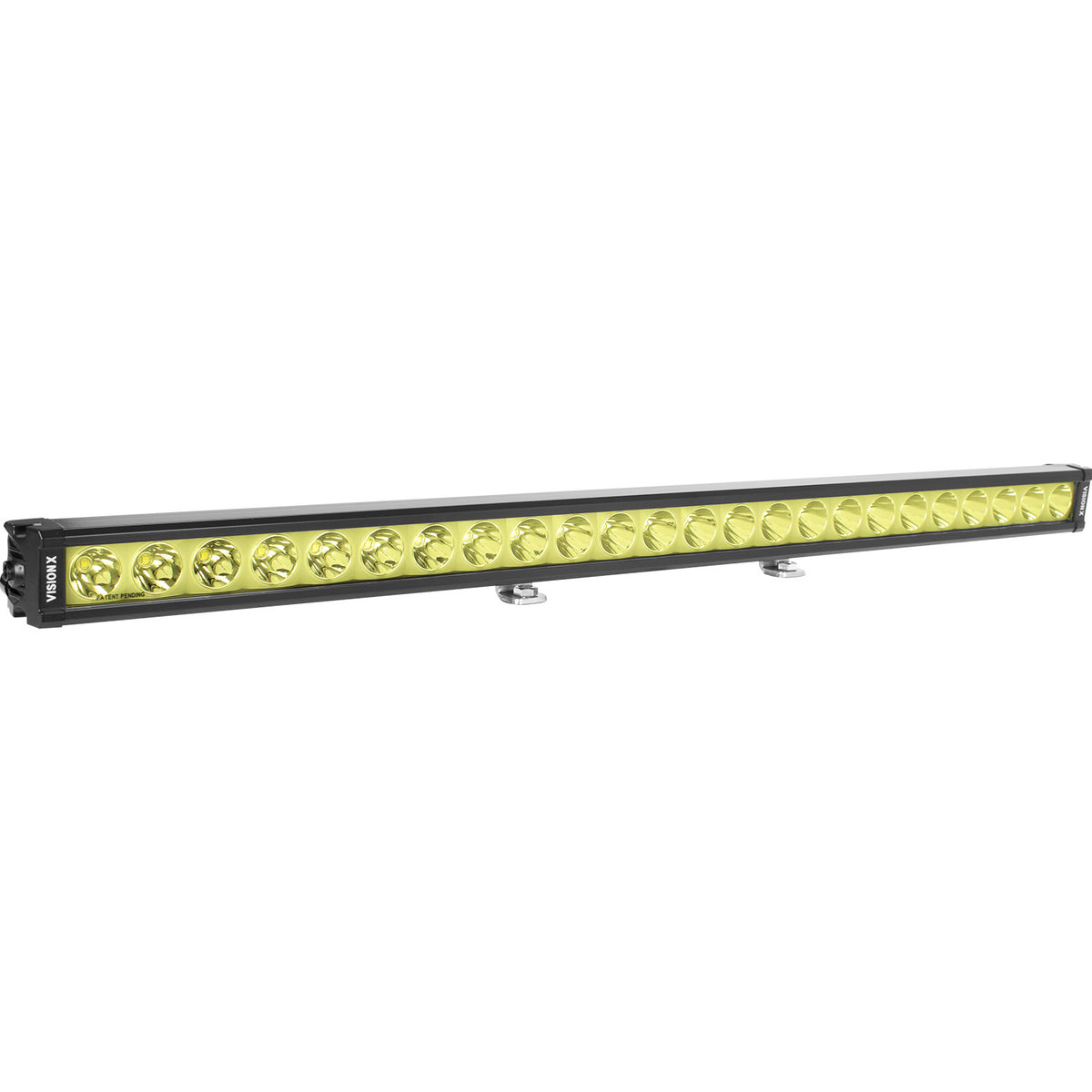

(888) 723-004132″ XPL LED Light Bar
Part #: XPL-H24EMH | XPL-H24SYEMH
Vision X Lighting
Description

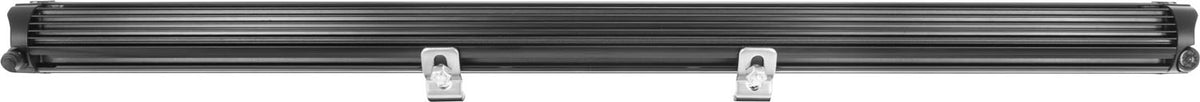

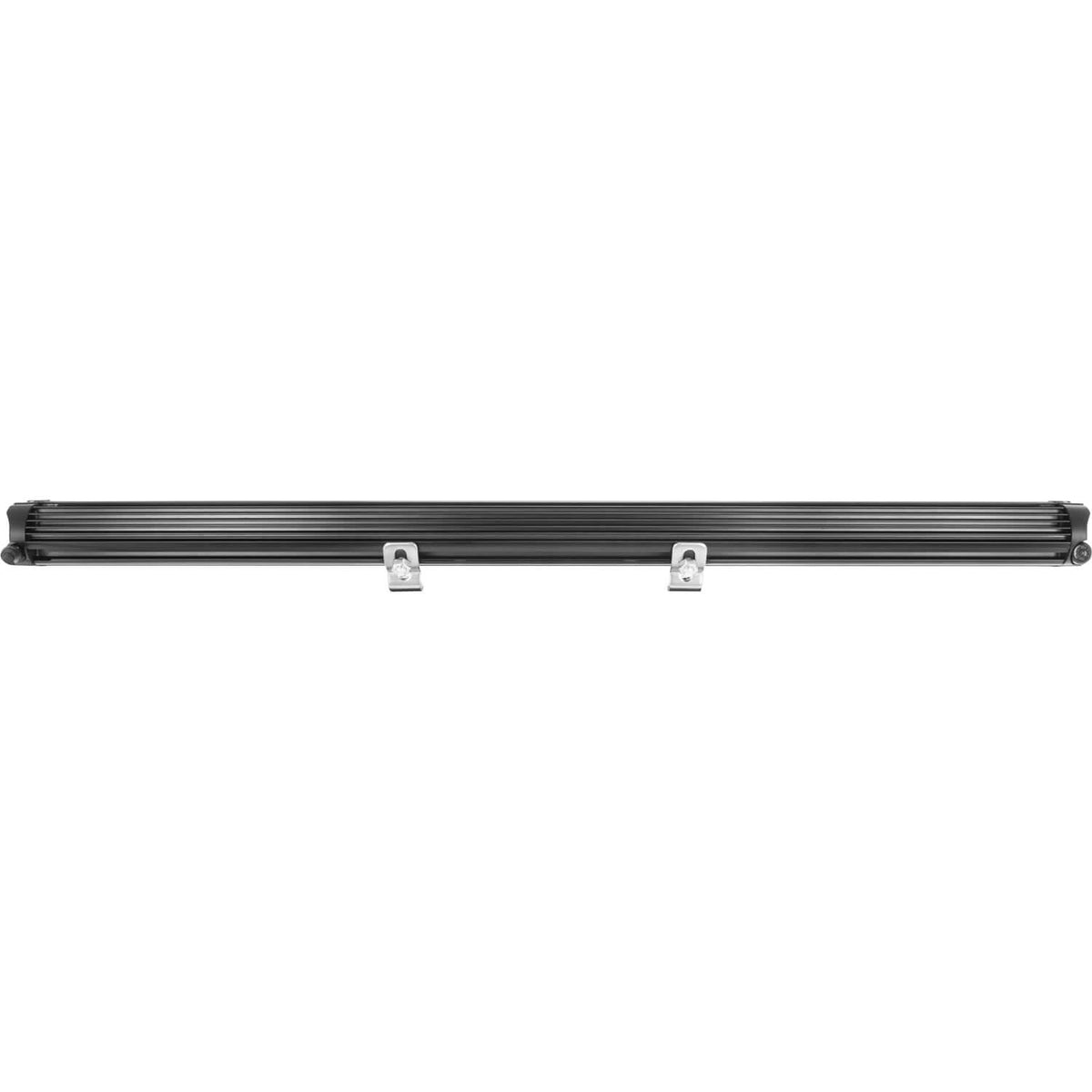

The Vision X 32″ XPL LED light bar delivers a long-distance spot beam from an ultra-slim, low-profile housing. It puts real down-trail reach into a bar far thinner than a traditional light bar, so you add serious forward light without a bulky, high-profile unit taking over your front end. It is long-range reach in a low-profile package.
Features
- Ultra-slim, low-profile housing
- Iris Reflector optics tuned for long-distance spot throw
- Backlit halo runs on its own circuit — daytime running light or accessory marker
- Dual mounting included end-cap wing brackets or adjustable slide-to-fit foot mounts

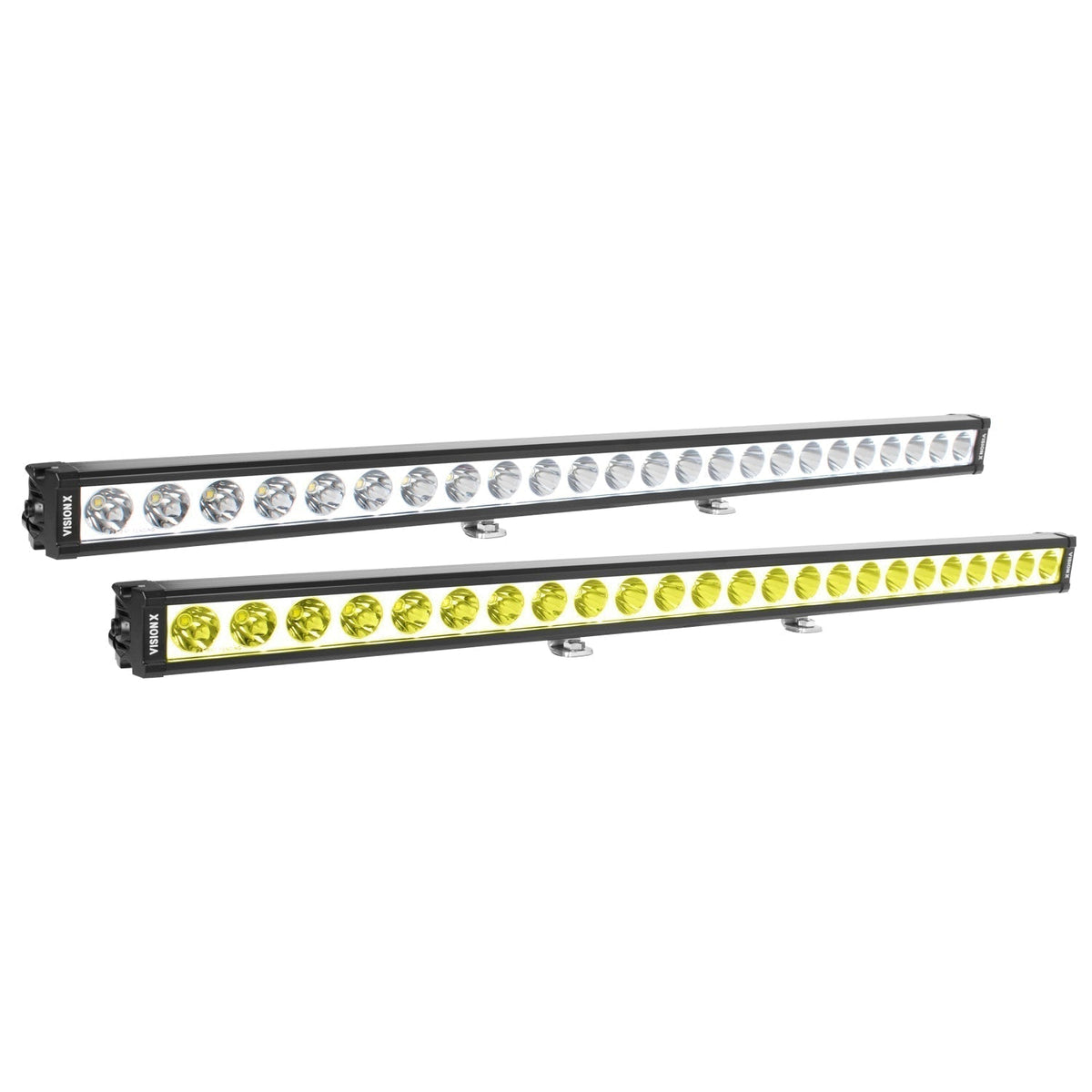

- Available in clear or selective-yellow lens
- Plug-and-play harness with relay and rocker switch included
- Iris Reflector optics for a tight, controlled beam
- Backlit halo on its own circuit, run it as a daytime accent or parking light
- Dual mounting options included
- Plug-and-play harness with relays and rocker switch included
- Clear or Selective Yellow lens option for dust, rain, snow, and fog
- Ultra Slim Curved Housing Design

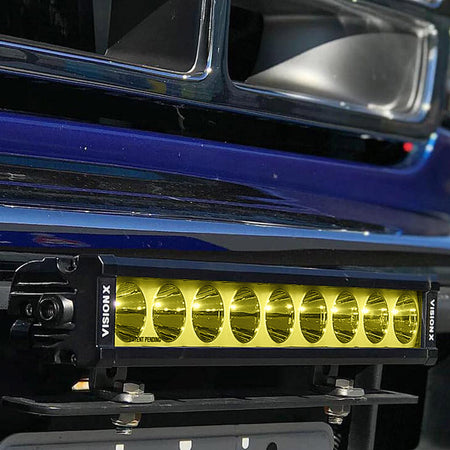

- Selective Yellow Lens for Inscreased Glare Reduction
- Daytime Running Backlit Halo
- Iris Reflector Technology for Superior Light Distance
- Multiple Mounting Options
- Plug and Play Harness Included
| Amp Draw | 10A |
| Beam Distance | 1,805 ft (550 m) |
| Beam Pattern | Spot |
| Effective Lumens | 8,988 lm |
| Housing Color | Black |
| Input Voltage | 9-32V DC |
| IP Rating | IP67/69K |
| LEDs | 24 x 5W CREE |
| Operating Temperature | -40°C to +80°C |
| Product Dimensions | 32.09" x 2.17" x 2.01" |
| Raw Lumens | 12,840 lm |
| Recommended Fuse | 15A |
| Vibration Rating | 21.2 G-rms |
| Warranty | Limited Lifetime |
| Watts | 120W |
| Amp Draw | 10.0A |
| Beam Distance | 1,805 ft (550 m) |
| Beam Pattern | Spot Beam |
| Effective Lumens | 8,988 lm |
| Housing Color | Black |
| Input Voltage | 9-32V DC |
| IP Rating | IP67/69K |
| LEDs | 24 x 5W |
| Operating Temperature | -40°C to +80°C |
| Product Dimensions | 32.09" x 2.17" x 2.01" |
| Raw Lumens | 12,840 lm |
| Recommended Fuse | 15A |
| Vibration Rating | 21.2 G-rms |
| Warranty | Limited Lifetime |
| Watts | 120W |
| Product Condition | NEW |
| Product Condition | NEW |
