(888) 723-00418″ XPL SAE Fog Light Bar
Part #: XPL-SAE4EMH | XPL-SAE4SYEMH
Vision X Lighting
Description

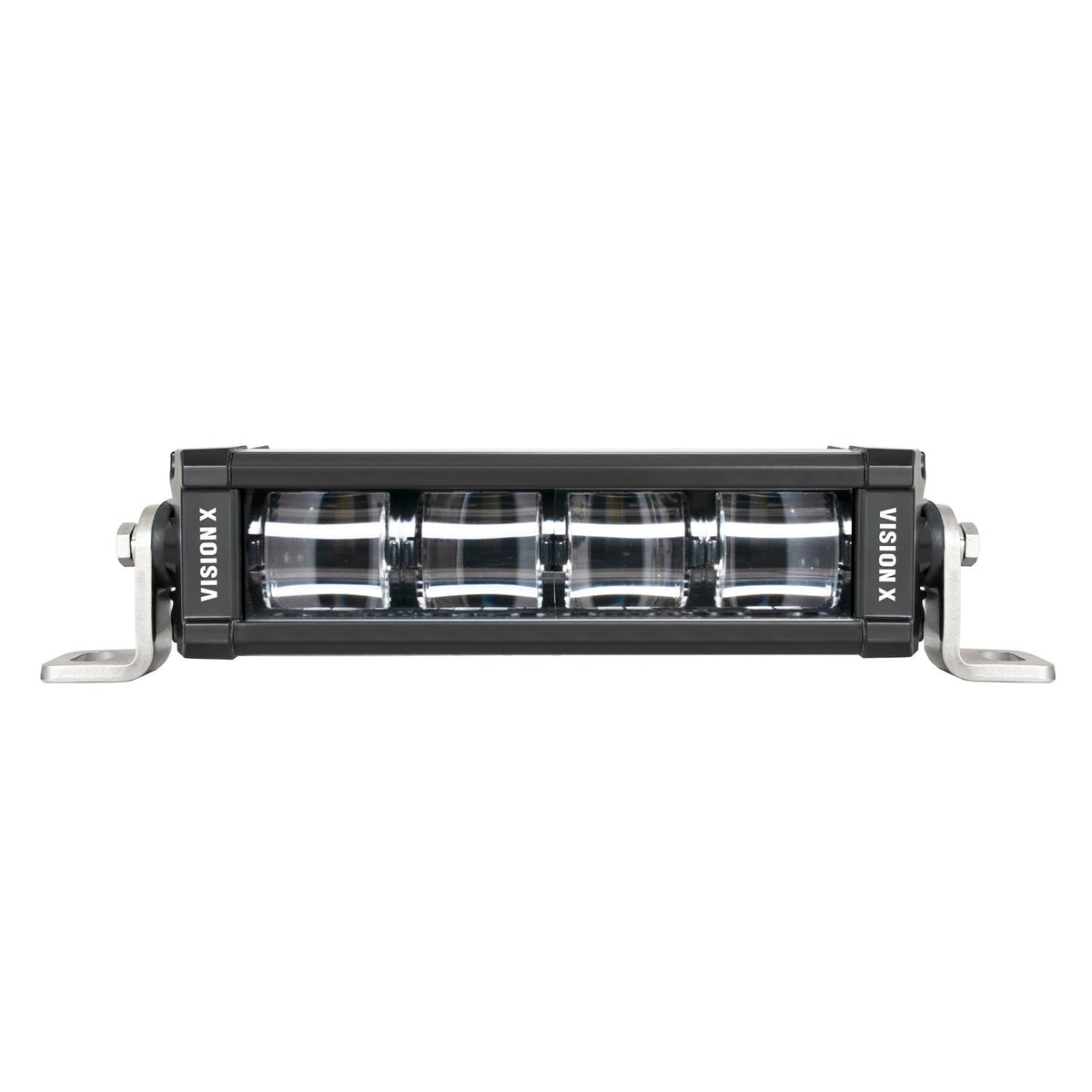

The Vision X 8″ XPL SAE fog light bar is street-legal to SAE J-583, so you can run it on the road where most light bars can't. Its wide elliptical beam lays a sharp horizontal cut-off across the road and shoulders, flooding your lane while keeping glare out of oncoming drivers' eyes. Point it into fog, rain, snow, or blowing dust and that cut-off keeps light down on the road instead of scattering back at you. The wider housing covers more of the road ahead while still sitting cleanly on a mid-size truck.
Features
- Photon Light Core optics keep the light clean and even across the whole spread

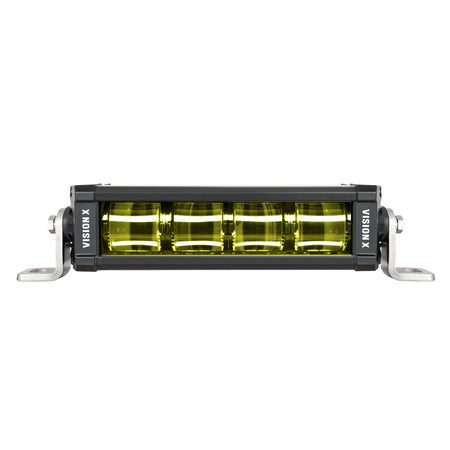

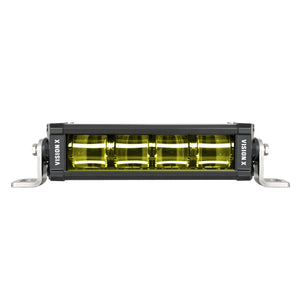

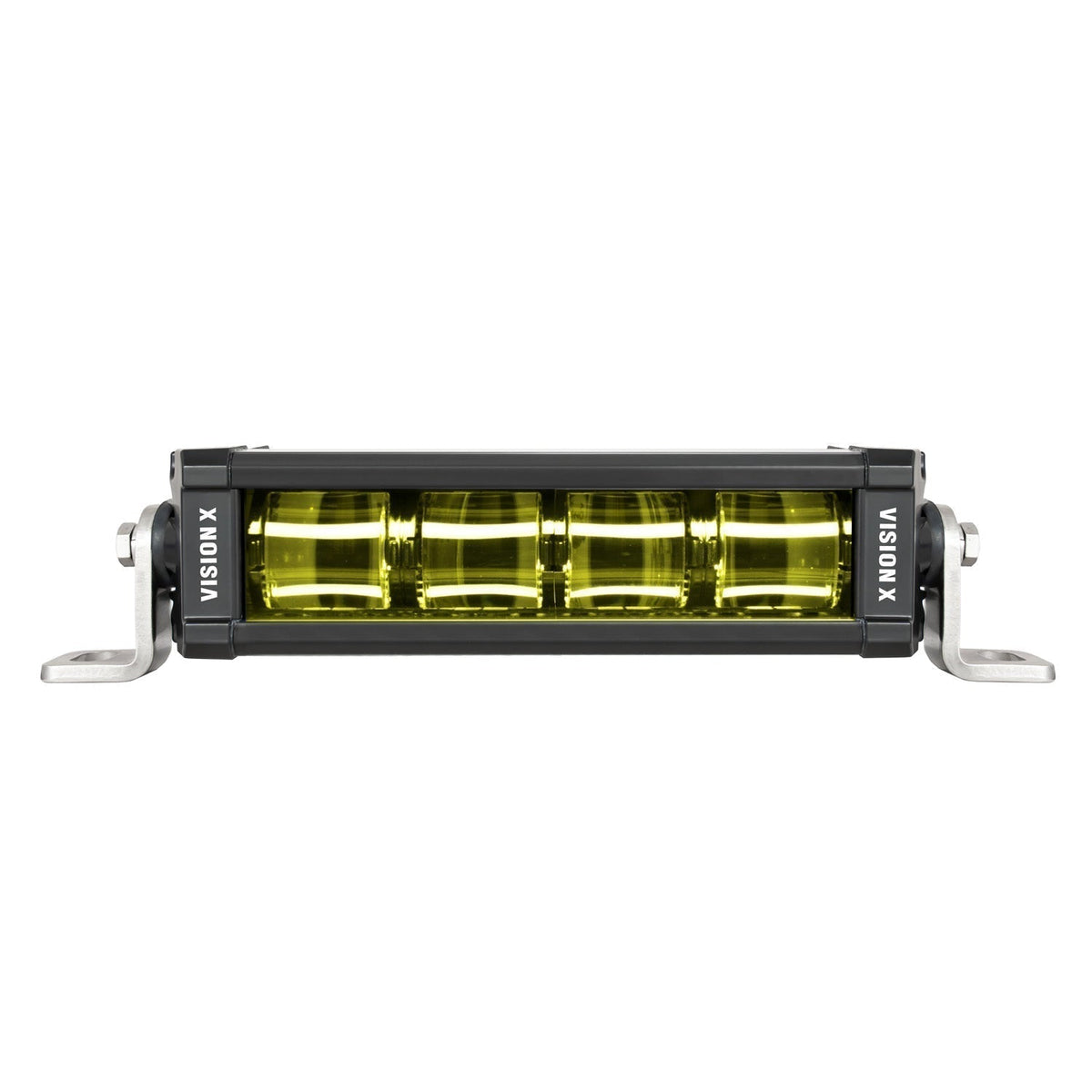

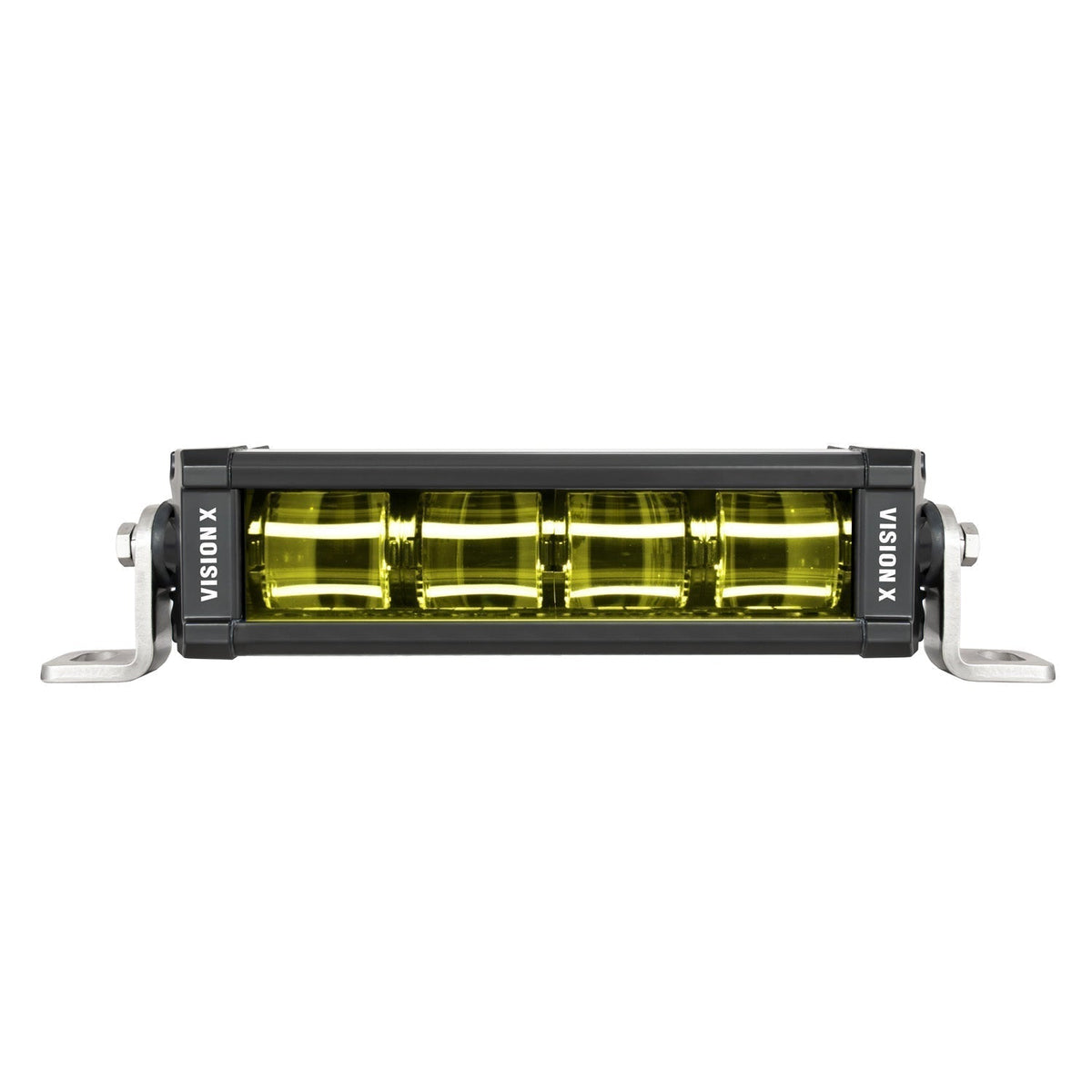

- Clear or Selective Yellow lens option to match your conditions
- Dual-position mounting with side wing brackets and fully adjustable feet
- Sealed housing shrugs off water, dust, and washdowns
- Photon Light Core Style Optic
- Ultra-Wide Elliptical Flood Beam Pattern
- Clear and Selective Yellow Lens Options
- Multiple Mounting Options
- Plug and Play Harness Included
| Amp Draw | 2.25A |
| Beam Distance | 460 ft (140 m) |
| Beam Pattern | Elliptical |
| Housing Color | Black |
| Input Voltage | 9-32V DC |
| IP Rating | IP67/69K |
| LEDs | 4 |
| Operating Temperature | -40°C to +80°C |
| Product Dimensions | 7.80" x 2.64" x 2.01" |
| Raw Lumens | 3,220 lm |
| Recommended Fuse | 5A |
| Vibration Rating | 21.2 G-rms |
| Warranty | Limited Lifetime |
| Watts | 27W |
| Amp Draw | 2.25A |
| Beam Distance | 460 ft (140 m) |
| Beam Pattern | Elliptical Beam |
| Housing Color | Black |
| Input Voltage | 9-32V DC |
| IP Rating | IP67/69K |
| Operating Temperature | -40°C to +80°C |
| Product Dimensions | 7.80" x 2.64" x 2.01" |
| Raw Lumens | 3,220 lm LU |
| Recommended Fuse | 3A |
| SAE Compliance | SAE J583 Fog |
| Vibration Rating | 21.2 G-rms |
| Warranty | Limited Lifetime |
| Watts | 27W |
| Product Condition | NEW |
| Product Condition | NEW |
