(888) 723-0041CG2 3.7″ Single-LED Cannon (Pair)
Part #: CG2-CPR110 | CG2-CPR110KIT | CG2-CPR110SY | CG2-CPR110SYKIT
Vision X Lighting
Description

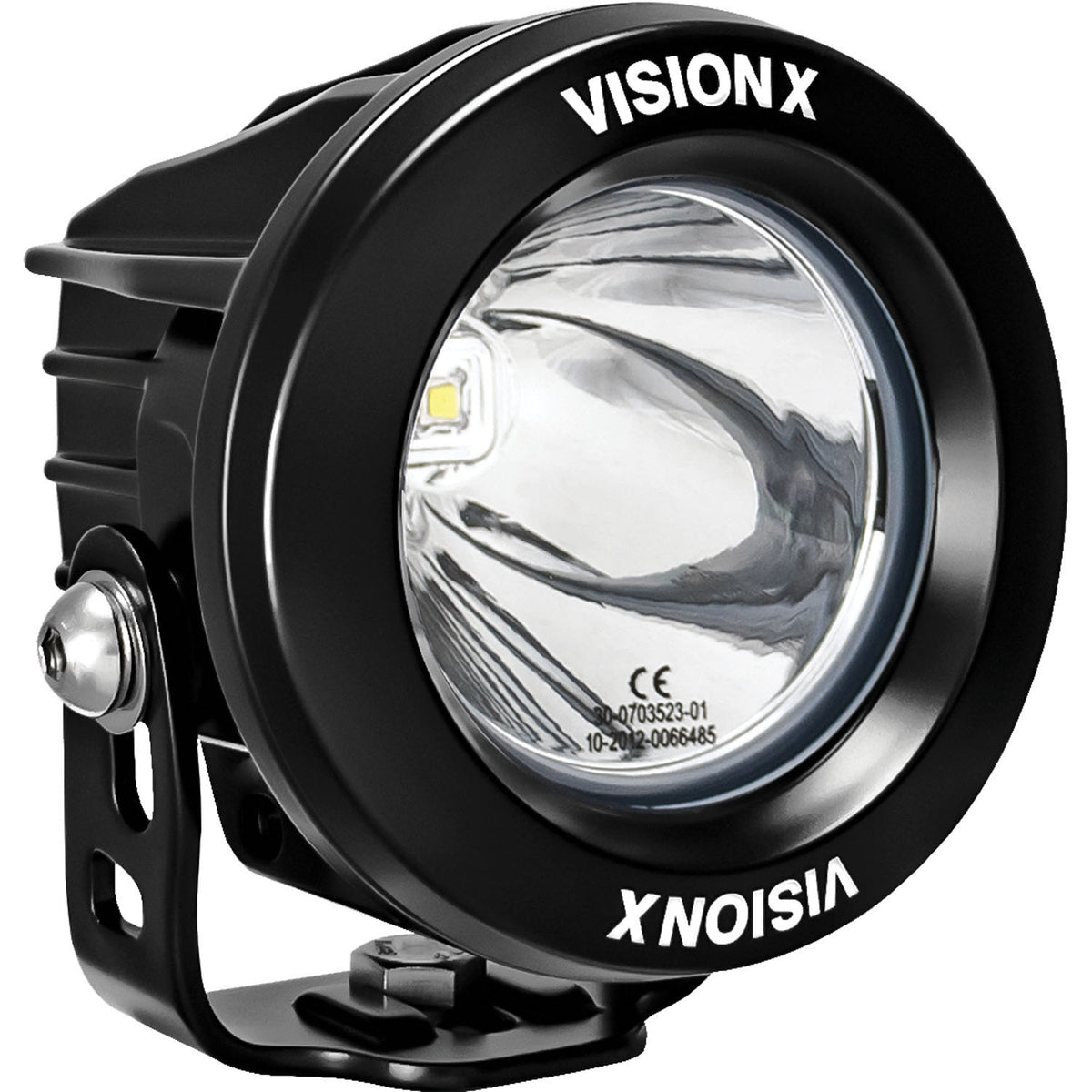

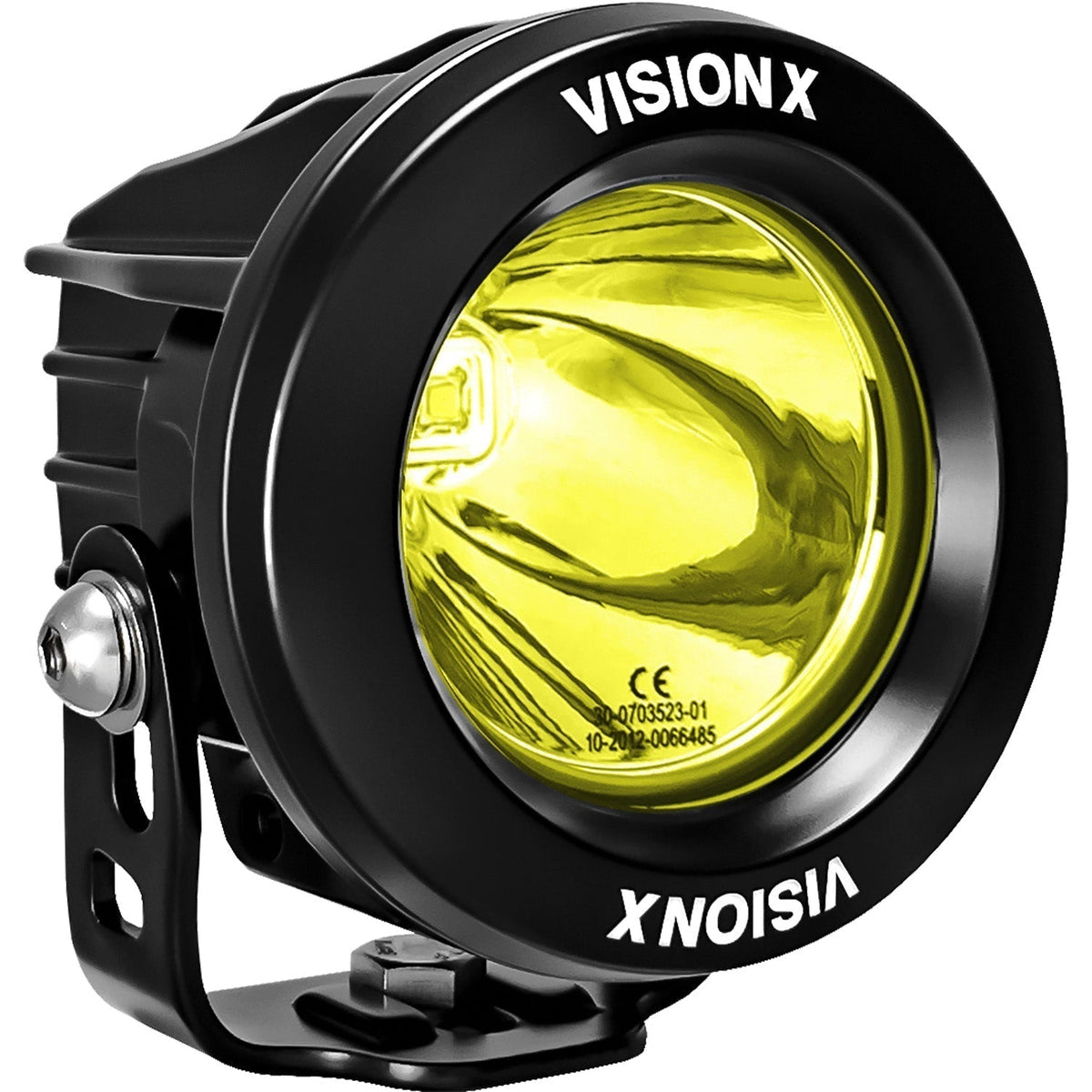

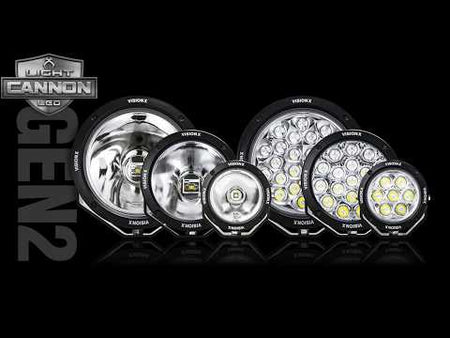

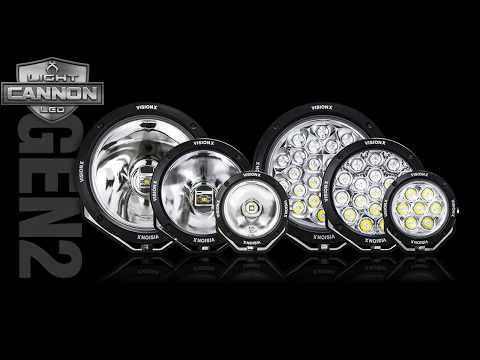

The Vision X 3.7" CG2 single-LED mini light cannon focuses a tight spot beam out of a small round housing. It concentrates its light for distance in a body small enough to tuck into tight mounting spots. Choose the clear lens for maximum output or the selective-yellow lens for dust, rain, snow, and fog.
Features

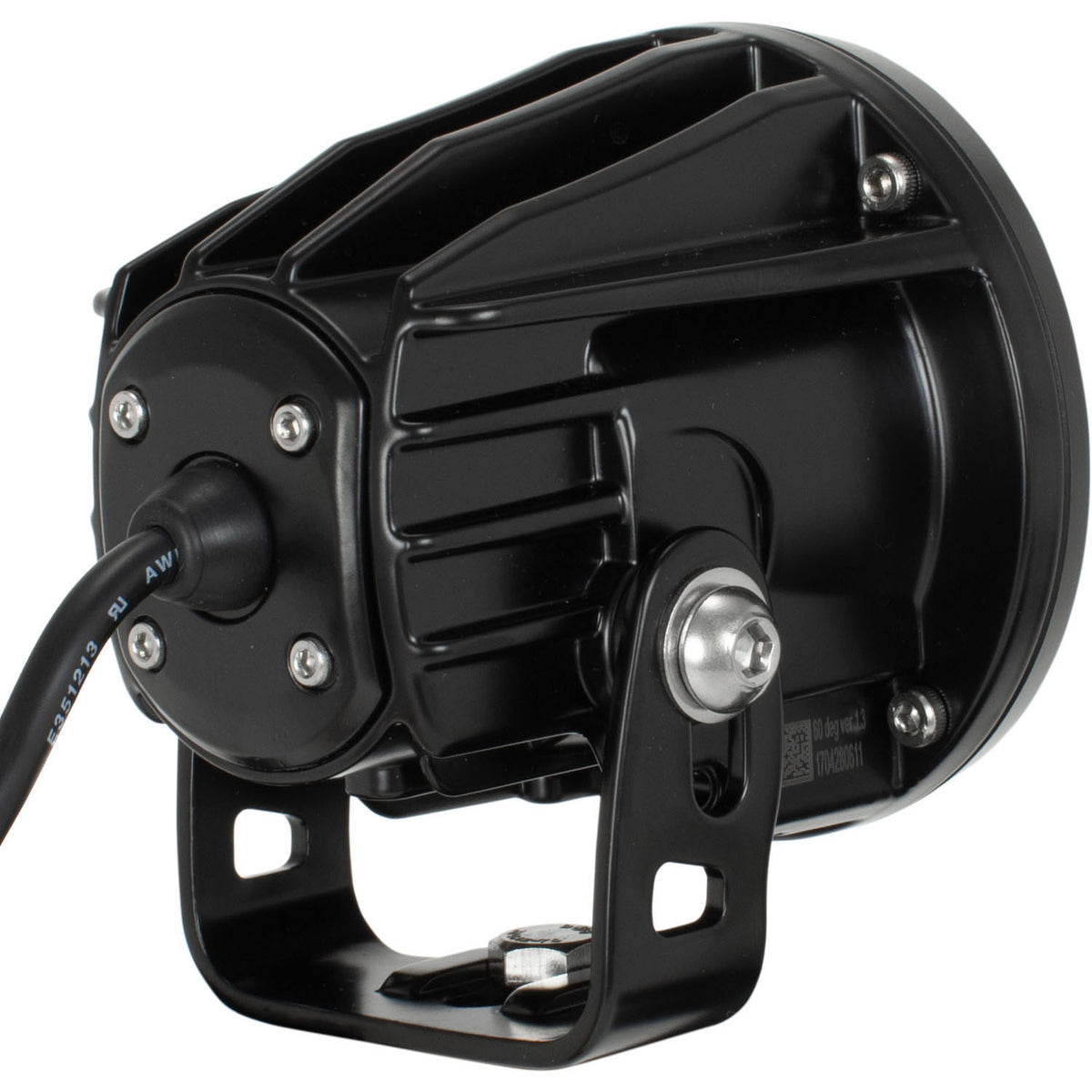

- Advanced Iris Reflector optics for a controlled, glare-managed beam Adjustable steel trunnion mount for a wide aiming range Sealed aluminum-polycarbonate housing built for weather and washdowns Works with Vision X's 25-Lights-In-One snap-on cover system to change beam or color, sold separately
- Single Source 10W LED for a Long Distance Spot Beam Pattern

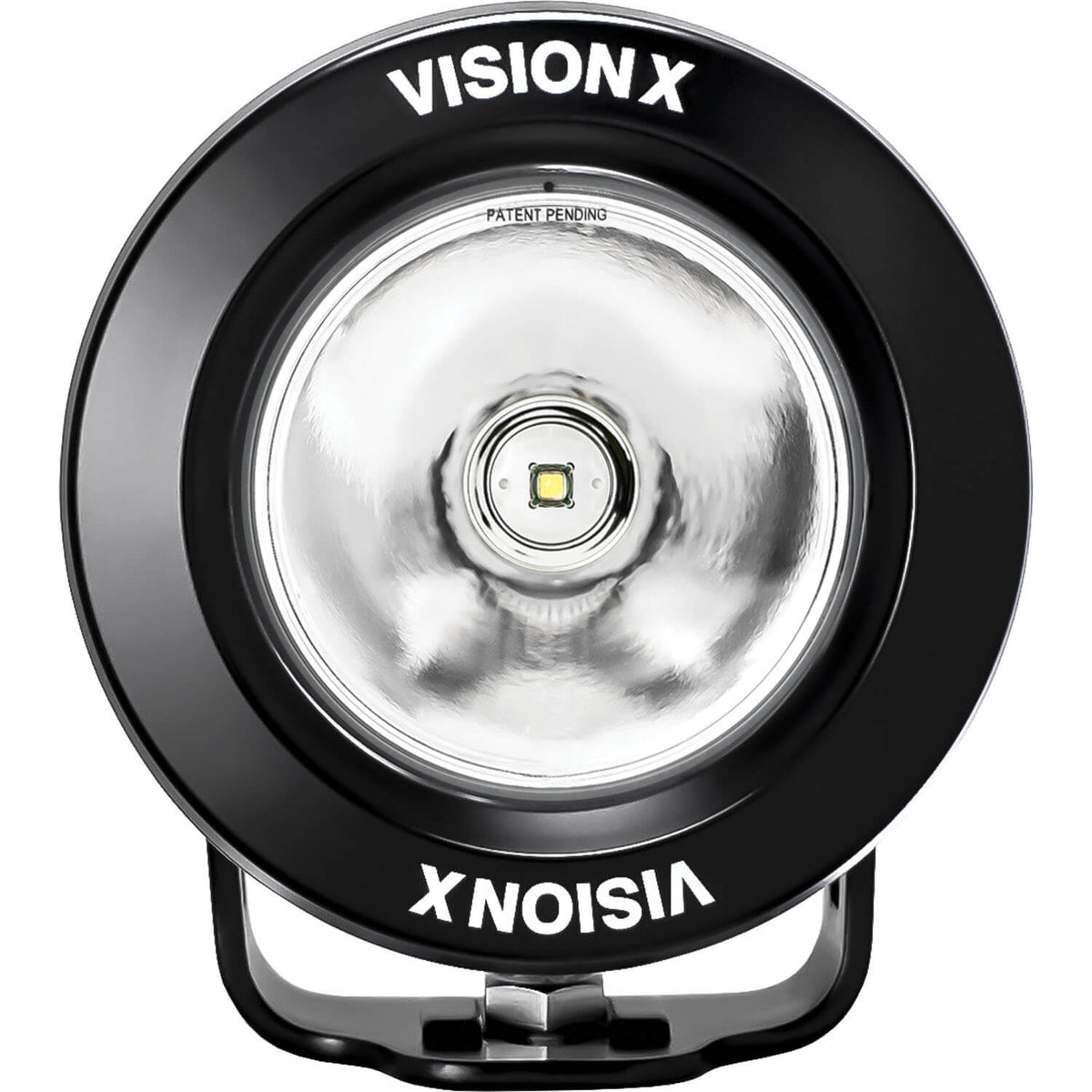

- Iris Reflector Technology for Superior Distance
- Highest Quality CREE LEDs
- Snap-On Color and Beam Changing Covers Available

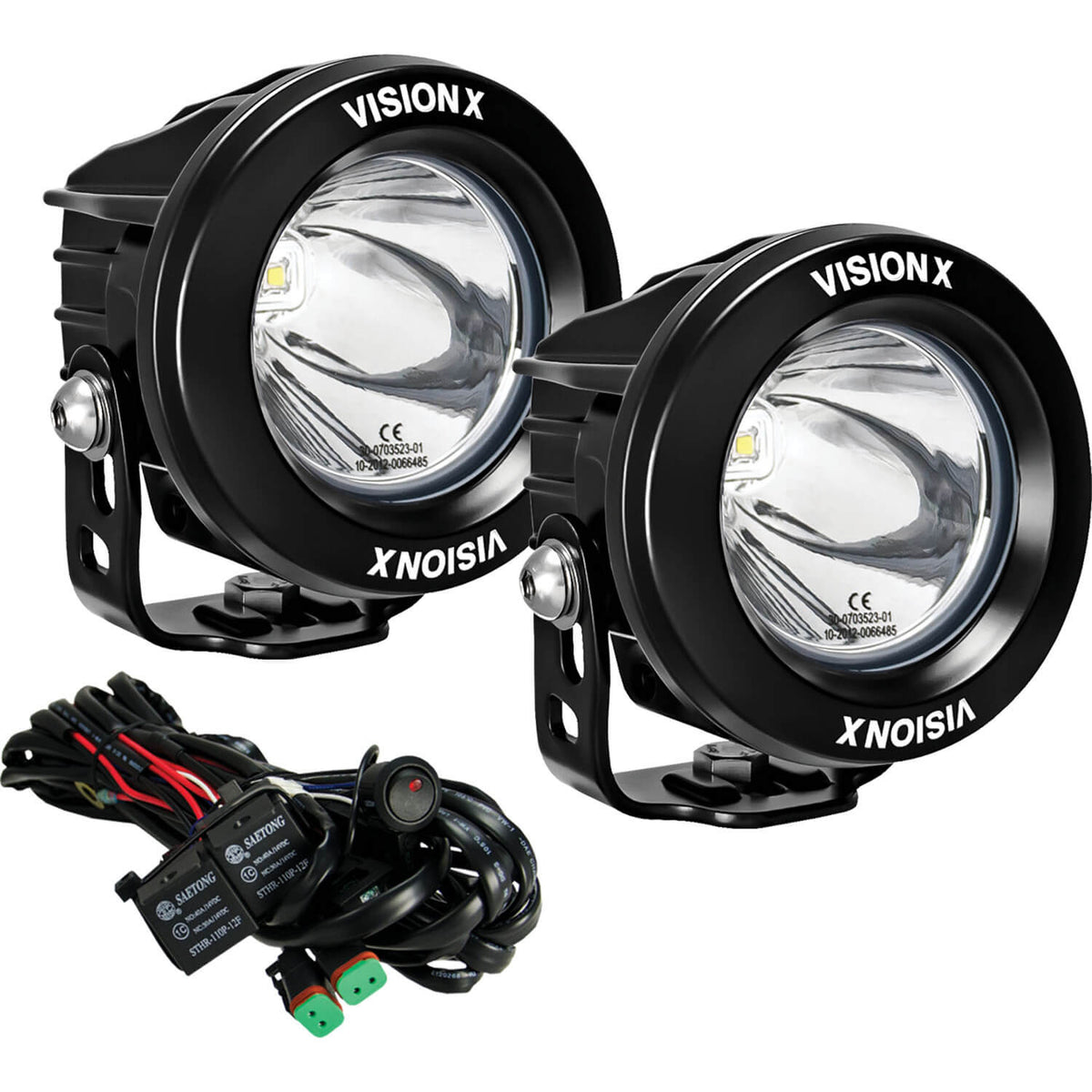

- Plug And Play Harness Included
Compatibility
Manufacturer compatibility notes — please review before purchasing.

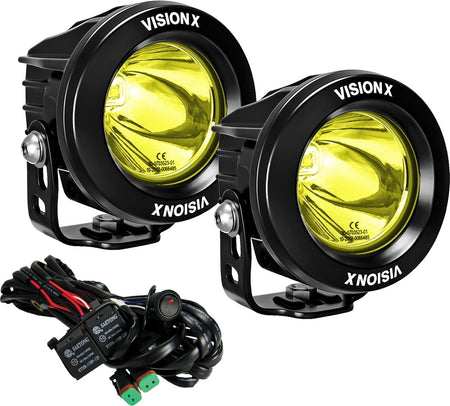

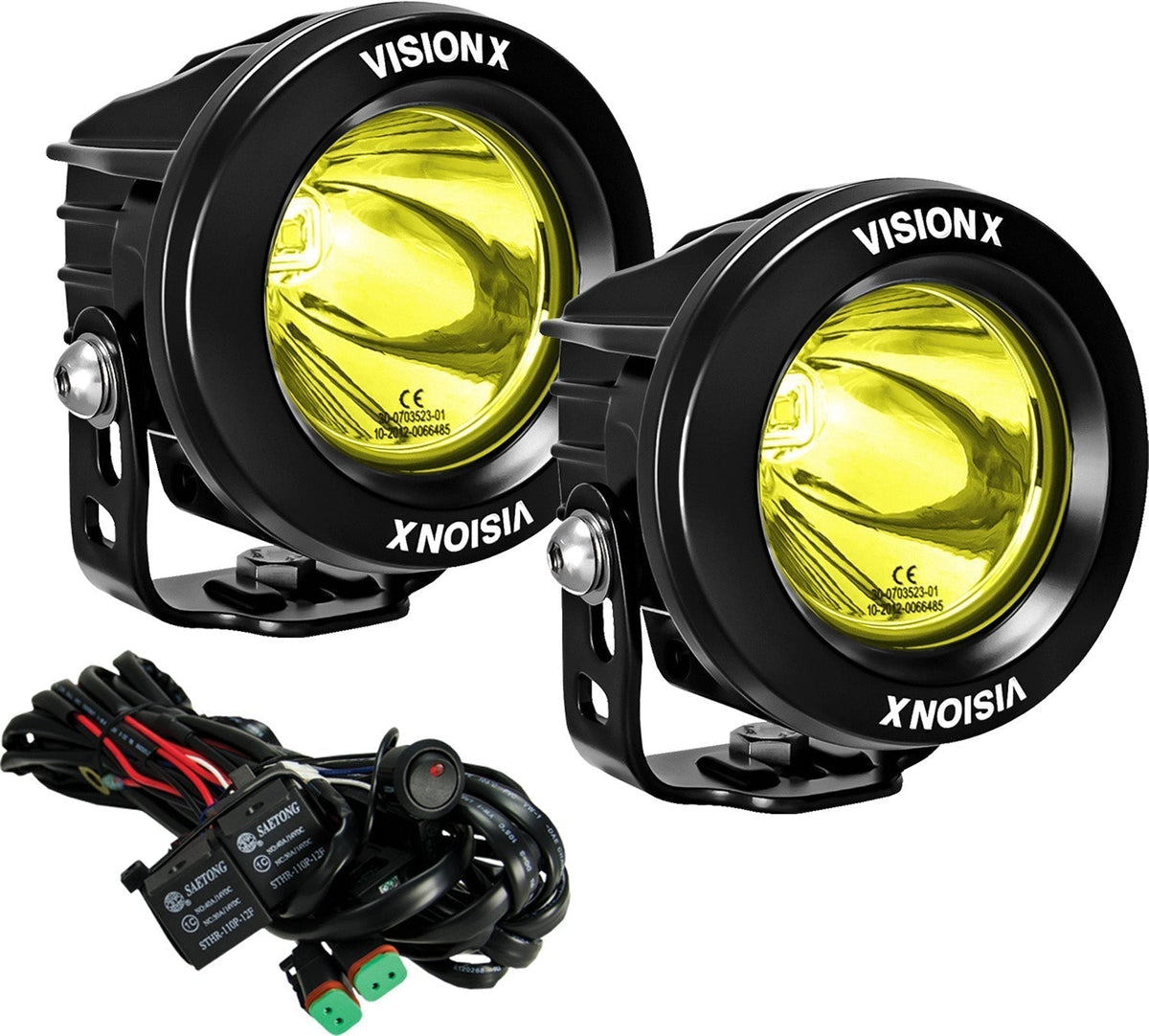

Uses a Deutsch DT connector. Confirm your harness or adapter matches DT before install. The plug-and-play wiring harness is included with Pair (Kit) variants only; single-light units ship without a harness. Selective Yellow lens cuts glare-back in dust, rain, snow, and fog; Clear = maximum output (lens color does not change the electrical or output specs).
| Amp Draw | 0.83A |
| Beam Distance | 1,100 ft (335 m) |
| Beam Pattern | Spot Beam |
| Connector | DT (Deutsch) |
| Effective Lumens | 749 lm LU |
| Housing Color | Black |
| Input Voltage | 9-32V DC |
| IP Rating | IP68/69K |
| LEDs | 1x 10W CREE |
| Materials | Aluminum housing, polycarbonate lens |
| Operating Temperature | -40°C to +85°C |

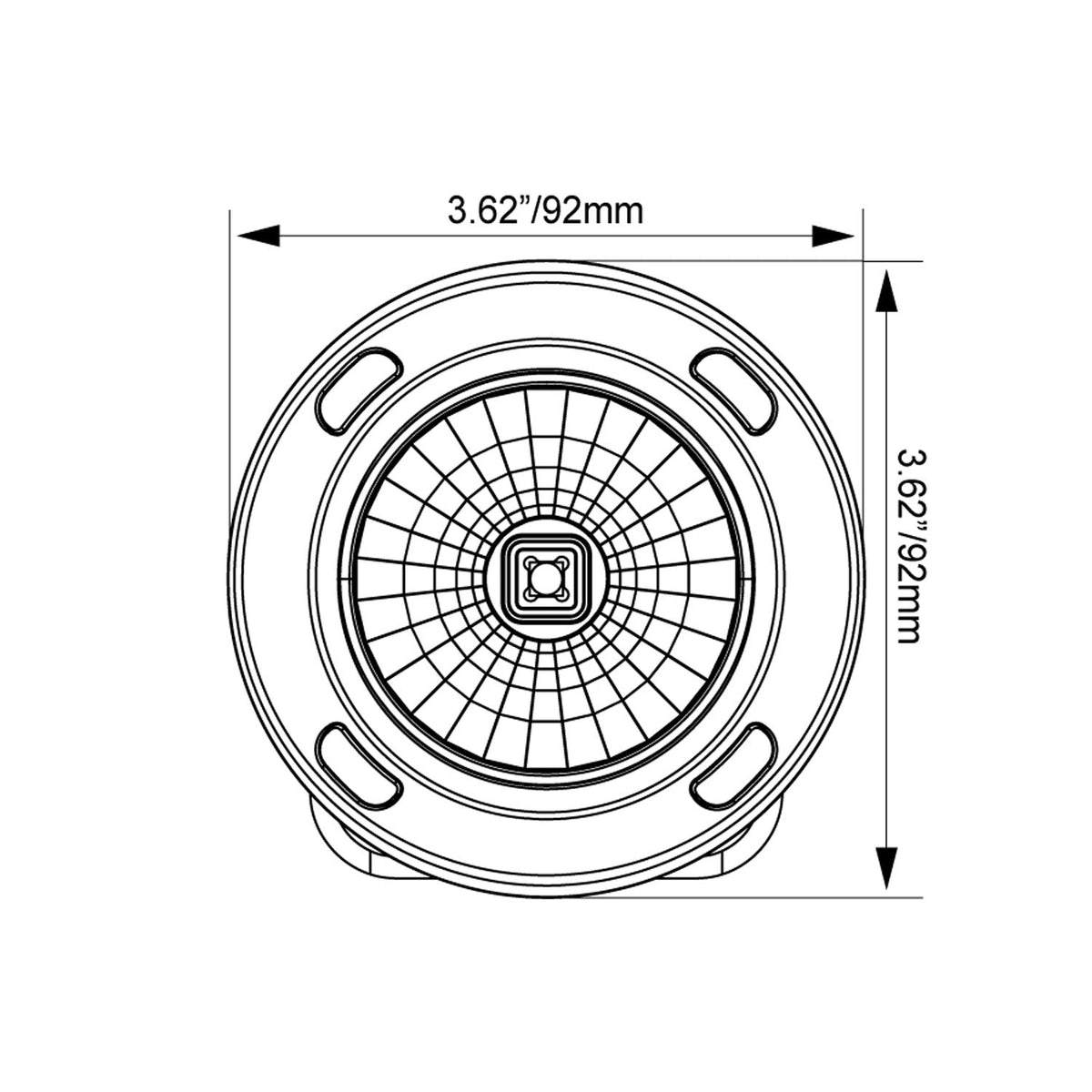

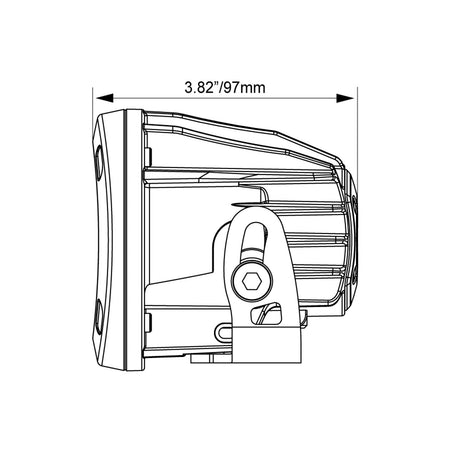

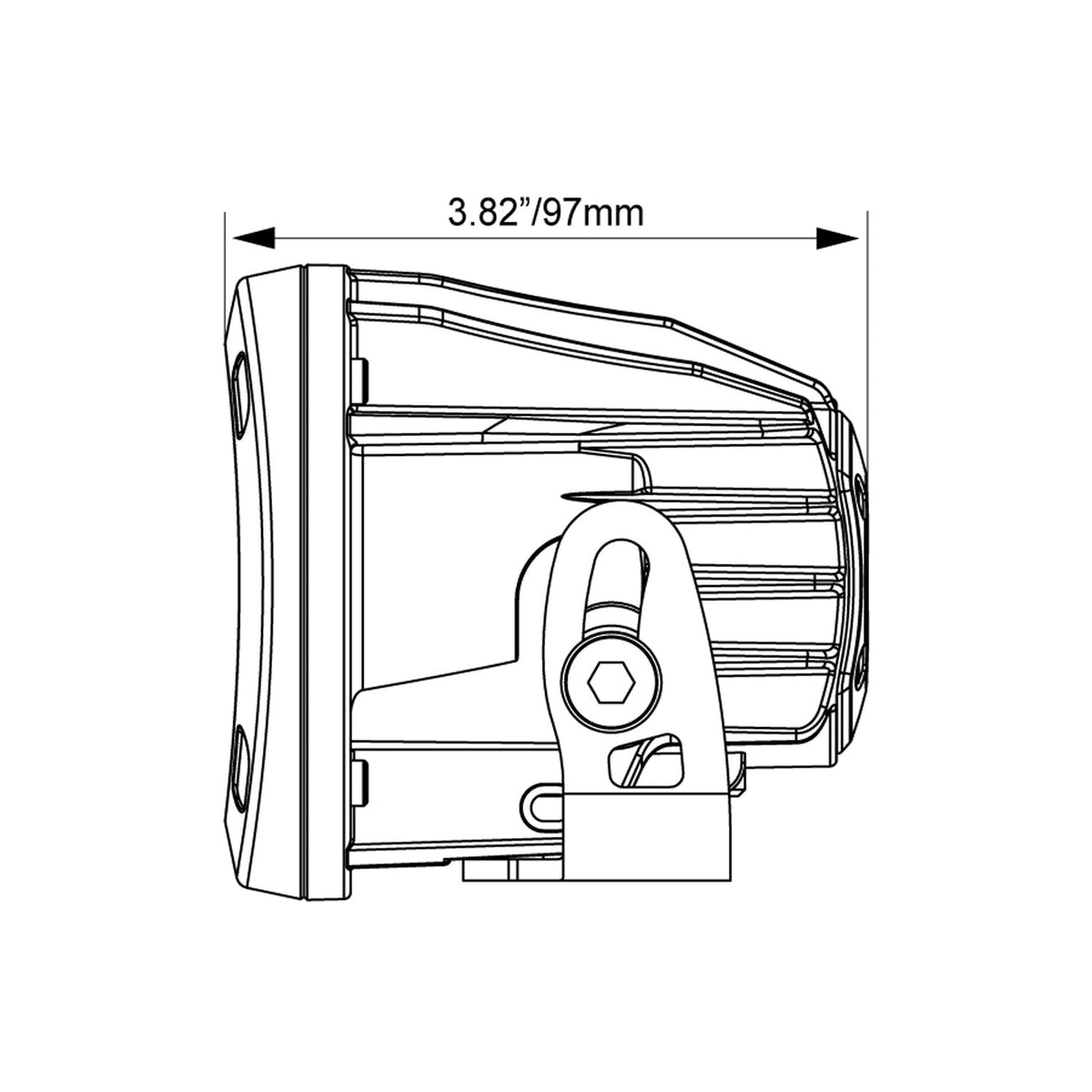

| Product Dimensions (LxWxH) | 3.62 x 3.82 x 3.62 in |
| Raw Lumens | 1,070 lm |
| Recommended Fuse | 2A |
| Vibration Rating | 21.2 G-rms |
| Warranty | Limited Lifetime |
| Watts | 10W |
| Amp Draw | 1.66A |
| Beam Distance | 1,100 ft (335 m) |
| Beam Pattern | Spot Beam |
| Connector | DT (Deutsch) |
| Effective Lumens | 1,498 lm |
| Housing Color | Black |
| Input Voltage | 9-32V DC |
| IP Rating | IP68/69K |
| LEDs | 2x 10W CREE |
| Materials | Aluminum housing, polycarbonate lens |
| Operating Temperature | -40°C to +85°C |
| Product Dimensions (LxWxH) | 3.62 x 3.82 x 3.62 in |
| Raw Lumens | 2,140 lm |
| Recommended Fuse | 3A |
| Vibration Rating | 21.2 G-rms |
| Warranty | Limited Lifetime |
| Watts | 20W |
| Amp Draw | 0.83A |
| Beam Distance | 1,100 ft (335 m) |
| Beam Pattern | Spot Beam |
| Connector | DT (Deutsch) |
| Effective Lumens | 749 lm |
| Housing Color | Black |
| Input Voltage | 9-32V DC |
| IP Rating | IP68/69K |
| LEDs | 1x 10W CREE |
| Materials | Aluminum housing, polycarbonate lens |
| Operating Temperature | -40°C to +85°C |
| Product Dimensions (LxWxH) | 3.62 x 3.82 x 3.62 in |
| Raw Lumens | 1,070 lm |
| Recommended Fuse | 2A |
| Vibration Rating | 21.2 G-rms |
| Warranty | Limited Lifetime |
| Product Condition | NEW |
| Product Condition | NEW |
