(888) 723-0041CG2 3.7″ SAE Cannon (Single)
Part #: CG2-CPR1SAE | CG2-CPR1SAEKIT | CG2-CPR1SAESY | CG2-CPR1SAESYKIT
Vision X Lighting
Description

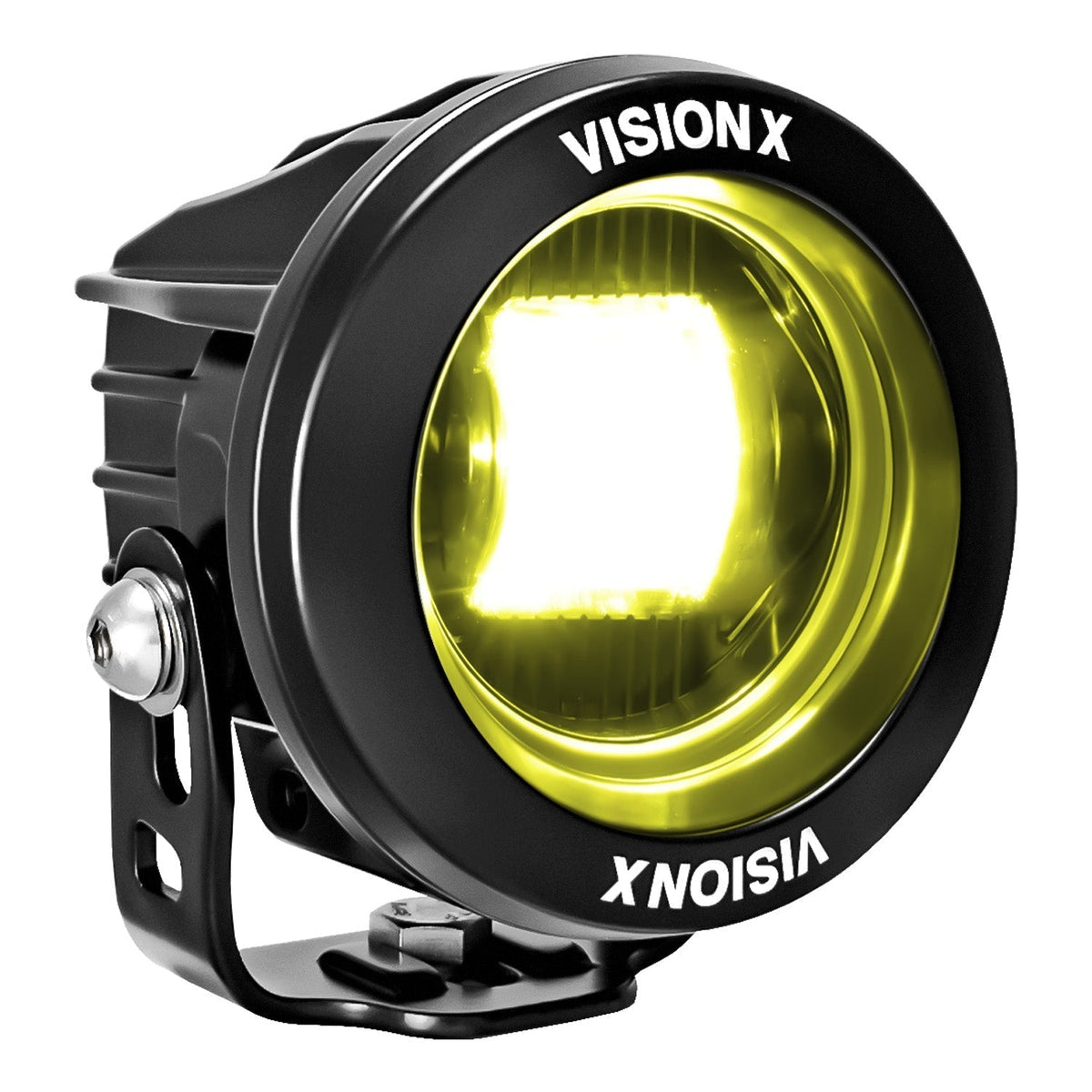

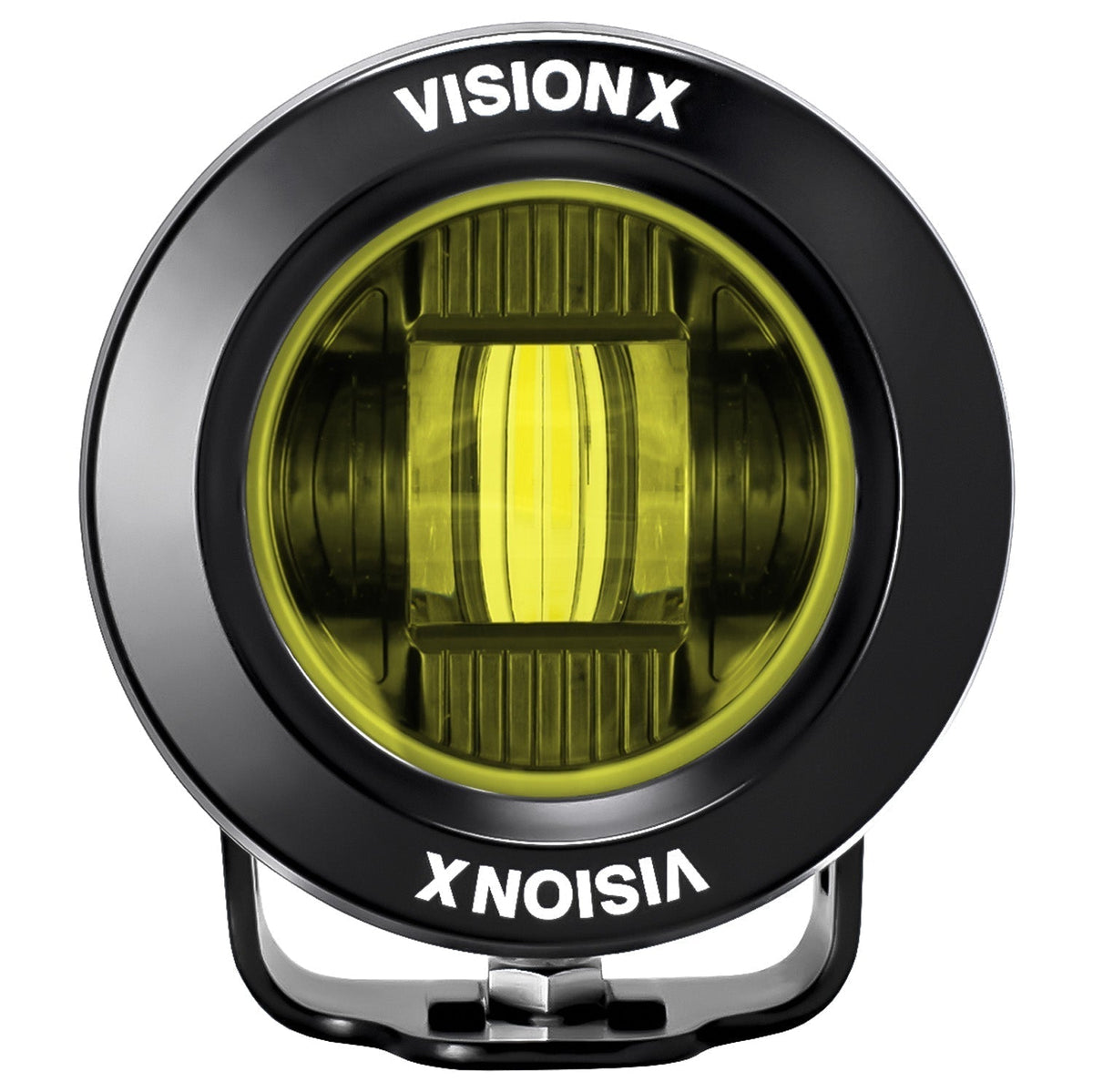

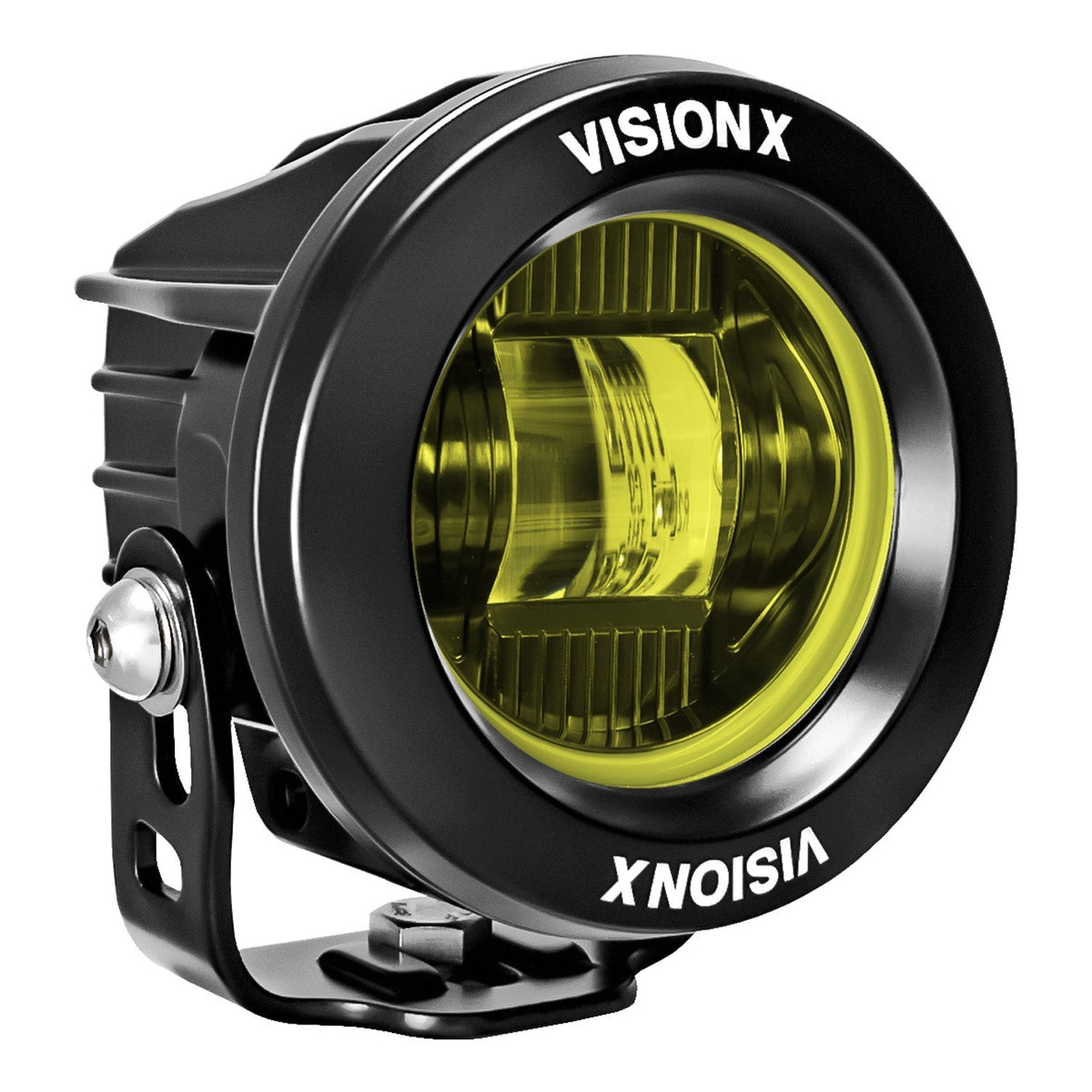

The Vision X 3.7" CG2 SAE light cannon is a street-legal fog light, SAE J583 compliant, built around Vision X's PLC optic to throw an ultra-wide elliptical beam with a sharp cutoff. That cutoff keeps light low on the road and fights the glare-back off dust, rain, snow, and fog, so you see the road instead of a wall of white. Choose the clear lens for maximum output or the selective-yellow lens for the worst of it.
Features
- SAE J583 compliant for street-legal fog use PLC (Photon Light Core) optic technology for an ultra-wide elliptical beam with a sharp cutoff Adjustable steel trunnion mount for a wide aiming range Sealed aluminum-polycarbonate housing built for weather and washdowns
- PLC (Photon Light Core) Optic Technology
- SAE J583 Compliant for Fog Light Applications
- Ultra-wide Elliptical Beam Pattern
- Clear or Selective Yellow Lens Option
- Highest Quality CREE LEDs

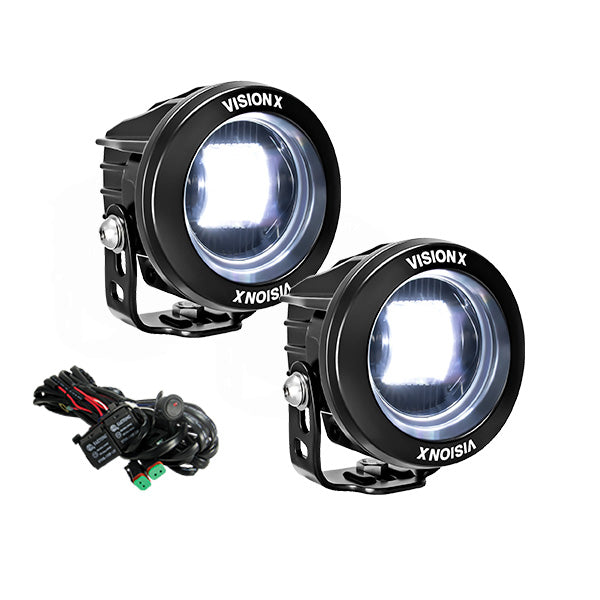

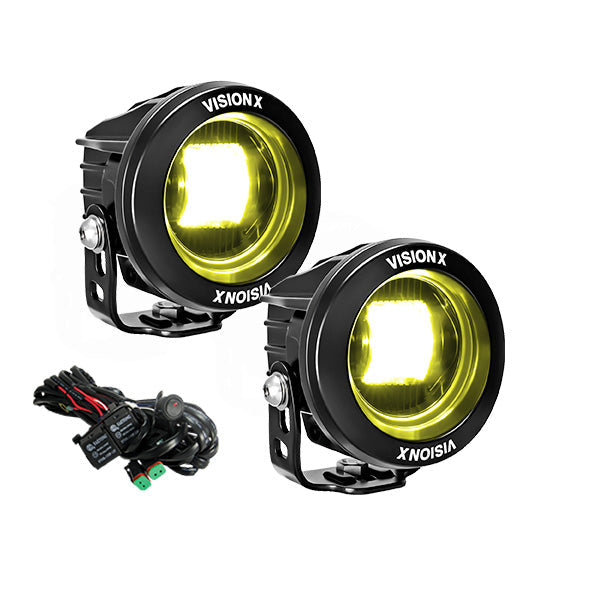

- Plug And Play Harness Included (Pairs Only)
| Amp Draw | 1.66A |
| Beam Distance | 270 ft (82 m) |
| Beam Pattern | Elliptical Beam |
| Housing Color | Black |
| Input Voltage | 9-32V DC |
| IP Rating | IP68/69K |
| Materials | Aluminum housing, polycarbonate lens |
| Operating Temperature | -40°C to +85°C |
| Product Dimensions (LxWxH) | 3.62 x 3.62 x 3.82 in |
| Raw Lumens | 2,160 lm LU |
| Recommended Fuse | 3A |
| Vibration Rating | 21.2 G-rms |
| Warranty | Limited Lifetime |
| Watts | 20W |
| Amp Draw | 3.33A |
| Beam Distance | 270 ft (82 m) |
| Beam Pattern | Elliptical Beam |
| Housing Color | Black |
| Input Voltage | 9-32V DC |
| IP Rating | IP68/69K |
| Materials | Aluminum housing, polycarbonate lens |
| Operating Temperature | -40°C to +85°C |
| Product Dimensions (LxWxH) | 3.62 x 3.62 x 3.82 in |
| Raw Lumens | 4,320 lm LU |
| Recommended Fuse | 5A |
| Vibration Rating | 21.2 G-rms |
| Warranty | Limited Lifetime |
| Watts | 40W |
| Amp Draw | 1.66A |
| Beam Distance | 270 ft (82 m) |
| Beam Pattern | Elliptical Beam |
| Housing Color | Black |
| Input Voltage | 9-32V DC |
| IP Rating | IP68/69K |
| Materials | Aluminum housing, polycarbonate lens |
| Operating Temperature | -40°C to +85°C |
| Product Dimensions (LxWxH) | 3.62 x 3.62 x 3.82 in |
| Raw Lumens | 2,160 lm |
| Recommended Fuse | 3A |
| Vibration Rating | 21.2 G-rms |
| Warranty | Limited Lifetime |
| Watts | 20W |
| Amp Draw | 3.33A |
| Beam Distance | 270 ft (82 m) |
| Beam Pattern | Elliptical Beam |
| Housing Color | Black |
| Input Voltage | 9-32V DC |
| IP Rating | IP68/69K |
| Materials | Aluminum housing, polycarbonate lens |
| Operating Temperature | -40°C to +85°C |
| Product Condition | NEW |
| Product Condition | NEW |
