(888) 723-0041CG2 3″ Multi-LED Cannon (Single)
Part #: CG2-OPM310 | CG2-OPM310KIT | CG2-OPM310SY | CG2-OPM310SYKIT
Vision X Lighting
Description

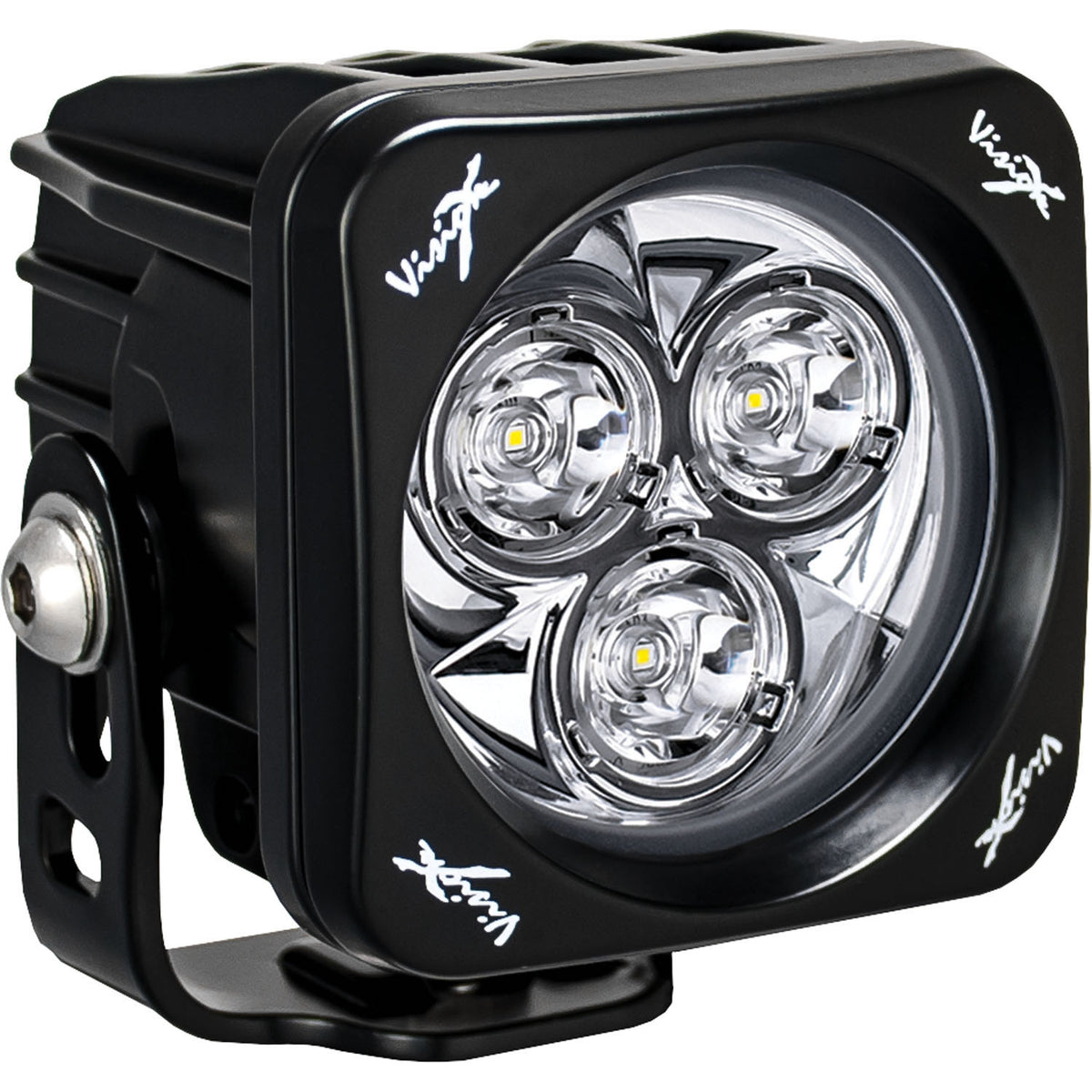

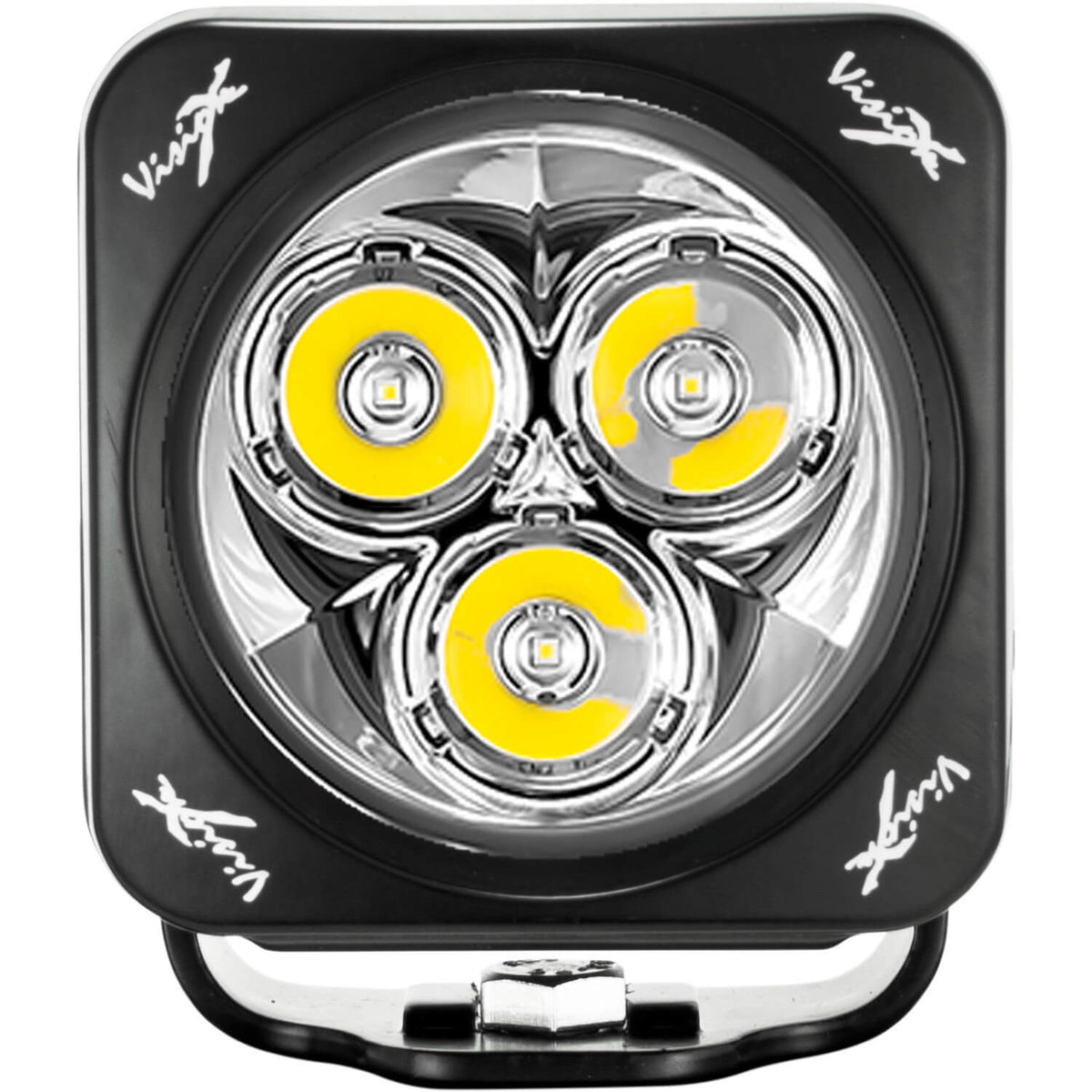

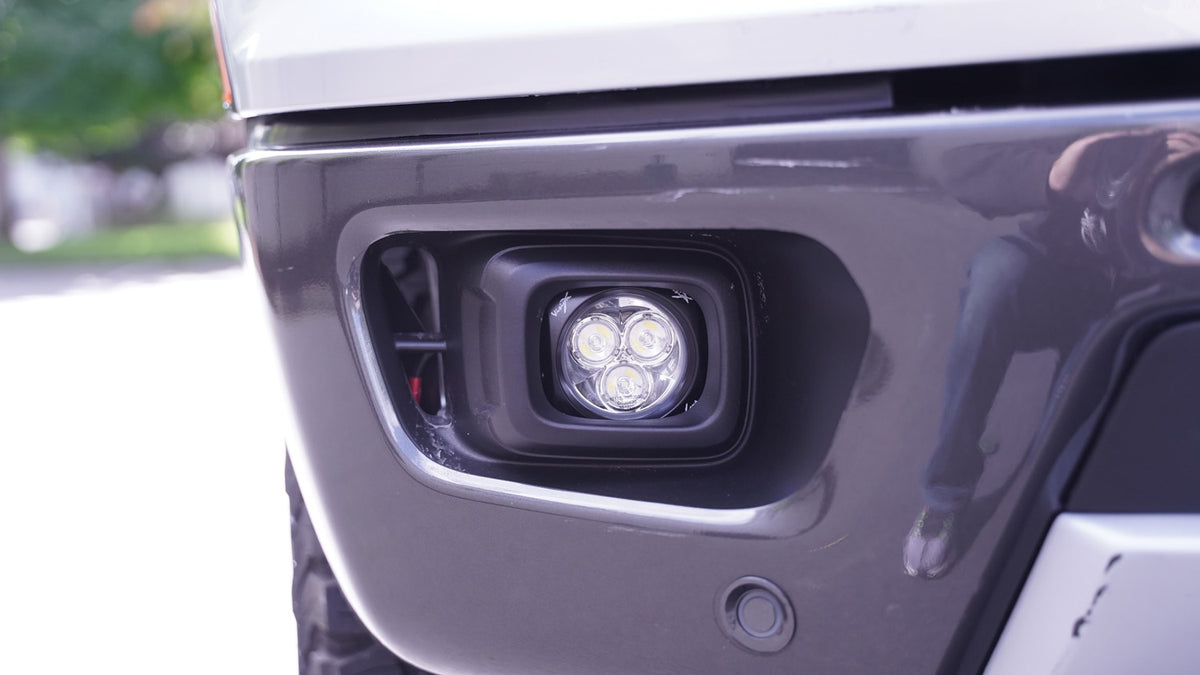

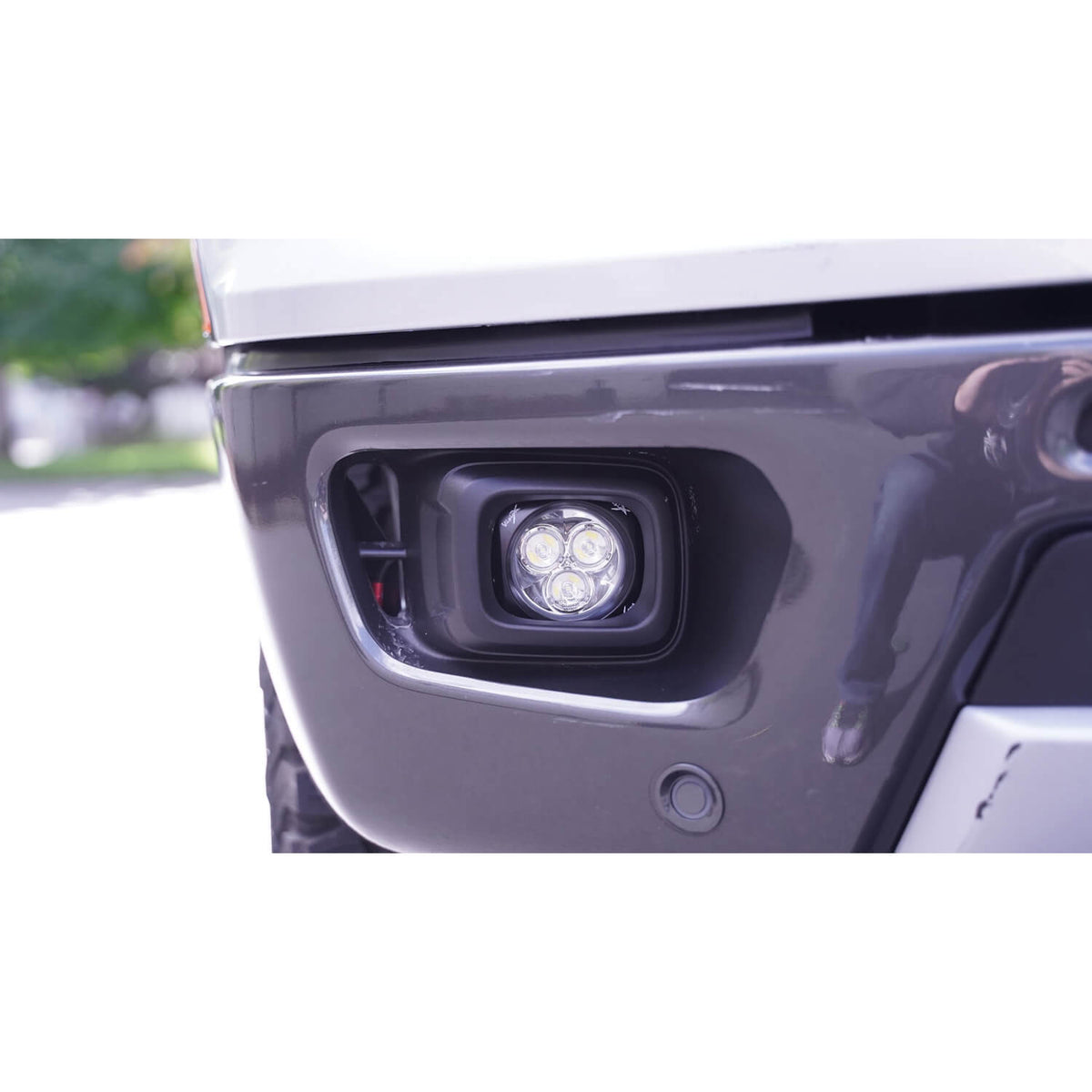

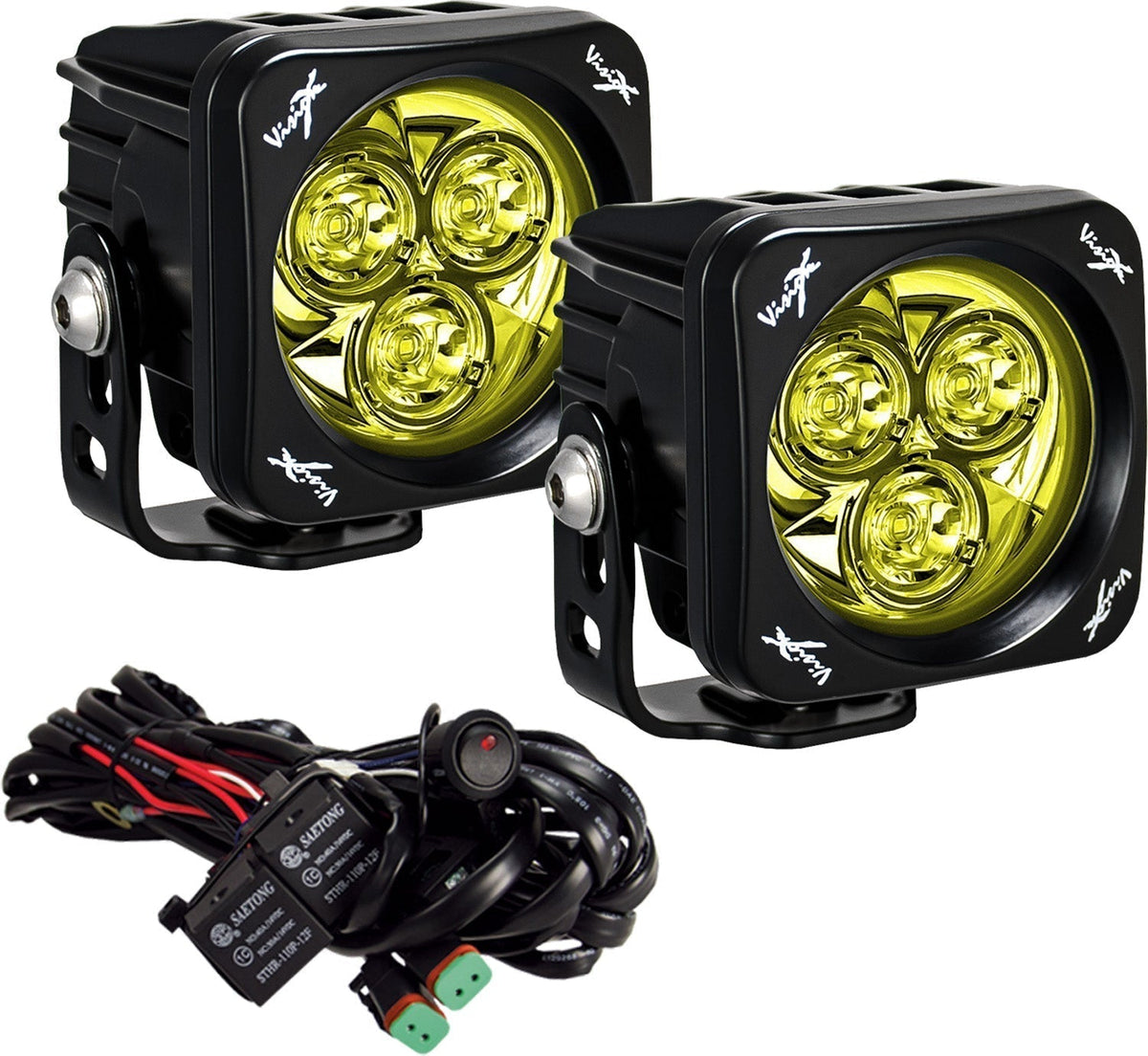

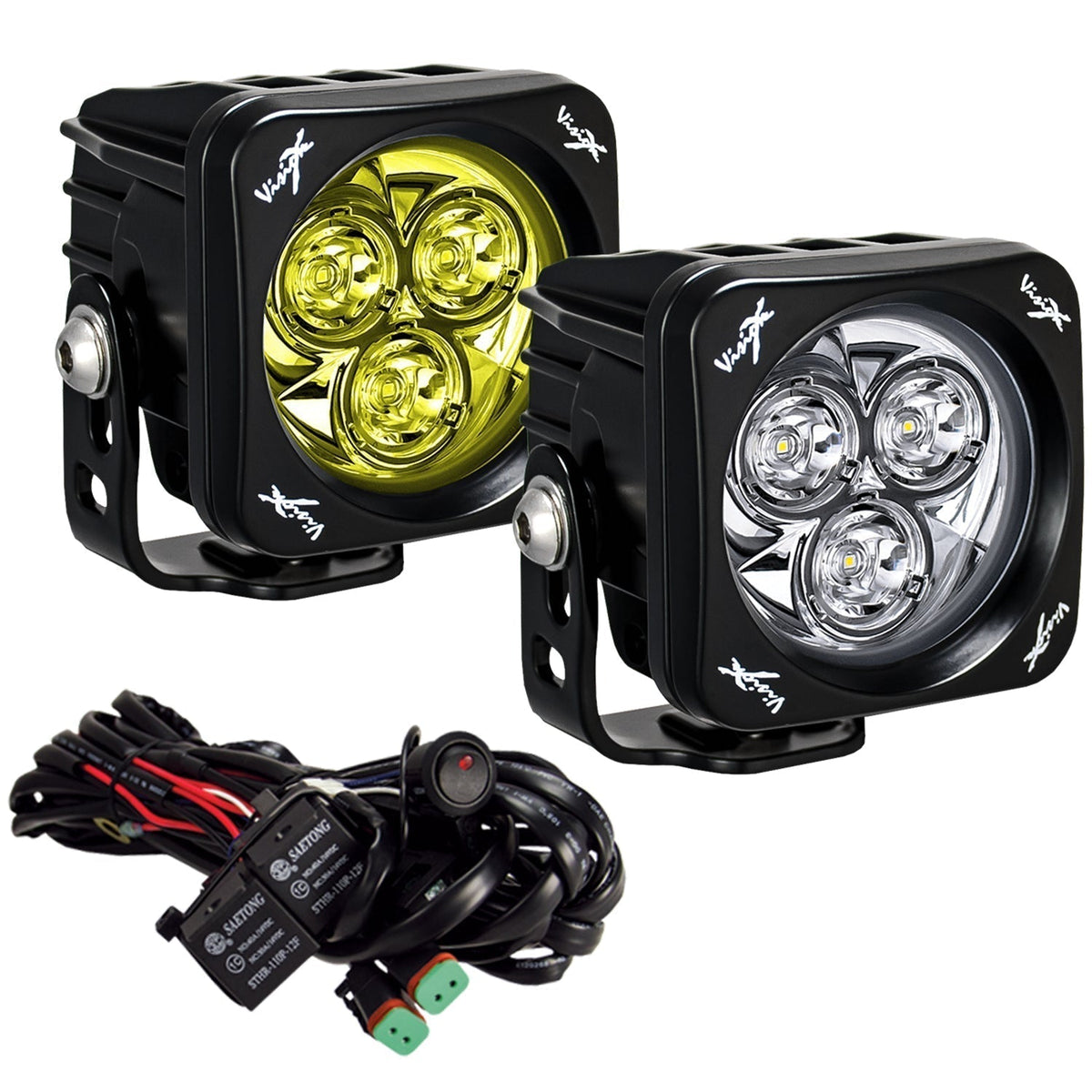

The Vision X 3" CG2 multi-LED light cannon brings a wide driving beam in a compact square housing that mounts flush where round bodies won't fit. It floods broad, even light ahead of the truck, filling the edges a spot beam leaves dark. Choose the clear lens for maximum output or the selective-yellow lens for dust, rain, snow, and fog.
Features

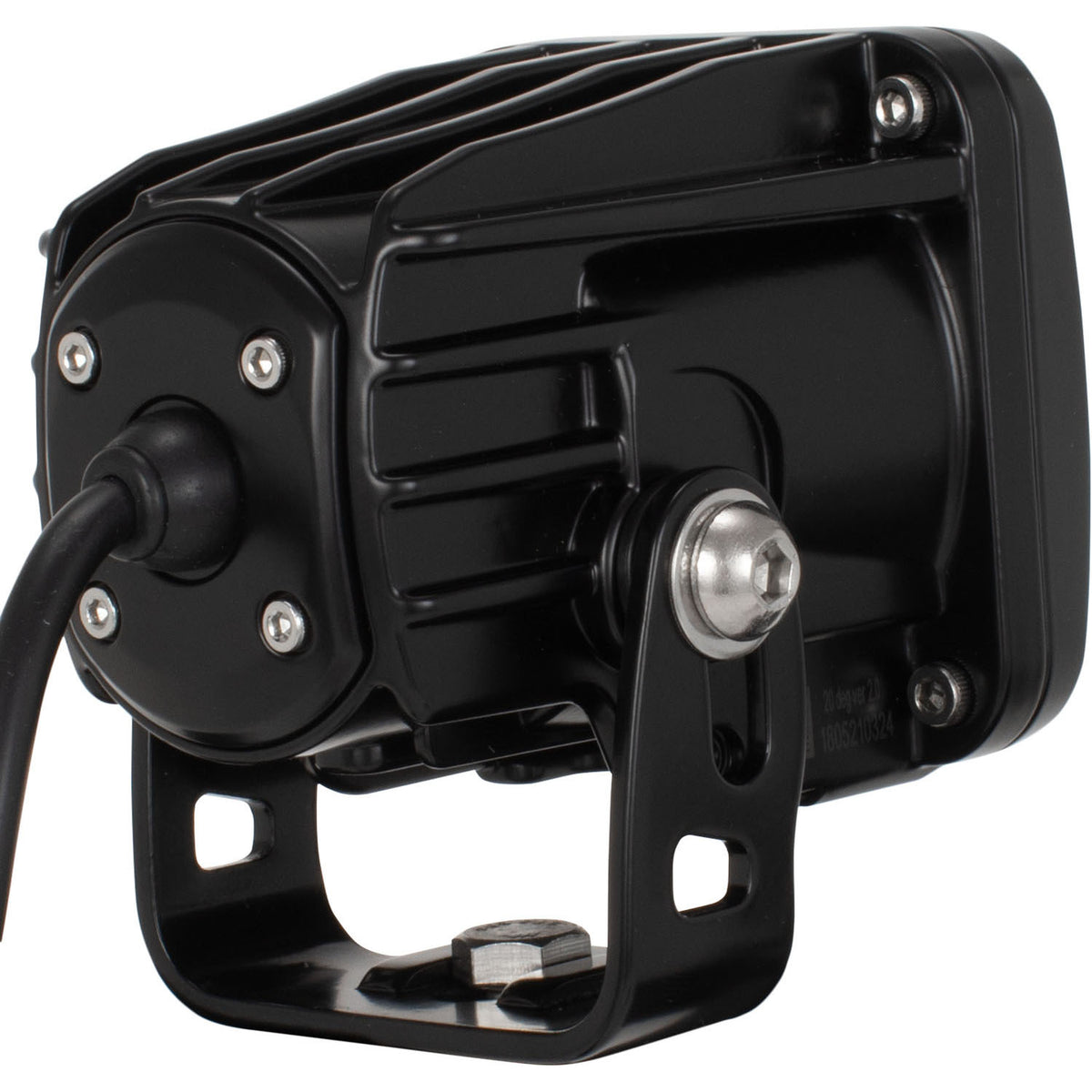

- Advanced Iris Reflector optics for a controlled, glare-managed beam Adjustable steel trunnion mount for a wide aiming range Sealed aluminum-polycarbonate housing built for weather and washdowns Works with Vision X's 25-Lights-In-One snap-on cover system to change beam or color, sold separately
- Multiple 7W LEDs For a Wide Spread Full Beam Pattern
- Advanced Optic Technology
- Highest Quality CREE LEDs

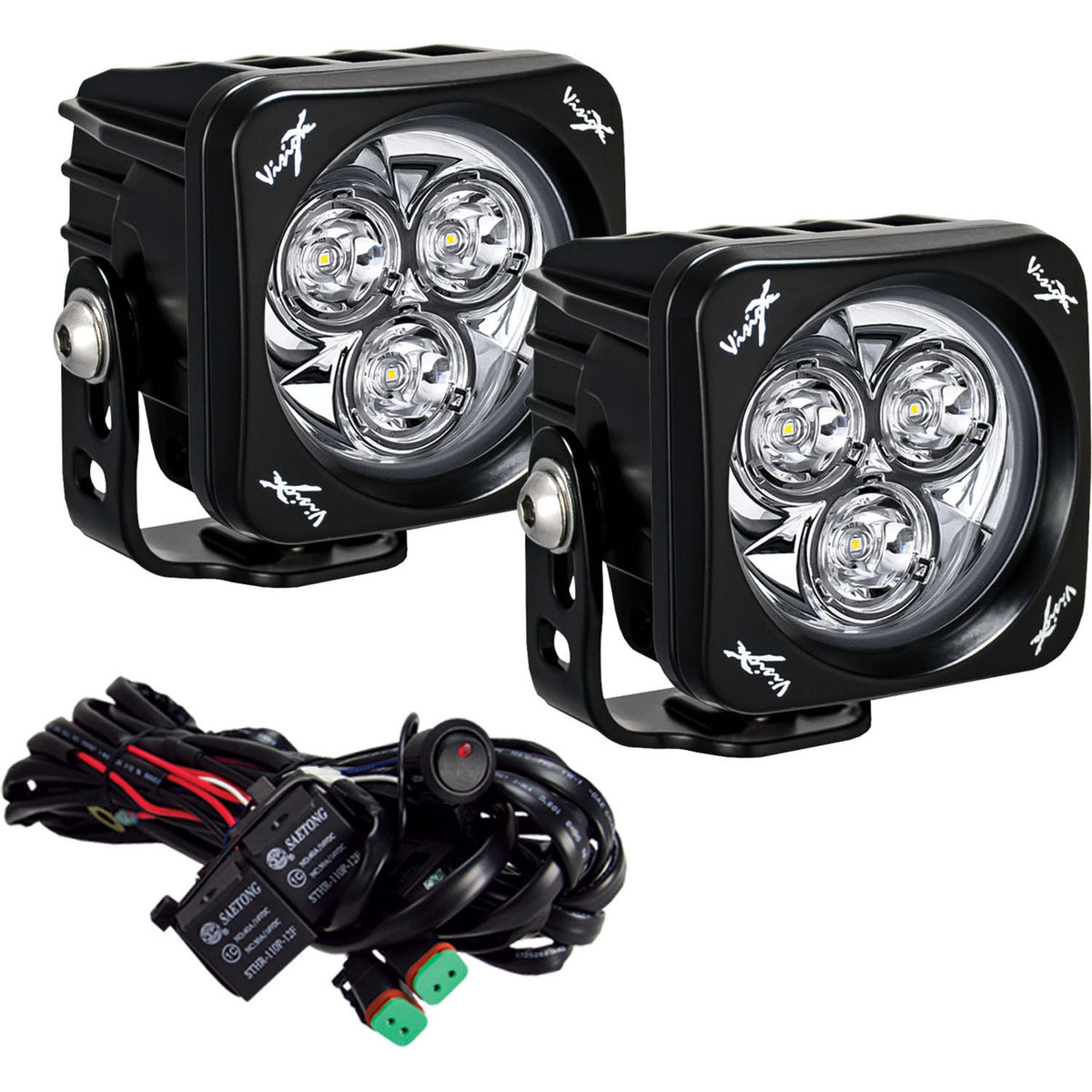

- Plug And Play Harness Included
| Amp Draw | 1.75A |
| Beam Distance | 680 ft (207 m) |
| Beam Pattern | Broad Spot Beam |
| Connector | DT (Deutsch) |
| Effective Lumens | 1,575 lm LU |
| Housing Color | Black |
| Input Voltage | 9-32V DC |
| IP Rating | IP68/69K |
| LEDs | 3x 7W CREE |
| Materials | Aluminum housing, polycarbonate lens |
| Operating Temperature | -40°C to +85°C |

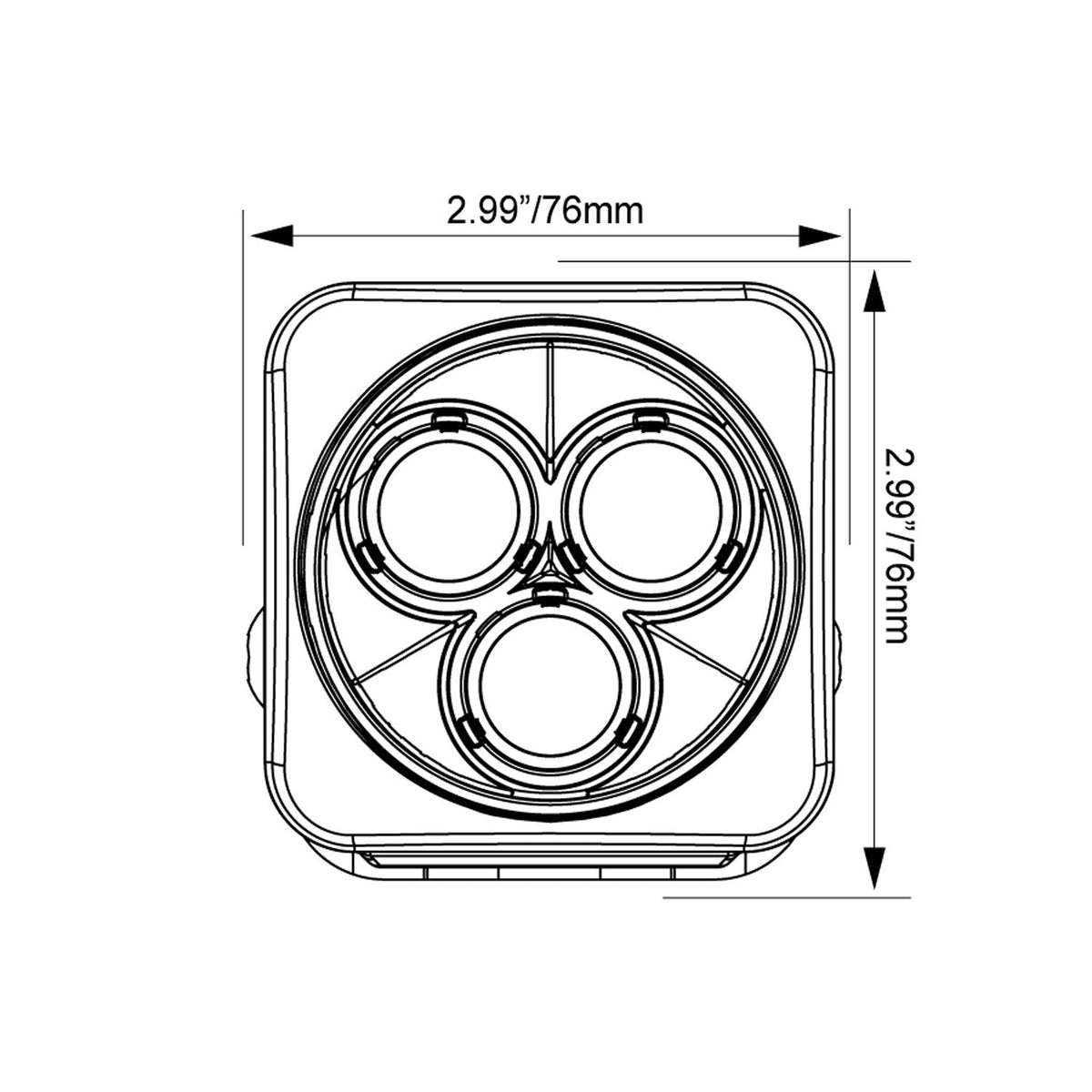

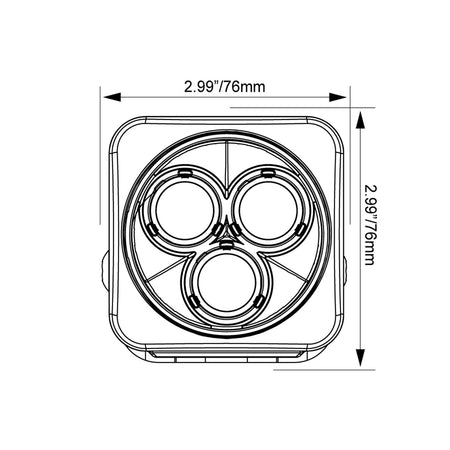

| Product Dimensions (LxWxH) | 2.99 x 3.82 x 3.14 in |
| Raw Lumens | 2,250 lm |
| Recommended Fuse | 3A |
| Vibration Rating | 21.2 G-rms |
| Warranty | Limited Lifetime |
| Watts | 21W |
| Amp Draw | 3.5A |
| Beam Distance | 680 ft (207 m) |
| Beam Pattern | Broad Spot Beam |
| Connector | DT (Deutsch) |
| Effective Lumens | 3,150 lm LU |
| Housing Color | Black |
| Input Voltage | 9-32V DC |
| IP Rating | IP68/69K |
| LEDs | 6x 7W CREE |
| Materials | Aluminum housing, polycarbonate lens |
| Operating Temperature | -40°C to +85°C |
| Product Dimensions (LxWxH) | 2.99 x 3.82 x 3.14 in |
| Raw Lumens | 4,500 lm |
| Recommended Fuse | 5A |
| Vibration Rating | 21.2 G-rms |
| Warranty | Limited Lifetime |
| Watts | 42W |
| Amp Draw | 1.75A |
| Beam Distance | 680 ft (207 m) |
| Beam Pattern | Broad Spot Beam |
| Connector | DT (Deutsch) |
| Effective Lumens | 1,575 lm |
| Housing Color | Black |
| Input Voltage | 9-32V DC |
| IP Rating | IP68/69K |
| LEDs | 3x 7W CREE |
| Materials | Aluminum housing, polycarbonate lens |
| Operating Temperature | -40°C to +85°C |
| Product Dimensions (LxWxH) | 2.99 x 3.82 x 3.14 in |
| Raw Lumens | 2,250 lm |
| Recommended Fuse | 3A |
| Vibration Rating | 21.2 G-rms |
| Warranty | Limited Lifetime |
| Product Condition | NEW |
| Product Condition | NEW |
