(888) 723-0041CG2 3″ Single-LED Cannon
Part #: CG2-OP110 | CG2-OP110KIT | CG2-OP110SY | CG2-OP110SYKIT
Vision X Lighting
Description

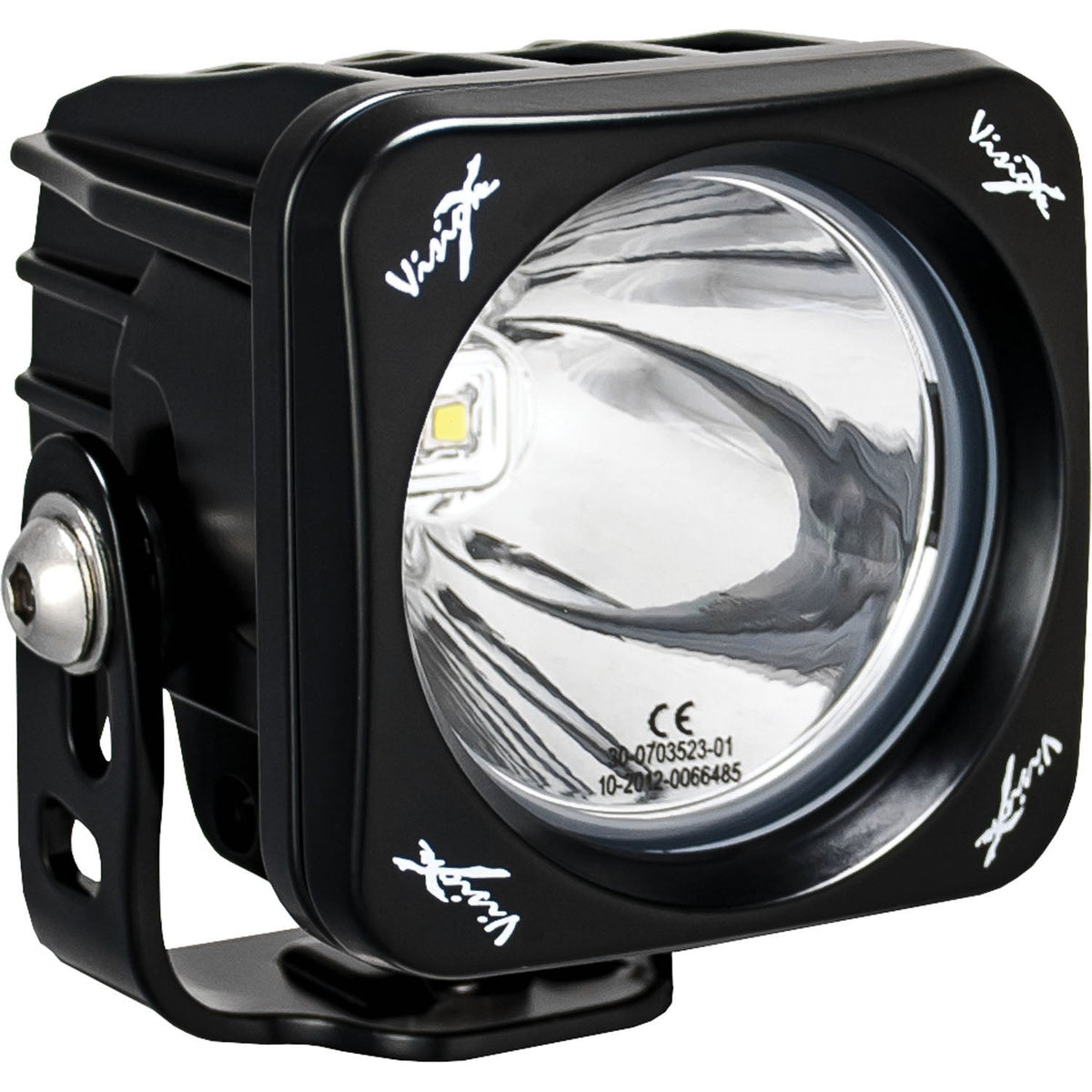

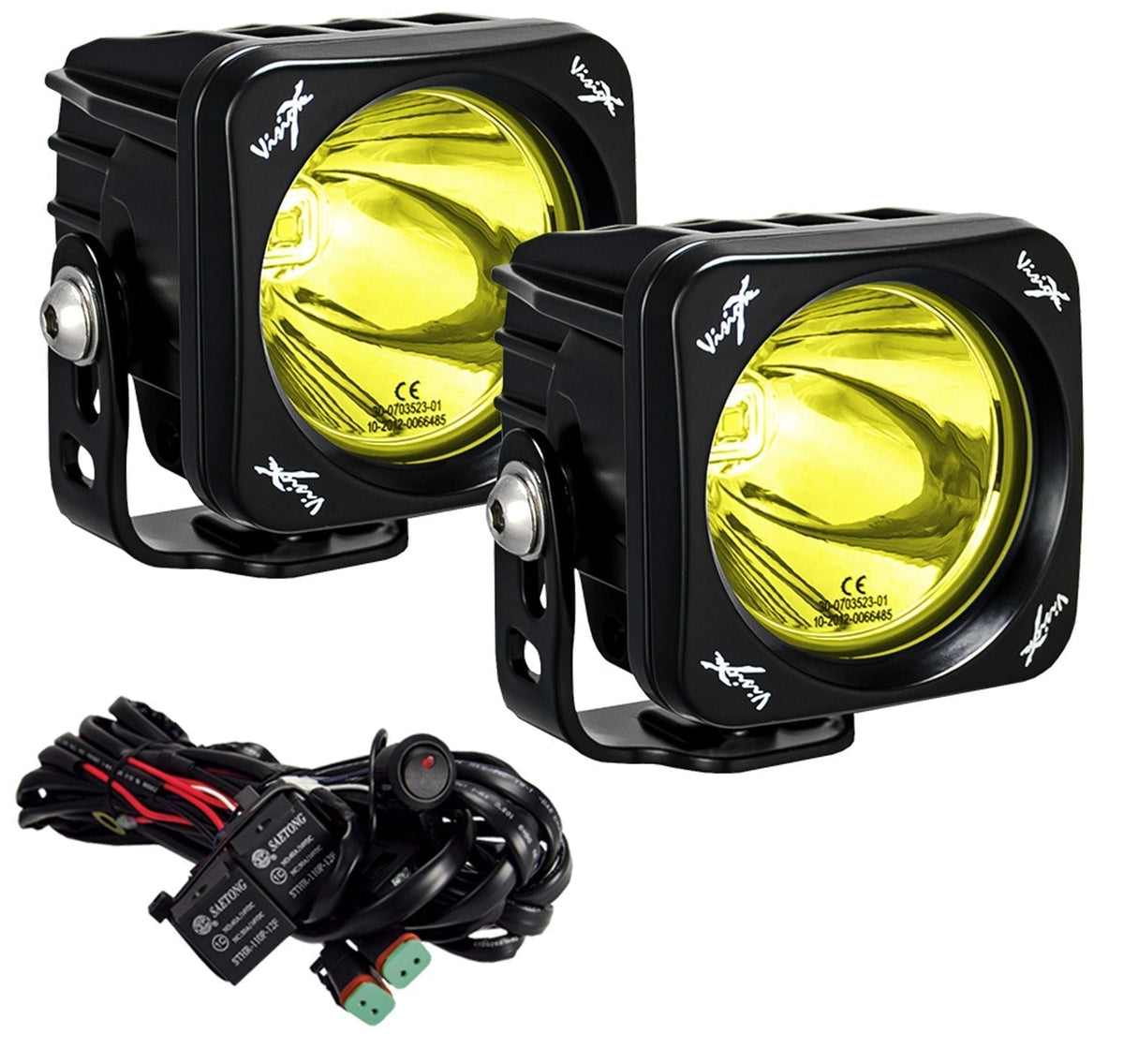

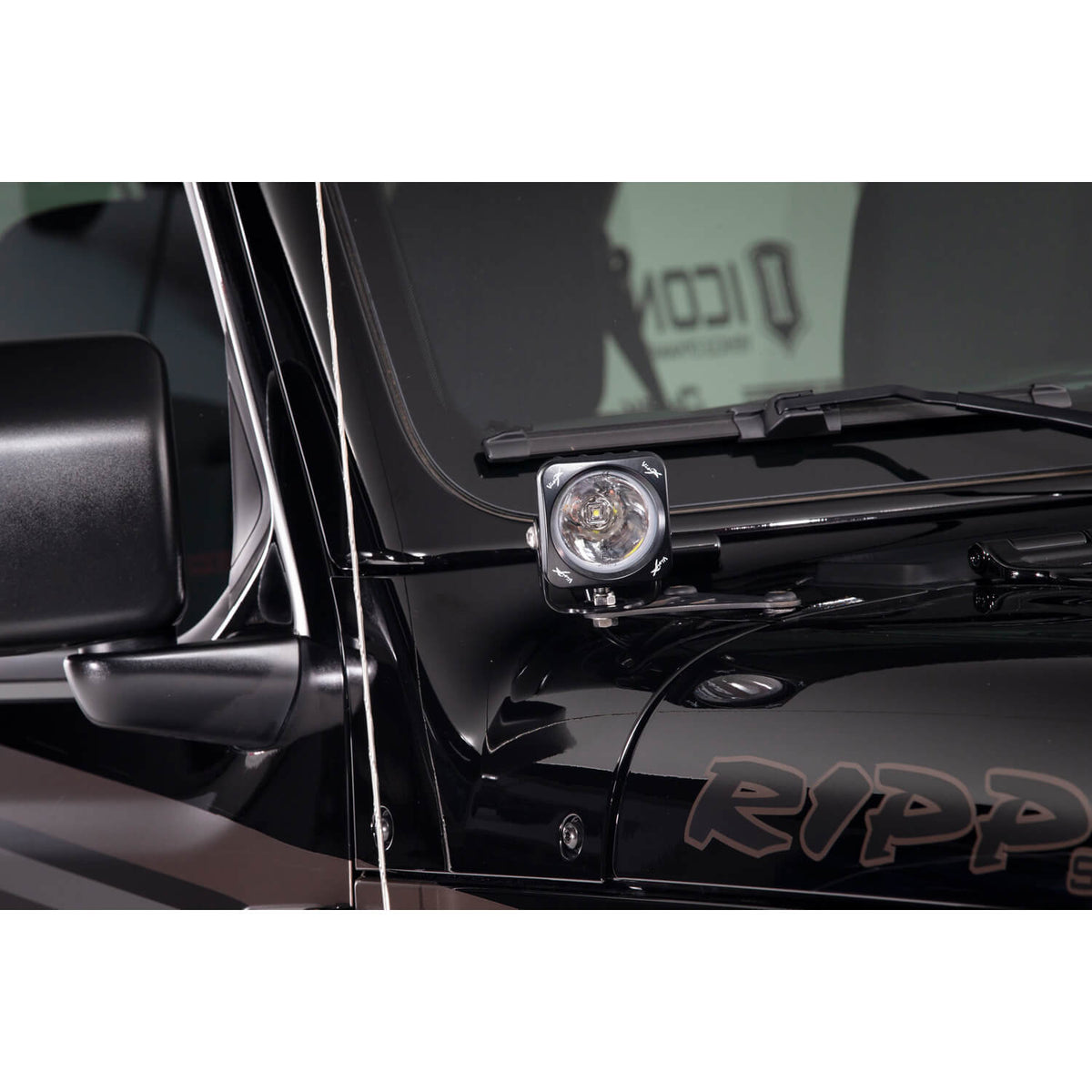

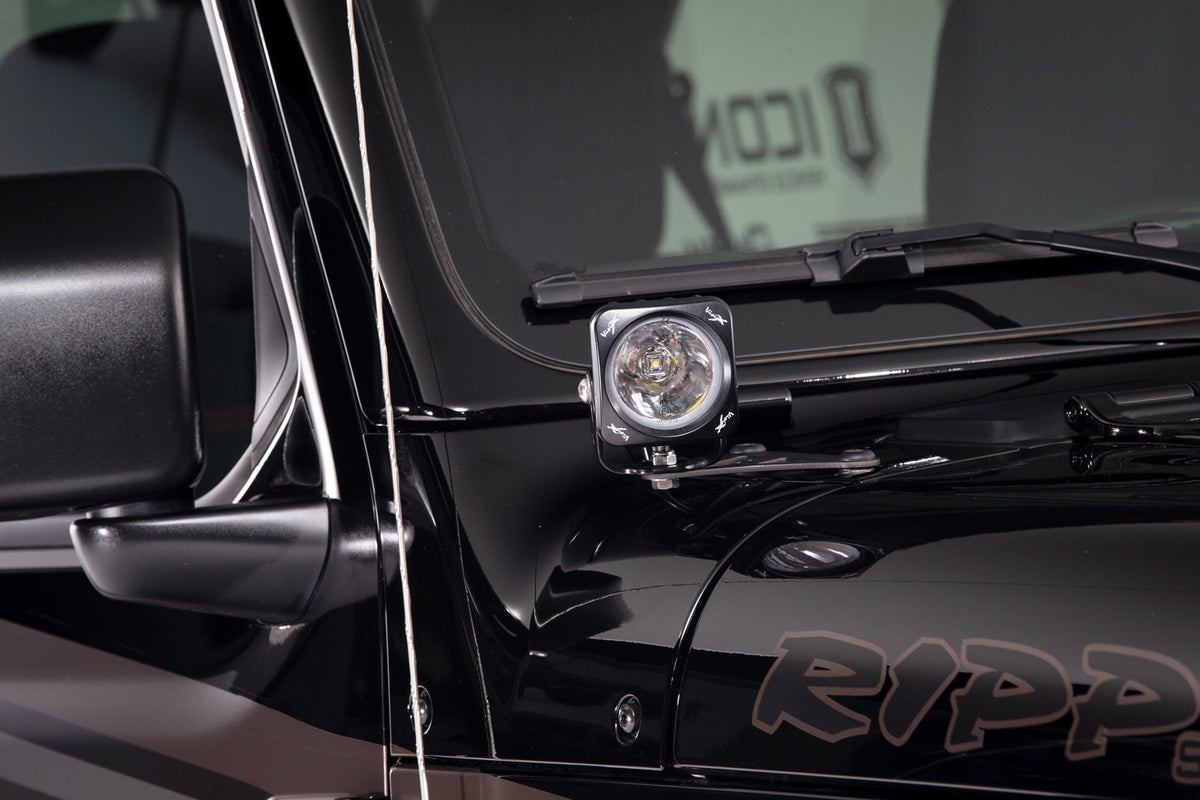

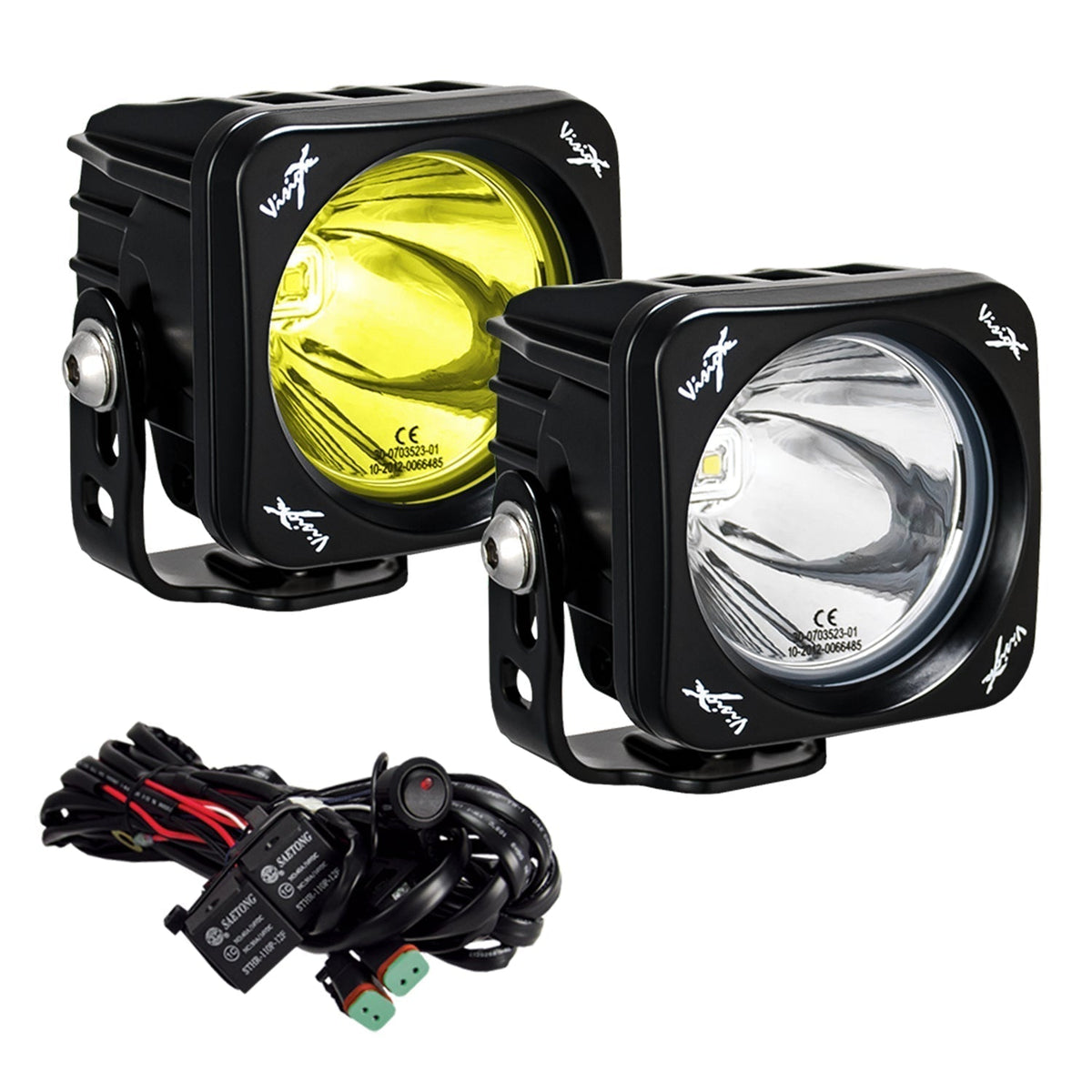

The Vision X 3" CG2 single-LED light cannon drives a focused spot beam from a compact square housing that mounts flush in tight spots. It pulls its output into a tight column for reach where space is limited. Choose the clear lens for maximum output or the selective-yellow lens for dust, rain, snow, and fog.
Features

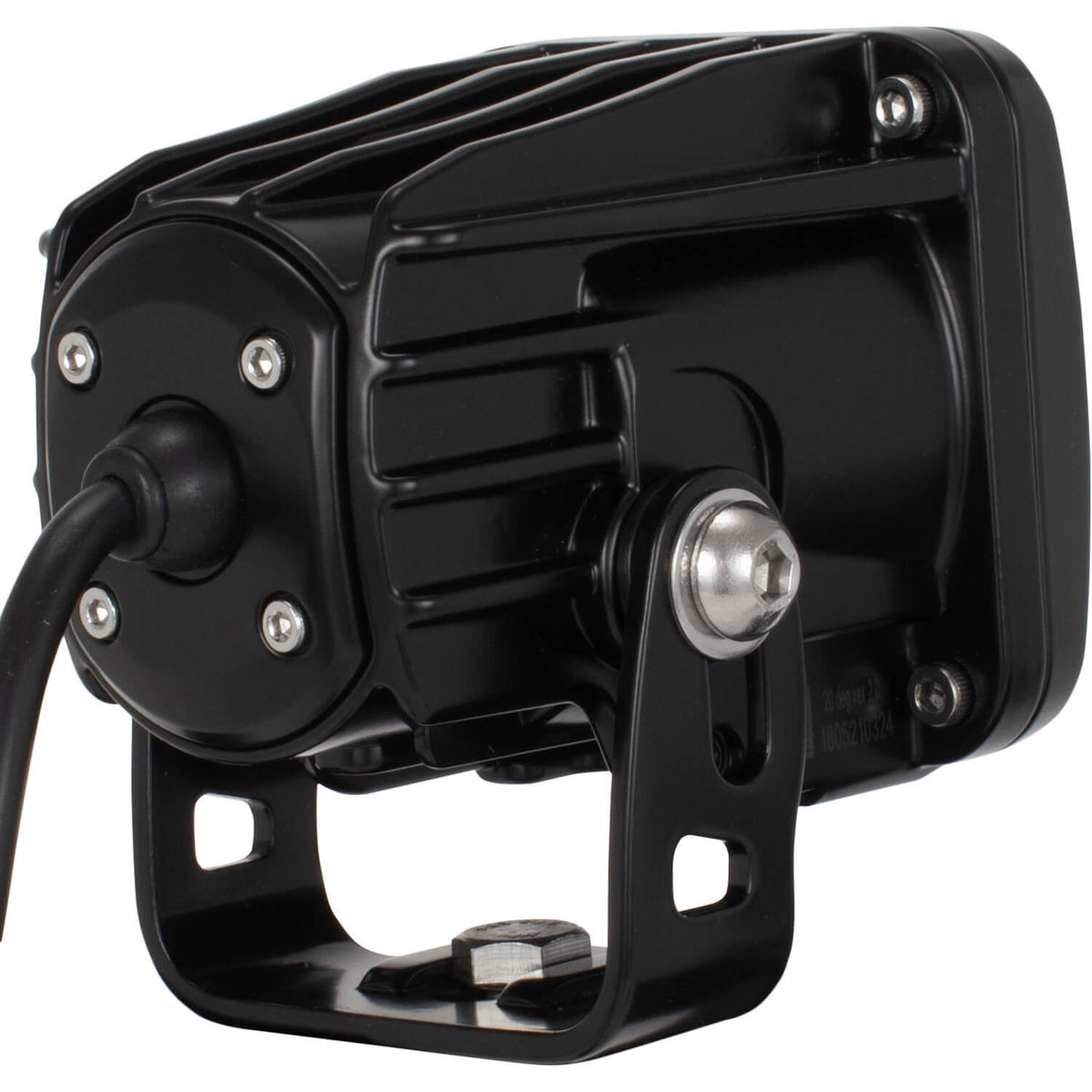

- Advanced Iris Reflector optics for a controlled, glare-managed beam Adjustable steel trunnion mount for a wide aiming range Sealed aluminum-polycarbonate housing built for weather and washdowns Works with Vision X's 25-Lights-In-One snap-on cover system to change beam or color, sold separately
- Single Source 10W LED for a Long Distance Spot Beam Pattern

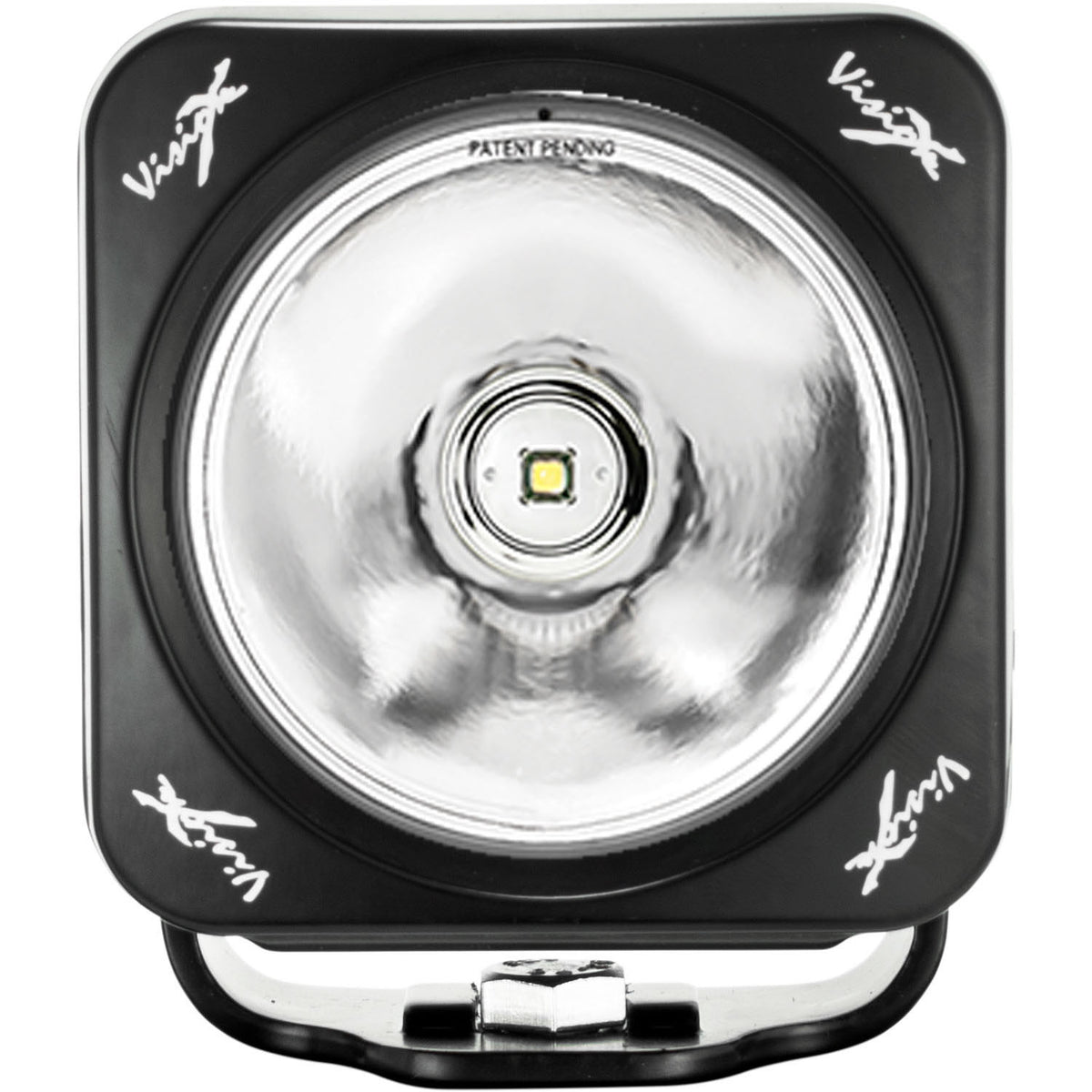

- Iris Reflector Technology for Superior Distance
- Highest Quality CREE LEDs

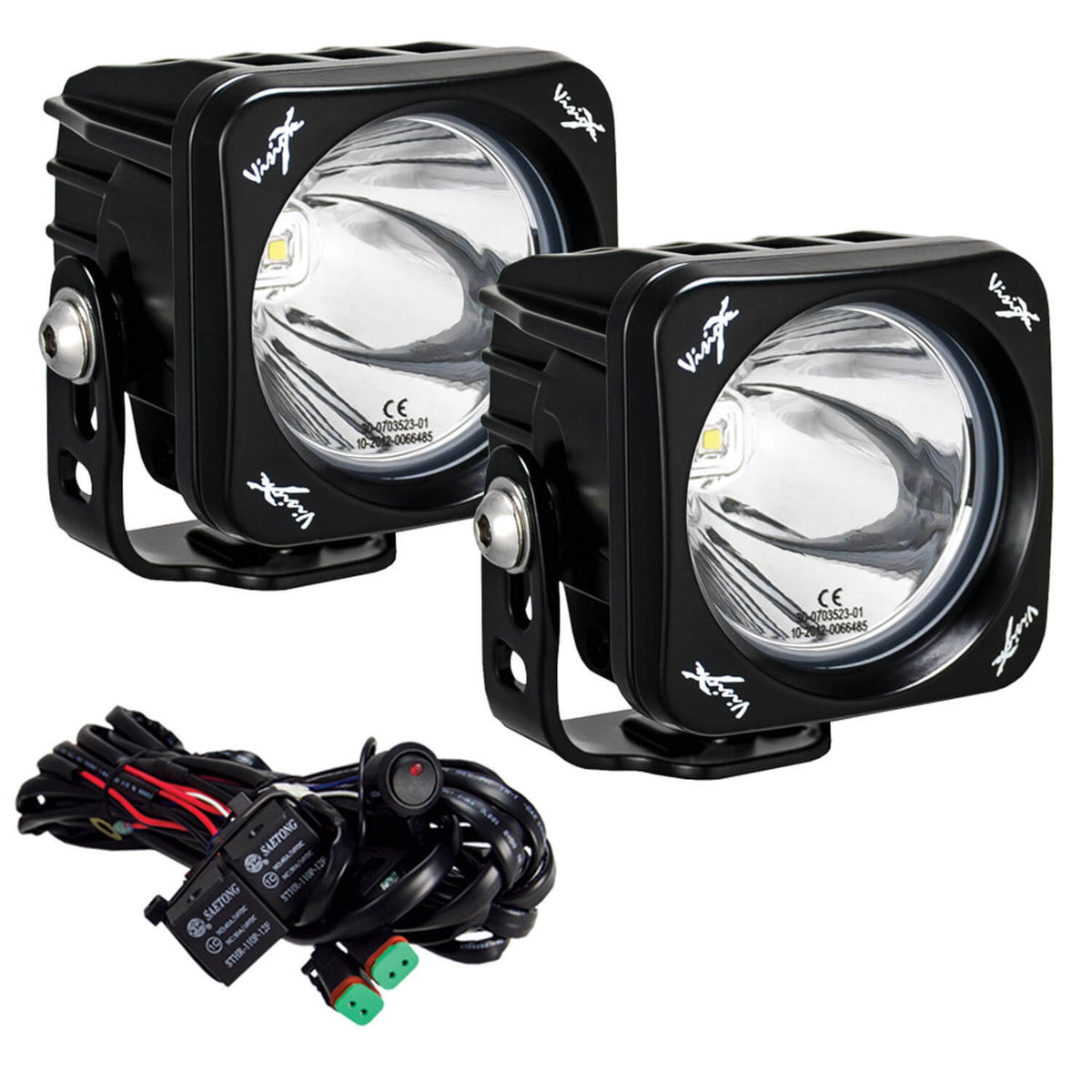

- Plug And Play Harness Included
| Amp Draw | 0.83A |
| Beam Distance | 1,100 ft (335 m) |
| Beam Pattern | Spot Beam |
| Connector | DT (Deutsch) |
| Effective Lumens | 749 lm LU |
| Housing Color | Black |
| Input Voltage | 9-32V DC |
| IP Rating | IP68/69K |
| LEDs | 1x 10W CREE |
| Materials | Aluminum housing, polycarbonate lens |
| Operating Temperature | -40°C to +85°C |
| Product Dimensions (LxWxH) | 2.99 x 3.82 x 3.14 in |
| Raw Lumens | 1,070 lm |
| Recommended Fuse | 2A |
| Vibration Rating | 21.2 G-rms |
| Warranty | Limited Lifetime |
| Watts | 10W |
| Amp Draw | 1.66A |
| Beam Distance | 1,100 ft (335 m) |
| Beam Pattern | Spot Beam |
| Connector | DT (Deutsch) |
| Effective Lumens | 1,498 lm LU |
| Housing Color | Black |
| Input Voltage | 9-32V DC |
| IP Rating | IP68/69K |
| LEDs | 2x 10W CREE |
| Materials | Aluminum housing, polycarbonate lens |
| Operating Temperature | -40°C to +85°C |
| Product Dimensions (LxWxH) | 2.99 x 3.82 x 3.14 in |
| Raw Lumens | 2,140 lm |
| Recommended Fuse | 3A |
| Vibration Rating | 21.2 G-rms |
| Warranty | Limited Lifetime |
| Watts | 20W |
| Amp Draw | 0.83A |
| Beam Distance | 1,100 ft (335 m) |
| Beam Pattern | Spot Beam |
| Connector | DT (Deutsch) |
| Effective Lumens | 749 lm |
| Housing Color | Black |
| Input Voltage | 9-32V DC |
| IP Rating | IP68/69K |
| LEDs | 1x 10W CREE |
| Materials | Aluminum housing, polycarbonate lens |
| Operating Temperature | -40°C to +85°C |
| Product Dimensions (LxWxH) | 2.99 x 3.82 x 3.14 in |
| Raw Lumens | 1,070 lm |
| Recommended Fuse | 2A |
| Vibration Rating | 21.2 G-rms |
| Warranty | Limited Lifetime |
| Product Condition | NEW |
| Product Condition | NEW |
