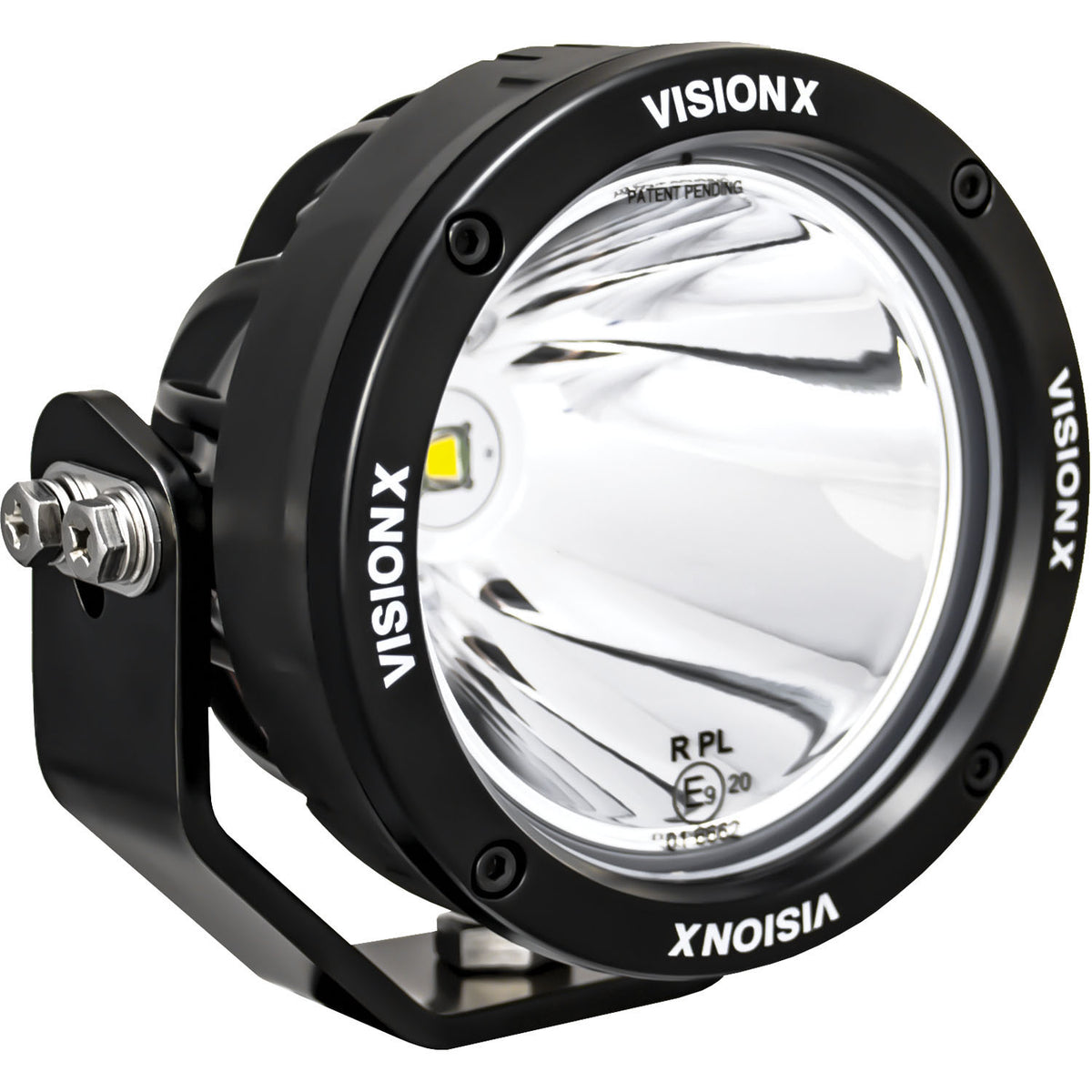

(888) 723-0041CG2 4.7″ Single-LED Cannon
Part #: CG2-CPZ110 | CG2-CPZ110KIT | CG2-CPZ110SY | CG2-CPZ110SYKIT
Vision X Lighting
Description

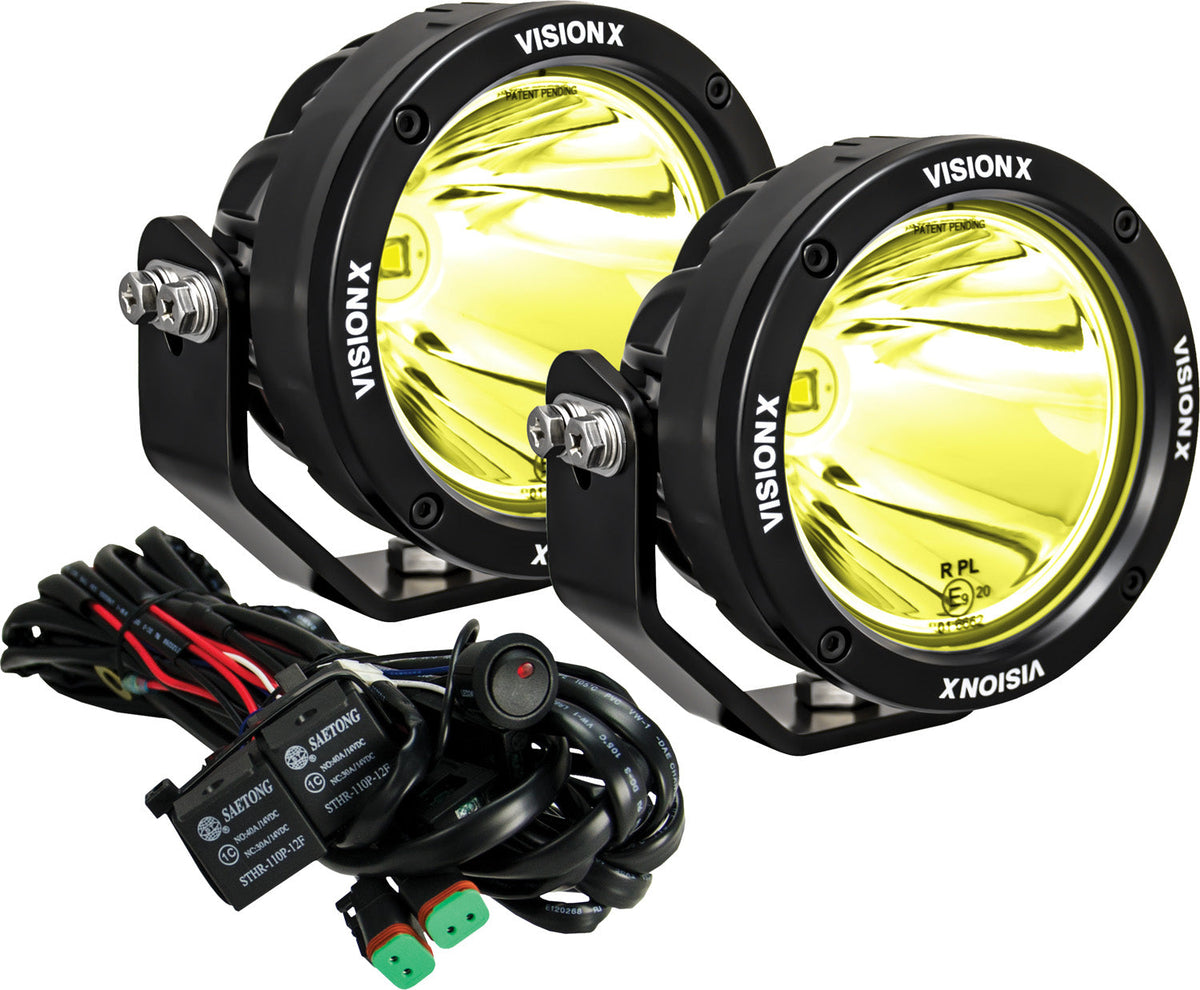

The Vision X 4.7" CG2 single-LED light cannon puts a focused spot beam into a compact round body. It pulls its output into a tight column for distance, giving you real reach without the size of a full-size cannon. Choose the clear lens for maximum output or the selective-yellow lens for dust, rain, snow, and fog.
Features

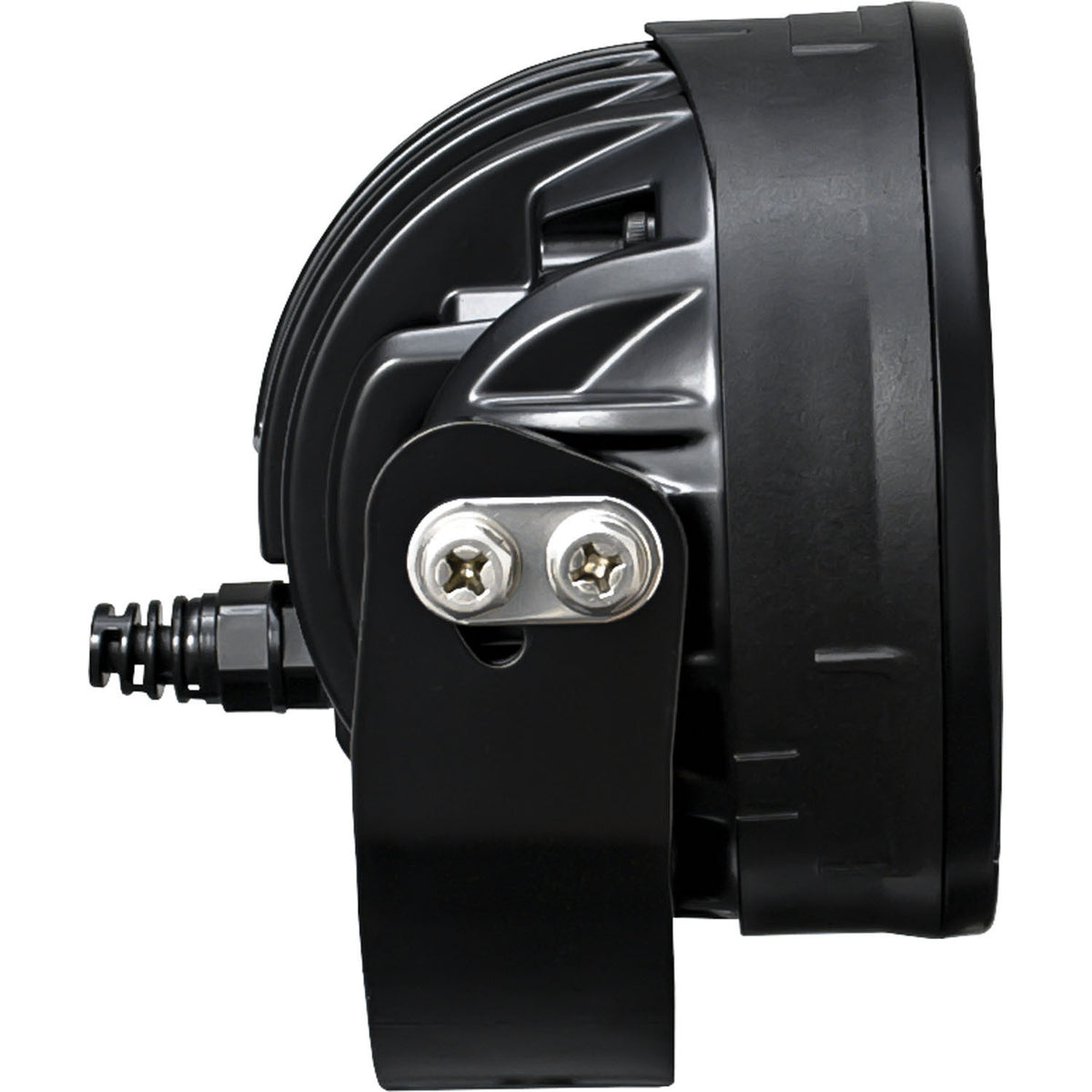

- Advanced Iris Reflector optics for a controlled, glare-managed beam Adjustable steel trunnion mount for a wide aiming range Sealed aluminum-polycarbonate housing built for weather and washdowns Works with Vision X's 25-Lights-In-One snap-on cover system to change beam or color, sold separately
- Single Source 40W LED for a Long Distance Spot Beam Pattern

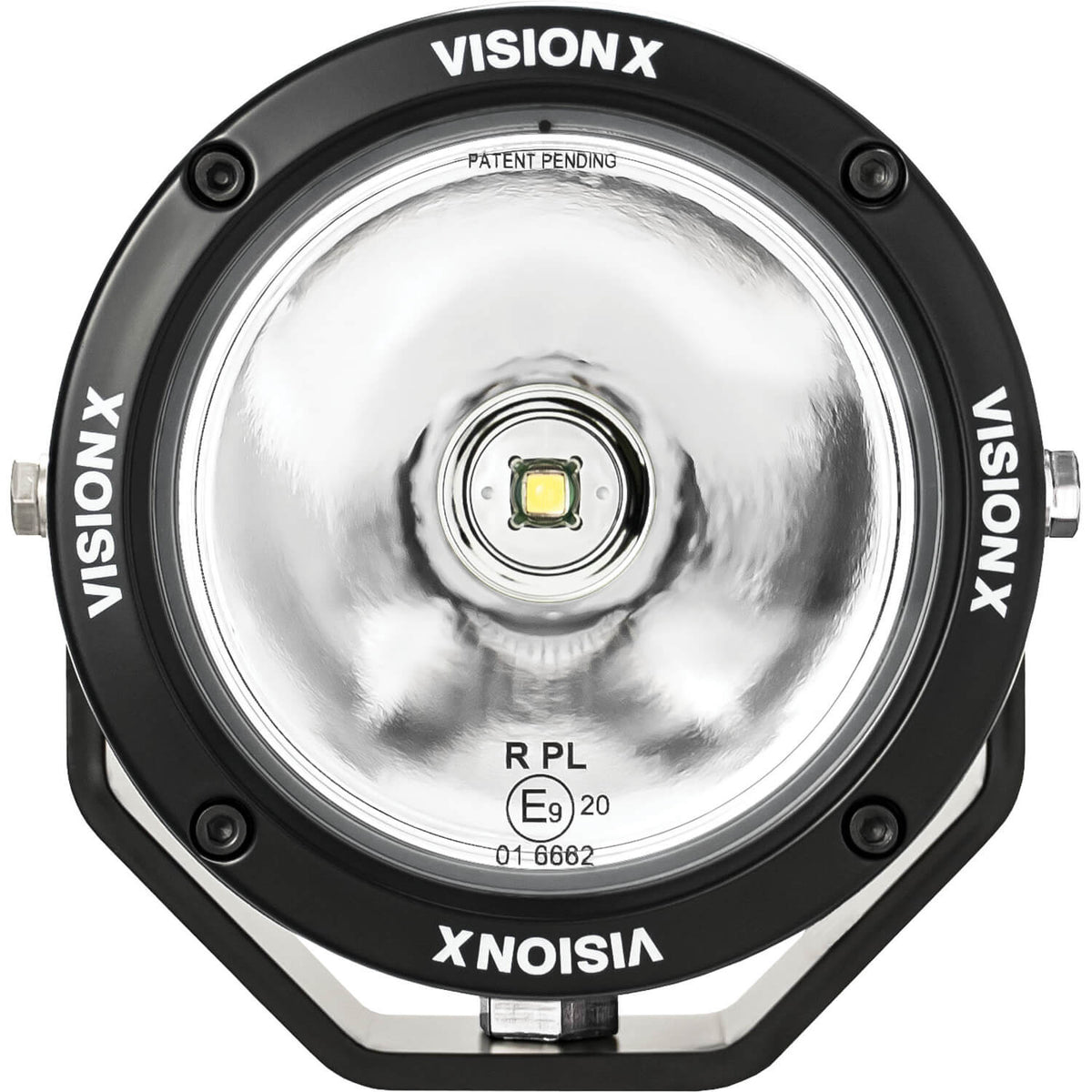

- Iris Reflector Technology for Superior Distance
- High Output LED
- Snap-On Color and Beam Changing Covers Available

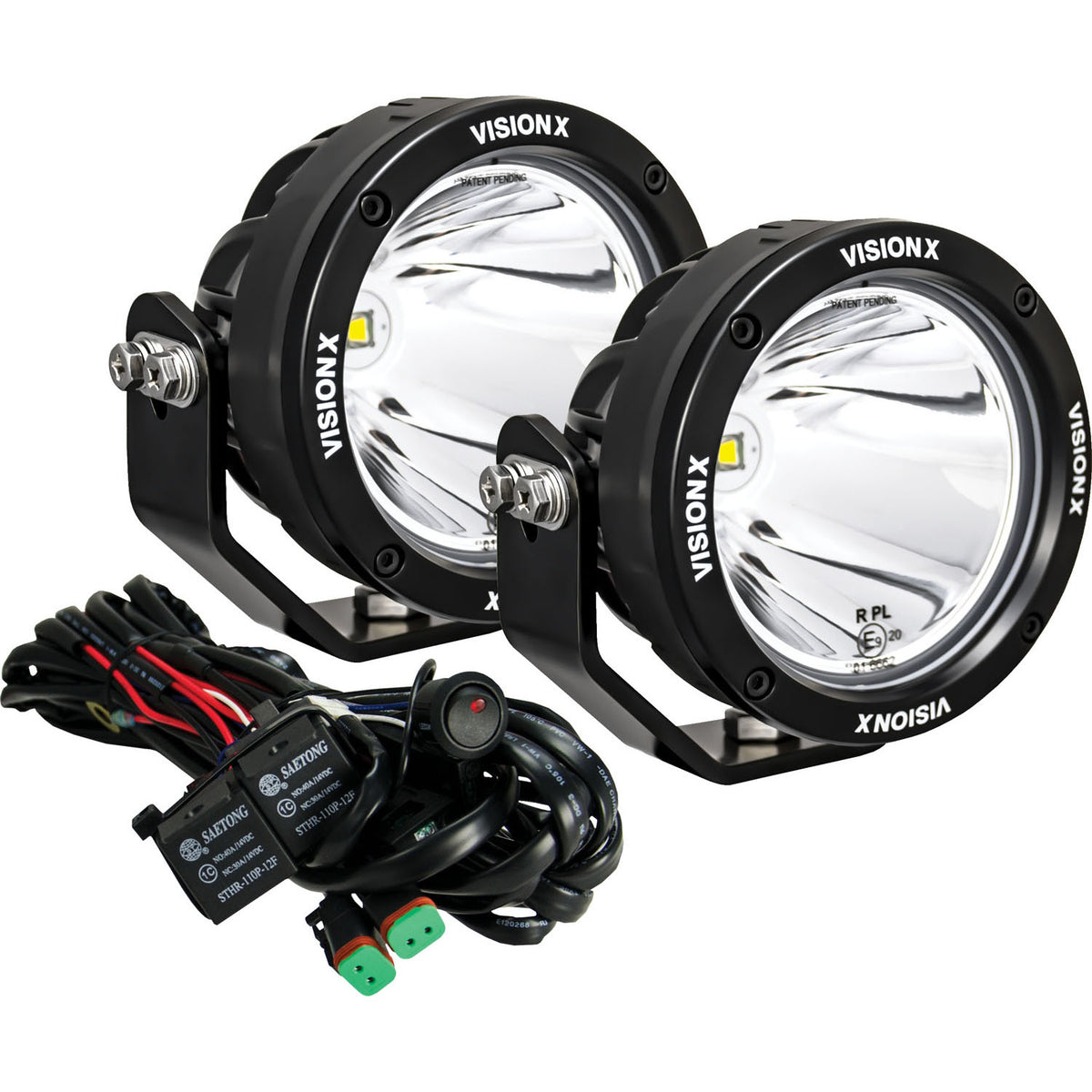

- Plug And Play Harness Included
| Amp Draw | 3.33A |
| Beam Distance | 1,115 ft (340 m) |
| Beam Pattern | Spot Beam |
| Connector | DT (Deutsch) |
| Effective Lumens | 2,100 lm LU |
| Housing Color | Black |
| Input Voltage | 9-32V DC |
| IP Rating | IP68/69K |
| LEDs | 1x 40W CREE |
| Materials | Aluminum housing, polycarbonate lens |
| Operating Temperature | -40°C to +85°C |
| Product Dimensions (LxWxH) | 5.72 x 3.69 x 5.28 in |
| Raw Lumens | 3,000 lm |
| Recommended Fuse | 5A |
| Vibration Rating | 21.2 G-rms |
| Warranty | Limited Lifetime |
| Watts | 40W |
| Amp Draw | 6.67A |
| Beam Distance | 1,115 ft (340 m) |
| Beam Pattern | Spot Beam |
| Connector | DT (Deutsch) |
| Effective Lumens | 4,200 lm |
| Housing Color | Black |
| Input Voltage | 9-32V DC |
| IP Rating | IP68/69K |
| LEDs | 2x 40W CREE |
| Materials | Aluminum housing, polycarbonate lens |
| Operating Temperature | -40°C to +85°C |
| Product Dimensions (LxWxH) | 5.72 x 3.69 x 5.28 in |
| Raw Lumens | 6,000 lm |
| Recommended Fuse | 10A |
| Vibration Rating | 21.2 G-rms |
| Warranty | Limited Lifetime |
| Watts | 80W |
| Amp Draw | 3.33A |
| Beam Distance | 1,115 ft (340 m) |
| Beam Pattern | Spot Beam |
| Connector | DT (Deutsch) |
| Effective Lumens | 2,100 lm |
| Housing Color | Black |
| Input Voltage | 9-32V DC |
| IP Rating | IP68/69K |
| LEDs | 1x 40W CREE |
| Materials | Aluminum housing, polycarbonate lens |
| Operating Temperature | -40°C to +85°C |
| Product Dimensions (LxWxH) | 5.72 x 3.69 x 5.28 in |
| Raw Lumens | 3,000 lm |
| Recommended Fuse | 5A |
| Vibration Rating | 21.2 G-rms |
| Warranty | Limited Lifetime |
| Product Condition | NEW |
| Product Condition | NEW |
