(888) 723-0041CG2 8.7″ Multi-LED Cannon (Single)
Part #: CG2-CPM2410 | CG2-CPM2410KIT | CG2-CPM2410SY | CG2-CPM2410SYKIT
Vision X Lighting
Description

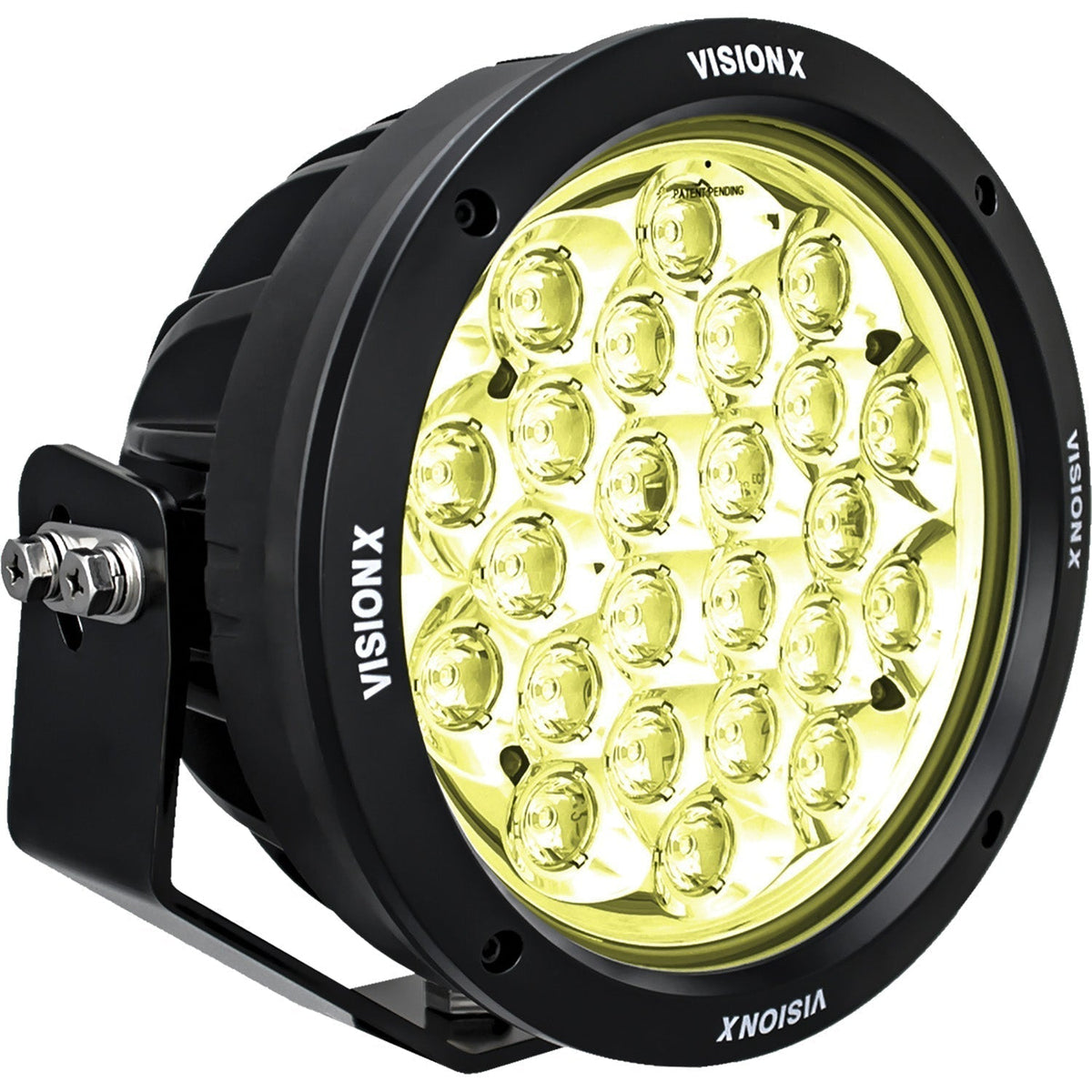

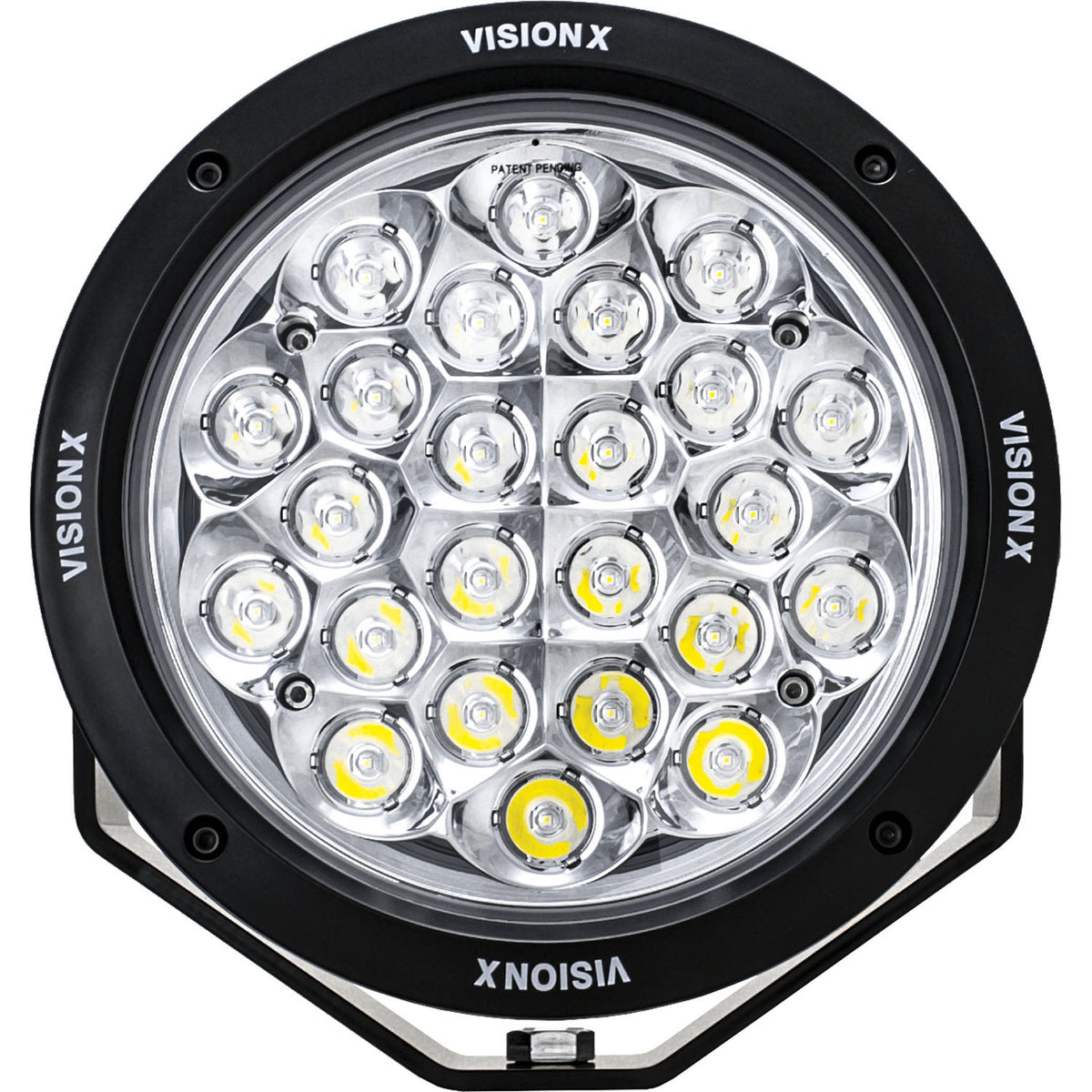

The Vision X 8.7" CG2 multi-LED light cannon is the biggest multi-LED in the round-cannon line, throwing a broad driving beam that lights the whole scene ahead of the truck. Its wide, even spread is built for high-speed open running where a narrow spot leaves the edges dark, all from a single round housing. Run the clear lens for maximum output or the selective-yellow lens to cut through dust, rain, snow, and fog.
Features

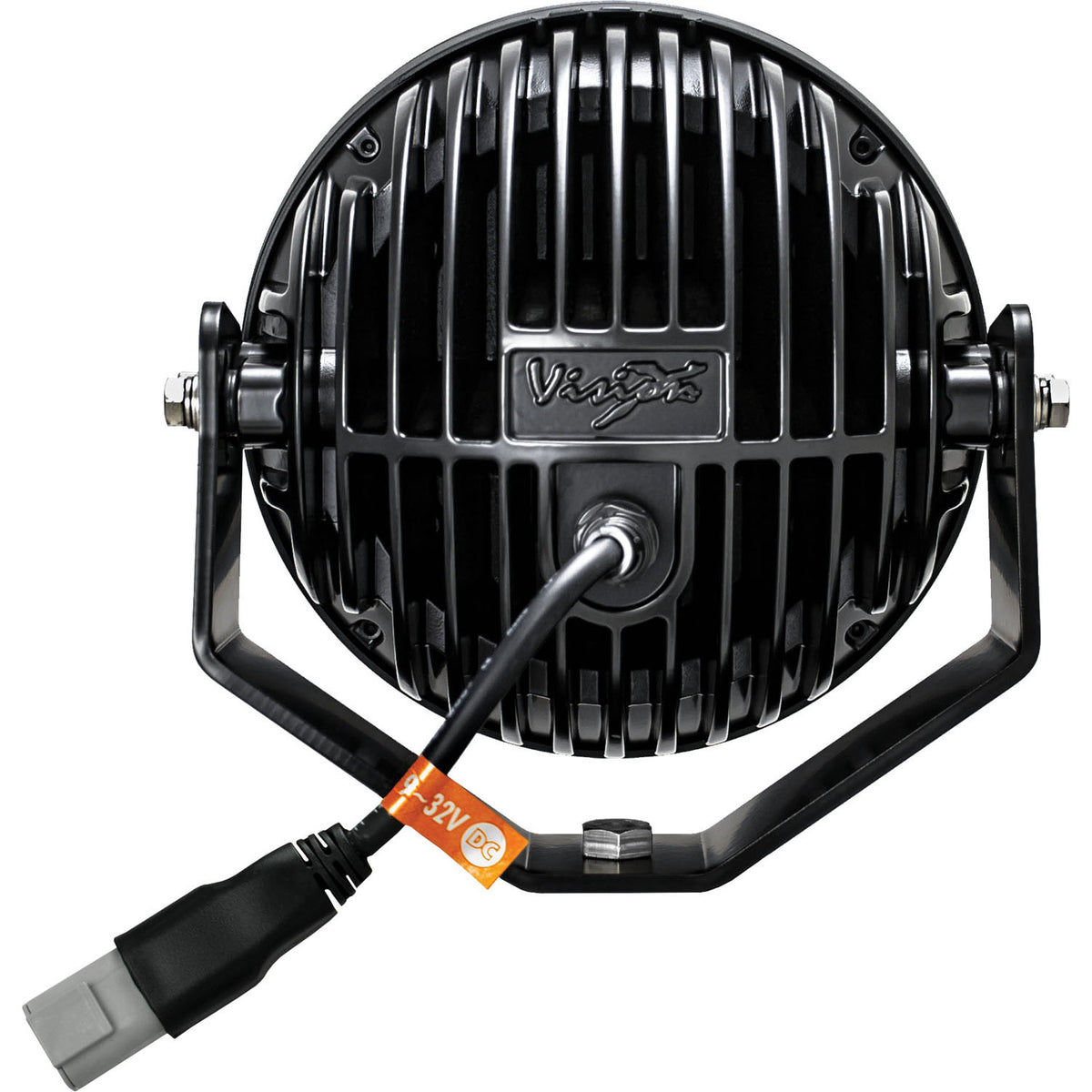

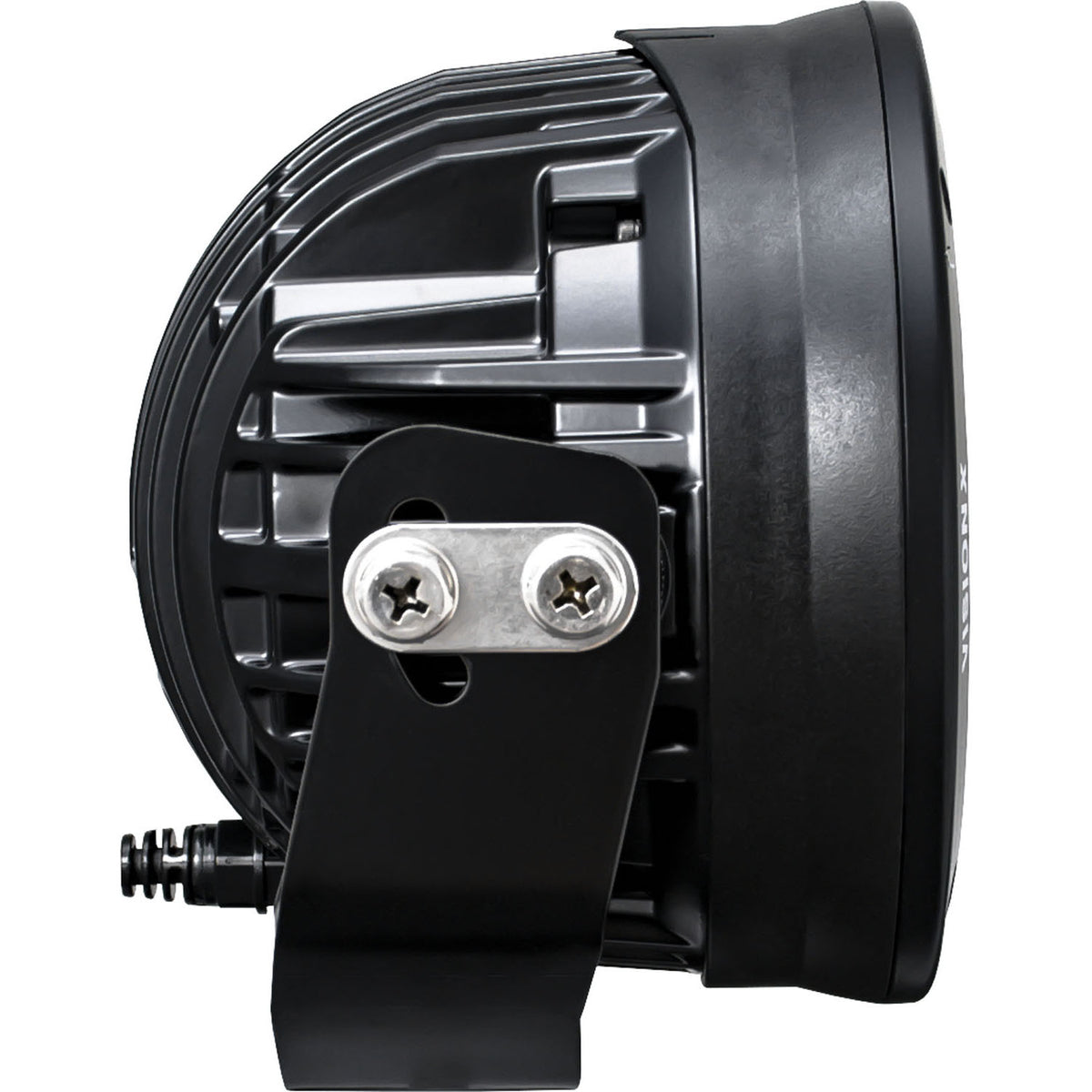

- Advanced Iris Reflector optics for a controlled, glare-managed beam Adjustable steel trunnion mount for a wide aiming range Sealed aluminum-polycarbonate housing built for weather and washdowns Works with Vision X's 25-Lights-In-One snap-on cover system to change beam or color, sold separately
- Multiple 7W LEDs For a Wide Spread Full Beam Pattern
- Advanced Optic Technology
- Highest Quality CREE LEDs
- Snap-On Color and Beam Changing Covers Available

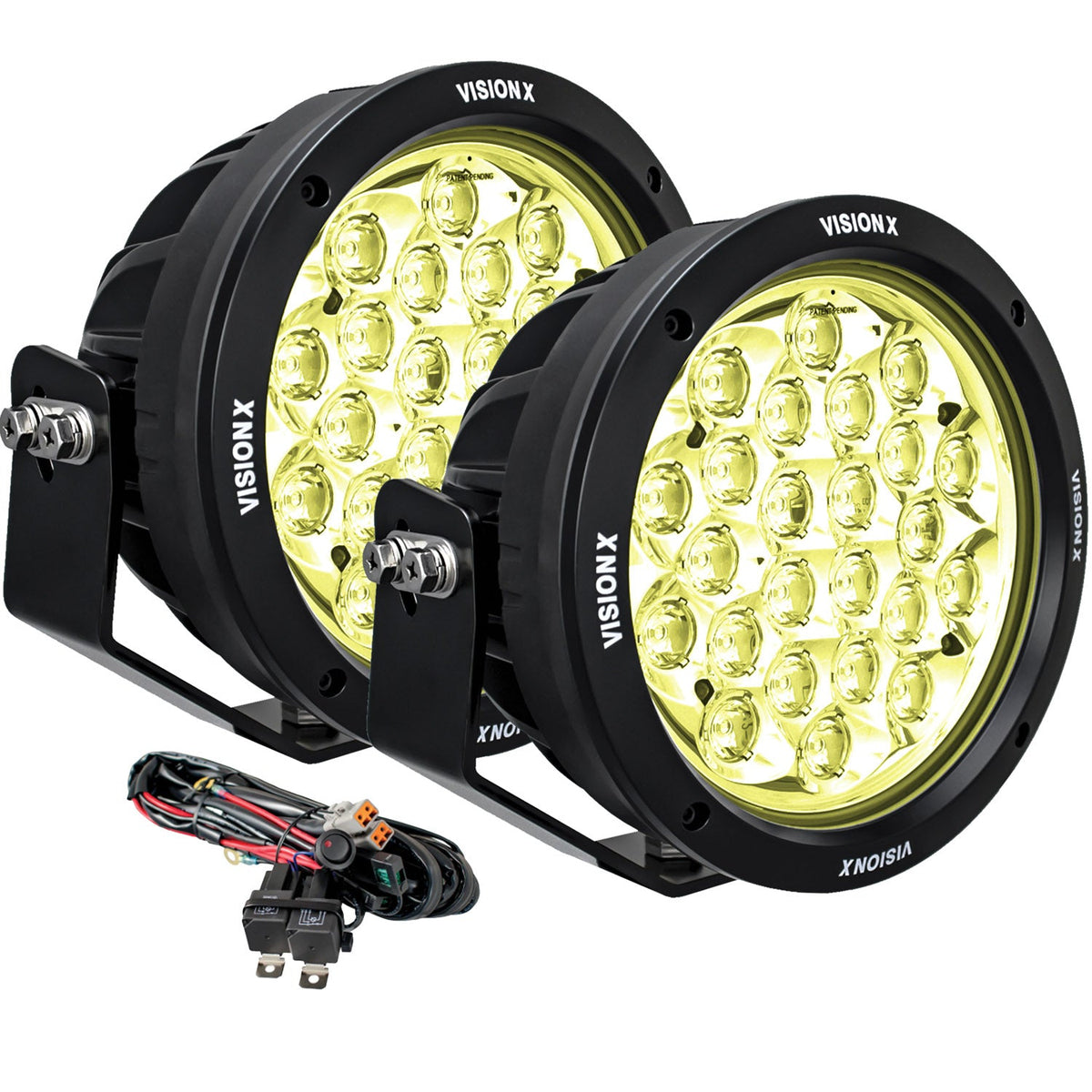

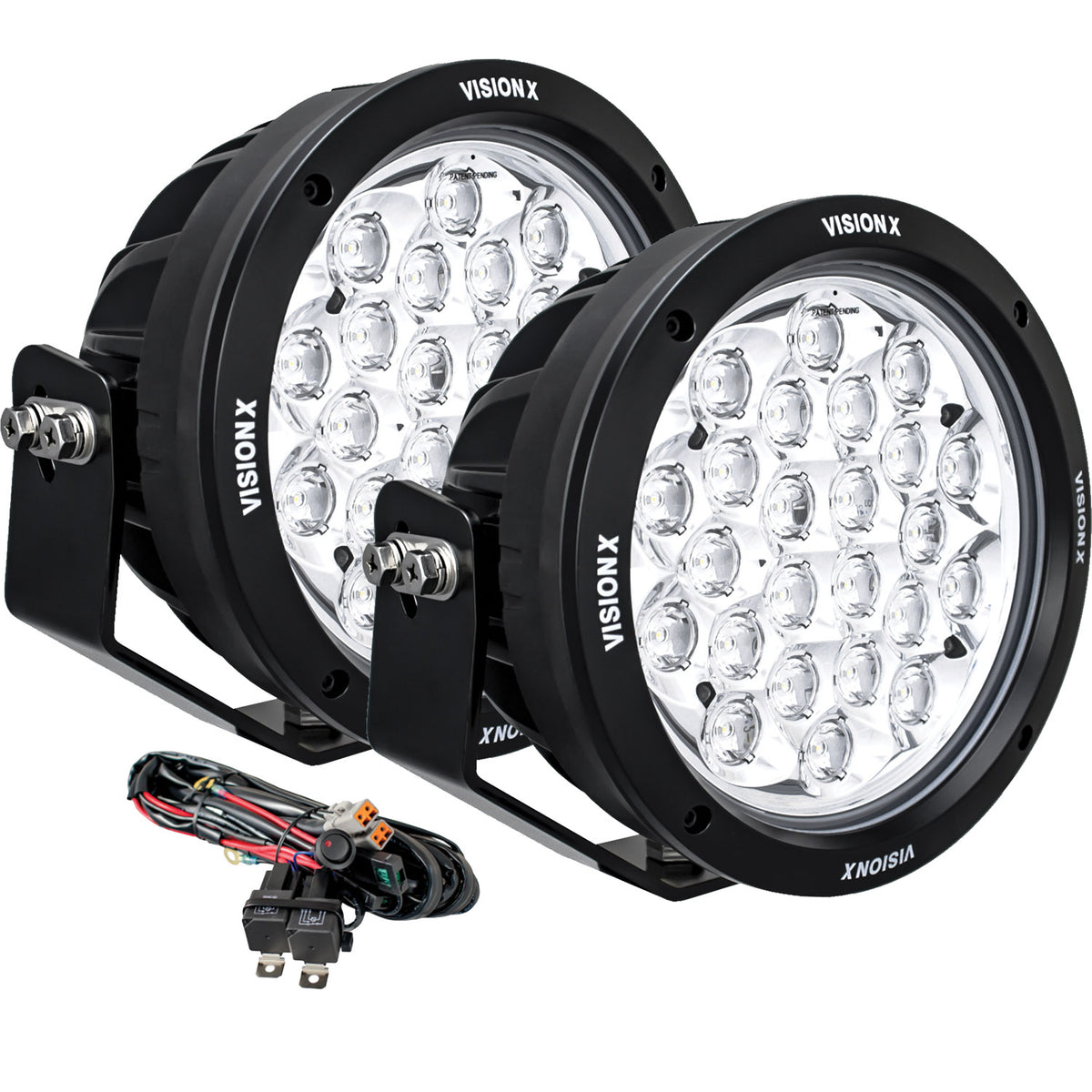

- Plug And Play Harness Included
| Amp Draw | 14A |
| Beam Distance | 1,825 ft (556 m) |
| Beam Pattern | Broad Spot Beam |
| Connector | DTP (Deutsch) |
| Effective Lumens | 12,600 lm LU |
| Housing Color | Black |
| Input Voltage | 9-32V DC |
| IP Rating | IP68/69K |
| LEDs | 24x 7W CREE |
| Materials | Aluminum housing, polycarbonate lens |
| Operating Temperature | -40°C to +85°C |

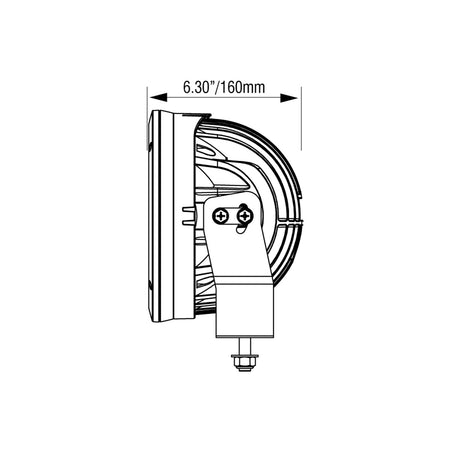

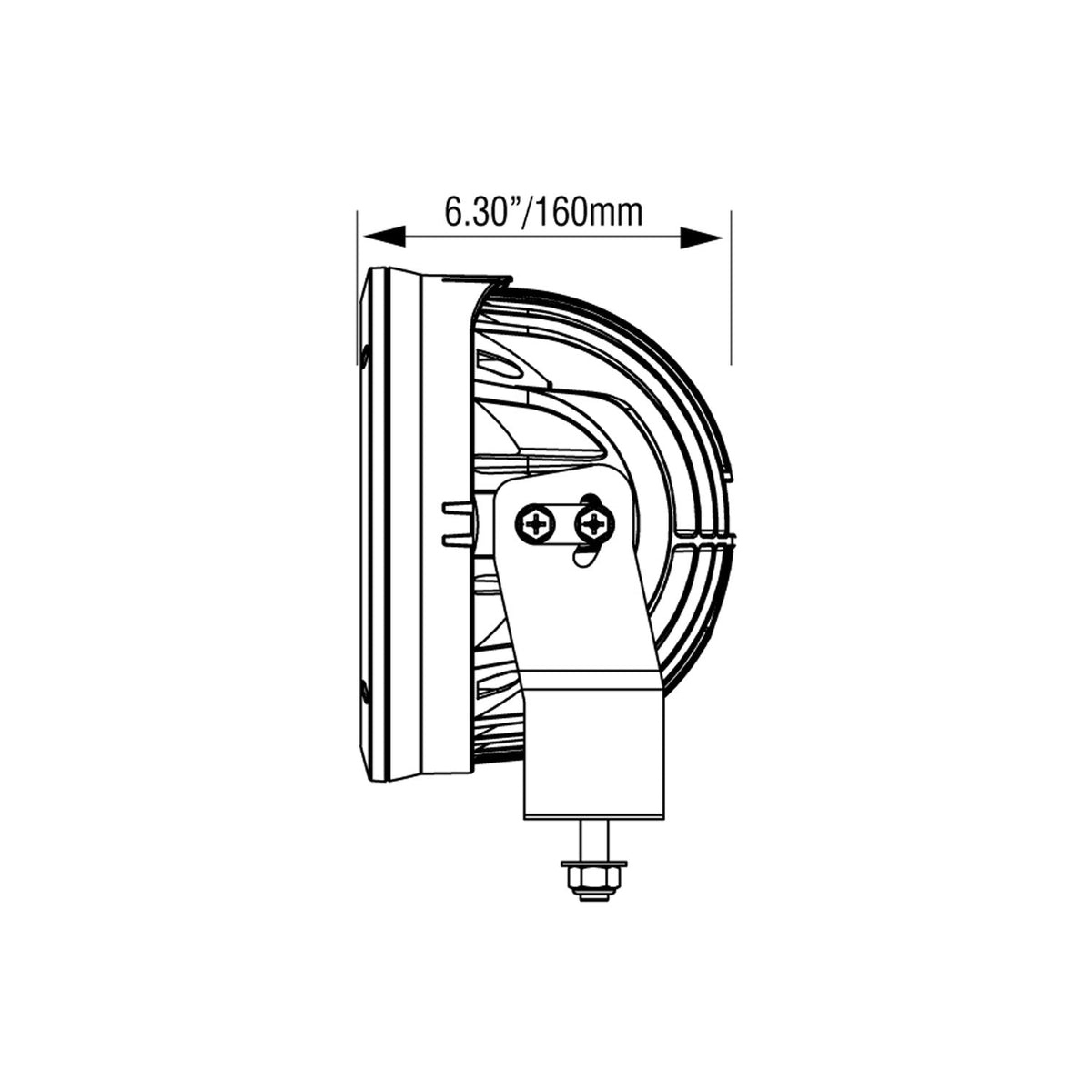

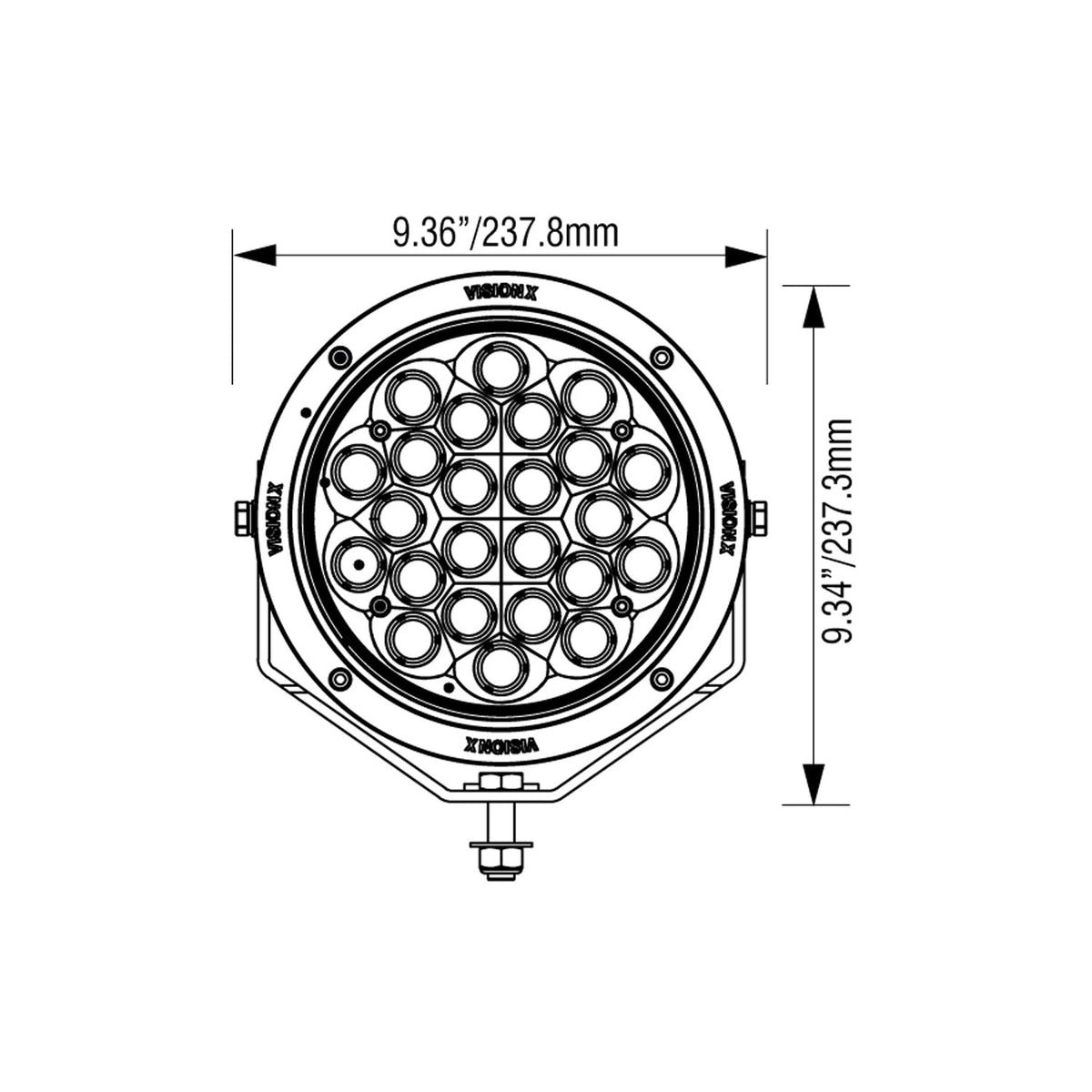

| Product Dimensions (LxWxH) | 9.36 x 6.30 x 9.34 in |
| Raw Lumens | 18,000 lm |
| Recommended Fuse | 20A |
| Vibration Rating | 21.2 G-rms |
| Warranty | Limited Lifetime |
| Watts | 168W |
| Amp Draw | 28A |
| Beam Distance | 1,825 ft (556 m) |
| Beam Pattern | Broad Spot Beam |
| Connector | DTP (Deutsch) |
| Effective Lumens | 25,200 lm LU |
| Housing Color | Black |
| Input Voltage | 9-32V DC |
| IP Rating | IP68/69K |
| LEDs | 48x 7W CREE |
| Materials | Aluminum housing, polycarbonate lens |
| Operating Temperature | -40°C to +85°C |
| Product Dimensions (LxWxH) | 9.36 x 6.30 x 9.34 in |
| Raw Lumens | 36,000 lm |
| Recommended Fuse | 40A |
| Vibration Rating | 21.2 G-rms |
| Warranty | Limited Lifetime |
| Watts | 336W |
| Amp Draw | 14A |
| Beam Distance | 1,825 ft (556 m) |
| Beam Pattern | Broad Spot Beam |
| Connector | DTP (Deutsch) |
| Effective Lumens | 12,600 lm |
| Housing Color | Black |
| Input Voltage | 9-32V DC |
| IP Rating | IP68/69K |
| LEDs | 24x 7W CREE |
| Materials | Aluminum housing, polycarbonate lens |
| Operating Temperature | -40°C to +85°C |
| Product Dimensions (LxWxH) | 9.36 x 6.30 x 9.34 in |
| Raw Lumens | 18,000 lm |
| Recommended Fuse | 20A |
| Vibration Rating | 21.2 G-rms |
| Warranty | Limited Lifetime |
| Product Condition | NEW |
| Product Condition | NEW |
