(888) 723-0041Diode Dynamics SS6 Pro LED Grille Light Bar Kit for 2014-2024 Toyota 4Runner, White SAE/DOT Driving (Pair)
Part #: DD8597
Diode Dynamics
Description

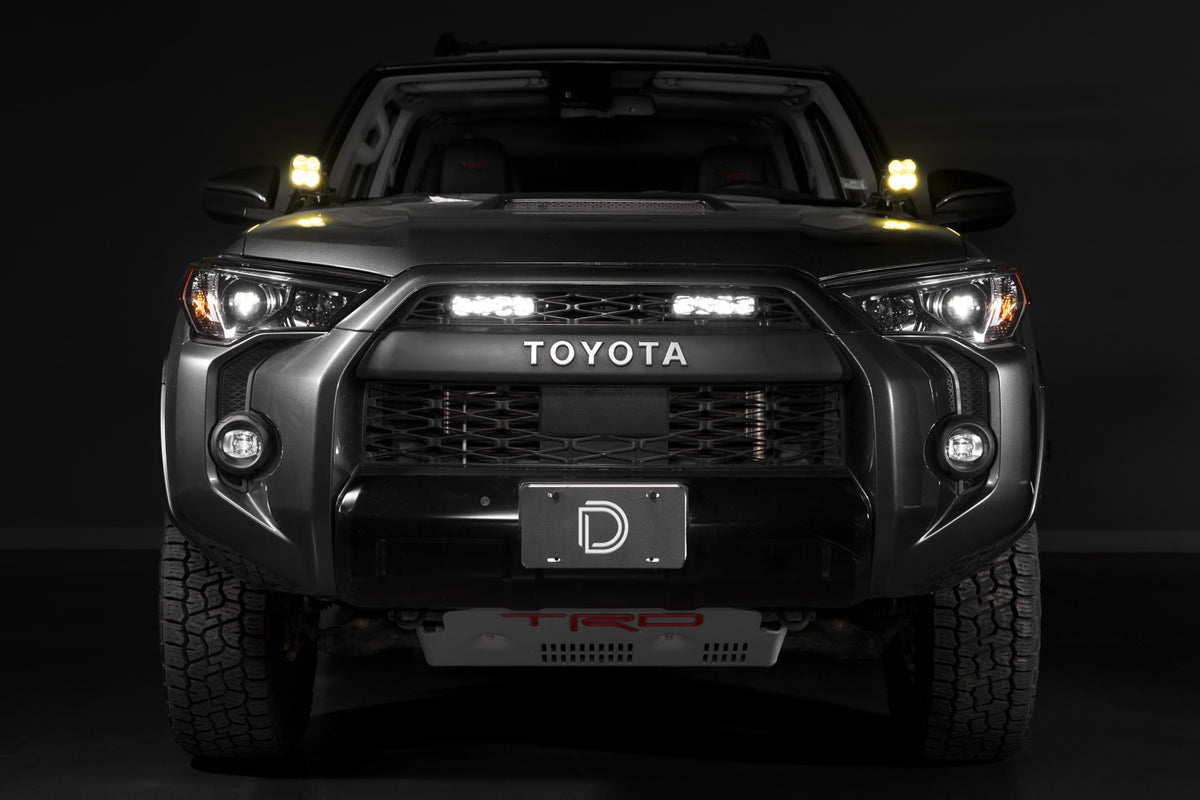

Diode Dynamics SS6 Pro LED Grille Light Bar Kit for 2014-2024 Toyota 4Runner tucks two street-legal driving lights behind the grille. Fifth-gen 4Runner owners usually face a choice between a big bar that blocks airflow and spoils the look, or nothing at all. This kit hides a pair of compact bars inside the grille opening, where they look factory and throw a tight, long-reaching driving beam down the road ahead of your high beams. Because the beam meets SAE and DOT driving light standards, it's built for real highway and back-road use at night, not just off-road, and the focused pattern reaches far without washing out the scene closer in.
Features
- Application-specific brackets mount the bars in the 4Runner's upper grille opening using factory mounting points
- Lights can run from a factory-style auxiliary switch blank through the supplied adapter lead
| Amp Draw | 2.73 A per light bar (at 12.8 V) |
| Backlight | Amber accent backlight |
| Bar Size | 6 in (152 mm) SS6 Stage Series light bar |
| Beam Pattern | SAE Driving, 20° x 12° |
| Color Temperature | 6000K (white) |
| Compliance | SAE / DOT driving beam |
| Construction | Aluminum heatsink, aluminum and copper PCBs, polycarbonate lens |
| Country of Origin | USA |
| Electrical Compatibility | No electrical issues (tested and confirmed by Diode Dynamics) |
| Illuminance | 740 lux at 32.8 ft (10 m) |

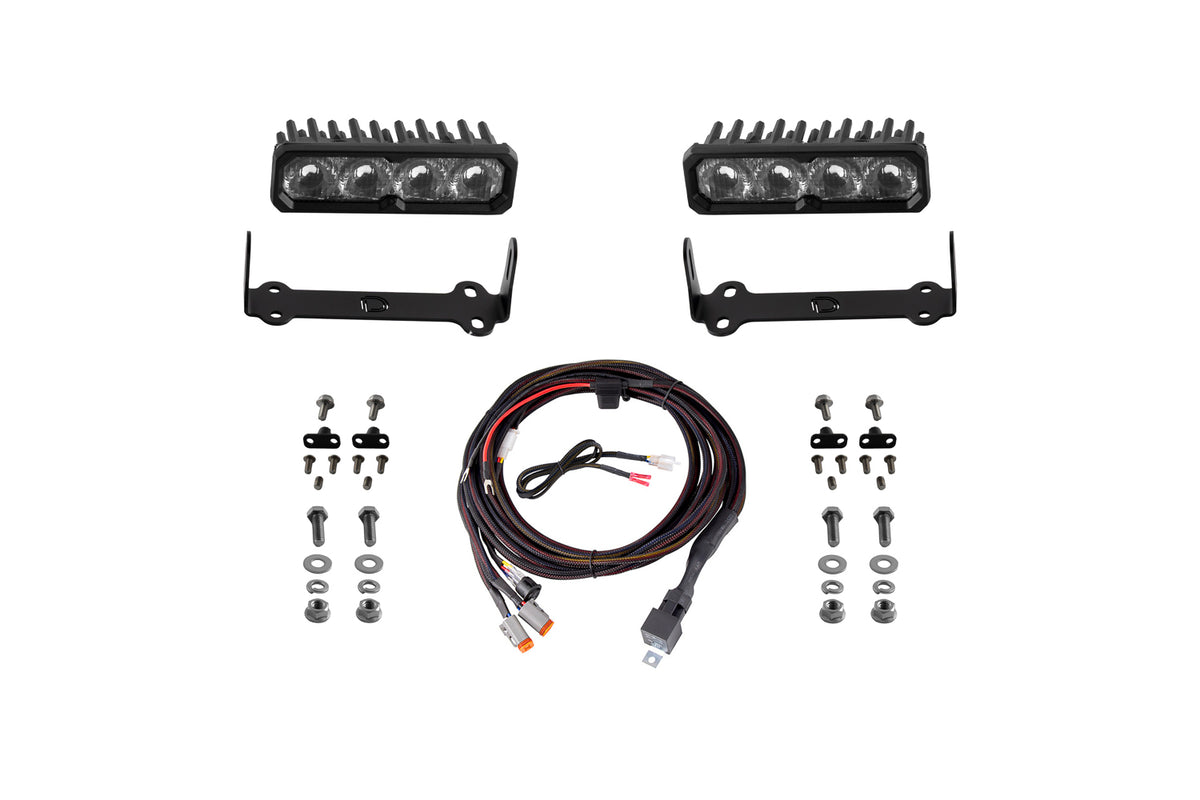

| In the Box | 2 application-specific SS6 brackets, 2 x 6 in (152 mm) SS6 Pro light bars, wiring harness, aux switch adapter wire, mounting hardware and guide |
| Input Voltage | 9-30 V DC |
| Installation | No cutting or drilling |
| Intensity | 74,000 cd peak per light bar |
| IP Rating | IP69K (waterproof, high-pressure wash) |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Optic | TIR (total internal reflection) |
| Power Level | Pro |
| Raw Lumens | 6,272 lm per light bar |
| Shipping Weight | 11.2 lb (5.08 kg) |
| Warranty | Limited Lifetime |
| Watts | 35 W per light bar |
| 2014–2024 Toyota 4Runner |
| Product Condition | NEW |
