(888) 723-0041Diode Dynamics SS6 Max LED Light Bar Kit for 2019-2021 Ford Ranger, Yellow SAE/DOT Driving (Pair)
Part #: DD8627
Diode Dynamics
Description
Diode Dynamics SS6 Max Yellow LED Driving Light Kit for 2019-2021 Ford Ranger is the flagship gold-tone distance kit for this midsize Ford. For desert running, rally-style builds and long night drives in rough weather, Max yellow pairs maximum reach with the glare-cutting color drivers trust in dust and rain. Choose DD8625 for white at full strength, or DD8628 when width beats distance.
Features
- Top-power gold-tone distance beam for drivers chasing maximum reach in a warm color
| Amp Draw | 3.16 A per light bar (at 12.8 V) |
| Backlight | Amber accent backlight |
| Bar Size | 6 in (152 mm) SS6 Stage Series light bar |
| Beam Pattern | SAE Driving, 20° x 12° |
| Color Temperature | 3000K (selective yellow) |
| Compliance | SAE / DOT driving beam |
| Construction | Aluminum heatsink, aluminum and copper PCBs, polycarbonate lens |
| Country of Origin | USA |
| Electrical Compatibility | No electrical issues (tested and confirmed by Diode Dynamics) |
| Illuminance | 710 lux at 32.8 ft (10 m) |

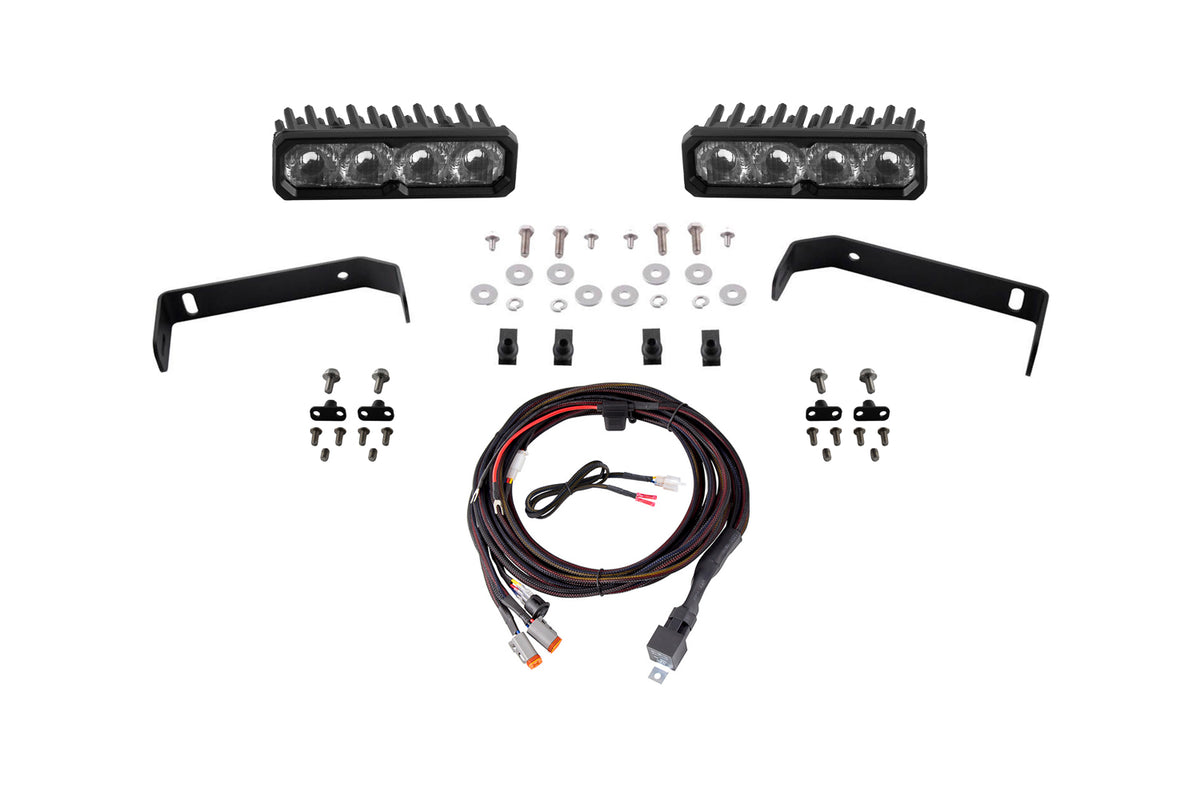

| In the Box | Application-specific SS6 bracket kit, 2 x 6 in (152 mm) SS6 light bars, wiring harness, aux switch adapter wire, all hardware, installation guide |
| Input Voltage | 9-30 V DC |
| Installation | Bumper opening, factory mounting points; no cutting or drilling |
| Intensity | 71,000 cd peak per light bar |
| IP Rating | IP69K (waterproof, high-pressure wash) |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Optic | TIR (total internal reflection) |
| Polarity | Polarity specific |
| Power Level | Max |
| Raw Lumens | 7,920 lm per light bar |
| Shipping Weight | 11.8 lb (5.35 kg) |
| Warranty | Limited Lifetime |
| Watts | 40.5 W per light bar |
| 2019–2021 Ford Ranger |
| Product Condition | NEW |
