(888) 723-0041Diode Dynamics Stealth SS30 Sport LED Light Bar Kit for 2016-2023 Toyota Tacoma, White SAE Driving
Part #: DD8705
Diode Dynamics
Description
Diode Dynamics Stealth SS30 Sport LED Light Bar Kit for 2016-2023 Toyota Tacoma hides a full-width driving light where nobody expects one, with serious reach. Most light bars announce themselves on the roof or bumper. This one hides inside the third-gen truck's grille shell, so the Tacoma looks stock by day and throws a long, intense white beam down dark highways and forest roads at night. Want warm color for dust and rain instead? Order DD8707.
Features
- Thirty inches of output tucked out of sight keeps the front end clean and the wind noise of a roof bar off the table
| Amp Draw | 9.38 A (at 12.8 V) |
| Backlight | Amber accent backlight |
| Bar Size | 30 in (762 mm) SS30 Stage Series light bar (Standard, not SmartSelect) |
| Beam Pattern | SAE Driving, 20° x 8° |
| Color Temperature | 6000K (white) |
| Compliance | SAE driving beam |
| Connector | Deutsch DT |
| Construction | Aluminum housing, ASTM-standard powder coat, polycarbonate lens |
| Country of Origin | USA (with global materials) |
| Electrical Compatibility | No electrical issues (tested and confirmed by Diode Dynamics) |
| Illuminance | 2,330 lux at 32.8 ft (10 m) |

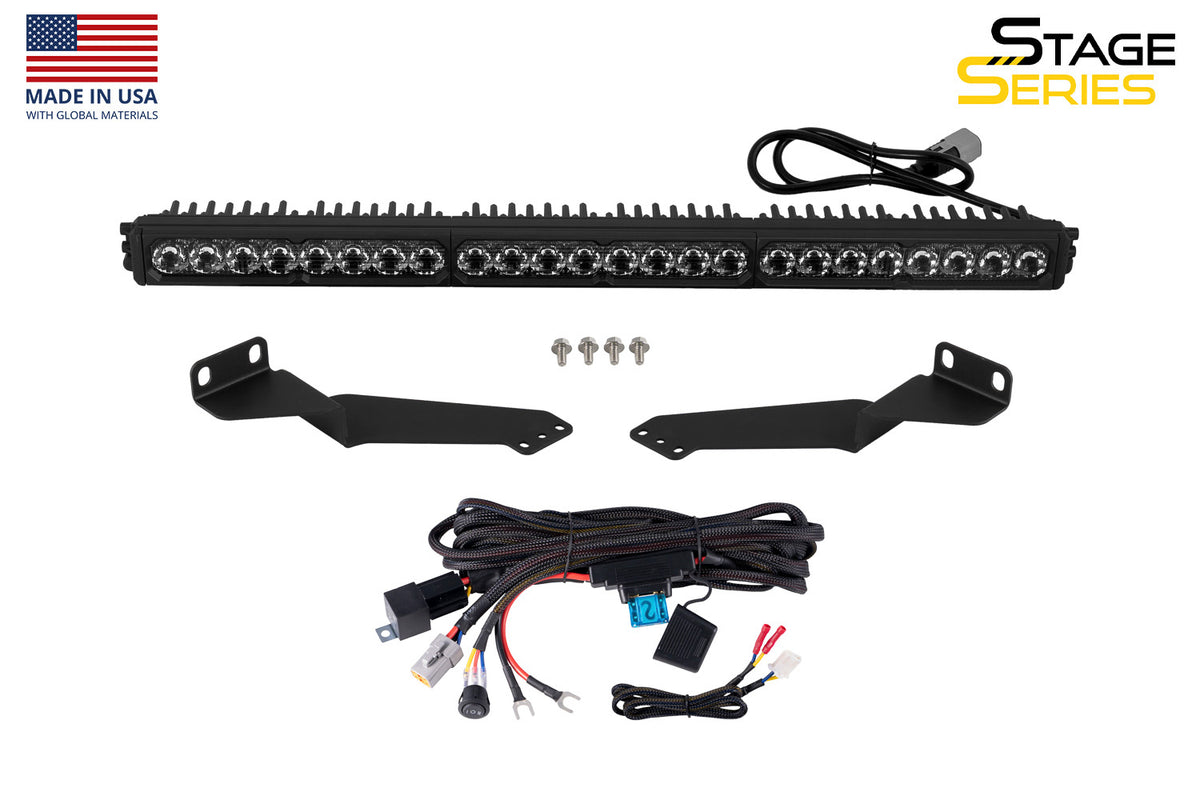

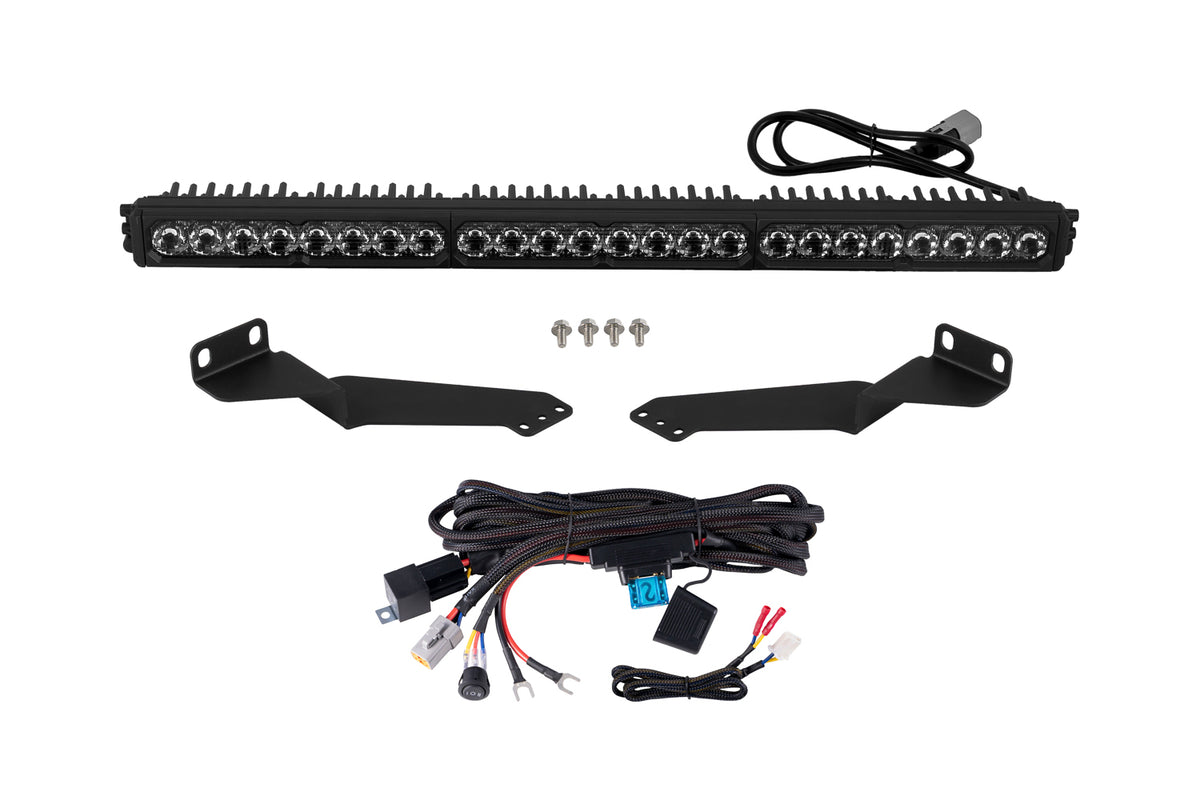

| In the Box | 2 application-specific brackets, 1 x 30 in (762 mm) SS30 Sport light bar, heavy-duty harness, mounting hardware, installation guide |
| Input Voltage | 9-24 V DC |
| Installation | Grille-mounted with factory mounting points; no cutting or drilling |
| Intensity | 233,000 cd peak |
| IP Rating | IP69K (waterproof, high-pressure wash) |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Optic | TIR (total internal reflection) |
| Polarity | Polarity specific |
| Power Level | Sport |
| Raw Lumens | 11,064 lm |
| Shipping Weight | 12.4 lb (5.62 kg) |
| Warranty | Limited Lifetime |
| Watts | 120 W |
| 2016–2023 Toyota Tacoma |
| Product Condition | NEW |
