(888) 723-0041Diode Dynamics SS6 Sport LED Fog Light Kit for 2024-2026 Toyota Tacoma, White SAE Fog (Pair)
Part #: DD8843
Diode Dynamics
Description

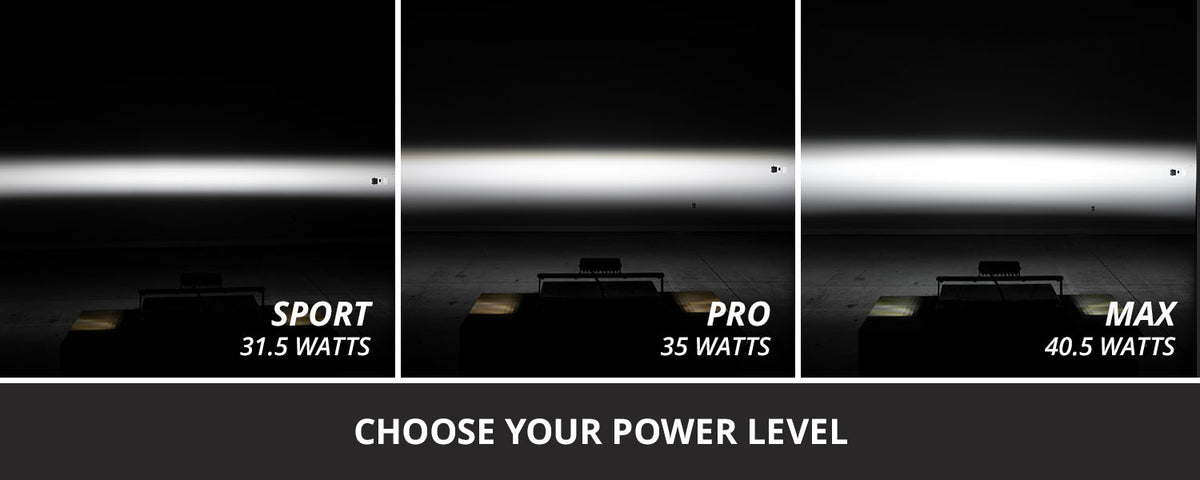

Diode Dynamics SS6 Sport LED Fog Light Kit for 2024-2026 Toyota Tacoma swaps the dim factory fogs for crisp white light bars that drop into the stock pockets. It's the simplest way to make a new Tacoma's front end look and work like a finished build: the wide, low fog pattern lights the ditches, the shoulder and the inside of every turn, and the bars sit where the factory lamps were as if Toyota put them there. Want more punch from the same brackets? The Pro (DD8577) and Max (DD8579) kits step up the output. Prefer a warmer color? The yellow Sport kit is DD8844.
Features
- Sport is the entry power level of the line, with the lightest electrical load of the three
- Cool white output matches the Tacoma's factory LED headlights for a uniform front end
| Amp Draw | 2.46 A per light bar (at 12.8 V) |

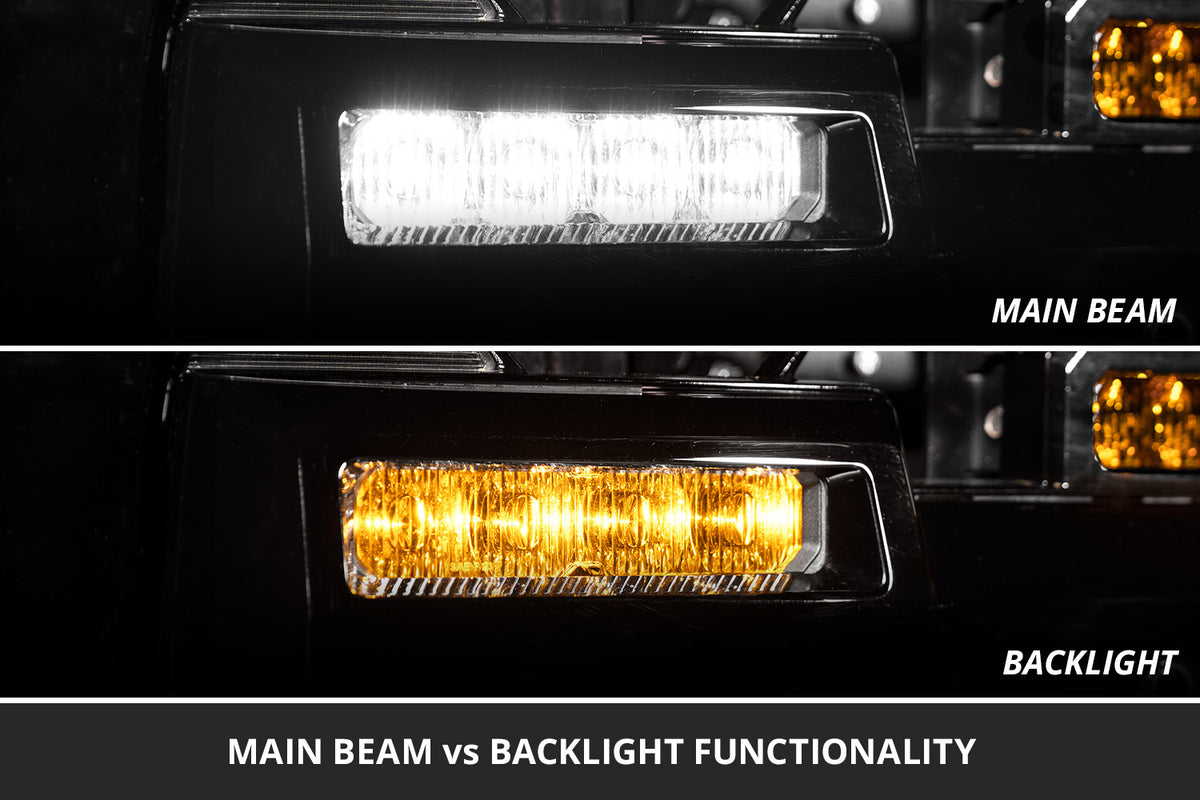

| Backlight | Amber accent backlight |
| Bar Size | 6 in (152 mm) SS6 Stage Series light bar |
| Beam Pattern | SAE Fog, 90° x 10° (FineLine optic) |
| Color Temperature | 6000K (white) |
| Compliance | SAE fog beam; legal for on-road fog light use per Diode Dynamics (check local aiming rules) |
| Connector | Deutsch DT, with H11 DT 4-pin backlight tap adapters |
| Construction | Aluminum heatsink, aluminum and copper PCBs, polycarbonate lens |
| Cooling | Passive heatsink |
| Country of Origin | USA |
| Illuminance | 150 lux at 32.8 ft (10 m) |
| In the Box | 4 application-specific brackets, 2 x 6 in (152 mm) SS6 light bars, 2 H11 DT backlight tap adapters, installation guide |
| Input Voltage | 9-30 V DC |
| Installation | Factory fog light mounting points; no cutting or drilling |
| Intensity | 15,000 cd peak per light bar |
| IP Rating | IP69K (waterproof, high-pressure wash) |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Optic | TIR (total internal reflection) |
| Polarity | Polarity specific |
| Power Level | Sport |
| Product Weight | 3.6 lb (1.63 kg) |
| Raw Lumens | 1,844 lm per light bar |
| Shipping Weight | 5 lb (2.27 kg) |
| Warranty | Limited Lifetime |
| Watts | 31.5 W per light bar |
| 2024–2026 Toyota Tacoma | |
| 2025–2026 Toyota 4Runner |
| Product Condition | NEW |
