(888) 723-0041Baja Designs S8 and S2 Pro Grille Light Kit for 2025-2026 Toyota 4Runner TRD Pro, Clear
Part #: 44-8293
Baja Designs
Description

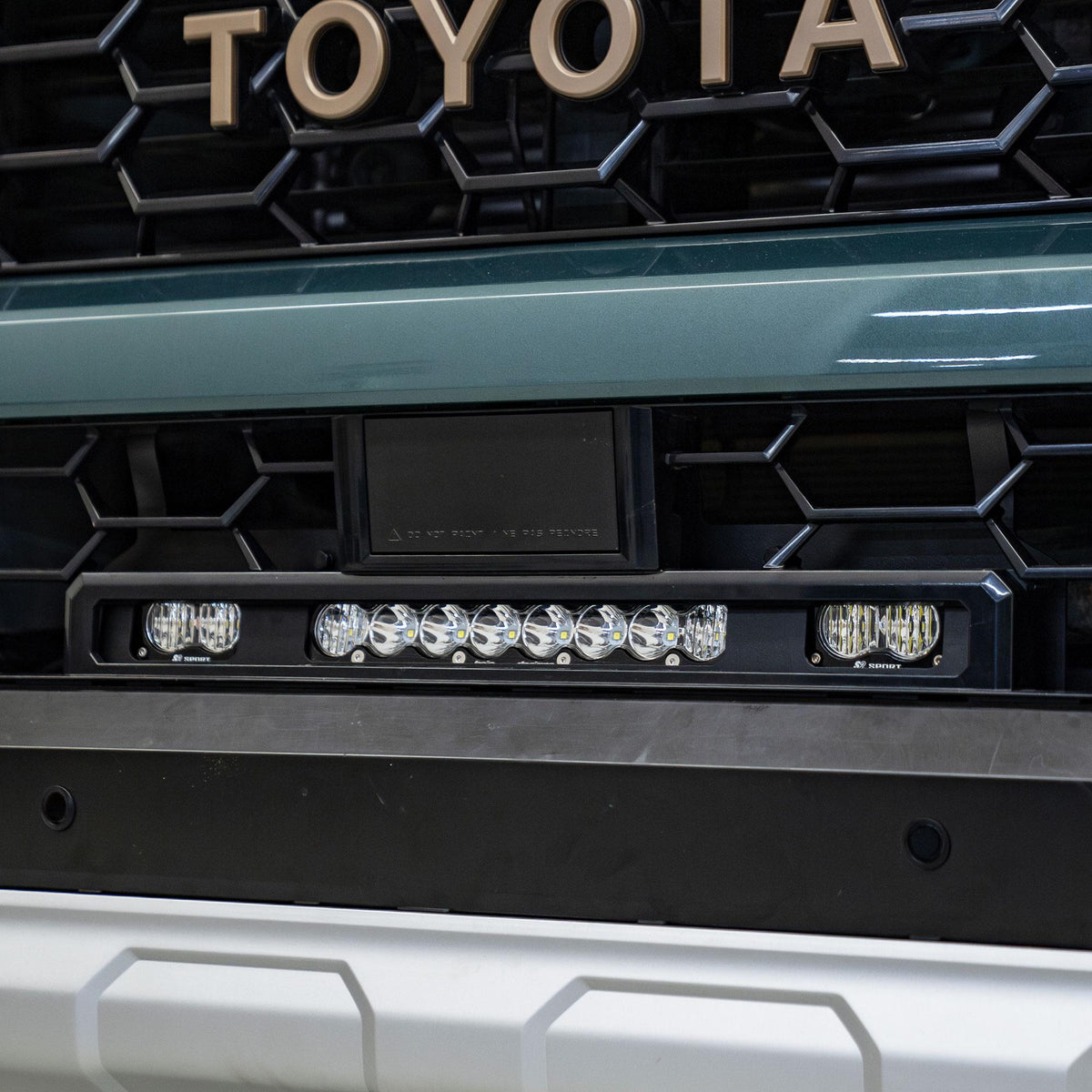

Baja Designs S8 and S2 Pro grille light kit for the 2025-2026 Toyota 4Runner TRD Pro trades the factory grille light for real off-road reach. The stock grille light looks the part but runs out of punch once the pavement ends. This kit pairs a long-reach center bar for seeing far down the trail with two wide-pattern pods that flood the ground and edges right in front of the bumper. Run the bar and the pods together, or each on its own, depending on whether you need distance or close-in coverage. With the main lights off, an amber glow from the bar keeps the TRD Pro's grille lit up as a marker light at camp or rolling through town. Choose clear for the brightest white light, or Baja Amber for rain, snow and dust. Want light up high as well? The LP4 Pro A-pillar ditch light kit for the same truck is part 44-8269.
Features
- Install takes the grille off (front lip and fender-well bolts out, fender flares partly pulled back), and the factory light unscrews from it
- Some trimming is required during installation; Baja Designs' instructions show where
- Instructions also cover running the lights from the 4Runner's upfitter switches
| Amp Draw | S8 bar 4.2 A; each S2 Pro 1.7 A; 7.6 A with all three on |
| Average Rated Life | 49,930 hours |
| Beam Pattern | S8 bar: driving/combo; S2 Pro pods: wide cornering |
| Country of Origin | Made in USA |
| Durability | Exceeds MIL-STD-810G military-standard testing |
| Housing | S8: hard-anodized aircraft-grade aluminum, billet machined bezel; S2 Pro: hard-anodized, powder-coated cast aluminum |
| Impact Resistance | IK10 |
| IP Rating | IP69K; waterproof to 9 ft (2.7 m) and pressure washable |
| LEDs | S8 bar: 8 Cree LEDs; each S2 Pro: 2 LEDs |
| Lens | Clear hard-coated polycarbonate |
| Light Dimensions (L x H x D) | S8 bar: 10.00 x 1.60 x 3.00 in (254 x 41 x 76 mm); S2 Pro: 2.93 x 1.76 x 1.68 in (74 x 45 x 43 mm) |
| Light Output | S8 bar: 6,324 raw lumens; each S2 Pro: 2,245 raw lumens |
| Overvoltage Protection | Built-in |
| Package Dimensions | 36.00 x 8.00 x 8.00 in (914 x 203 x 203 mm) |
| Patent | US D780,964 (S8) |
| Re-Torque | Check all fasteners after the first 100 miles (160 km) |
| Shipping Weight | 9 lb (4.1 kg) |
| uService | Lenses swap and beam patterns change without voiding the warranty |
| Warranty | Limited lifetime |
| Watts | S8 bar 57.9 W; each S2 Pro 23.4 W; 104.7 W with all three on |
| Weight | S8 bar: 2.4 lb (1.1 kg); each S2 Pro: 0.5 lb (0.2 kg) |
| What's Included | 1 S8 10 in light bar, 2 S2 Pro pods, 4 mounting brackets, 2 wiring harnesses, S8 backlight add-on harness, mounting hardware |
| 2025–2027 Toyota 4Runner | Submodel: TRD Pro · TRD Pro grille only |
