(888) 723-0041Diode Dynamics Stage Series C1 Pro LED Reverse Light Kit for 2021-2023 Ford F-150
Part #: DD7375
Diode Dynamics
Description

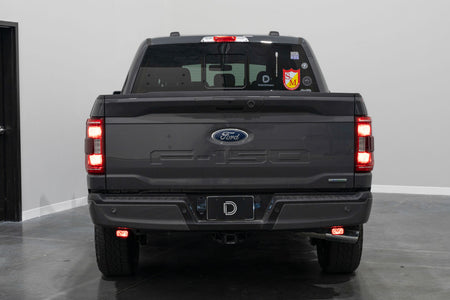

Diode Dynamics Stage Series C1 Pro LED Reverse Light Kit for 2021-2023 Ford F-150 lights up the hitch and driveway behind the newest truck. Factory reverse lamps on the new F-150 look sharp but leave the ground past the bumper in shadow. This kit hangs two C1 Pro pods out of sight at the rear and spreads a broad sheet of white light behind the truck the moment it goes into reverse. Want more reach from a compact pod? Look at DD7377. Own a 2015-2020 truck? Its C1 Pro kit is DD7170.
Features
- Adapter harness connects at the OEM taillights, so the red backlight runs with them and the main beam follows the reverse signal
- The bigger C1 housing spreads its light low and wide, which suits backing into tight spots and hooking up in the dark
| Amp Draw | 1 A main beam, 0.024 A backlight, per pod (at 12.8 V) |
| Backlight | Red (RBL), lit with the tail lamps |
| Beam Pattern | Flood, 80° x 50° |
| Color Temperature | 6000K (white) |
| Compliance | SAE J575 durability test |
| Connector | Deutsch DT input at each pod |
| Construction | Aluminum casting, polycarbonate lens, rubber gasket |
| Control | Main beam switches on automatically in reverse; override toggle lights it any time |
| Cooling | Passive pin-fin heatsink |
| Country of Origin | USA (designed and assembled) |
| Driver | Constant current |
| Illuminance | 9 lux at 32.8 ft (10 m), per pod |

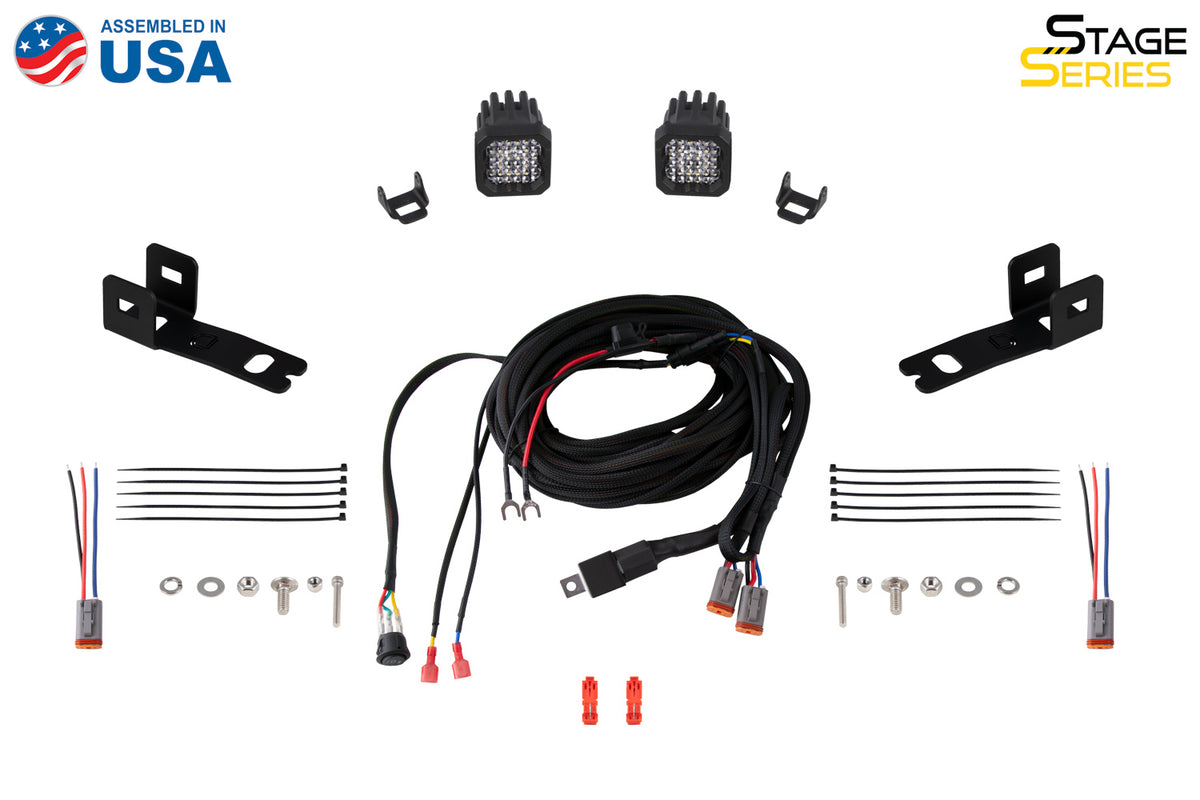

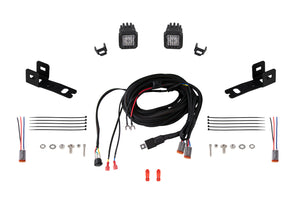

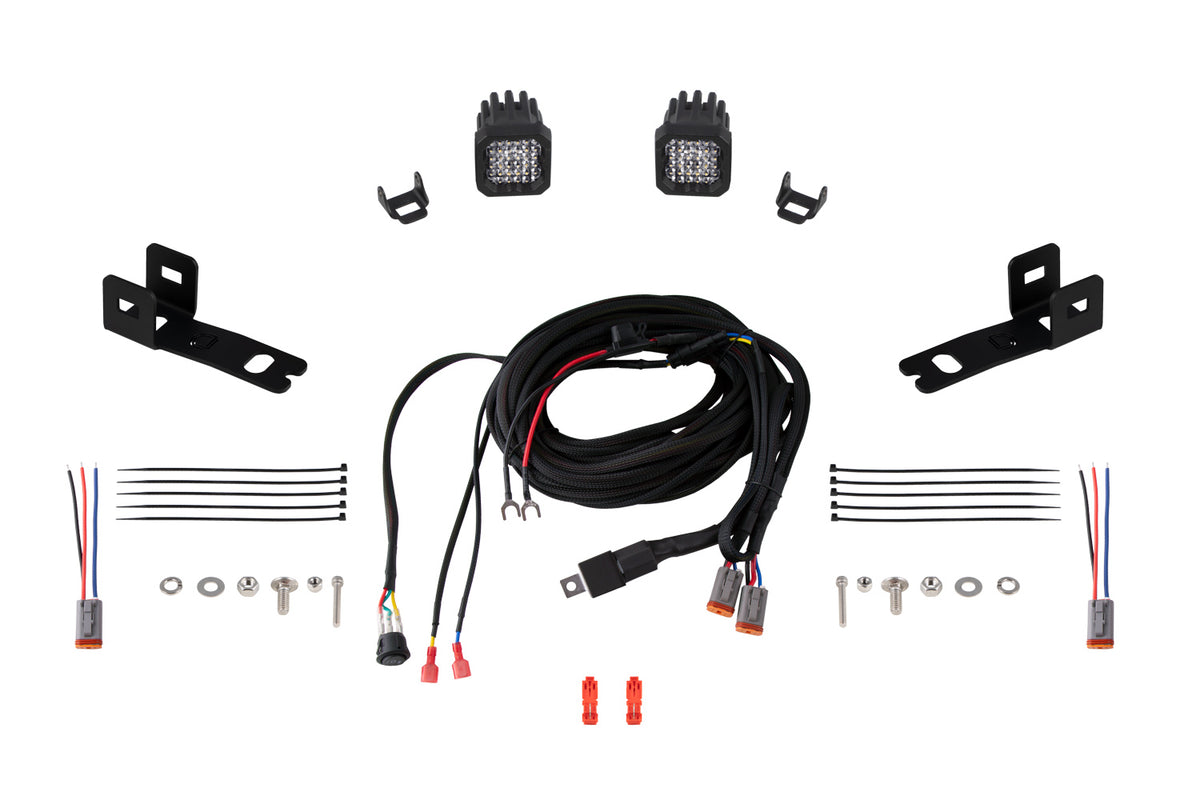

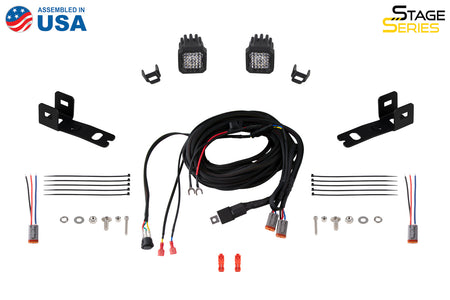

| In the Box | 2 x SSC1 Standard LED pods, universal reverse light wiring harness, 2021+ F-150 reverse light mounting kit, 2 mounting brackets, 12 zip ties, 4 T-taps, mounting hardware |
| Input Voltage | 9-16 V DC |
| Installation | Harness plugs in at the factory tail lamps; no cutting or drilling |
| Intensity | 925 cd peak per pod |
| IP Rating | IP69K (waterproof, high-pressure wash) |
| LED Emitter | Cree XHP50 |
| Measured Lumens | 2,300 lm per pod |
| Mounting | Below the bumper on vehicle-specific brackets |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Optic | TIR (total internal reflection) |
| Polarity | Polarity specific |
| Power Level | Pro |
| Product Weight | 4.2 lb (1.91 kg) |
| Raw Lumens | 2,375 lm per pod |
| Shipping Dimensions | 14 x 10 x 7 in (356 x 254 x 178 mm) |
| Shipping Weight | 5.2 lb (2.36 kg) |
| Warranty | Limited Lifetime |
| Watts | 19 W main beam, 0.3 W backlight, per pod |
| 2021–2023 Ford F-150 |
| Product Condition | NEW |
