(888) 723-0041Diode Dynamics Elite Series LED Fog Lamps, Type B, White SAE Fog (Pair)
Part #: DD5134P
Diode Dynamics
Description

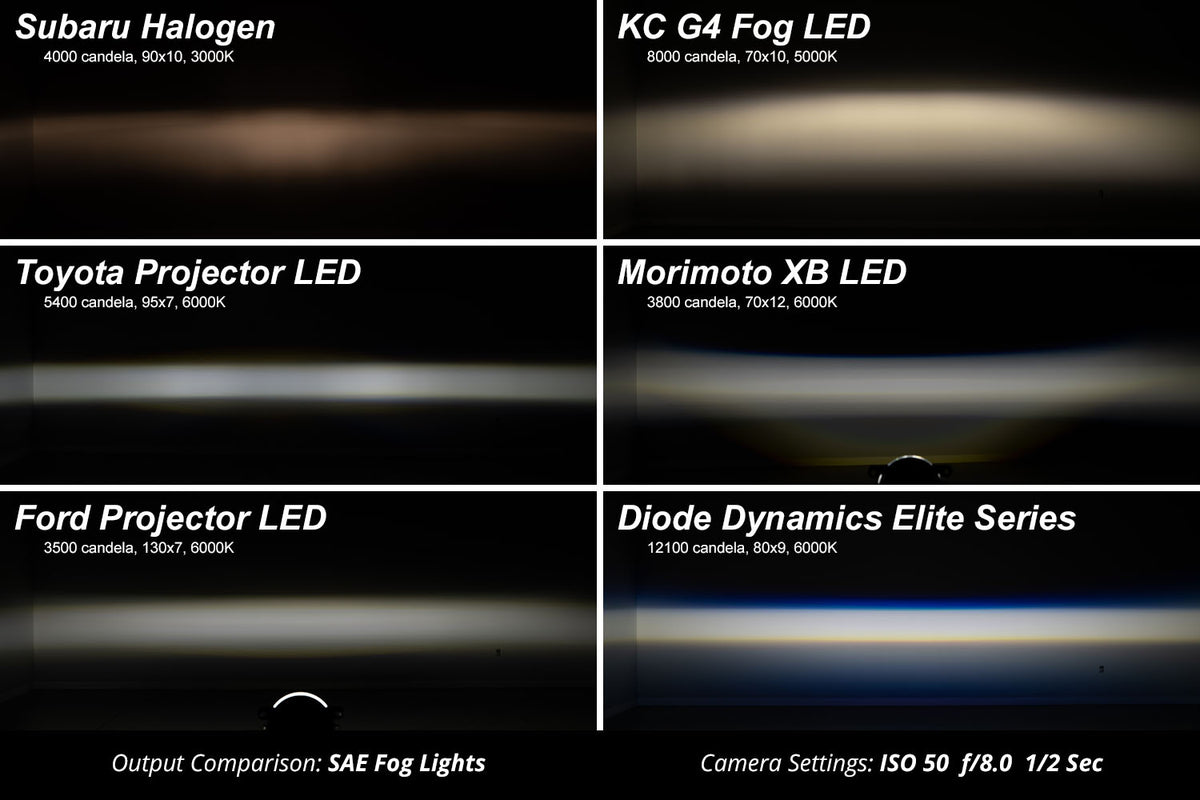

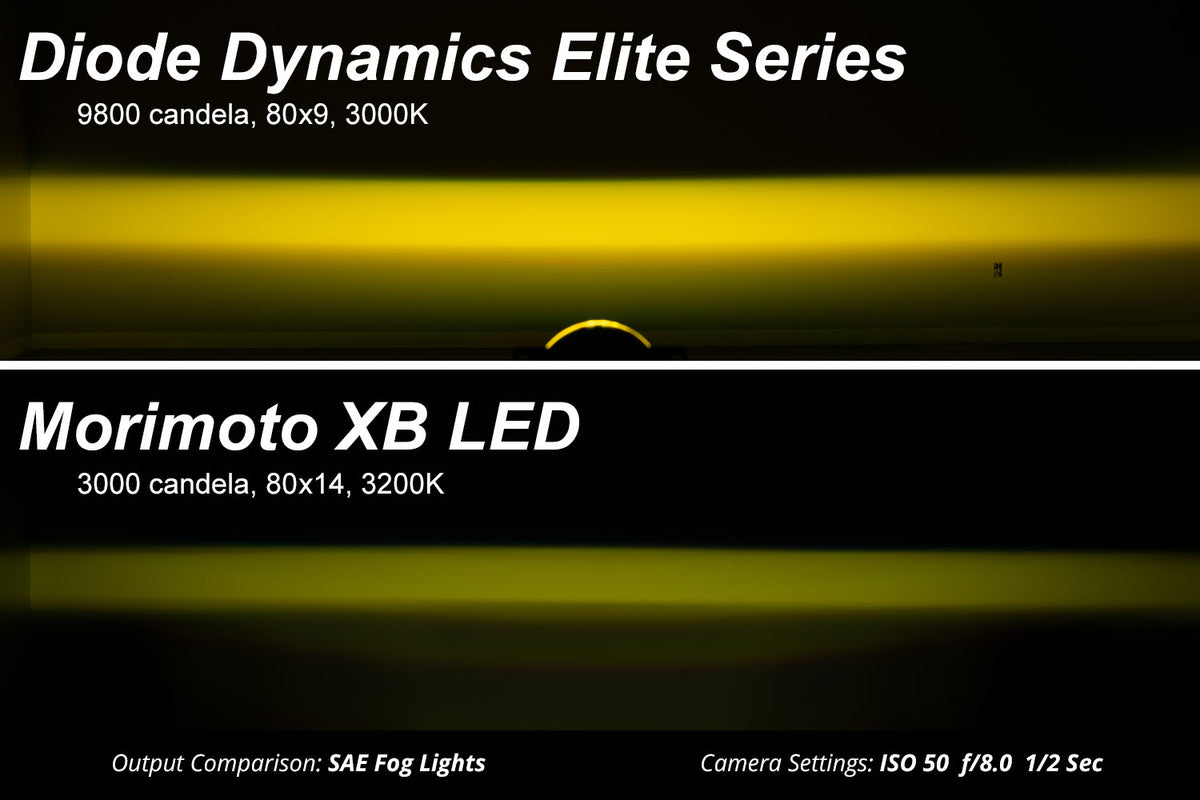

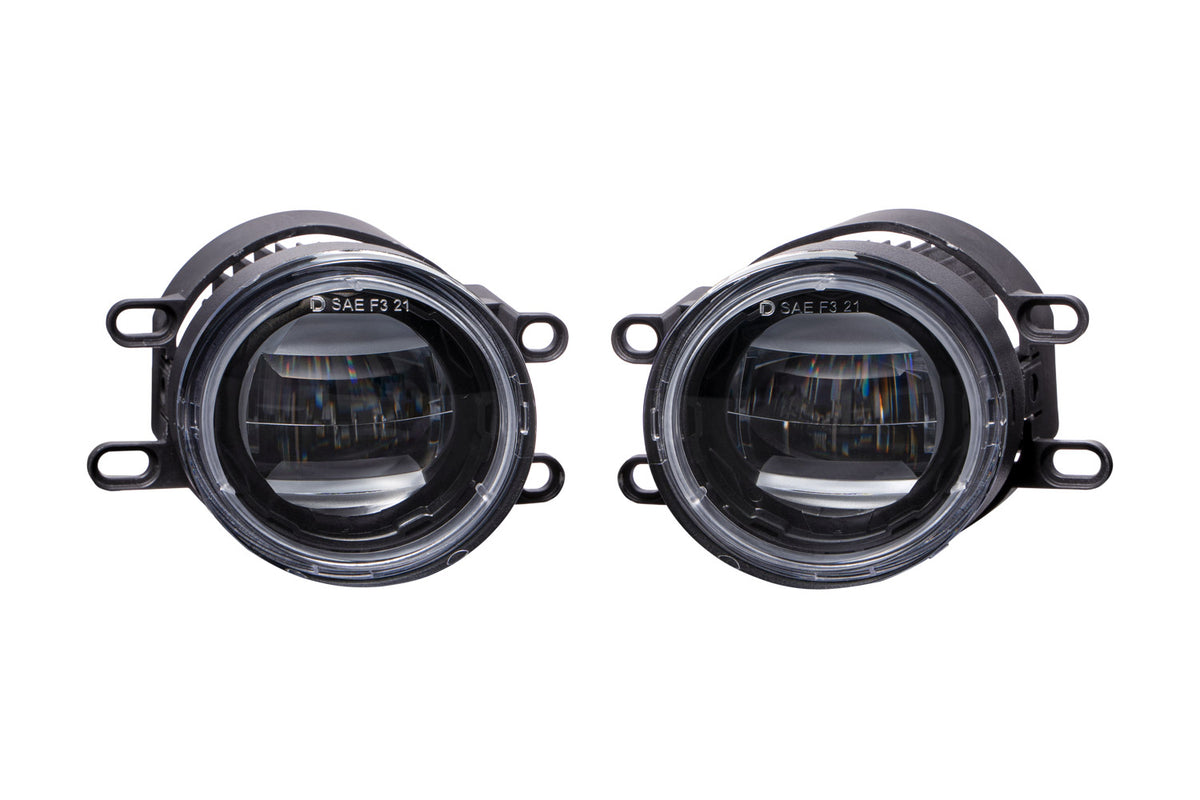

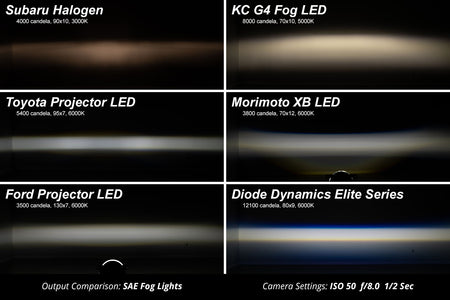

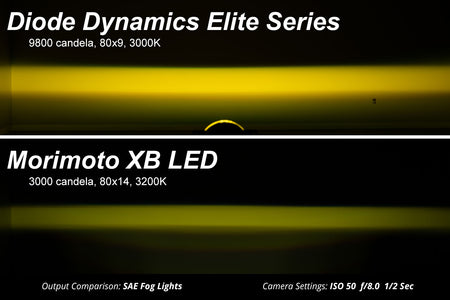

Diode Dynamics Elite Series LED Fog Lamps, Type B are complete OE-style housings that bring real LED output to Toyota and Lexus round fog openings. Unlike a bulb swap, these are full replacement fog lamps built around a custom optic, so the pattern is engineered for the LEDs instead of a halogen filament. The result is up to five times the output of the stock lamps, spread across an extremely wide, smooth band with a crisp cutoff that keeps light off oncoming windshields. Shopping for warm color instead? Look at DD5137P.
Features

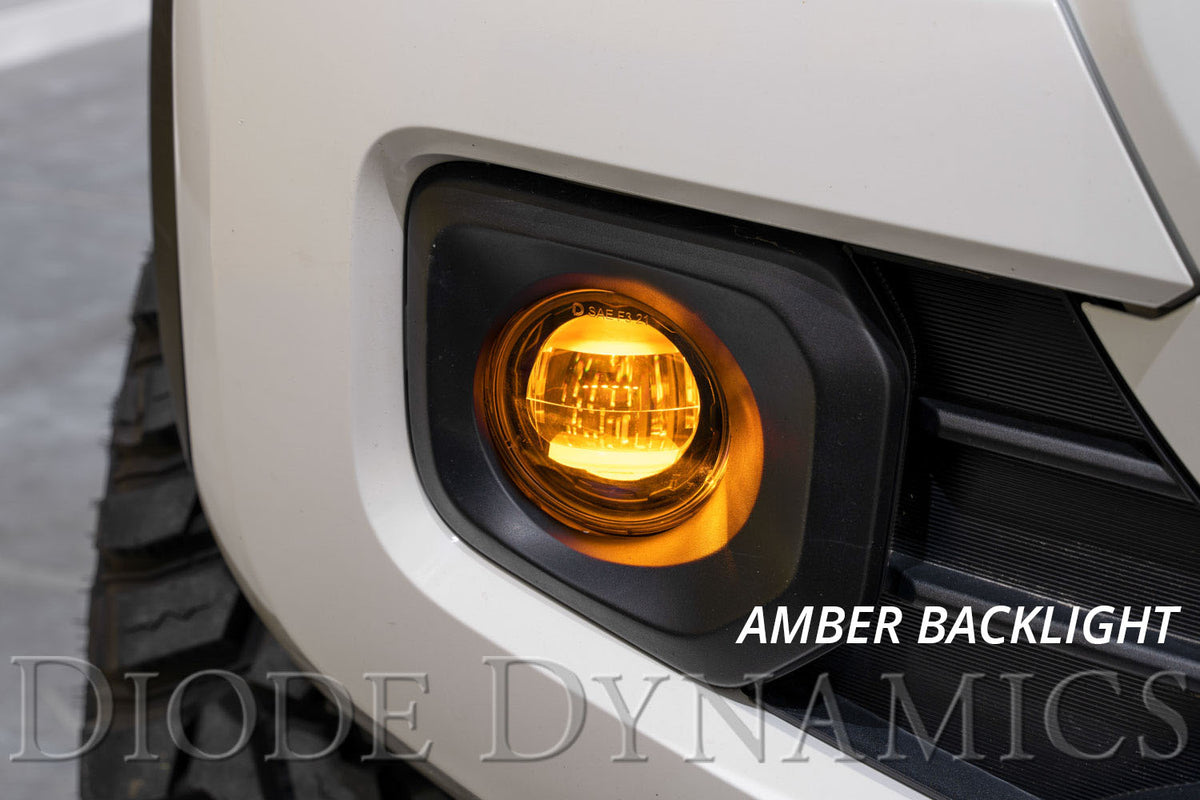

- Distinctive amber backlight lights the full lens and can be tied to the running lights, parking lights or any switched circuit
| Amp Draw | 1.3 A main beam, 0.025 A backlight, per lamp (at 12.8 V) |
| Backlight | Amber, wires to any constant 12 V source; shuts off when the main beam is on |
| Beam Pattern | SAE fog, 80° x 6° |
| Color Temperature | 6000K (white) |
| Compliance | SAE J583 fog lamp and SAE J575 durability test |
| Connector | Deutsch DT input |
| Construction | Copper PCB, UV-coated polycarbonate lens, precision aluminum casting |

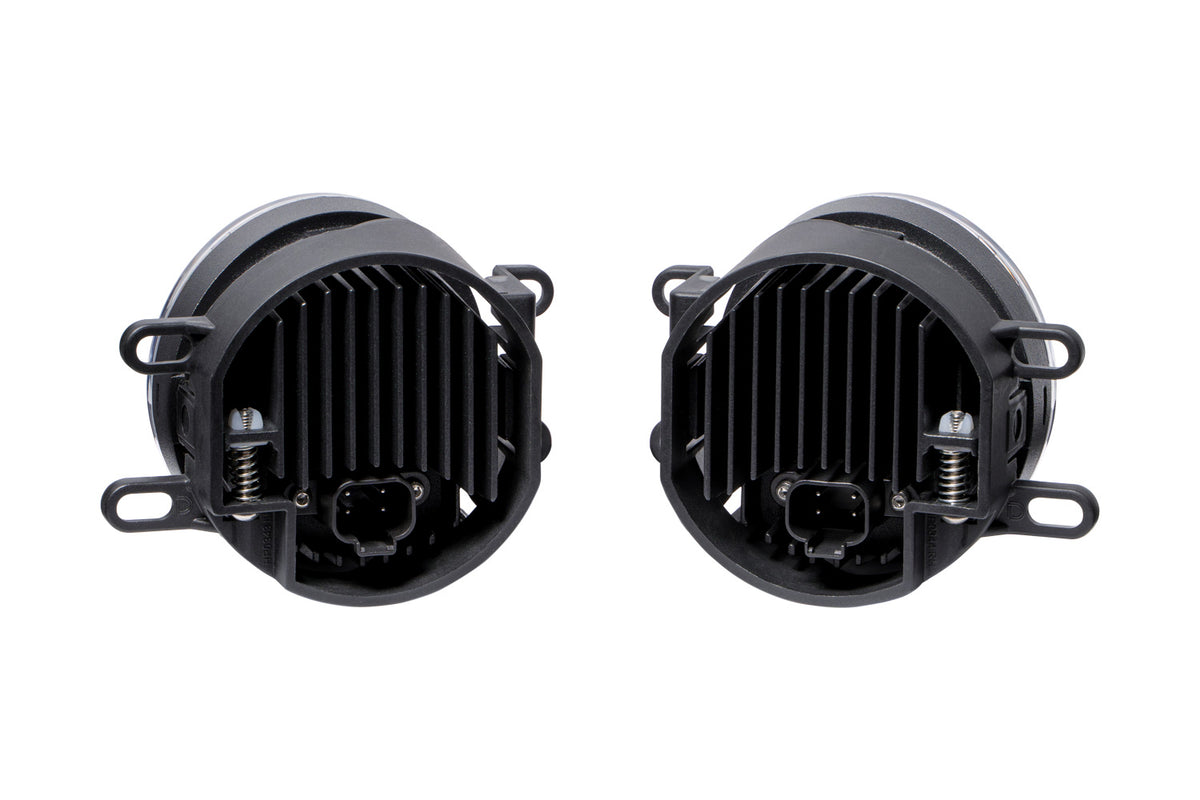

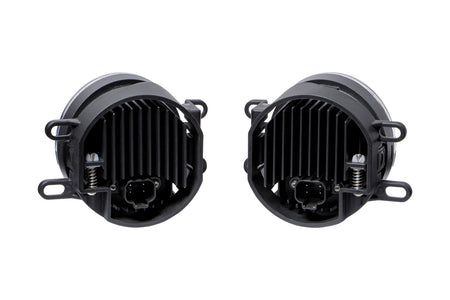

| Cooling | Passive pin-fin heatsink |
| Country of Origin | USA (engineered and assembled) |
| Driver | Constant current |
| Illuminance | 102 lux at 32.8 ft (10 m), per lamp |

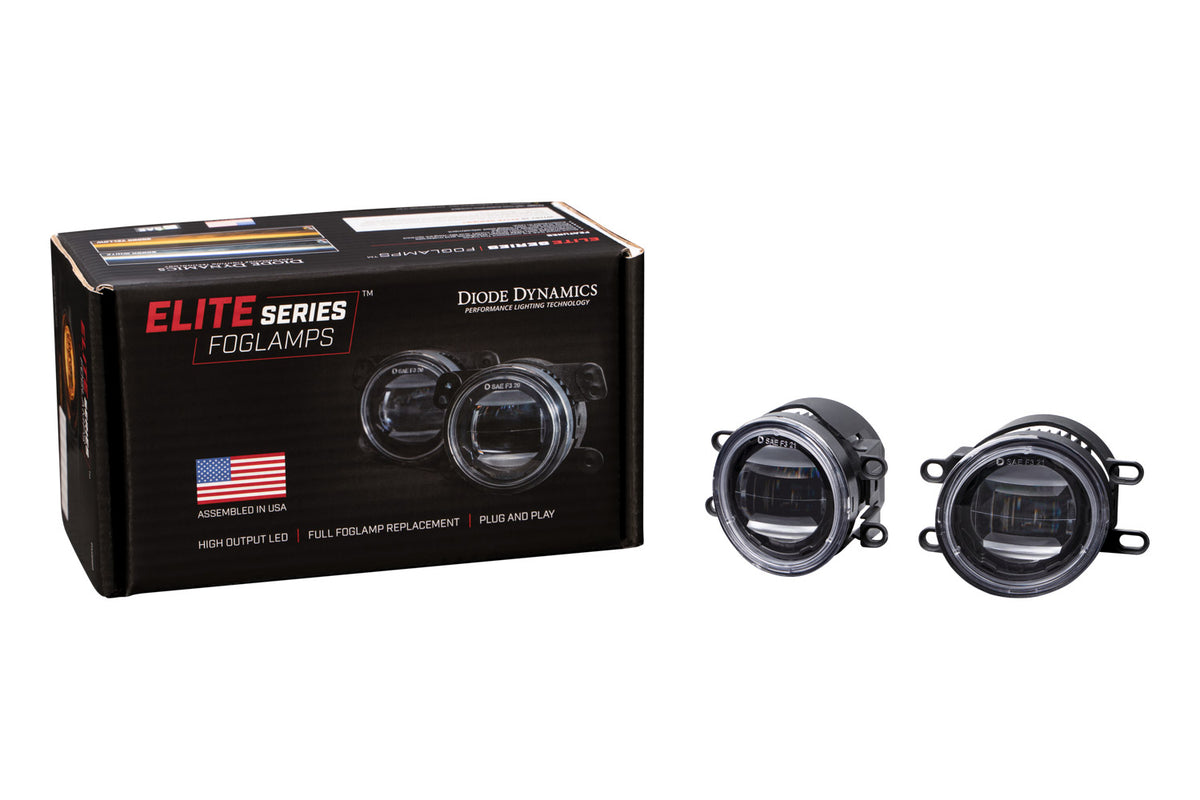

| In the Box | 2 Elite Series Type B fog lamps, 2 H11 to 4-pin DT backlight tap wires, 2 T-taps, mounting guide |
| Input Voltage | 9-16 V DC |
| Installation | Plug-and-play main beam at the OEM H11 fog connector |
| Intensity | 10,200 cd peak per lamp |
| IP Rating | IP68 waterproof |
| LED Emitter | Multi-die automotive emitters |
| Measured Lumens | 1,850 lm per lamp |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Polarity | Polarity specific |
| Product Weight | 2.25 lb (1.02 kg) |
| Shipping Dimensions | 9 x 5.25 x 5 in (229 x 133 x 127 mm) |
| Shipping Weight | 2.75 lb (1.25 kg) |
| Unit Weight | 0.85 lb (0.39 kg) each |
| Warranty | 8-Year Limited |
| Watts | 17 W main beam, 0.3 W backlight, per lamp |
| 2012–2023 Toyota Tacoma | |
| 2014–2021 Toyota Tundra | |
| 2014–2024 Toyota 4Runner |
| Product Condition | NEW |
