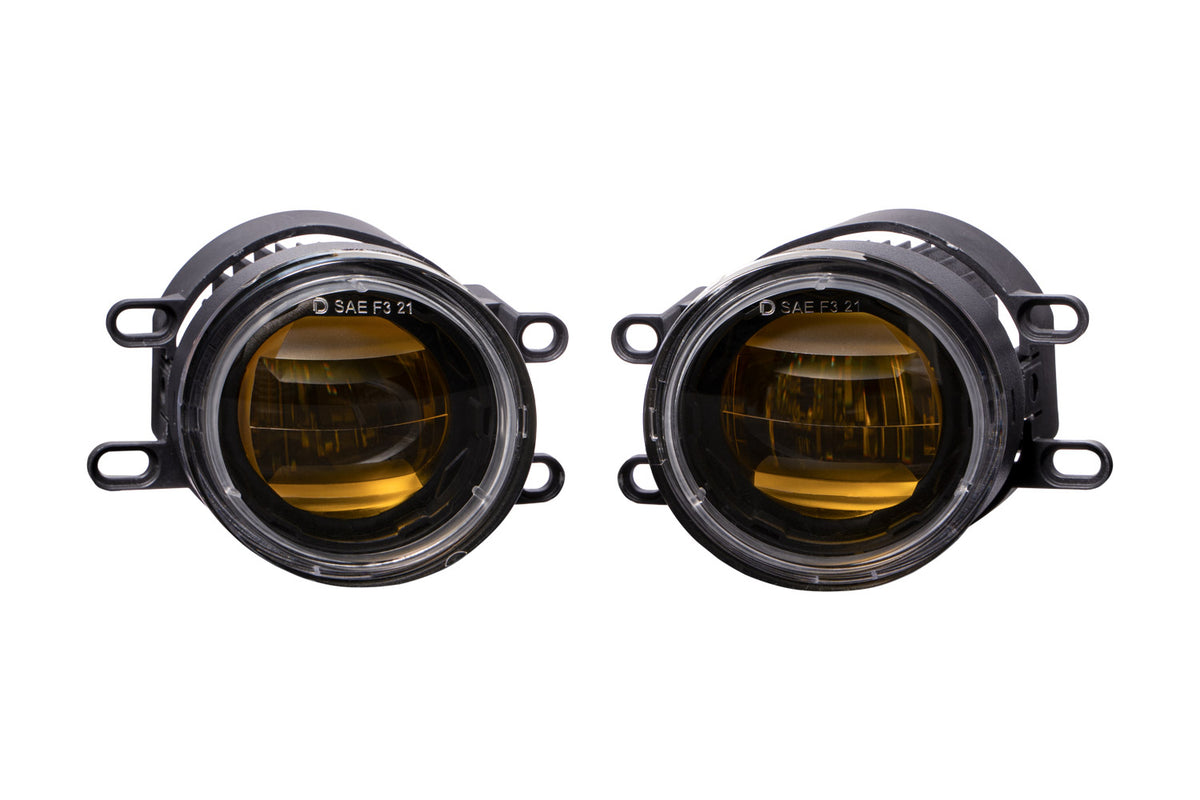

Diode Dynamics Elite Series LED Fog Lamps, Type B, Yellow SAE Fog (Pair)

Part #: DD5137P

Diode Dynamics
$25995

Direct replacement for round factory fog lamps on many Toyota and Lexus models, including the 2014-2024 4Runner (all trims, TRD Pro included), 2012-2023 Tacoma (TRD Pro excluded), 2014-2021 Tundra, RAV4 TRD Off-Road and Adventure, and Highlander (XSE excluded). Not compatible with a Prius that came with LED fogs from the factory. Check our fitment list for your exact year and trim. Vehicles without factory fogs need extra hardware and wiring. Sold as a pair. SAE fog beam for on-road use when installed as a pair and aimed to your state's rules.

This Product:
Call To Order (888) 723-0041
Find your Fit

Description

Diode Dynamics Elite Series Yellow LED Fog Lamps, Type B put an OE-grade housing and a rain-ready amber-gold beam behind the bumper. Selective yellow is the classic bad-weather fog color, and the Elite optic makes the most of it: a wide, even sheet of warm light hugs the road surface and lane edges, while the crisp upper edge and the subtle color shimmer at its edge keep it courteous to oncoming traffic. For cool white output, choose DD5134P.

Features

  • OE-style housings bolt in place of the stock lamps and reuse the original fog plug, with nothing to splice
Amp Draw 1.2 A main beam, 0.025 A backlight, per lamp (at 12.8 V)
Backlight Amber, wires to any constant 12 V source; shuts off when the main beam is on
Beam Pattern SAE fog, 80° x 6°
Color Temperature 3000K (selective yellow)
Compliance SAE J583 fog lamp and SAE J575 durability test
Connector Deutsch DT input
Construction Copper PCB, UV-coated polycarbonate lens, precision aluminum casting
Cooling Passive pin-fin heatsink
Country of Origin USA (engineered and assembled)
Driver Constant current
Illuminance 87 lux at 32.8 ft (10 m), per lamp
In the Box 2 Elite Series Type B fog lamps, 2 H11 to 4-pin DT backlight tap wires, 2 T-taps, mounting guide
Input Voltage 9-16 V DC
Installation Plug-and-play main beam at the OEM H11 fog connector
Intensity 8,700 cd peak per lamp
IP Rating IP68 waterproof
LED Emitter Multi-die automotive emitters
Measured Lumens 1,650 lm per lamp
Operating Temperature -40°F to 185°F (-40°C to 85°C)
Polarity Polarity specific
Product Weight 2.25 lb (1.02 kg)
Shipping Dimensions 9 x 5.25 x 5 in (229 x 133 x 127 mm)
Shipping Weight 2.75 lb (1.25 kg)
Unit Weight 0.85 lb (0.39 kg) each
Warranty 8-Year Limited
Watts 15 W main beam, 0.3 W backlight, per lamp
2012–2023 Toyota Tacoma
2014–2021 Toyota Tundra
2014–2024 Toyota 4Runner
Product ConditionNEW
