(888) 723-0041Diode Dynamics Elite Series LED Fog Lights for 2021-2023 Ford F-150, White SAE Fog (Pair)
Part #: DD5169
Diode Dynamics
Description

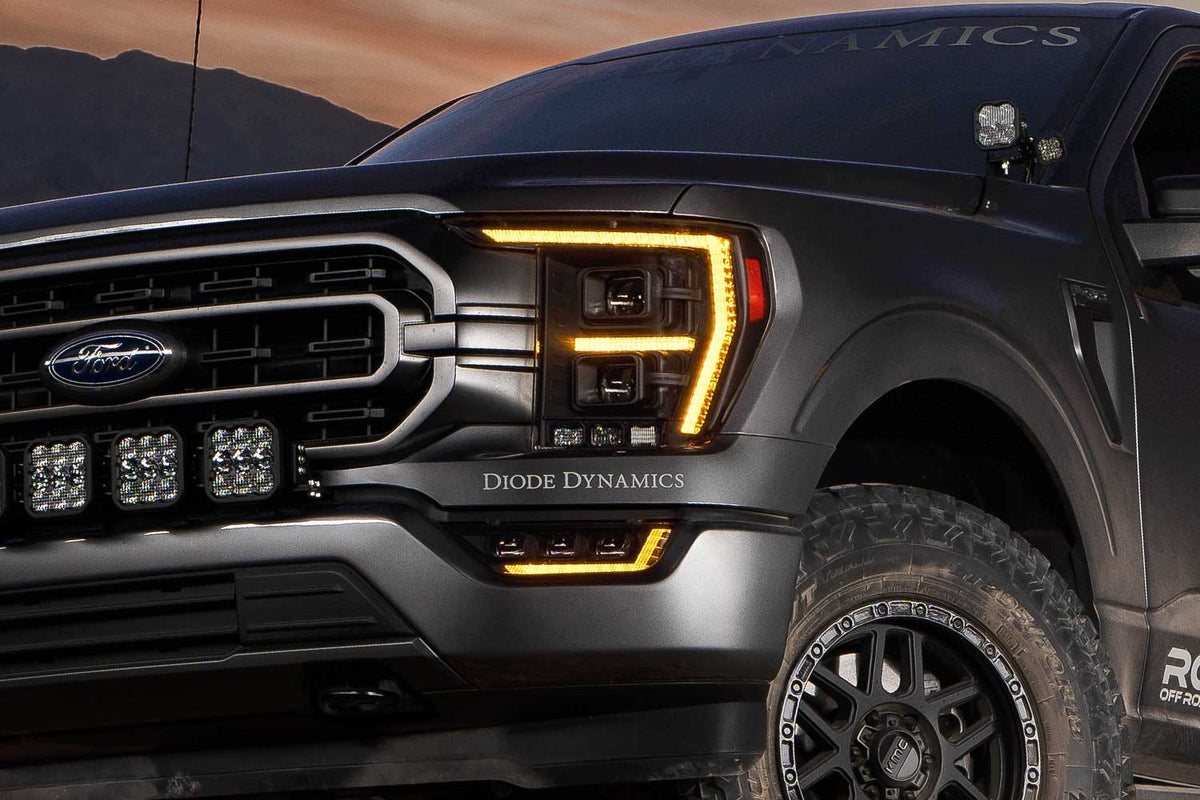

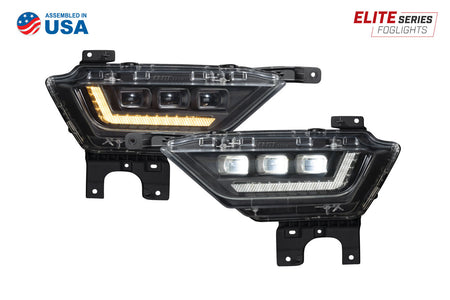

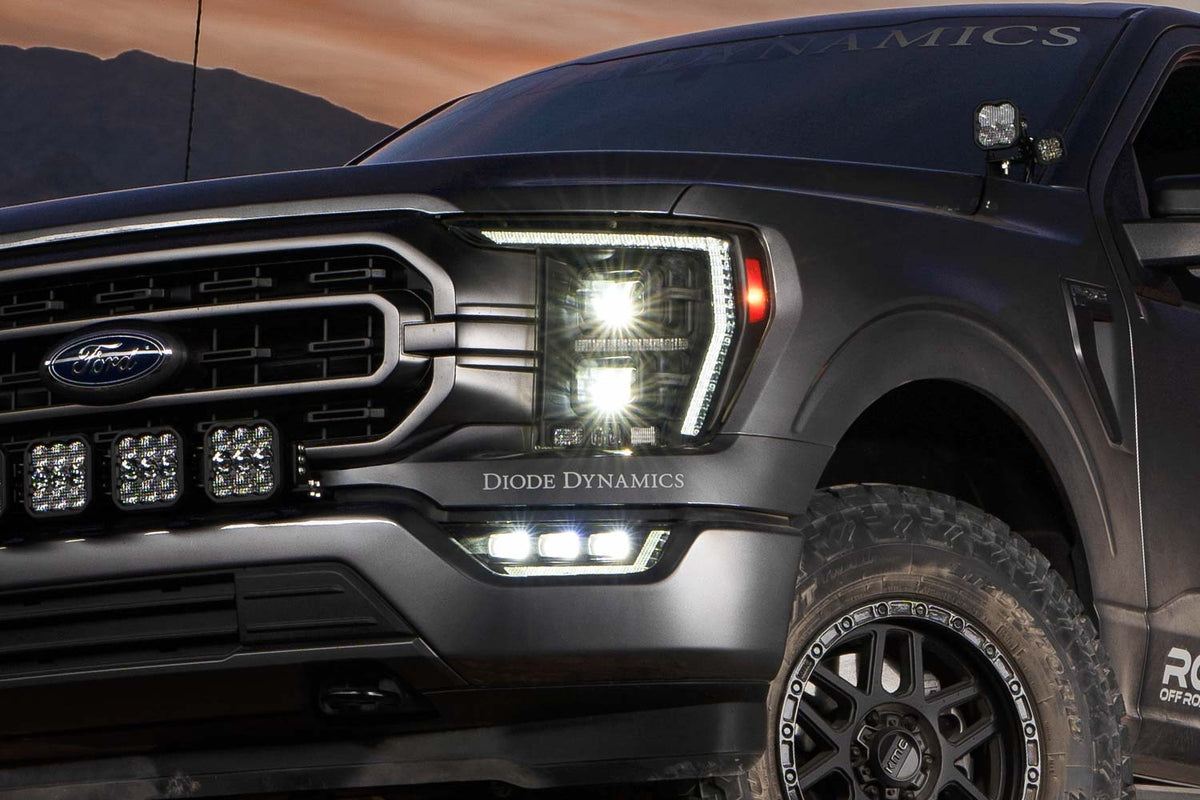

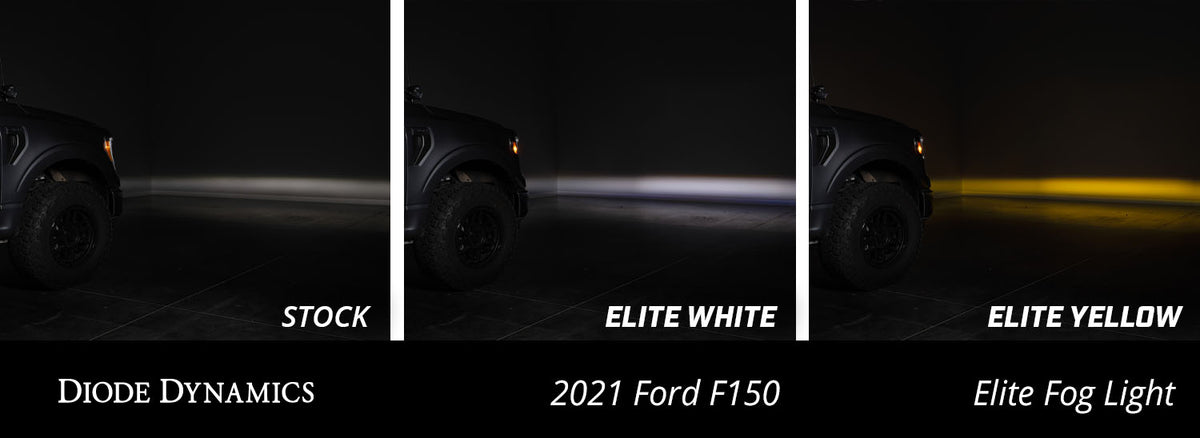

Diode Dynamics Elite LED Fog Lights for 2021-2023 Ford F-150 rebuild the lower corners of the bumper with three projectors per side. Factory F-150 fogs, halogen or LED, are an afterthought next to the headlights. These full replacement housings throw a wide, low white beam that floods the foreground and ditches, which is exactly what you want in rain, snow or heavy fog, and they double as a styling upgrade with a solid blade daytime bar and a turn signal that sweeps outward. Match them to Elite Max headlamps up top and both sets run the show mode in sync.
Features
- Blade color toggles from white to amber and back without having to pop the hood, using controls already in the truck
- Switchback signal runs amber when blinking and returns to the daytime color, adding a second turn cue low on the bumper
| Beam Pattern | SAE fog |
| Color Temperature | 6000K (white) |
| Compliance | SAE J583 fog lamp beam pattern |
| Connector | OEM-size plug and play |
| Construction | Aluminum PCB, UV-coated polycarbonate lens, aluminum heatsink |
| Cooling | Passive heatsink |
| Country of Origin | USA (engineered and assembled) |
| Driver | Internal, linear regulated, constant current |
| Functions | Fog beam from 3 LED projectors per lamp, selectable white or amber blade DRL, sequential amber turn signal, welcome sequence, optional show mode (requires Elite Max headlights) |

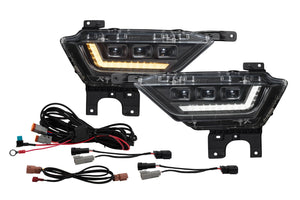

| In the Box | 2 Ford F-150 Elite Series fog lamps, 2 plug-and-play harnesses, 2 Molex sealing plugs, 1 adjuster tool, installation guide |
| Input Voltage | 9-16 V DC |
| IP Rating | IP67 weatherproof |
| LED Emitter | Lumileds Luxeon Z ES, 3030 bicolor |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Polarity | Polarity specific |
| Product Weight | 10.4 lb (4.72 kg) |
| Shipping Dimensions | 25 x 21 x 15 in (635 x 533 x 381 mm) |
| Shipping Weight | 16 lb (7.26 kg) |
| Unit Weight | 5.2 lb (2.36 kg) each |
| Warranty | 8-Year Limited |
| 2021–2023 Ford F-150 |
| Product Condition | NEW |
