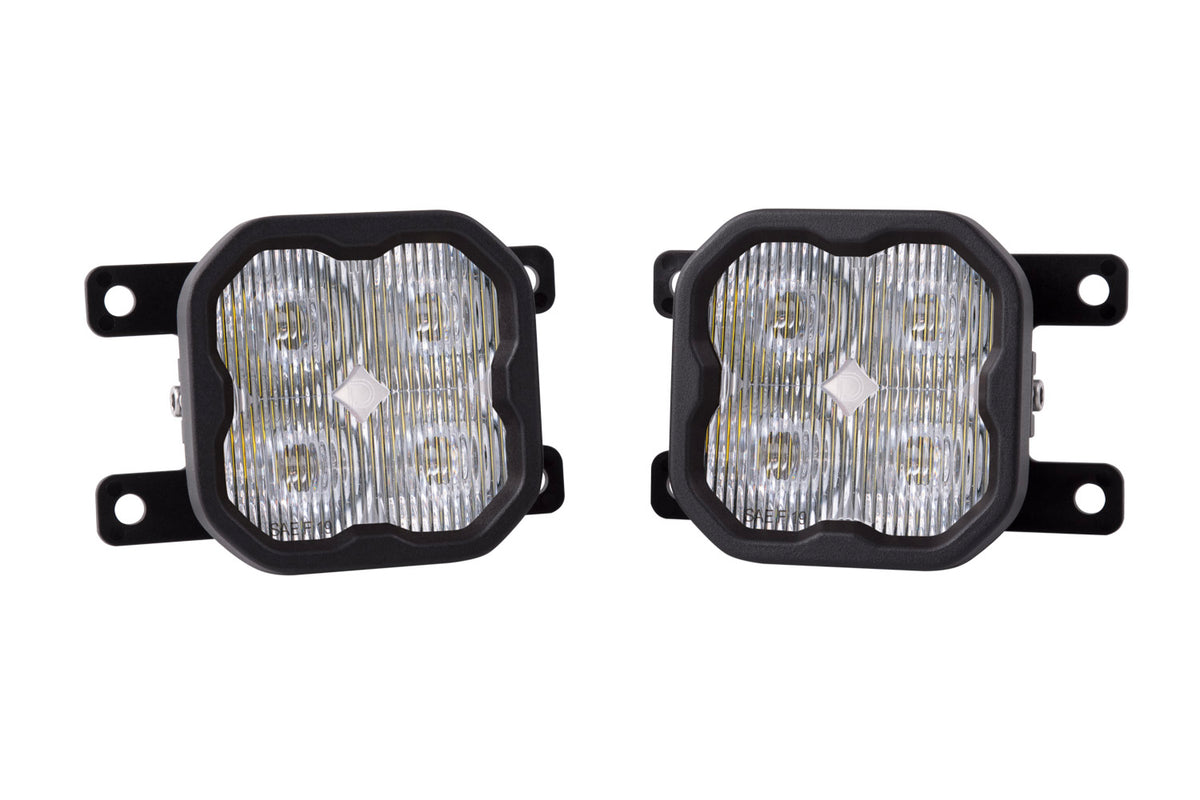

Diode Dynamics SS3 Sport LED Fog Light Kit, Type AS, White SAE Fog (Pair) – Diode Dynamics DD6988, photo 1 of 2
Diode Dynamics SS3 Sport LED Fog Light Kit, Type AS, White SAE Fog (Pair) – ZZ1 (Diode Dynamics DD6988)
Diode Dynamics SS3 Sport LED Fog Light Kit, Type AS, White SAE Fog (Pair) – Diode Dynamics DD6988, photo 1 of 2
Diode Dynamics SS3 Sport LED Fog Light Kit, Type AS, White SAE Fog (Pair) – ZZ1 (Diode Dynamics DD6988)
Ask an expert

We can help you find the part you need

(888) 723-0041
Mon–Fri: 8:30 AM–5:00 PM ET
Sat: 8:30 AM–12:00 PM ET
Sunday: Closed
Email us (24/7)

Diode Dynamics SS3 Sport LED Fog Light Kit, Type AS, White SAE Fog (Pair)

Part #: DD6988

Diode Dynamics
$37995

Direct replacement for factory fog lamps (halogen or LED) on the 2021-2025 Ford Bronco, 2019-2023 Ranger, 2019-2024 Ram 1500 (2019: new body style only), 2018-2026 Subaru Crosstrek, 2019-2022 Ascent, 2009-2014 Focus and 2010-2018 Transit Connect. Check our fitment list for your trim: the 2024 and newer Crosstrek Wilderness is not compatible, Crosstrek Sport may need minor bracket modification, and Bronco fits the standard plastic bumper or the 2022 and newer capable bumper with slight trimming of the inner fog surrounds. Vehicles without factory fogs need extra hardware and wiring. Sold as a pair. SAE fog beam for on-road use when installed as a pair and aimed to your state's rules.

This Product:
Find your Fit

Description

Diode Dynamics SS3 Sport Type AS LED Fog Light Kit trades dim stock fogs for crisp, road-legal white LED light. Halogen fogs on a Bronco, Ranger or Ram put out a weak yellowish smudge just ahead of the bumper. These SS3 pods bolt into the factory openings and throw a wide, flat white beam with a sharp top edge, so the road and shoulders light up without blinding anyone coming the other way. Prefer warmer light for rain and snow? Choose DD6989; for more output, the Pro pair is DD6991.

Features

  • Custom brackets take the place of the stock housings, so nothing on the bumper needs drilling
Amp Draw 1.1 A per pod (at 13.2 V)
Backlight Amber (ABL)
Beam Pattern SAE Fog (FineLine optic), 80° x 8°
Color Temperature 6000K (white)
Compliance SAE J583 fog lamp; road legal as a pair when aimed to state rules
Construction Powder-coated aluminum housing, polycarbonate lens
Country of Origin USA (engineered and assembled)
Illuminance 106 lux at 32.8 ft (10 m), per pod
In the Box 2 x SS3 Standard pods, 2 Type A brackets, 2 H11 to 4-pin DT backlight tap wires, mounting hardware, mounting guide
Input Voltage 9-16 V DC
Installation Bolts in where the OEM fog lamp assemblies were mounted
Intensity 10,600 cd peak per pod
IP Rating IP69K (waterproof, high-pressure wash)
LED Emitter Lumileds Luxeon Z ES
Measured Lumens 1,520 lm per pod
Operating Temperature -40°F to 185°F (-40°C to 85°C)
Optic TIR (total internal reflection)
Pod Size 3 in (76 mm) class
Power Level Sport
Raw Lumens 2,262 lm per pod
Shipping Dimensions 14 x 11 x 4 in (356 x 279 x 102 mm)
Shipping Weight 3.5 lb (1.59 kg)
Warranty Limited Lifetime
Watts 14.5 W per pod
Wiring Plugs into the OEM H11 fog sockets through the included adapters
2019–2023 Ford Ranger
2021–2023 Ford Bronco
Product ConditionNEW
