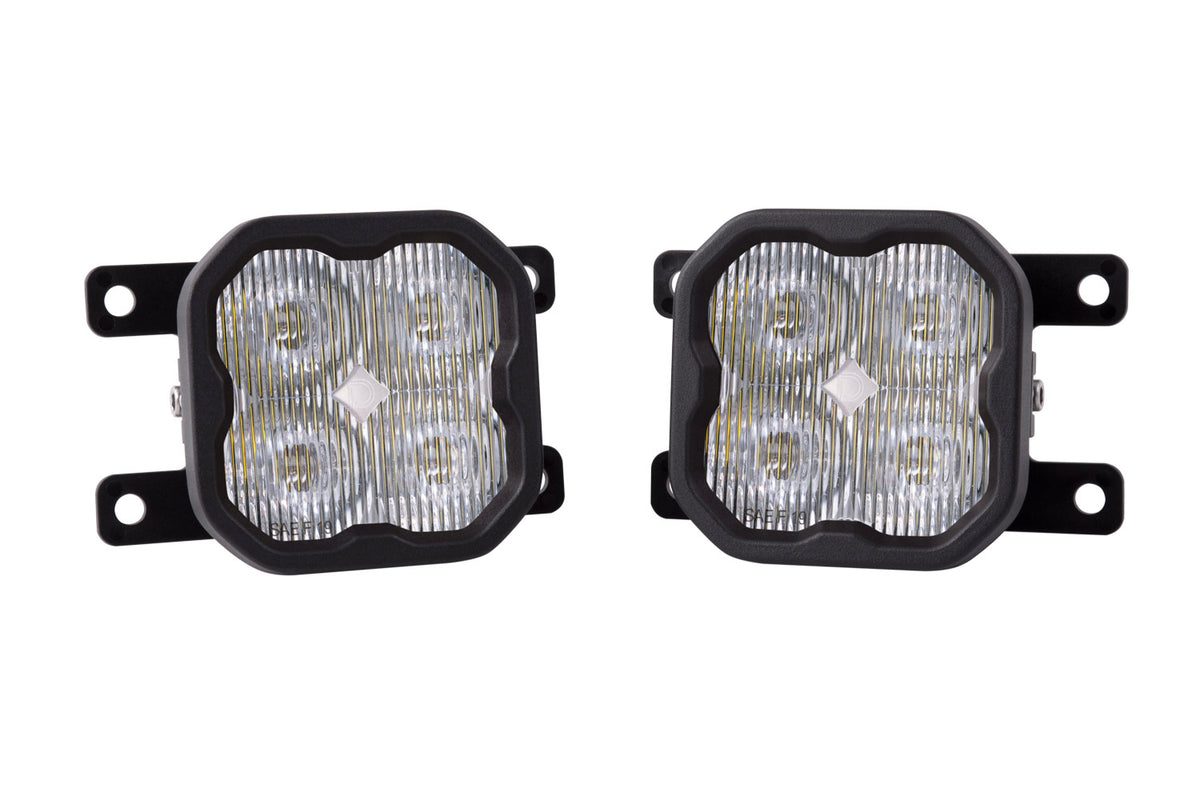

(888) 723-0041Diode Dynamics SS3 Pro LED Fog Light Kit, Type AS, White SAE Fog (Pair)
Part #: DD6991
Diode Dynamics
Description
Diode Dynamics SS3 Pro Type AS LED Fog Light Kit pushes the factory fog pockets to Pro-level white output. Pro drive current roughly doubles the light of the Sport pair, filling both lanes and the ditches with clean white light while the cutoff keeps glare off oncoming drivers. It suits trucks that see dark rural highways every night. Yellow at this output is DD6992, and the top Max pair is DD6993.
Features
- Ample width for spotting deer at the shoulder on unlit two-lane roads
| Amp Draw | 2.7 A main beam, 0.03 A backlight, per pod (at 12.8 V) |

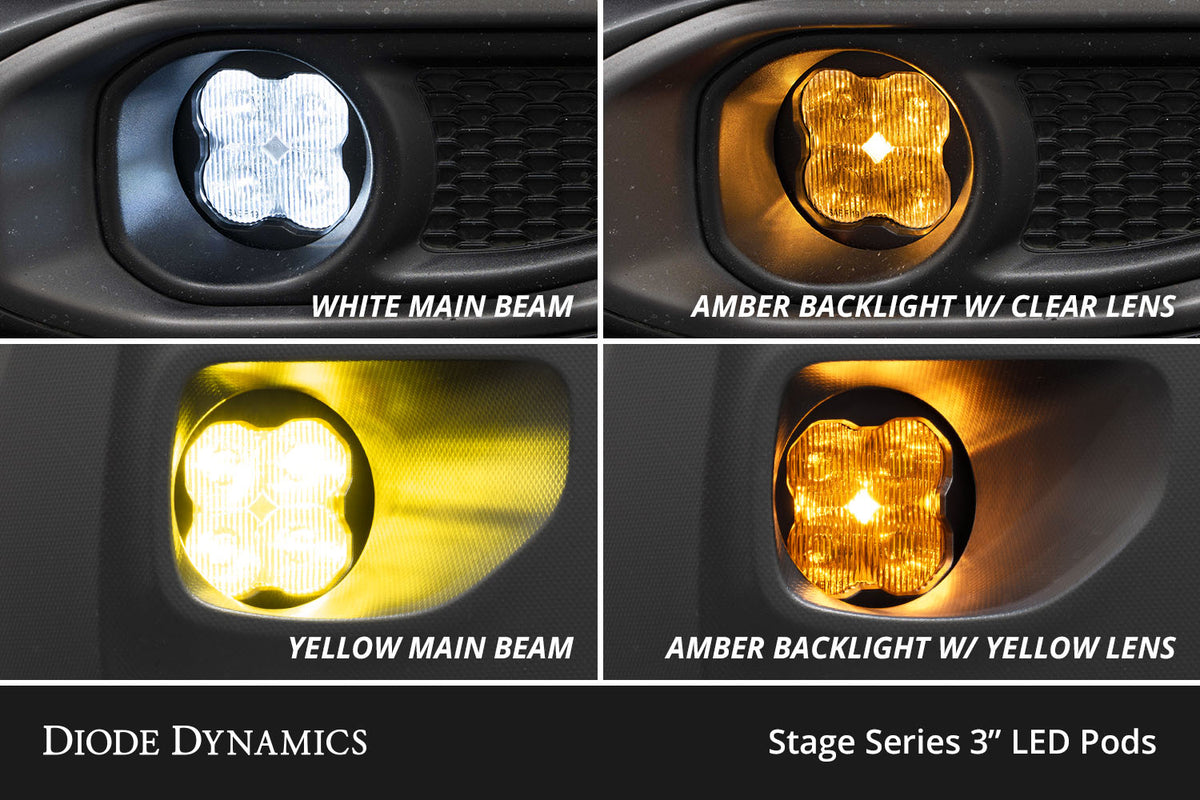

| Backlight | Amber (ABL) |
| Beam Pattern | SAE Fog (FineLine optic), 80° x 8° |
| Color Temperature | 6000K (white) |
| Compliance | SAE J583 fog lamp; road legal as a pair when aimed to state rules |

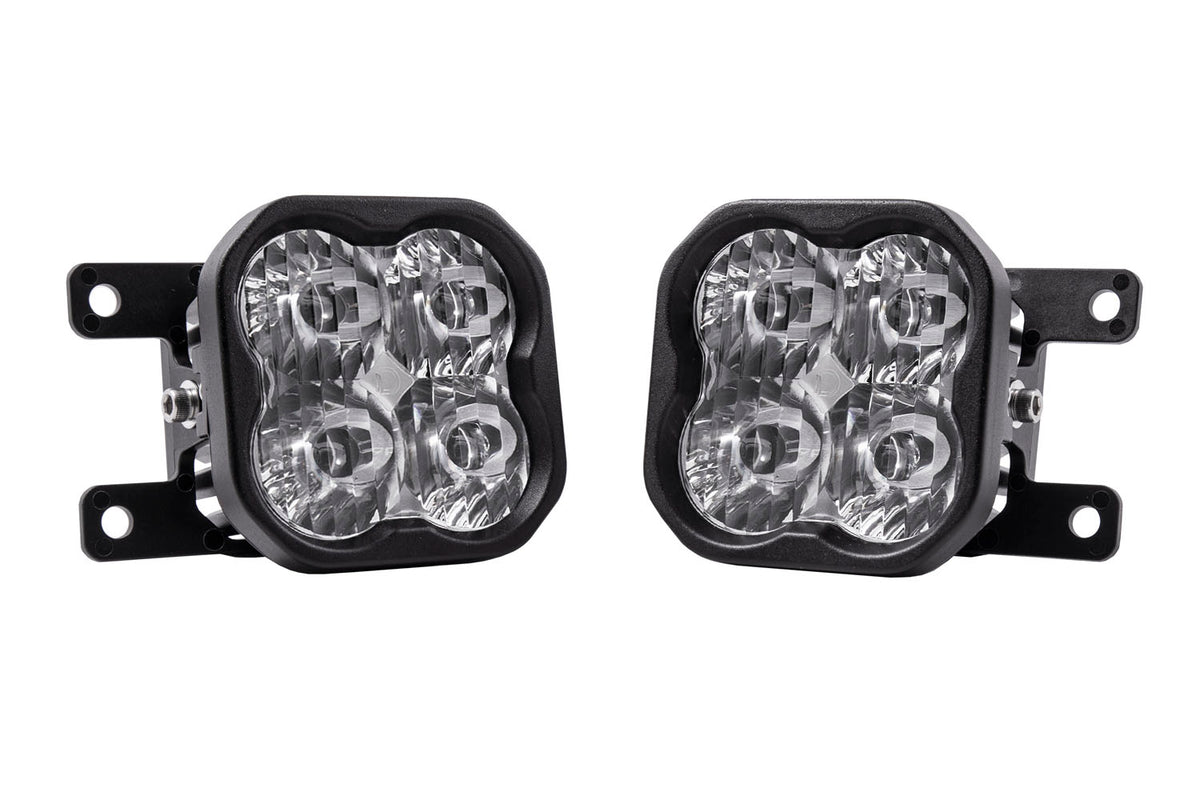

| Construction | Powder-coated aluminum housing, polycarbonate lens |
| Country of Origin | USA (engineered and assembled) |
| Illuminance | 119 lux at 32.8 ft (10 m), per pod |

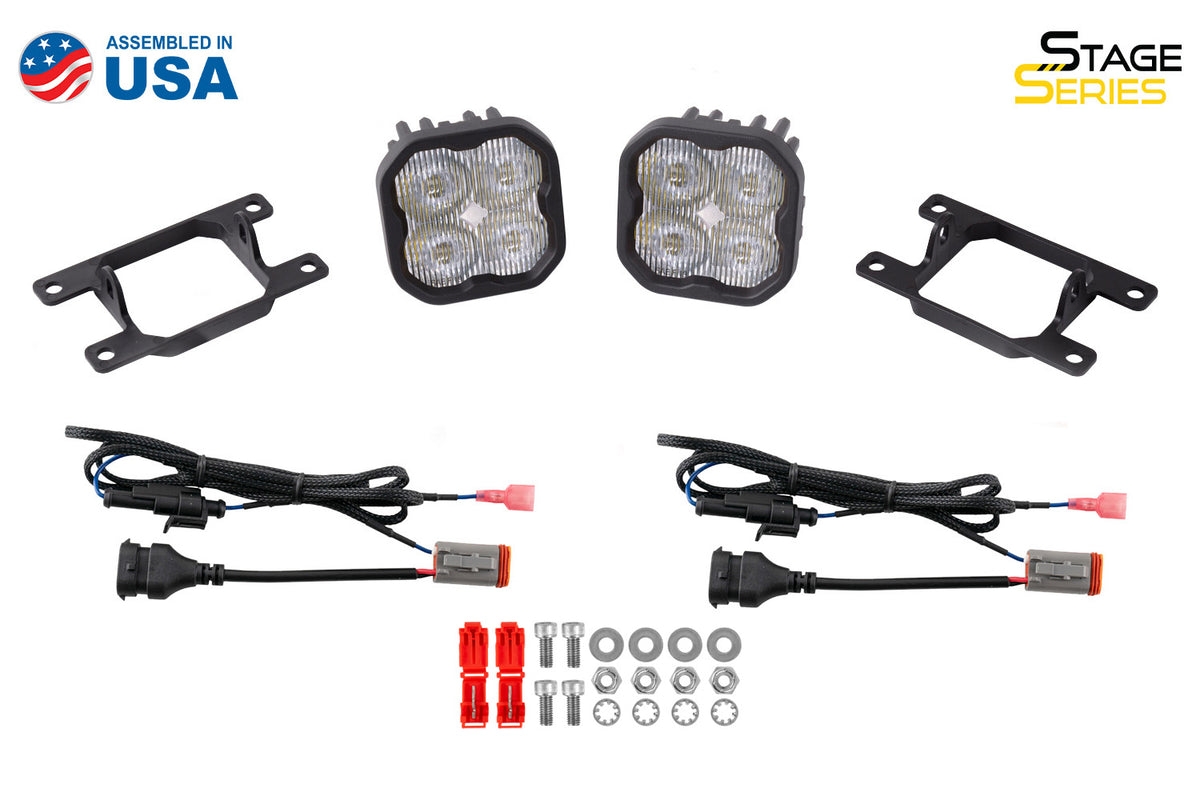

| In the Box | 2 x SS3 Standard pods, 2 Type A brackets, 2 H11 to 4-pin DT backlight tap wires, mounting hardware, mounting guide |
| Input Voltage | 9-16 V DC |

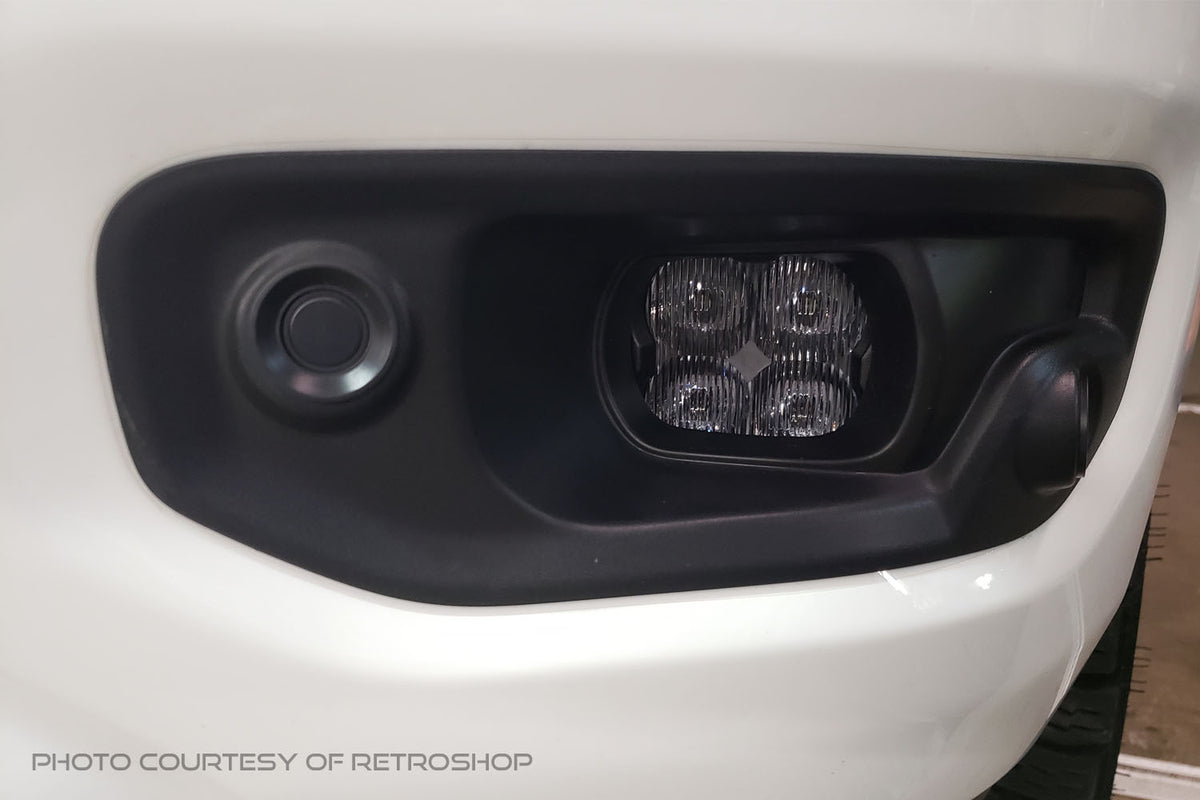

| Installation | Bolts in where the OEM fog lamp assemblies were mounted |

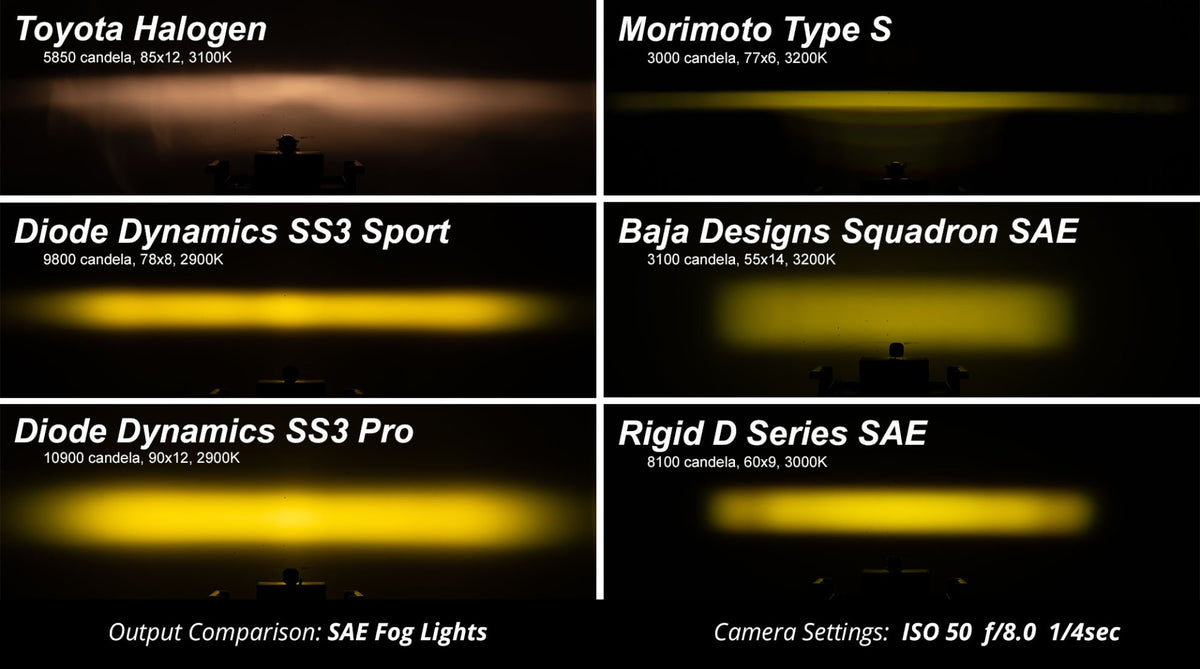

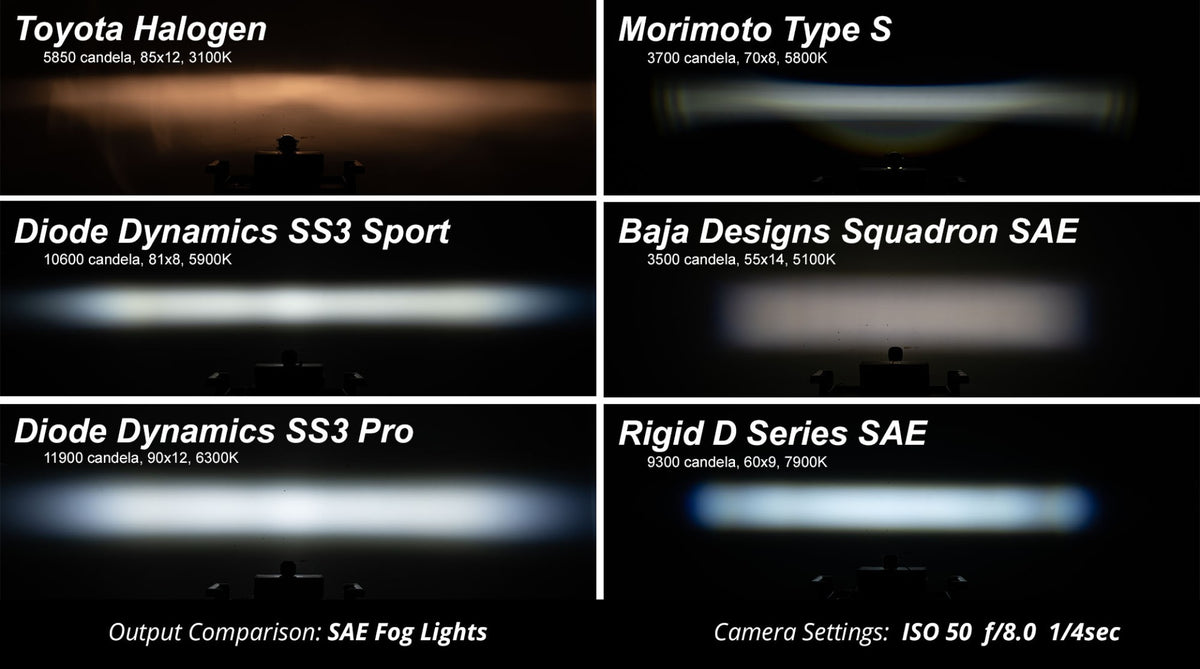

| Intensity | 11,900 cd peak per pod |
| IP Rating | IP69K (waterproof, high-pressure wash) |
| LED Emitter | Cree XP-L HI |
| Measured Lumens | 3,000 lm per pod |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Optic | TIR (total internal reflection) |
| Pod Size | 3 in (76 mm) class |
| Power Level | Pro |
| Raw Lumens | 5,796 lm per pod |
| Shipping Dimensions | 14 x 11 x 4 in (356 x 279 x 102 mm) |
| Shipping Weight | 3.5 lb (1.59 kg) |
| Warranty | Limited Lifetime |
| Watts | 36 W main beam, 0.4 W backlight, per pod |
| Wiring | Plugs into the OEM H11 fog sockets through the included adapters |

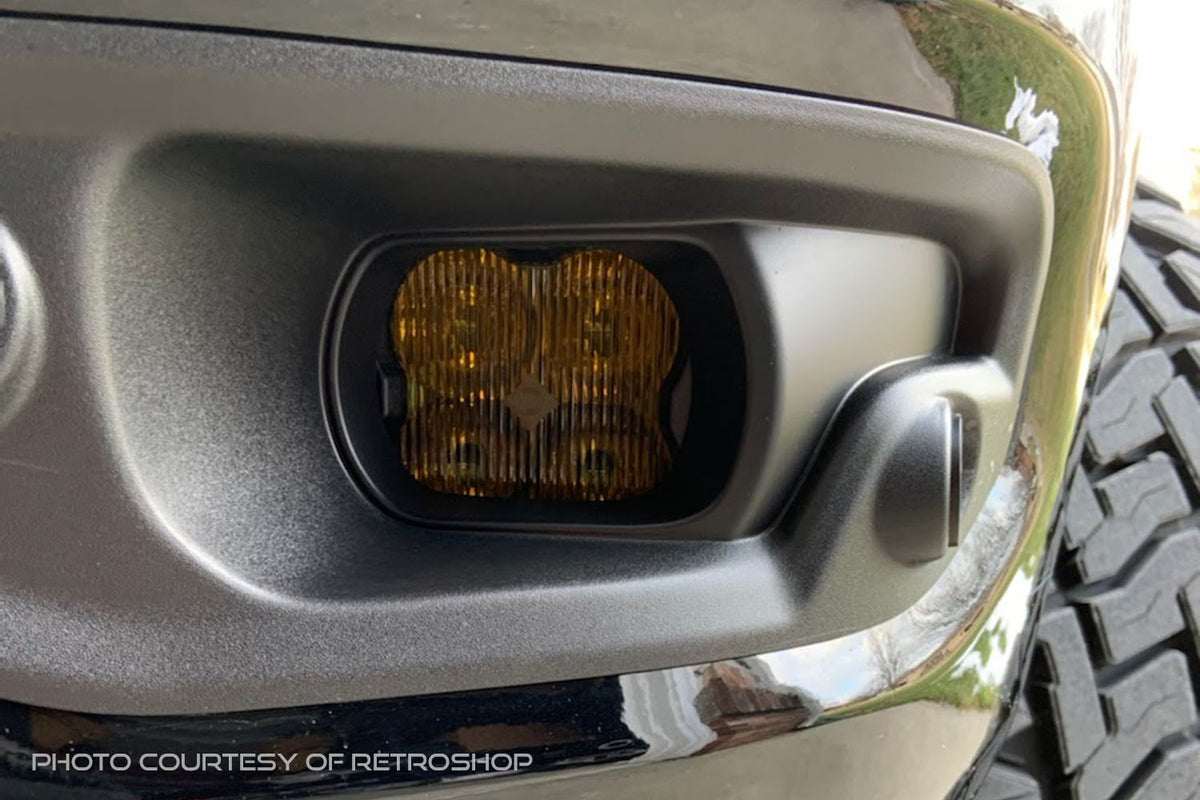

| 2019–2023 Ford Ranger | |
| 2021–2023 Ford Bronco |
| Product Condition | NEW |
