(888) 723-0041Diode Dynamics SS3 Pro LED Fog Light Kit, Type AS, Yellow SAE Fog (Pair)
Part #: DD6992
Diode Dynamics
Description
Diode Dynamics SS3 Pro Yellow Type AS LED Fog Light Kit floods bad-weather roads with Pro-level gold-toned light. Double the Sport output in a warm color makes this the bad-weather favorite: snow, sleet and dense fog scatter yellow far less than white, so the extra light actually reaches the road. Order DD6991 for white at this level, or DD6994 for the Max yellow pair.
Features
- A strong choice for northern winters and coastal fog where white light washes out
| Amp Draw | 2.7 A main beam, 0.03 A backlight, per pod (at 12.8 V) |
| Backlight | Amber (ABL) |
| Beam Pattern | SAE Fog (FineLine optic), 80° x 8° |
| Color Temperature | 3000K (selective yellow) |
| Compliance | SAE J583 fog lamp; road legal as a pair when aimed to state rules |
| Construction | Powder-coated aluminum housing, polycarbonate lens |
| Country of Origin | USA (engineered and assembled) |
| Illuminance | 109 lux at 32.8 ft (10 m), per pod |

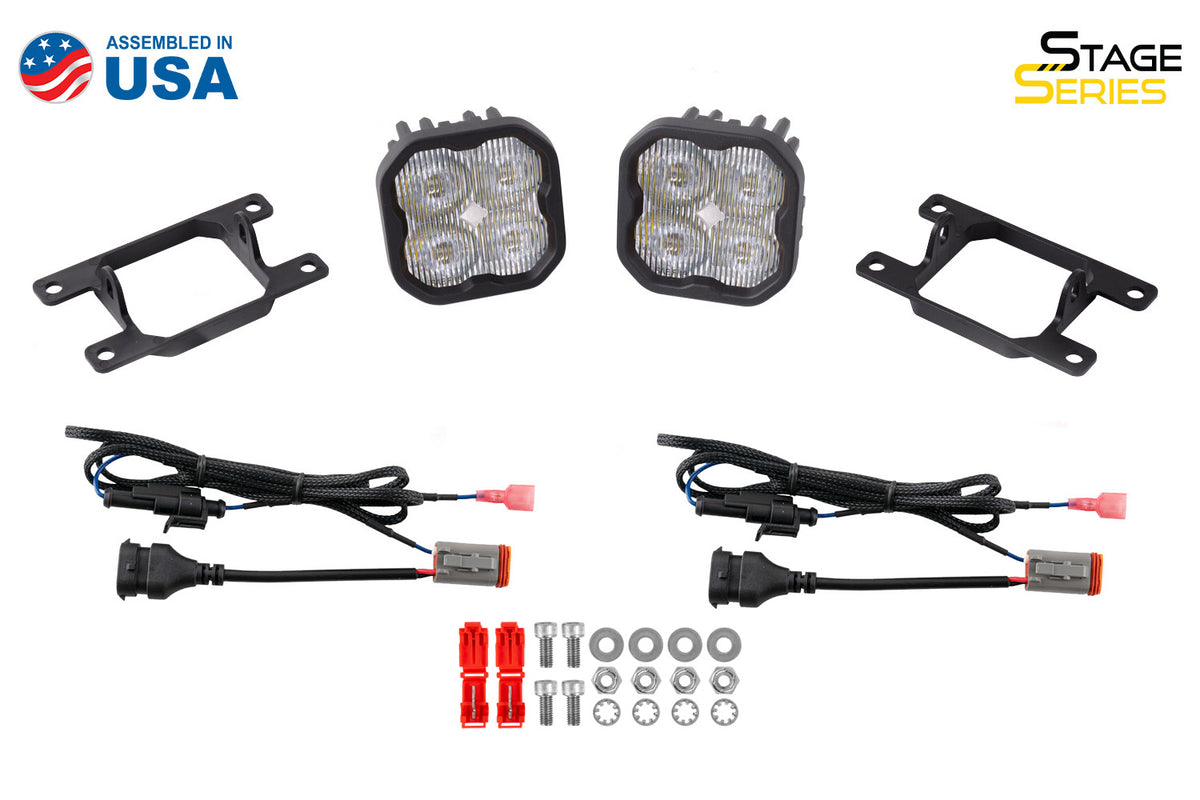

| In the Box | 2 x SS3 Standard pods, 2 Type A brackets, 2 H11 to 4-pin DT backlight tap wires, mounting hardware, mounting guide |
| Input Voltage | 9-16 V DC |
| Installation | Bolts in where the OEM fog lamp assemblies were mounted |
| Intensity | 10,900 cd peak per pod |
| IP Rating | IP69K (waterproof, high-pressure wash) |
| LED Emitter | Cree XP-L HI |
| Measured Lumens | 2,700 lm per pod |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Optic | TIR (total internal reflection) |
| Pod Size | 3 in (76 mm) class |
| Power Level | Pro |
| Raw Lumens | 5,796 lm per pod |
| Shipping Dimensions | 14 x 11 x 4 in (356 x 279 x 102 mm) |
| Shipping Weight | 3.5 lb (1.59 kg) |
| Warranty | Limited Lifetime |
| Watts | 36 W main beam, 0.4 W backlight, per pod |
| Wiring | Plugs into the OEM H11 fog sockets through the included adapters |
| 2009–2014 Ford Focus | |
| 2010–2018 Ford Transit Connect | |
| 2019–2022 Subaru Ascent | |
| 2019–2023 Ford Ranger | |
| 2019–2024 Ram 1500 | |
| 2021–2023 Ford Bronco |
| Product Condition | NEW |
