(888) 723-0041Diode Dynamics SS3 Max LED Fog Light Kit, Type AS, White SAE Fog (Pair)
Part #: DD6993
Diode Dynamics
Description
Diode Dynamics SS3 Max Type AS LED Fog Light Kit runs the SS3 at full Max power in clean white. Max pods run the SS3 at its highest power for the most intense fog beam Diode Dynamics makes in this size, lighting the full width ahead of the bumper with a bright, even sheet. Prefer yellow? That is DD6994; to save money, the Pro white pair is DD6991.
Features
- Top output in a stock-looking package: the look stays factory, the light does not
| Amp Draw | 3 A main beam, 0.03 A backlight, per pod (at 13.2 V) |
| Backlight | Amber (ABL) |
| Beam Pattern | SAE Fog (FineLine optic), 80° x 8° |
| Color Temperature | 6000K (white) |
| Compliance | SAE J583 fog lamp and SAE J575 durability test; road legal as a pair when aimed to state rules |
| Connector | Deutsch DT input |
| Construction | Powder-coated aluminum housing, polycarbonate lens |
| Country of Origin | USA (engineered and assembled) |
| Driver | Constant current |
| Illuminance | 180 lux at 32.8 ft (10 m), per pod |

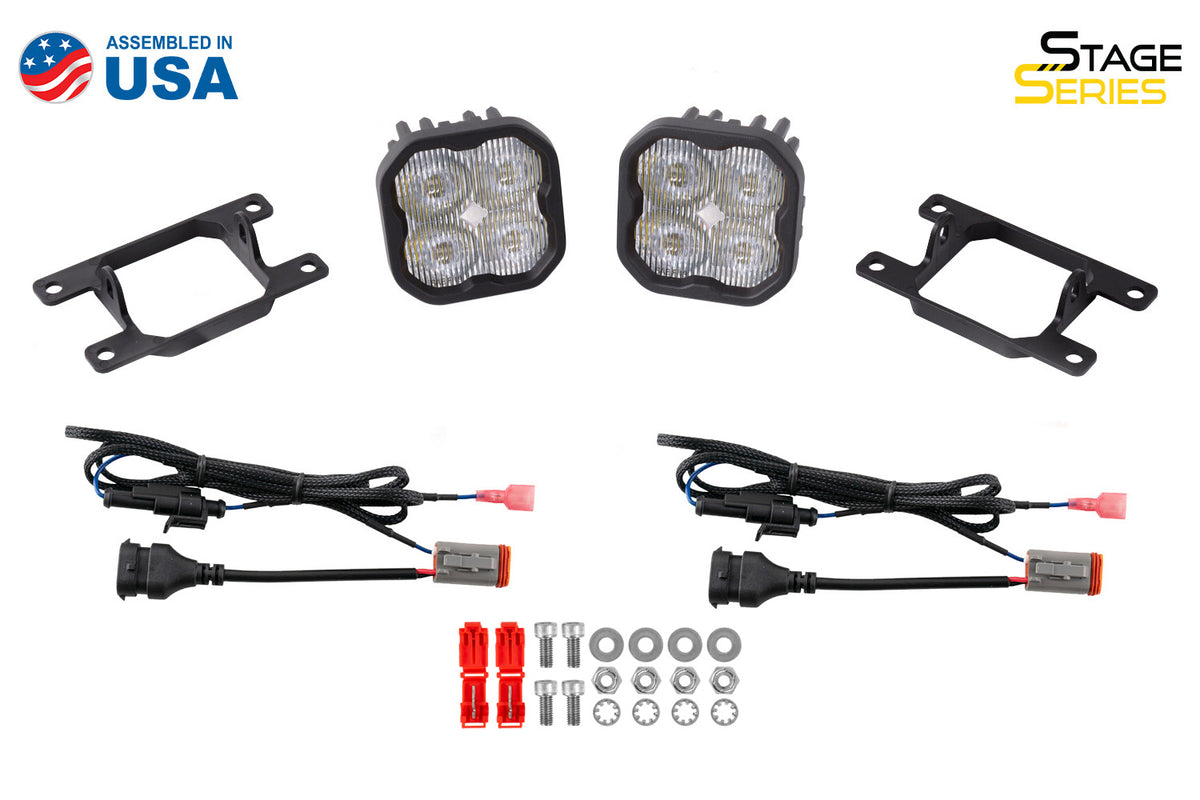

| In the Box | 2 x SS3 Standard pods, 2 Type A brackets, 2 H11 to 4-pin DT backlight tap wires, mounting hardware, mounting guide |
| Input Voltage | 9-30 V DC |
| Installation | Bolts in where the OEM fog lamp assemblies were mounted |
| Intensity | 18,000 cd peak per pod |
| IP Rating | IP69K (waterproof, high-pressure wash) |
| LED Emitter | Osram Boost HX |
| Measured Lumens | 3,500 lm per pod |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Optic | TIR (total internal reflection) |
| Pod Size | 3 in (76 mm) class |
| Pod Weight | 0.85 lb (0.39 kg) each |
| Polarity | Polarity specific |
| Power Level | Max |
| Shipping Dimensions | 14 x 11 x 4 in (356 x 279 x 102 mm) |
| Shipping Weight | 3.5 lb (1.59 kg) |
| Warranty | Limited Lifetime |
| Watts | 38.5 W main beam, 0.4 W backlight, per pod |
| Wiring | Plugs into the OEM H11 fog sockets through the included adapters |
| 2009–2014 Ford Focus | |
| 2010–2018 Ford Transit Connect | |
| 2019–2022 Subaru Ascent | |
| 2019–2023 Ford Ranger | |
| 2019–2024 Ram 1500 | |
| 2021–2023 Ford Bronco |
| Product Condition | NEW |
