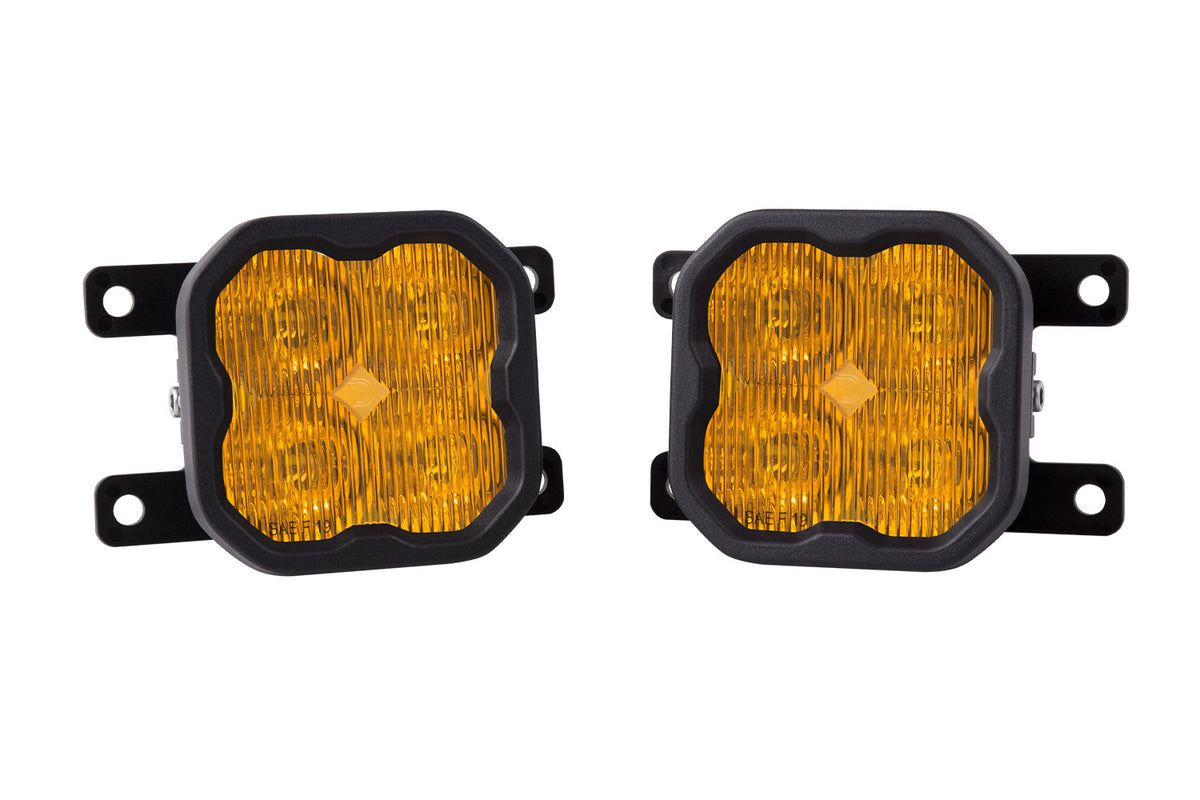

(888) 723-0041Diode Dynamics SS3 Max LED Fog Light Kit, Type AS, Yellow SAE Fog (Pair)
Part #: DD6994
Diode Dynamics
Description

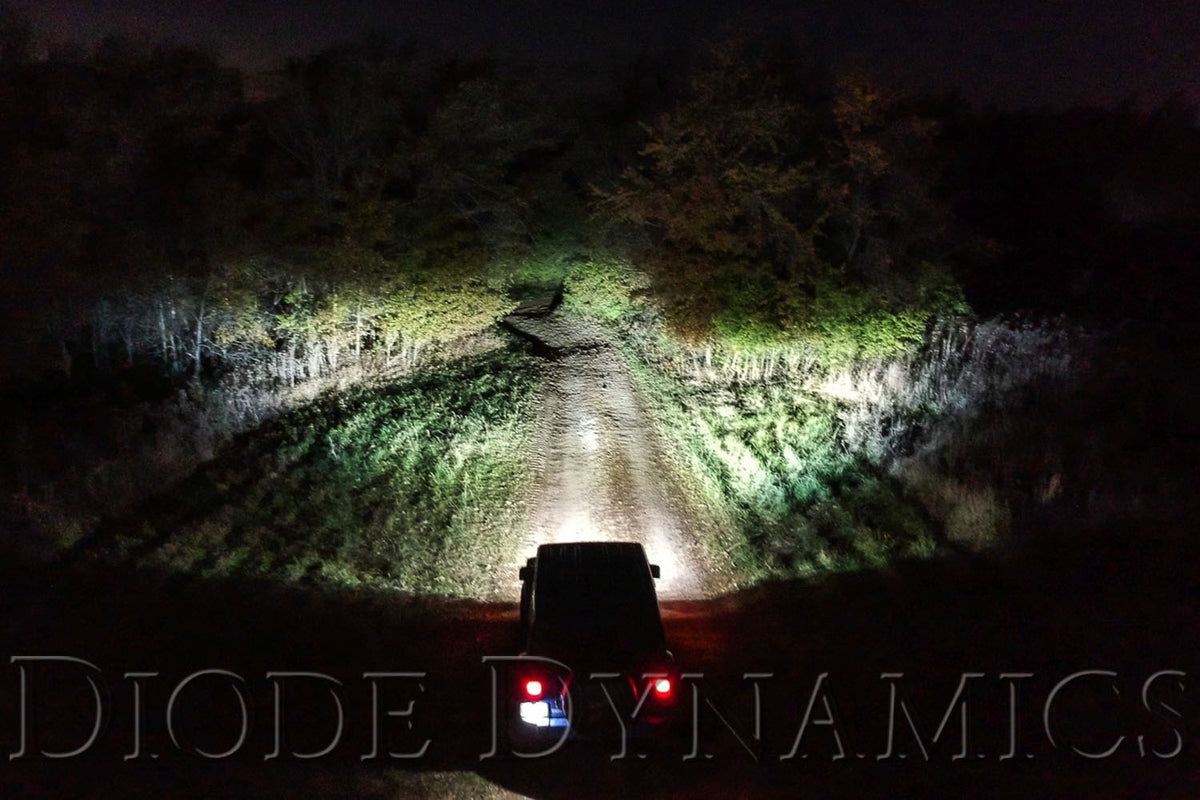

Diode Dynamics SS3 Max Yellow Type AS LED Fog Light Kit pairs maximum SS3 power with a warm selective yellow beam. For the worst weather, Max power and selective yellow combine the most light with the least glare off precipitation, keeping lane markings visible when the storm is at its thickest. White at this level is DD6993, and the Pro yellow kit is DD6992.
Features
- Highest-output yellow fog kit for these vehicles, built for long drives in heavy weather
| Amp Draw | 3 A main beam, 0.03 A backlight, per pod (at 13.2 V) |

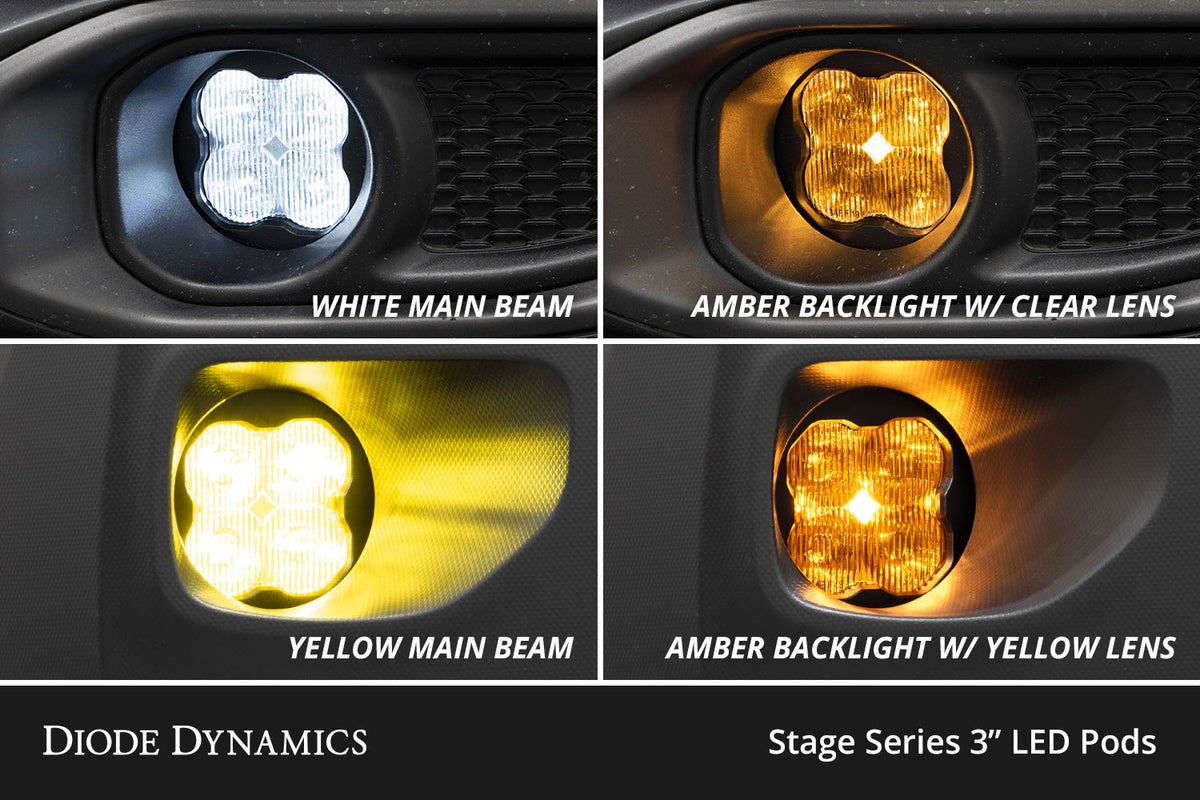

| Backlight | Amber (ABL) |
| Beam Pattern | SAE Fog (FineLine optic), 80° x 8° |
| Color Temperature | 3000K (selective yellow) |
| Compliance | SAE J583 fog lamp and SAE J575 durability test; road legal as a pair when aimed to state rules |
| Connector | Deutsch DT input |
| Construction | Powder-coated aluminum housing, polycarbonate lens |
| Country of Origin | USA (engineered and assembled) |
| Driver | Constant current |
| Illuminance | 125 lux at 32.8 ft (10 m), per pod |

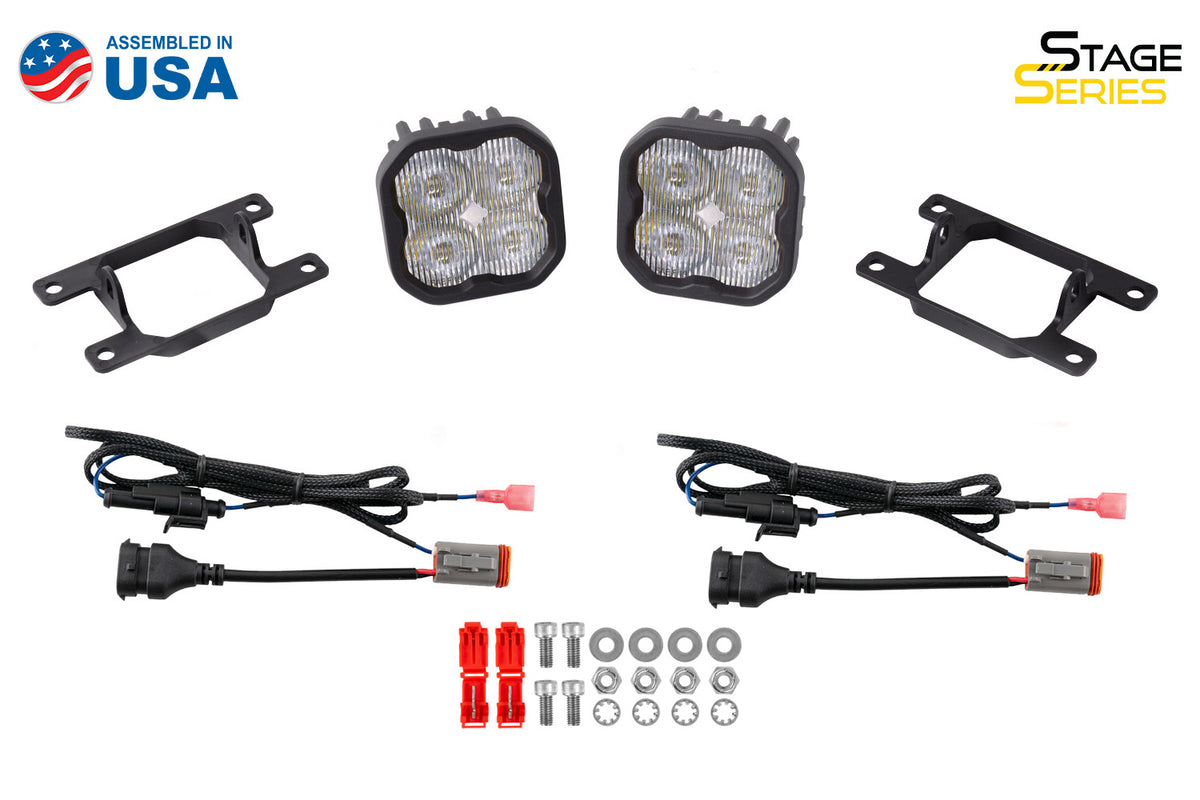

| In the Box | 2 x SS3 Standard pods, 2 Type A brackets, 2 H11 to 4-pin DT backlight tap wires, mounting hardware, mounting guide |
| Input Voltage | 9-30 V DC |

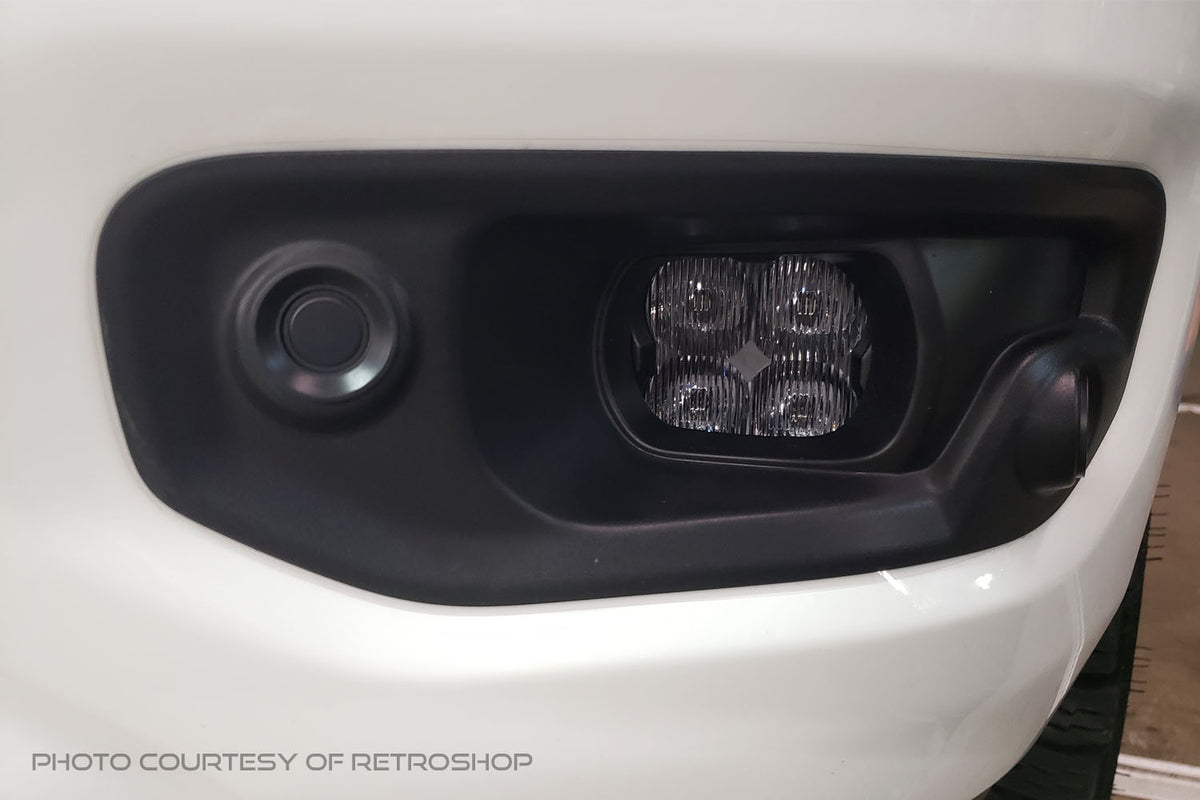

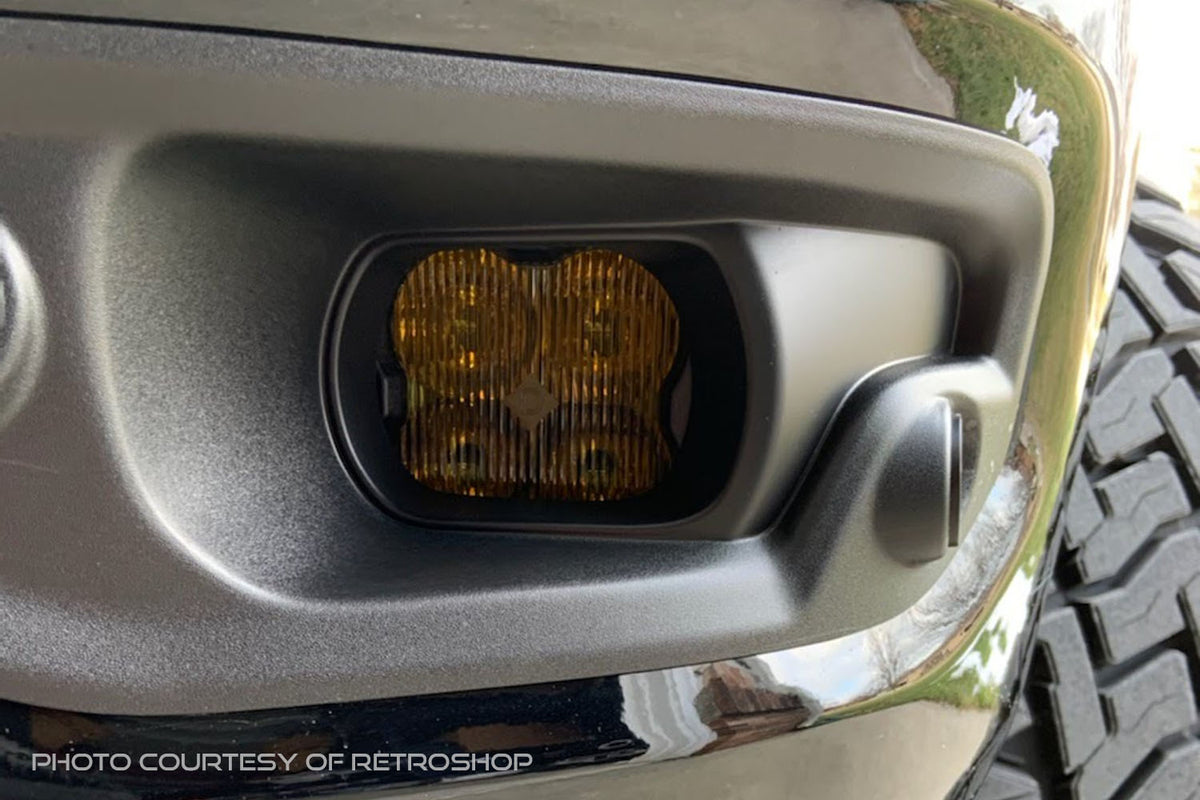

| Installation | Bolts in where the OEM fog lamp assemblies were mounted |
| Intensity | 12,500 cd peak per pod |
| IP Rating | IP69K (waterproof, high-pressure wash) |
| LED Emitter | Osram Boost HX |
| Measured Lumens | 3,500 lm per pod |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Optic | TIR (total internal reflection) |
| Pod Size | 3 in (76 mm) class |
| Pod Weight | 0.85 lb (0.39 kg) each |
| Polarity | Polarity specific |
| Power Level | Max |
| Product Weight | 1.7 lb (0.77 kg) |
| Shipping Dimensions | 14 x 11 x 4 in (356 x 279 x 102 mm) |
| Shipping Weight | 3.5 lb (1.59 kg) |
| Warranty | Limited Lifetime |
| Watts | 38.5 W main beam, 0.4 W backlight, per pod |
| Wiring | Plugs into the OEM H11 fog sockets through the included adapters |
| 2009–2014 Ford Focus | |
| 2010–2018 Ford Transit Connect | |
| 2019–2022 Subaru Ascent | |
| 2019–2023 Ford Ranger | |
| 2019–2024 Ram 1500 | |
| 2021–2023 Ford Bronco |
| Product Condition | NEW |
