(888) 723-0041Diode Dynamics SS3 Sport LED Fog Light Kit, Type B, Yellow SAE Fog (Pair)
Part #: DD6997
Diode Dynamics
Description

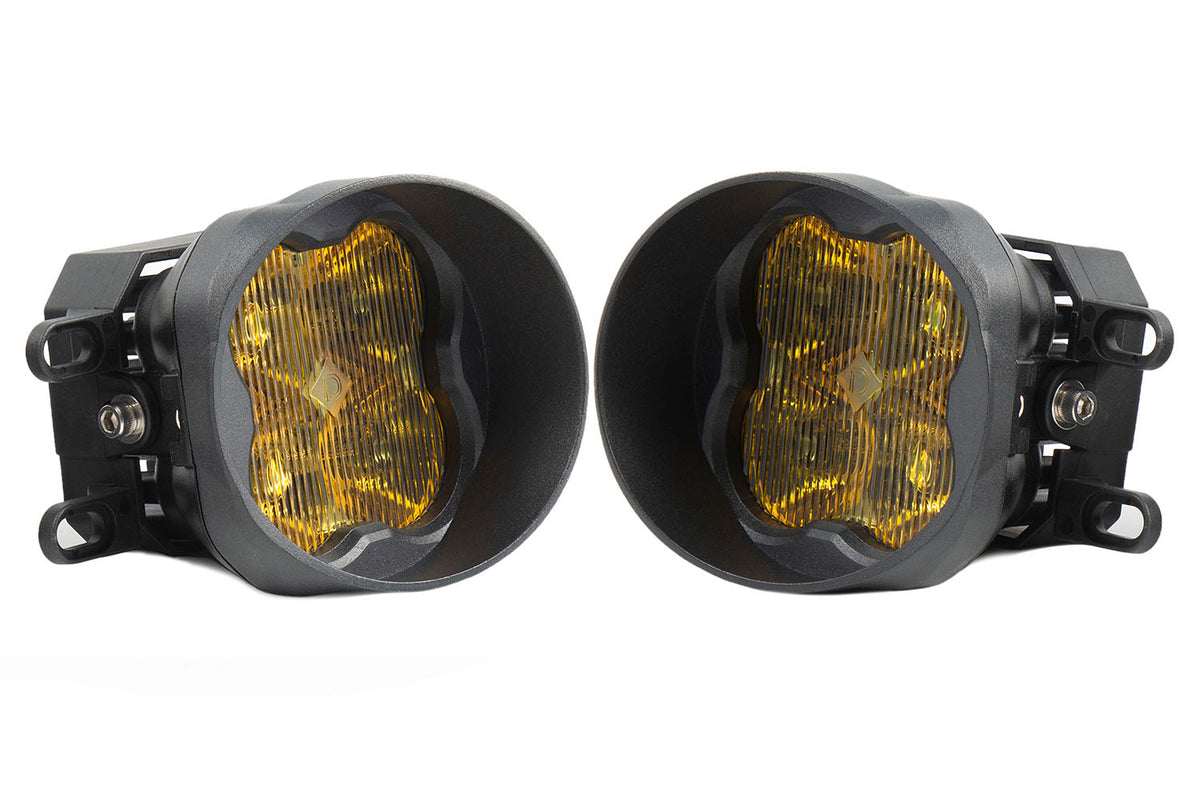

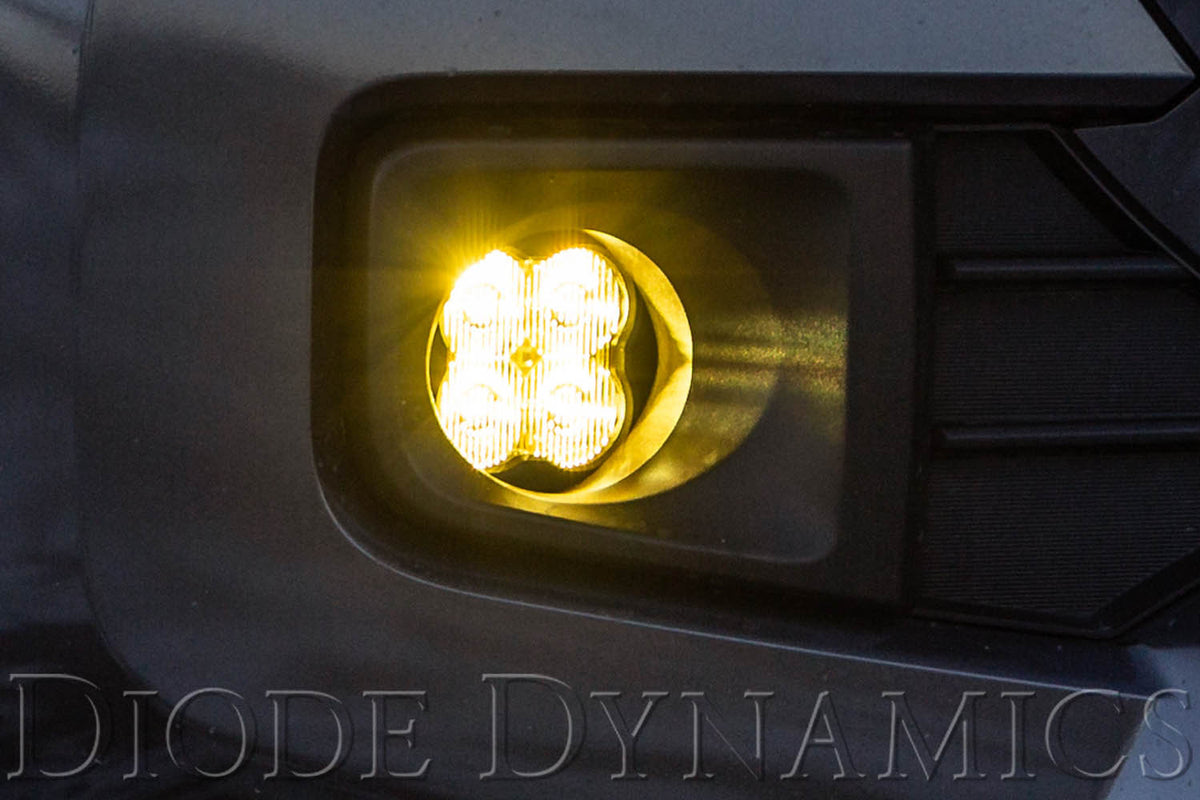

Diode Dynamics SS3 Sport Yellow Type B LED Fog Light Kit gives Toyota and Lexus fog openings a warm selective yellow glow. The yellow fog look is a 4Runner and Tacoma signature, and these pods deliver it with real output and a clean cutoff instead of a tinted bulb. The beam stays low and wide for rain and dust on forest roads. White fans should pick DD6996; for a brighter yellow, go with DD7000.
Features
- Selective yellow matches the amber look many owners add with grille lights
| Amp Draw | 1.1 A per pod (at 13.2 V) |

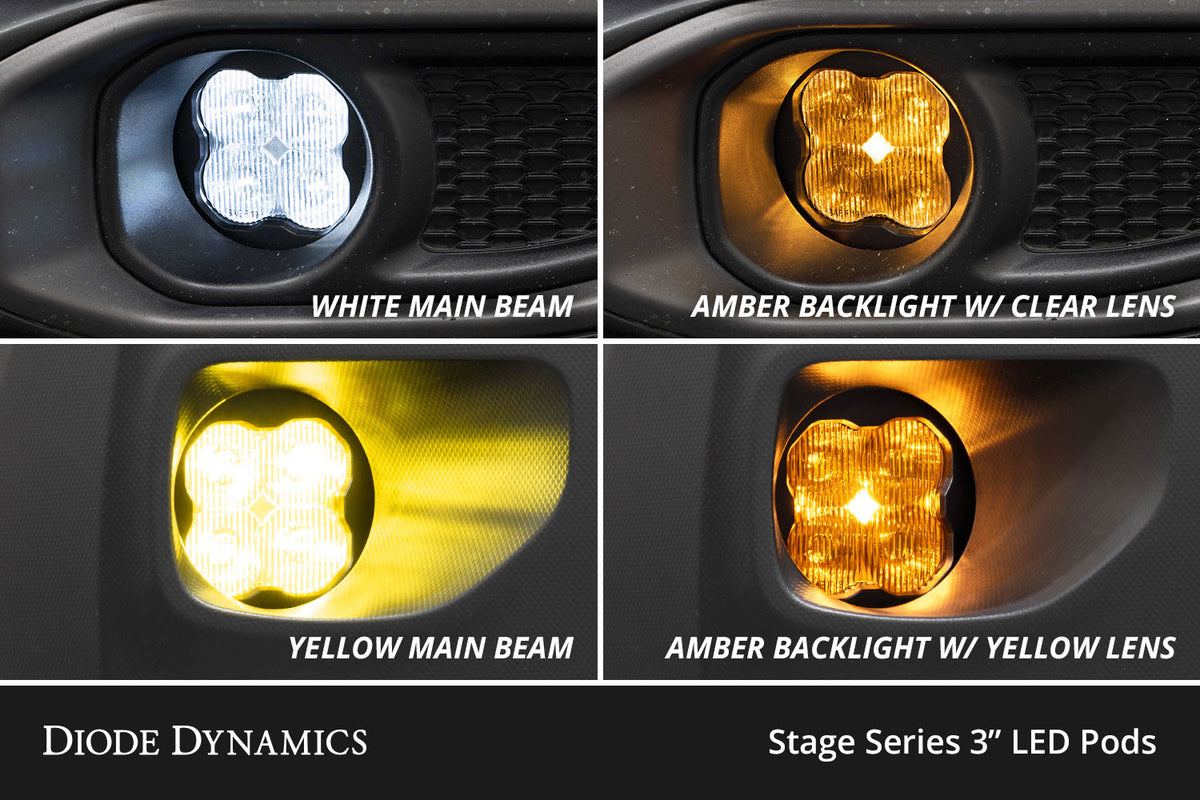

| Backlight | Amber (ABL) |

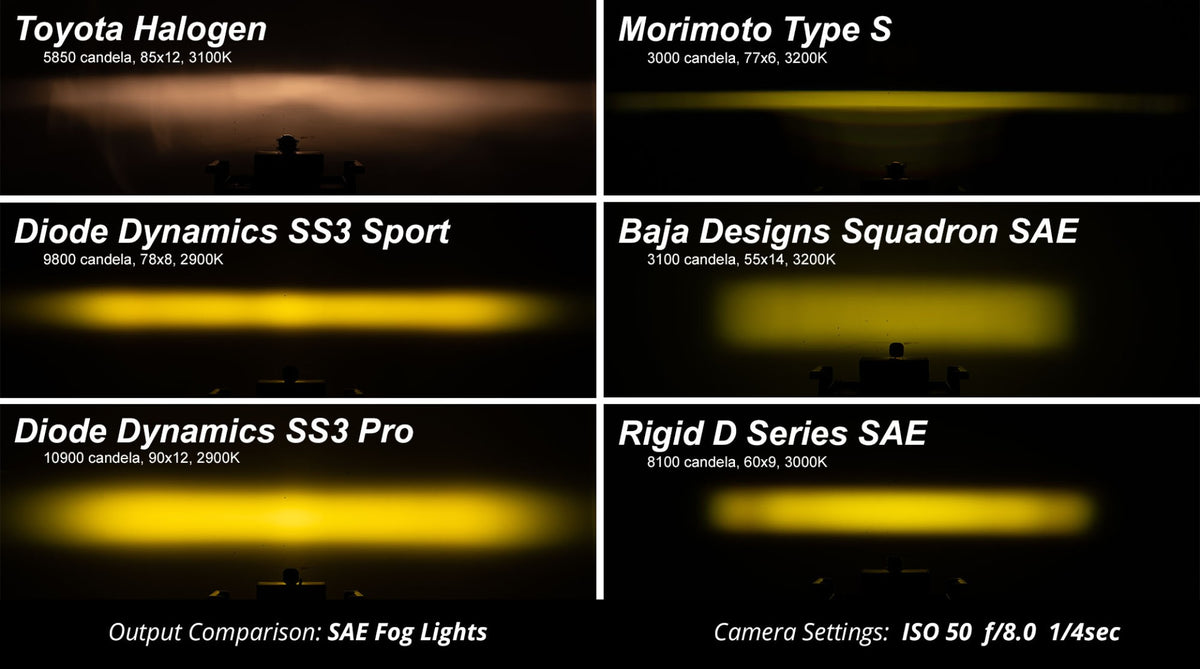

| Beam Pattern | SAE Fog (FineLine optic), 80° x 8° |
| Bezel | Angled, factory-style |
| Color Temperature | 3000K (selective yellow) |
| Compliance | SAE J583 fog lamp; road legal as a pair when aimed to state rules |
| Construction | Powder-coated aluminum housing, polycarbonate lens |
| Country of Origin | USA (engineered and assembled) |
| Illuminance | 90.5 lux at 32.8 ft (10 m), per pod |
| In the Box | 2 x SS3 angled pods (left and right), 2 Type B brackets, 2 H11 to 4-pin DT backlight tap wires, mounting hardware, mounting guide |
| Input Voltage | 9-16 V DC |
| Installation | Bolts in where the OEM fog lamp assemblies were mounted |
| Intensity | 9,050 cd peak per pod |
| IP Rating | IP69K (waterproof, high-pressure wash) |
| LED Emitter | Lumileds Luxeon Z ES |
| Measured Lumens | 1,300 lm per pod |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Optic | TIR (total internal reflection) |

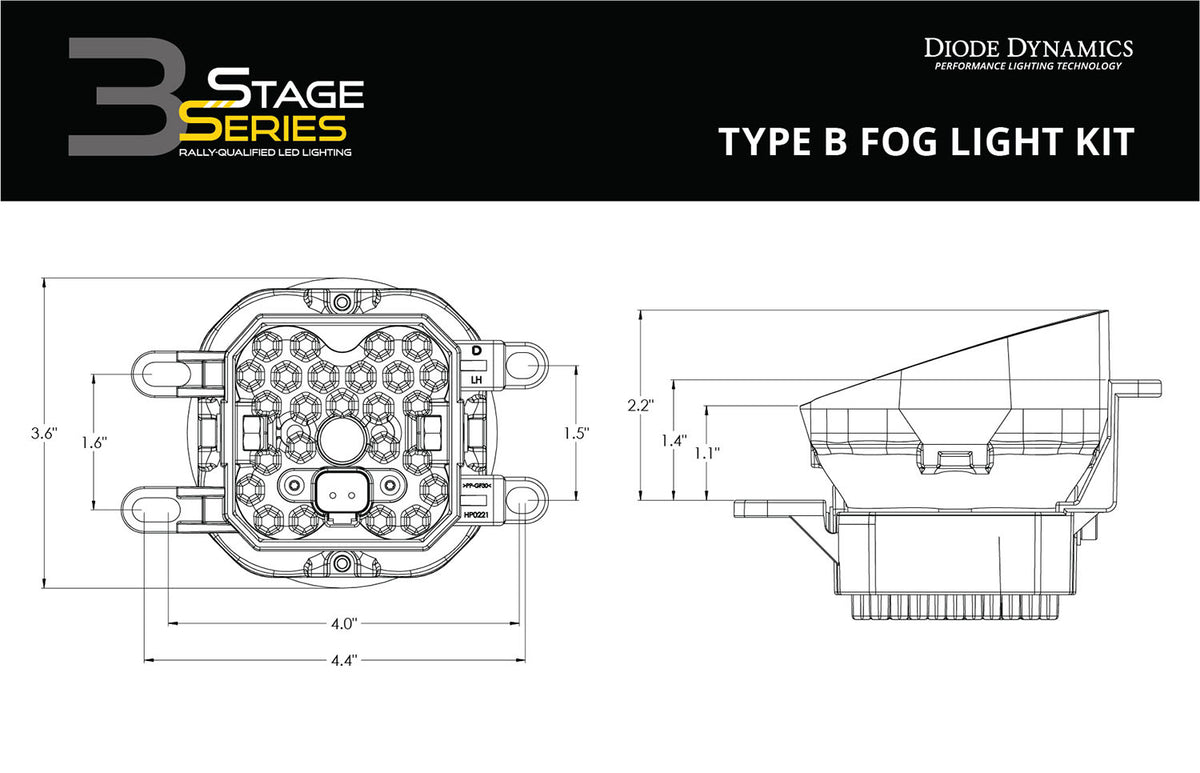

| Pod Size | 3 in (76 mm) class |
| Power Level | Sport |
| Raw Lumens | 2,262 lm per pod |
| Shipping Dimensions | 14 x 11 x 4 in (356 x 279 x 102 mm) |
| Shipping Weight | 4 lb (1.81 kg) |
| Warranty | Limited Lifetime |
| Watts | 14.5 W per pod |
| Wiring | Plugs into the OEM H11 fog sockets through the included adapters |
| 2006–2024 Toyota RAV4 | |
| 2007–2008 Toyota Solara | |
| 2007–2012 Toyota Avalon | |
| 2007–2015 Toyota Camry | |
| 2007–2016 Toyota Yaris | |
| 2008–2014 Lexus IS F | |
| 2008–2015 Lexus LX570 | |
| 2008–2023 Toyota Highlander | |
| 2009–2013 Toyota Matrix | |
| 2009–2014 Toyota Venza | |
| 2009–2016 Toyota Corolla | |
| 2010–2012 Lexus HS250h | |
| 2010–2016 Toyota Prius | |
| 2010–2020 Lexus RX450h | |
| 2010–2021 Lexus RX350 | |
| 2012–2016 Toyota Prius C | |
| 2012–2016 Toyota Prius V | |
| 2012–2023 Toyota Tacoma | |
| 2013–2018 Lexus ES300h | |
| 2013–2018 Lexus ES350 | |
| 2013–2020 Lexus GS350 | |
| 2014 Lexus IS350 | |
| 2014–2015 Lexus IS250 | |
| 2014–2017 Lexus CT200h | |
| 2014–2018 Lexus GS450h | |
| 2014–2021 Toyota Tundra | |
| 2014–2024 Toyota 4Runner | |
| 2015–2017 Lexus NX200t | |
| 2015–2017 Subaru Legacy | |
| 2015–2020 Lexus NX300h | |
| 2016 Lexus IS200t | |
| 2016–2017 Lexus GS200t |
| Product Condition | NEW |
