(888) 723-0041Diode Dynamics Stage Series Sport LED Fog Pocket Kit for 2021-2023 Ford Bronco, Yellow SAE Fog + White Combo (6 Pods)
Part #: DD7179
Diode Dynamics
Description

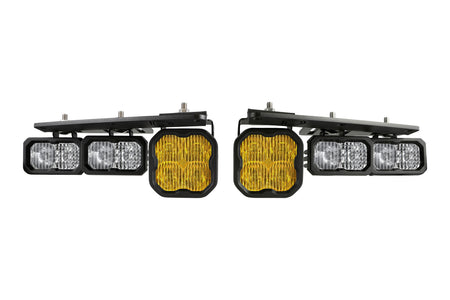

Diode Dynamics Stage Series Sport Yellow LED Fog Pocket Kit for 2021-2023 Ford Bronco adds glare-cutting golden fog beams. Yellow fog light cuts glare from rain, dust and snow on the highway, while the white SSC2 combo pods supply reach and spread once you hit the dirt. Each set has its own control, and the fogs follow the headlights just like the stock lamps. Want white fogs instead? Order DD7178.
Features
- Amber backlights on all six pods give the Bronco a distinctive accent glow when parked
| Backlight | Amber accent backlight |
| Bracket | Powder-coated stainless steel, application-specific |
| Compliance | Fog pods: SAE J583 fog lamp and SAE J575 durability test; off-road pods: off-road use only |
| Connector | Deutsch DT input |
| Construction | Aluminum casting, polycarbonate lens, rubber gasket |
| Control | Fog pods run like factory fogs with the headlights; off-road pods on factory aux switches or the included 3-way toggle |
| Cooling | Passive pin-fin heatsink |
| Country of Origin | USA (engineered and assembled) |
| Driver | Constant current |
| Fog Pod Illuminance | 90.5 lux at 32.8 ft (10 m), per pod |
| Fog Pod Intensity | 9,050 cd peak per pod |
| Fog Pod Measured Lumens | 1,300 lm per pod |
| Fog Pod Power | 14.5 W, 1.1 A per pod (at 12.8 V) |
| Fog Pods | 2 x SS3 Sport, SAE fog, 3000K selective yellow |
| In the Box | 2 Bronco fog pocket brackets, 2 SS3 Sport pods, 4 SSC2 Sport pods, dual-output fog harness, heavy-duty dual-output 4-pin harness, 2 three-way backlight splitters, 4 zip ties, mounting hardware and guide |
| Input Voltage | 9-16 V DC |

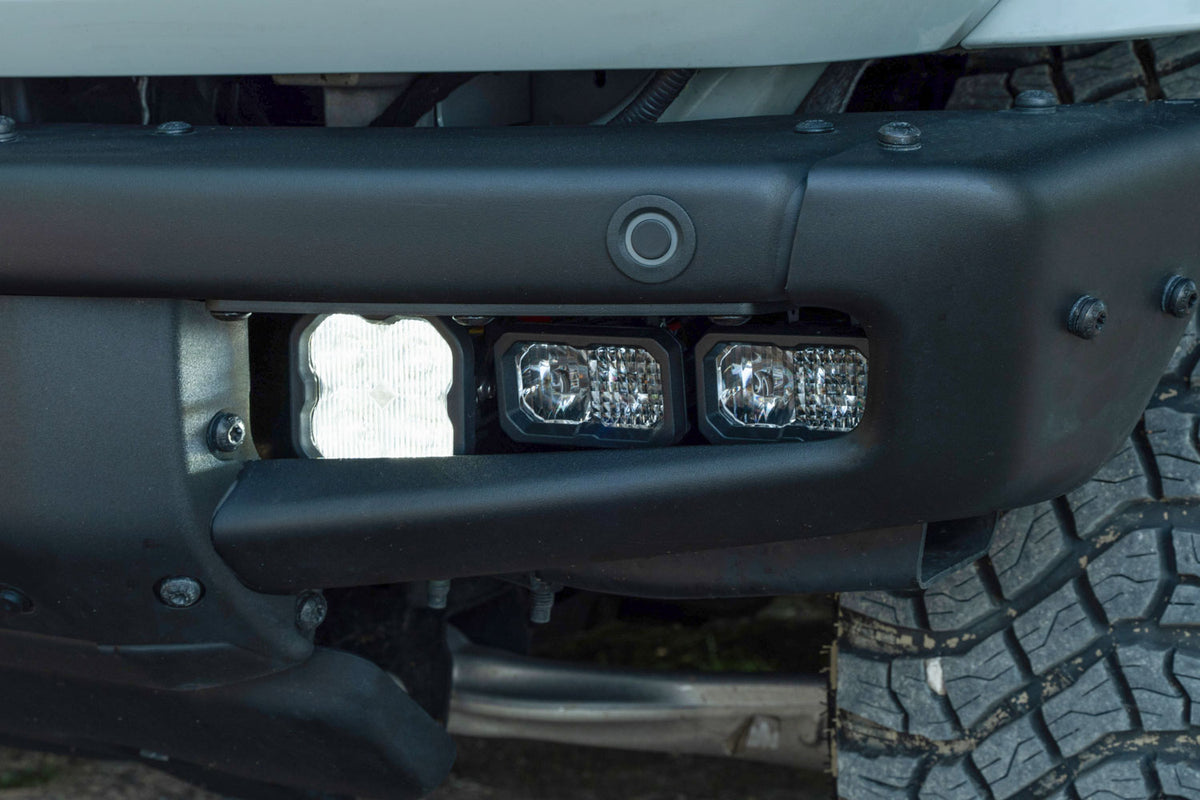

| Installation | Bolts into the steel bumper fog pockets on factory points; no cutting or drilling |
| IP Rating | IP69K (waterproof, high-pressure wash) |
| LED Emitter | Lumileds Luxeon Z ES |
| Off-Road Pod Illuminance | 160 lux at 32.8 ft (10 m), per pod |
| Off-Road Pod Intensity | 16,000 cd peak per pod |
| Off-Road Pod Measured Lumens | 871 lm per pod |
| Off-Road Pod Power | 7.7 W, 0.6 A per pod (at 12.8 V) |
| Off-Road Pods | 4 x SSC2 Sport, combo beam, 6000K white on every kit |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Optic | TIR (total internal reflection) |
| Pods | 6 (2 fog, 4 off-road) |
| Polarity | Polarity specific |
| Power Level | Sport |
| Product Weight | 15.1 lb (6.85 kg) |
| Shipping Dimensions | 18 x 15 x 12 in (457 x 381 x 305 mm) |
| Shipping Weight | 17 lb (7.71 kg) |
| Warranty | Limited Lifetime |
| 2021–2025 Ford Bronco |
| Product Condition | NEW |
