(888) 723-0041Diode Dynamics SS3 Sport LED Fog Pocket Kit for 2021-2023 Ford F-150, White SAE Fog + White Combo/Driving
Part #: DD7310
Diode Dynamics
Description

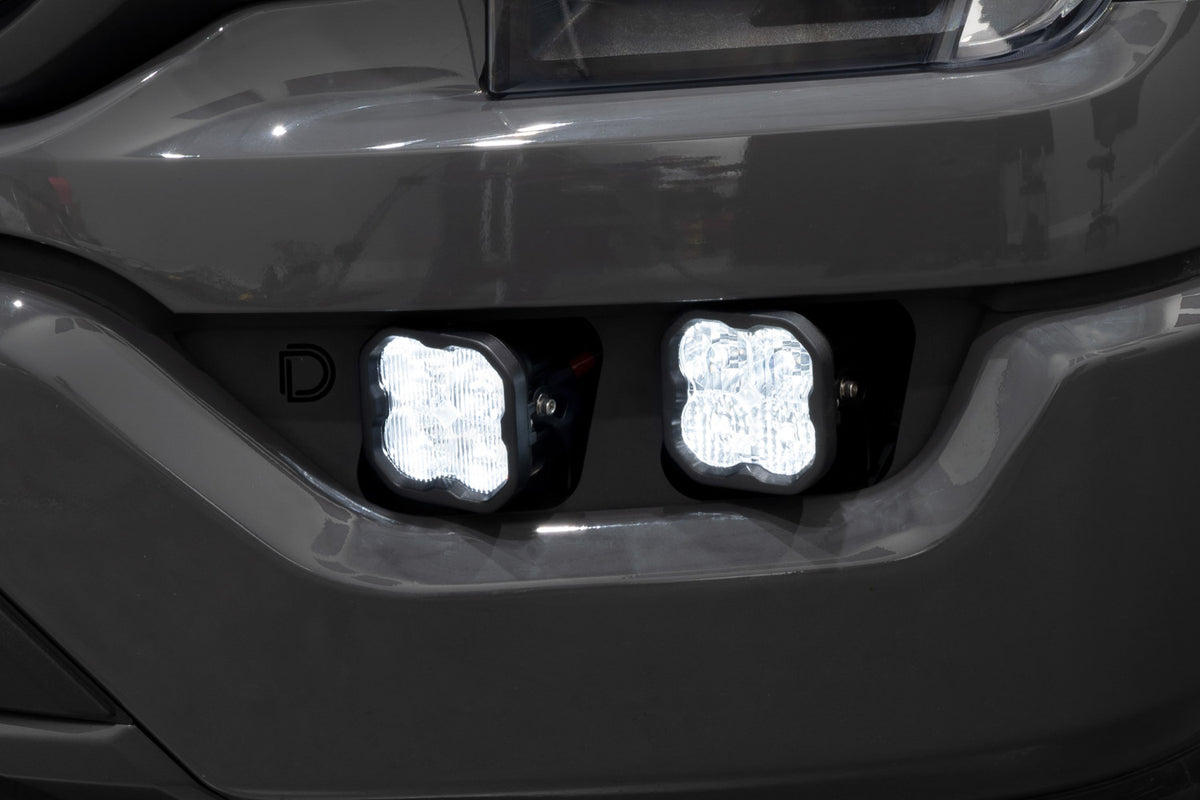

Diode Dynamics SS3 Sport LED Fog Pocket Kit for 2021-2023 Ford F-150 fills both bumper pockets with four LED pods: two for the street, two for the dirt. Ford gave the fourteenth-generation truck large fog pockets and then filled them with small lamps. This kit uses the full opening, pairing a road-legal fog pod in white with a combo/driving pod on each side. The fogs keep running off the factory control, and the combo pods only light when you flip their own switch. Yellow fogs on the same kit are DD7311, and the Pro output version is DD7312.
Features
- Sport output keeps the four-pod setup affordable for daily drivers that see the occasional dirt road
| Amp Draw | 1.1 A per pod (at 13.2 V) |
| Backlight | Amber (ABL), every pod |

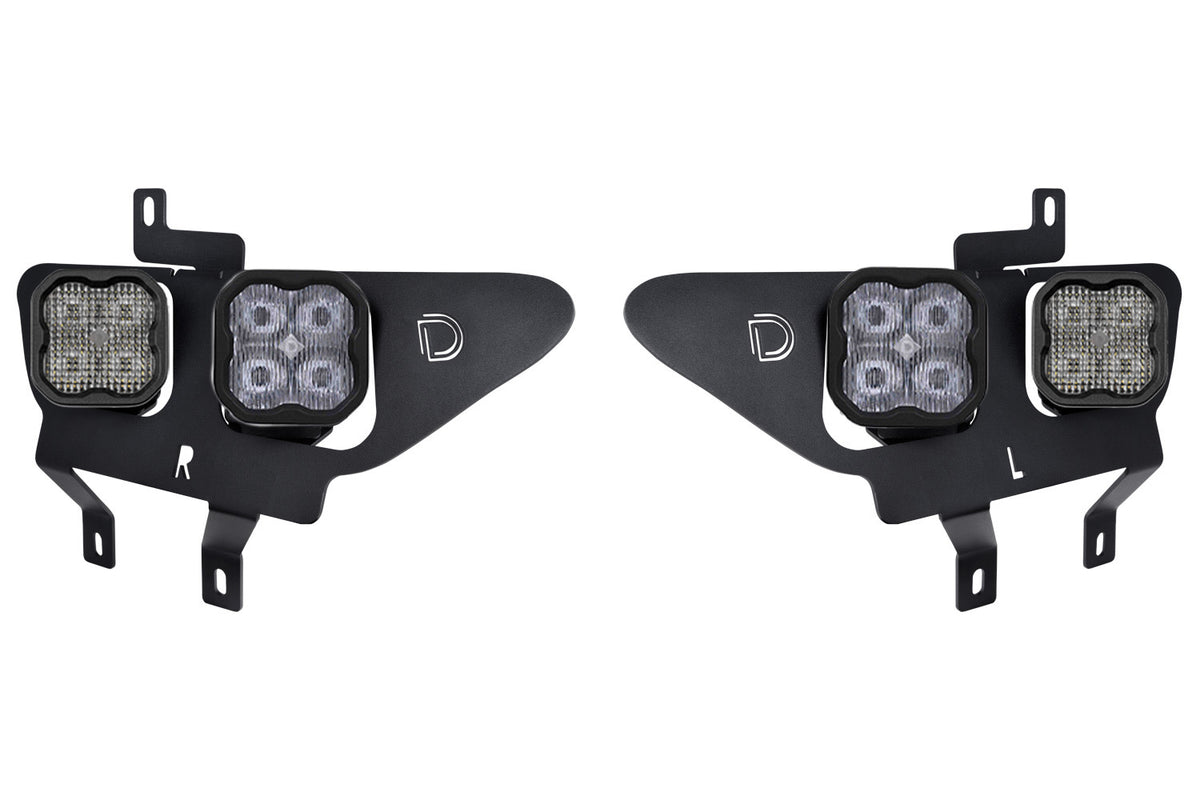

| Bracket | Application-specific, powder-coated stainless steel |
| Compliance | Fog pods: SAE J583 fog lamp, road legal as a pair when aimed; off-road pods: off-road use only |
| Connector | Deutsch DT input |
| Control | Fog pods on the OEM fog circuit; off-road pods on the included 3-way toggle or a factory aux switch |
| Country of Origin | USA (engineered and assembled) |
| Fog Pod Beam | SAE Fog (FineLine optic), 80° x 8° |
| Fog Pod Color | 6000K (white) |
| Fog Pod Illuminance | 106 lux at 32.8 ft (10 m), per pod |
| Fog Pod Intensity | 10,600 cd peak per pod |
| Fog Pod Measured Lumens | 1,520 lm per pod |

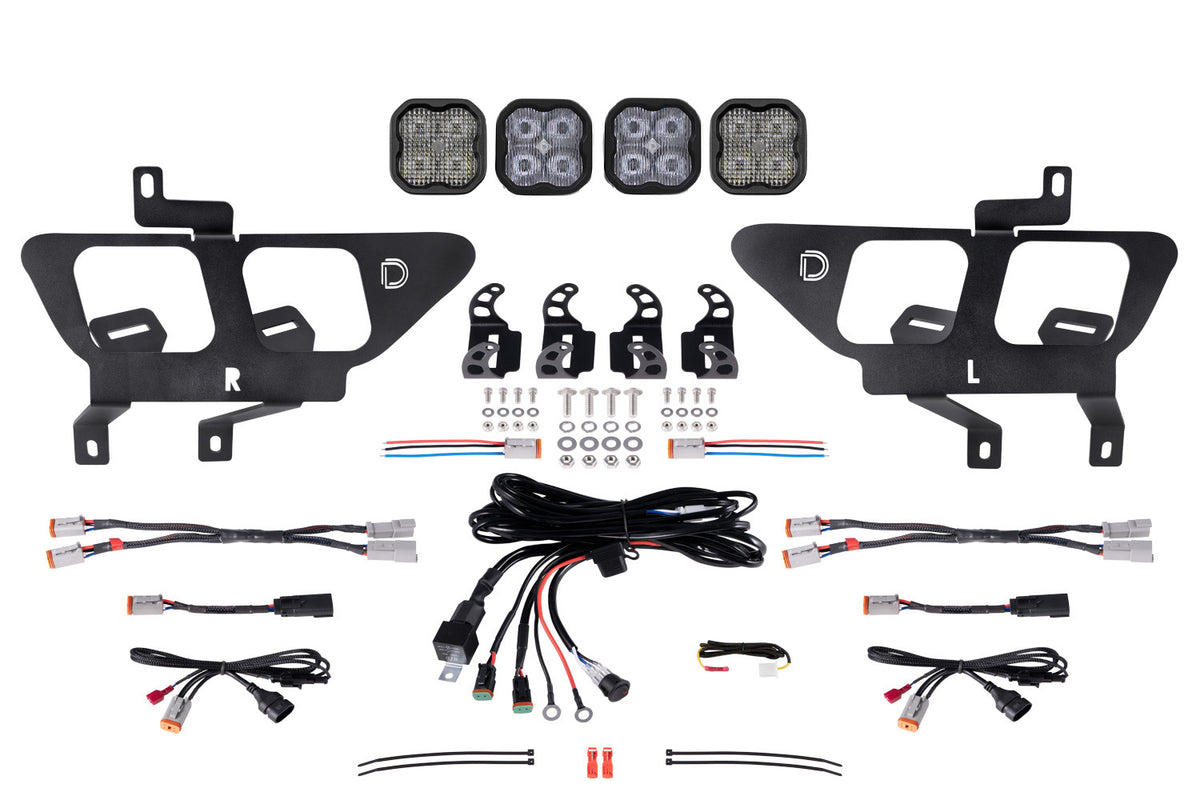

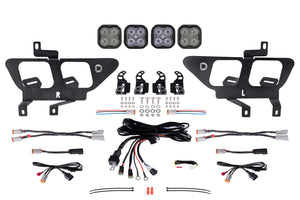

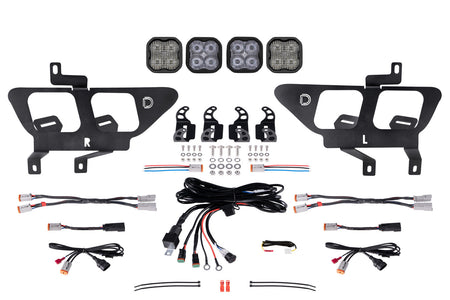

| In the Box | 2 F-150 fog pocket brackets, 2 white SS3 SAE fog pods, 2 white SS3 combo/driving pods, dual-output fog harness, heavy-duty dual-output 4-pin harness, Molex to DT adapter wire, 9006 backlight tap wire kit, 4 zip ties, mounting hardware and guide |
| Input Voltage | 9-16 V DC |
| Installation | Brackets bolt to factory mounting points in the bumper fog pockets; no cutting or drilling |
| IP Rating | IP69K (waterproof, high-pressure wash) |
| LED Emitter | Lumileds Luxeon Z ES |
| Off-Road Pod Beam | Combo/Driving, 80° x 30° |
| Off-Road Pod Color | 6000K (white) on every kit |
| Off-Road Pod Illuminance | 91 lux at 32.8 ft (10 m), per pod |
| Off-Road Pod Intensity | 9,100 cd peak per pod |
| Off-Road Pod Measured Lumens | 1,520 lm per pod |
| Off-Road Pod Raw Lumens | 2,262 lm per pod |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Optic | TIR (total internal reflection) |
| Pod Size | 3 in (76 mm) class |
| Pods | 4 (2 fog, 2 off-road) |
| Power Level | Sport |
| Shipping Dimensions | 18 x 15 x 12 in (457 x 381 x 305 mm) |
| Shipping Weight | 15.75 lb (7.14 kg) |
| Turn Signal | Retains the factory fog-lamp turn signal function |
| Warranty | Limited Lifetime |
| Watts | 14.5 W per pod |
| 2021–2023 Ford F-150 |
| Product Condition | NEW |
