(888) 723-0041Diode Dynamics SS3 Sport LED Fog Pocket Kit for 2021-2023 Ford F-150, Yellow SAE Fog + White Combo/Driving
Part #: DD7311
Diode Dynamics
Description
Diode Dynamics SS3 Sport Yellow LED Fog Pocket Kit for 2021-2023 Ford F-150 splits each bumper pocket between a golden fog and a white trail light. Yellow fogs for rain and fog on the highway, white combo pods for the trail: the split gives you the right color for each job without swapping anything. Each side carries one of each, and the two sets switch independently. All-white fogs are DD7310; stronger yellow fogs come in the Pro kit, DD7313.
Features
- Two-tone front end gives the truck a distinctive look that stands out at a meet
| Amp Draw | 1.1 A per pod (at 13.2 V) |
| Backlight | Amber (ABL), every pod |
| Bracket | Application-specific, powder-coated stainless steel |
| Compliance | Fog pods: SAE J583 fog lamp, road legal as a pair when aimed; off-road pods: off-road use only |
| Connector | Deutsch DT input |
| Control | Fog pods on the OEM fog circuit; off-road pods on the included 3-way toggle or a factory aux switch |
| Country of Origin | USA (engineered and assembled) |
| Fog Pod Beam | SAE Fog (FineLine optic), 80° x 8° |
| Fog Pod Color | 3000K (selective yellow) |
| Fog Pod Illuminance | 90.5 lux at 32.8 ft (10 m), per pod |
| Fog Pod Intensity | 9,050 cd peak per pod |
| Fog Pod Measured Lumens | 1,300 lm per pod |

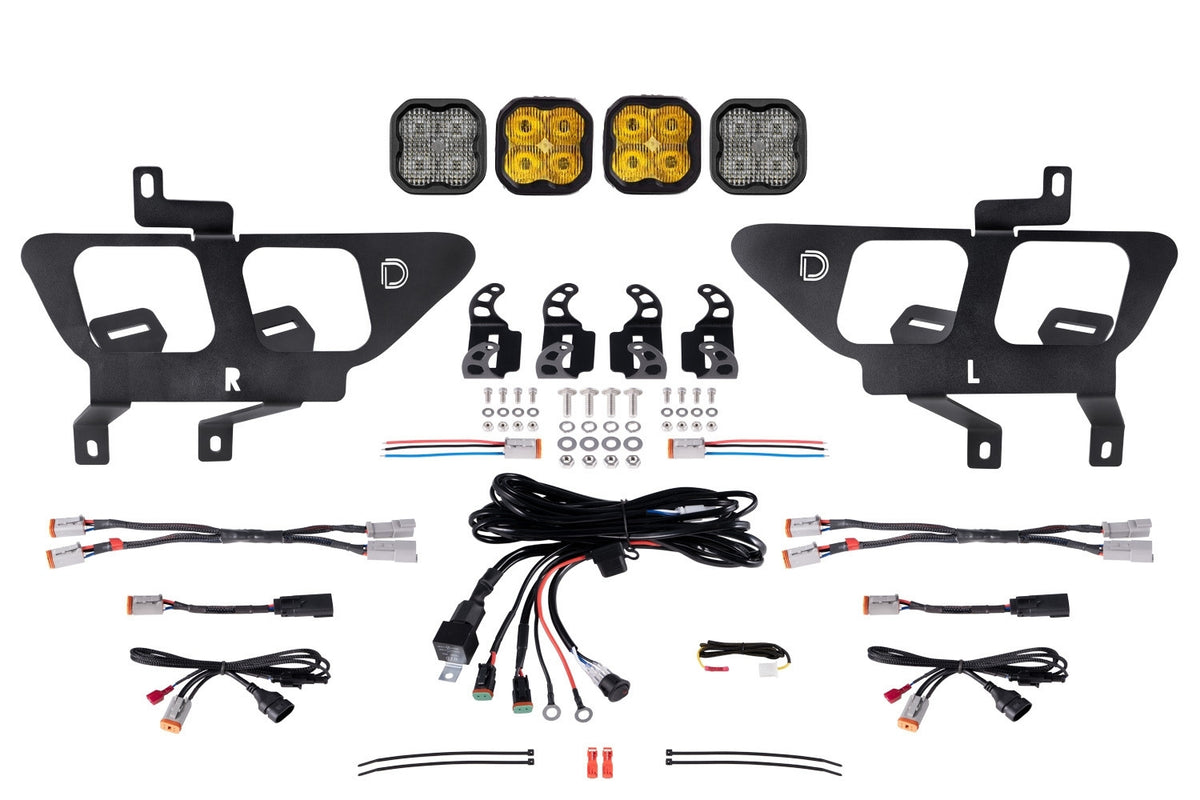

| In the Box | 2 F-150 fog pocket brackets, 2 yellow SS3 SAE fog pods, 2 white SS3 combo/driving pods, dual-output fog harness, heavy-duty dual-output 4-pin harness, Molex to DT adapter wire, 9006 backlight tap wire kit, 4 zip ties, mounting hardware and guide |
| Input Voltage | 9-16 V DC |
| Installation | Brackets bolt to factory mounting points in the bumper fog pockets; no cutting or drilling |
| IP Rating | IP69K (waterproof, high-pressure wash) |
| LED Emitter | Lumileds Luxeon Z ES |
| Off-Road Pod Beam | Combo/Driving, 80° x 30° |
| Off-Road Pod Color | 6000K (white) on every kit |
| Off-Road Pod Illuminance | 91 lux at 32.8 ft (10 m), per pod |
| Off-Road Pod Intensity | 9,100 cd peak per pod |
| Off-Road Pod Measured Lumens | 1,520 lm per pod |
| Off-Road Pod Raw Lumens | 2,262 lm per pod |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Optic | TIR (total internal reflection) |
| Pod Size | 3 in (76 mm) class |
| Pods | 4 (2 fog, 2 off-road) |
| Power Level | Sport |
| Shipping Dimensions | 18 x 15 x 12 in (457 x 381 x 305 mm) |
| Shipping Weight | 15.75 lb (7.14 kg) |
| Turn Signal | Retains the factory fog-lamp turn signal function |
| Warranty | Limited Lifetime |
| Watts | 14.5 W per pod |
| 2021–2023 Ford F-150 |
| Product Condition | NEW |
