Diode Dynamics SS3 Max LED Fog Pocket Kit for 2021-2023 Ford F-150, White SAE Fog + White Combo/Driving

Part #: DD7314

Diode Dynamics
$1,31995

Fits 2021-2023 Ford F-150 equipped with fog lamps from Ford (halogen or LED); not compatible with the Raptor. Trucks without them need the Diode Dynamics Heavy Duty Dual Output 4-Pin Wiring Harness, sold separately. Turn signals that flash through the fog pockets keep working. Your color choice changes the fog pods only; the trail pods are white in every kit. Sold as a complete kit for both sides (4 pods). Fogs are street legal when installed as a pair and properly aimed; the trail pods are for off-highway use.

This Product:
Find your Fit

Description

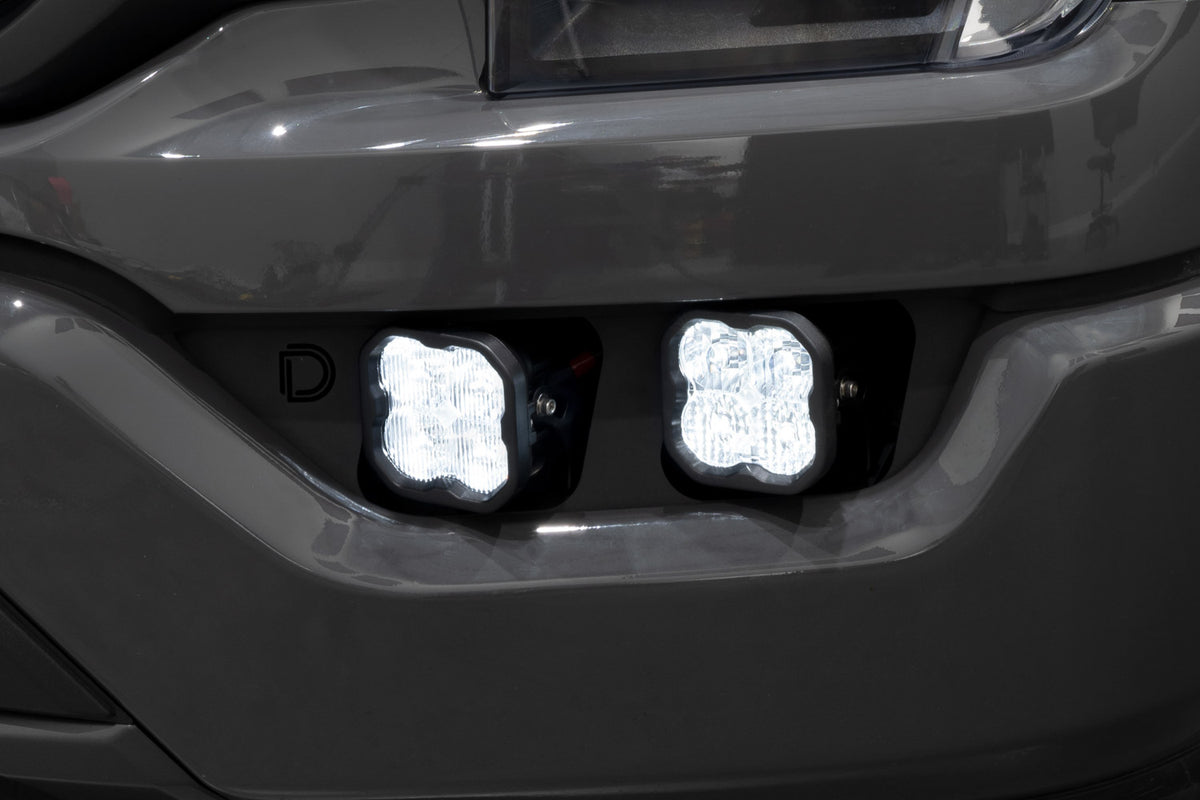

Diode Dynamics SS3 Max LED Fog Pocket Kit for 2021-2023 Ford F-150 is the brightest way to fill the factory bumper pockets. At full Max power, the fogs throw an intense, wide sheet of white light and the combo pods punch deep into the dark. If you want the bumper to do the job of an auxiliary bar, this is the kit. Prefer yellow fogs? That is DD7315; the Pro white kit, DD7312, costs less.

Features

  • Enough off-road output from the bumper that many owners skip a roof bar entirely
Amp Draw 3 A main beam, 0.03 A backlight, per pod (at 13.2 V)
Backlight Amber (ABL), every pod
Bracket Application-specific, powder-coated stainless steel
Compliance Fog pods: SAE J583 fog lamp, road legal as a pair when aimed; off-road pods: off-road use only
Connector Deutsch DT input
Control Fog pods on the OEM fog circuit; off-road pods on the included 3-way toggle or a factory aux switch
Country of Origin USA (engineered and assembled)
Fog Pod Beam SAE Fog (FineLine optic), 80° x 8°
Fog Pod Color 6000K (white)
Fog Pod Illuminance 180 lux at 32.8 ft (10 m), per pod
Fog Pod Intensity 18,000 cd peak per pod
Fog Pod Measured Lumens 3,500 lm per pod

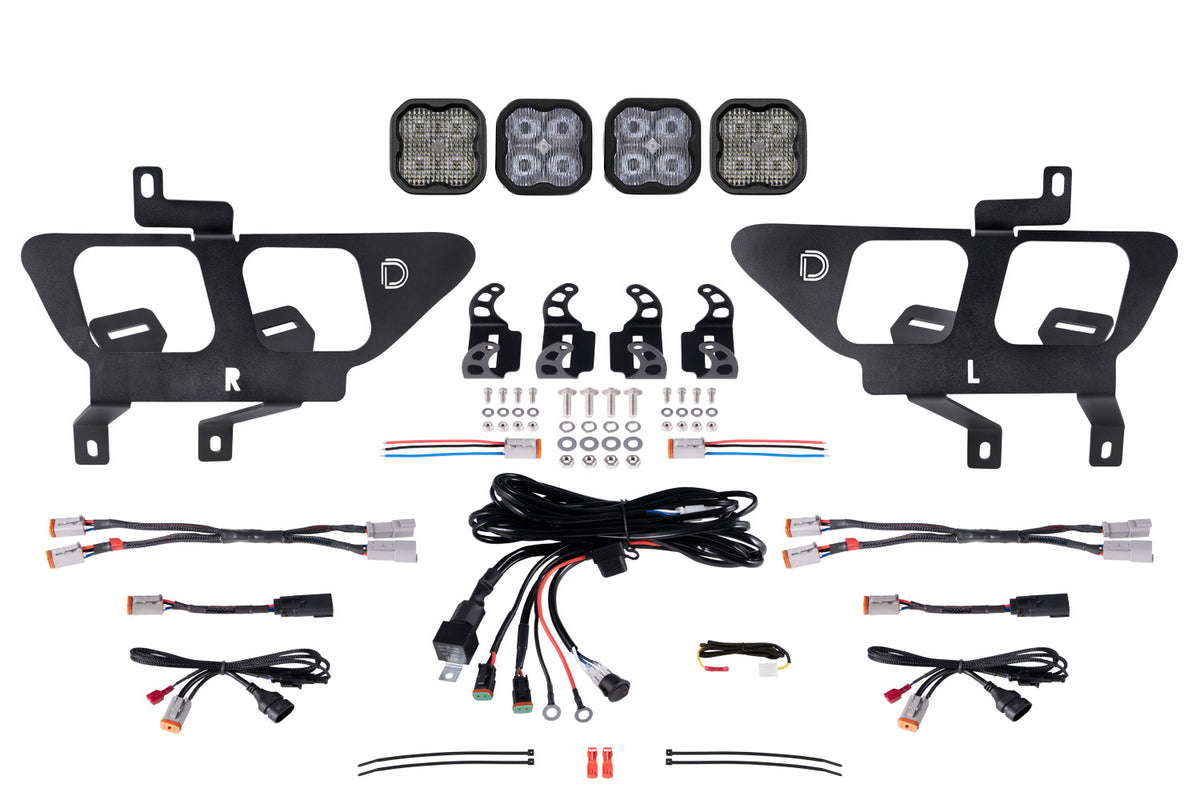

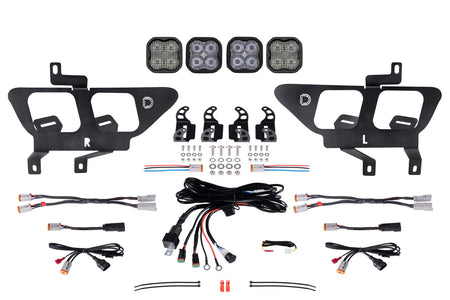

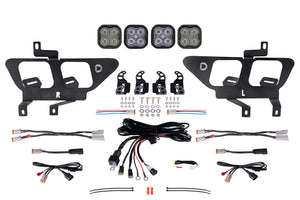

In the Box 2 F-150 fog pocket brackets, 2 white SS3 SAE fog pods, 2 white SS3 combo/driving pods, dual-output fog harness, heavy-duty dual-output 4-pin harness, Molex to DT adapter wire, 9006 backlight tap wire kit, 4 zip ties, mounting hardware and guide
Input Voltage 9-30 V DC

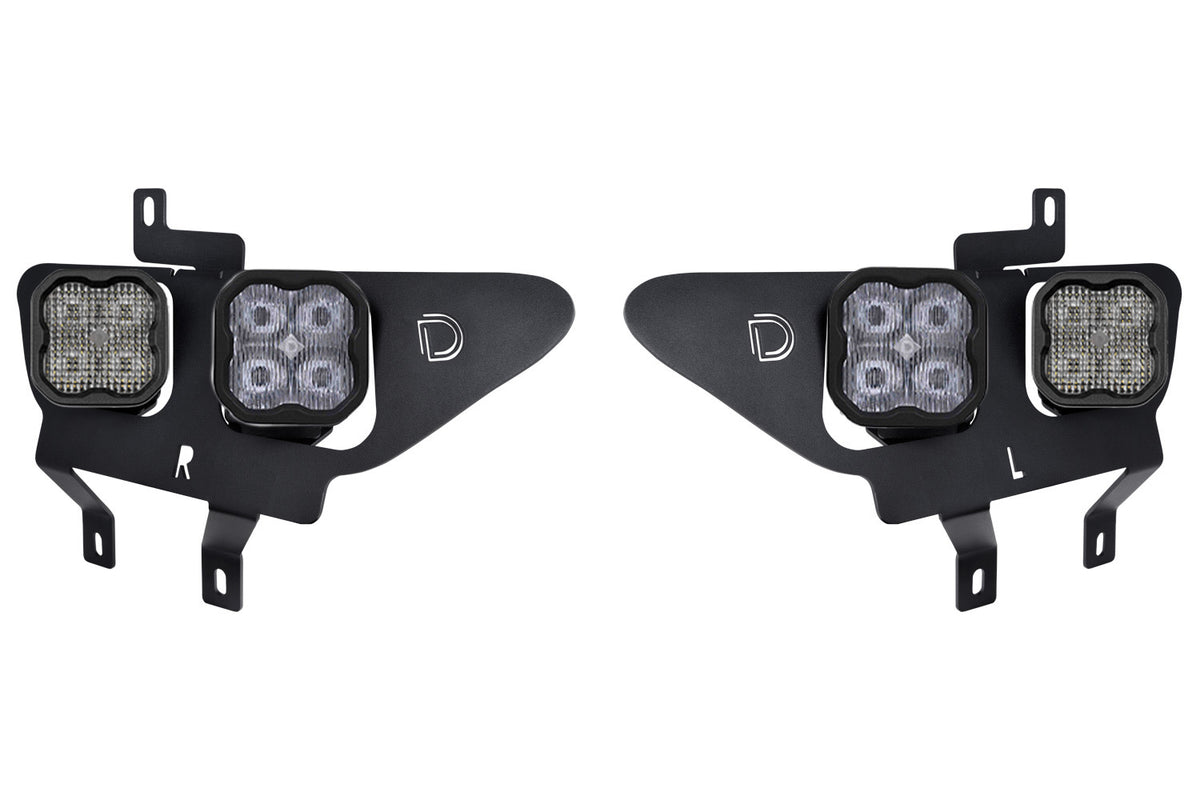

Installation Brackets bolt to factory mounting points in the bumper fog pockets; no cutting or drilling
IP Rating IP69K (waterproof, high-pressure wash)
LED Emitter Osram Boost HX
Off-Road Pod Beam Combo/Driving, 80° x 30°
Off-Road Pod Color 6000K (white) on every kit
Off-Road Pod Illuminance 197.5 lux at 32.8 ft (10 m), per pod
Off-Road Pod Intensity 19,750 cd peak per pod
Off-Road Pod Measured Lumens 3,500 lm per pod
Off-Road Pod Raw Lumens 7,920 lm per pod
Operating Temperature -40°F to 185°F (-40°C to 85°C)
Optic TIR (total internal reflection)
Pod Size 3 in (76 mm) class
Pods 4 (2 fog, 2 off-road)
Power Level Max
Shipping Dimensions 18 x 15 x 12 in (457 x 381 x 305 mm)
Shipping Weight 15.75 lb (7.14 kg)
Turn Signal Retains the factory fog-lamp turn signal function
Warranty Limited Lifetime
Watts 38.5 W main beam, 0.4 W backlight, per pod
2021–2023 Ford F-150
