Baja Designs Squadron-R SAE Fog Light Kit for 2019-2023 Ford Ranger and 2021-2025 Bronco, Clear

Part #: 447616

Baja Designs
$42995

Fits 2019-2023 Ford Ranger and 2021-2025 Ford Bronco with the factory plastic front bumper, standard or Capable; not for the steel modular bumper. Factory fog lights required. Sold as a pair, Clear or Baja Amber. Street legal as fog lights; follow your state's rules on when they may be on.

Select Option 1:
Select Lens Color:
Call To Order (888) 723-0041
Find your Fit

Description

Baja Designs Squadron-R SAE fog pocket light kit brings road-rated projector fog beams to Ford trucks: the Ranger (2019-2023) and the Bronco (2021-2025). This is the kit to pick when the truck sees as much highway as trail. The round projector pods lay a low, wide beam under a sharp top edge, so rain, fog and dust stop glowing back at you and the road surface and lane lines stand out instead, all without flashing the drivers coming toward you. Want more off-road punch instead? Wide cornering Squadron kits fit the same trucks: Sport, part 447607, or Pro, part 447608. Ranger owners can add a lower grille light bar, part 447611. Building a custom mount? The square Squadron SAE pod pair is part 257801.

Features

  • Baja Designs' aiming step squares each pod's face to the flat surface of the bumper, so the cutoff sits level once installed
Amp Draw 2.1 A per light
Average Rated Life 49,930 hours
Beam Pattern SAE fog
Bezel Powder-coated cast aluminum
Country of Origin Made in USA
Durability Exceeds MIL-STD-810G military-standard testing
Harness Adaptor harnesses plug into the factory fog light connectors; the factory switch keeps control
Housing Black, hard-anodized and powder-coated cast aluminum
Impact Resistance IK10
Installation Front bumper comes off on the Ranger and standard-bumper Bronco; Capable-bumper Broncos swap through the fog light opening. Brackets set each pod in the factory fog pocket with no cutting or trimming
IP Rating IP69K; waterproof to 9 ft (2.7 m) and pressure washable
LEDs 4 Cree LEDs per light
Lens Clear hard-coated polycarbonate
Light Dimensions (L x H x D) 3.07 x 3.07 x 2.77 in (78 x 78 x 70 mm) per light
Light Output 2,420 raw lumens per light
Optics Aspheric projector
Overvoltage Protection Built-in
Package Dimensions 12.00 x 12.00 x 12.00 in (305 x 305 x 305 mm)
Re-Torque Check all fasteners after the first 100 miles (160 km)
SAE Compliance J583 front fog lamp
Shipping Weight 6 lb (2.7 kg)
Warranty Limited lifetime; repair by return to Baja Designs
Watts 29 W per light
Weight 0.75 lb (0.3 kg) per light

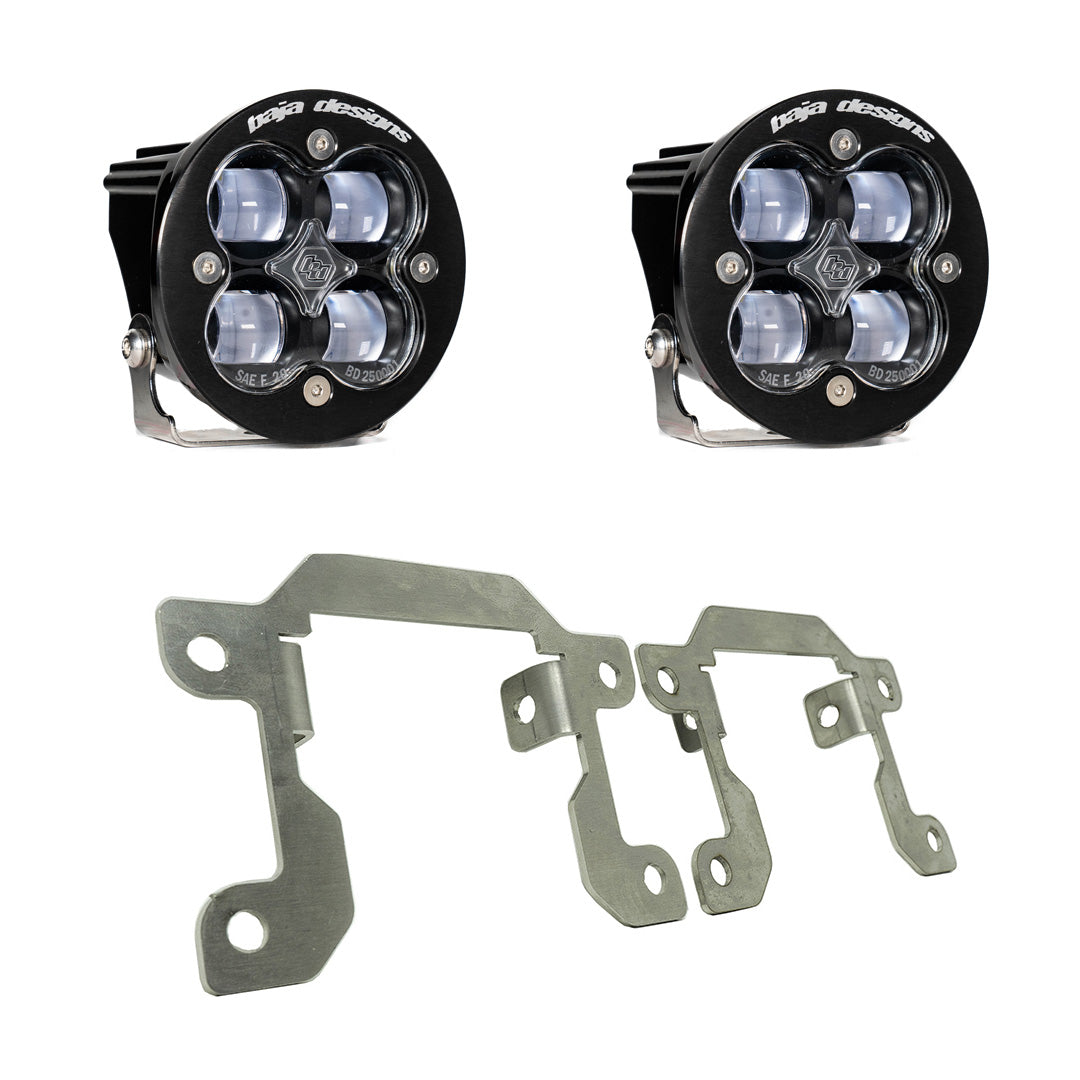

What's Included 2 Squadron-R SAE lights, 2 mounting brackets, 2 adaptor harnesses, stainless steel mounting hardware
2019–2023 Ford Ranger
2021–2025 Ford Bronco Factory plastic front bumper only (standard or Capable); not for steel modular bumper or Bronco Raptor.
