(888) 723-0041Baja Designs S1 Fog Pocket Light Kit for 2021-2024 Ford Bronco Sport, Clear
Part #: 447682 | 447683
Baja Designs
Description

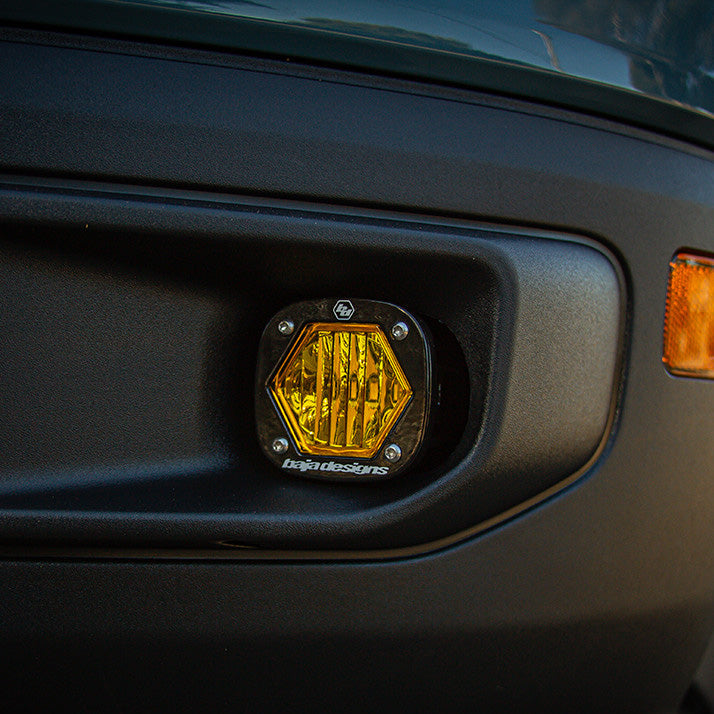

Baja Designs S1 fog pocket light kit gives the 2021-2024 Ford Bronco Sport a pair of compact wide cornering LED pods right where the stock fogs sat. The Bronco Sport earns its name on gravel roads, snowy trailheads and the two-track out to camp, and that's where stock fog lamps fall short. These pods spread a broad, even wash of light across the ground just ahead and out to both sides, so the edges of a narrow road, the next turn and anything standing in the brush show up clearly in fog, dust or falling snow. Clear lenses give the crispest white light. Baja Amber is easier on the eyes when the weather closes in. Want light up high as well? Baja Designs A-pillar kits for the Bronco Sport: S1, part 447688; Squadron Sport, part 447687; Squadron Pro, part 447686.
Features
- Bronco Sport-specific brackets bolt in at the three factory fog light screw locations on each side
| Amp Draw | 1.42 A per light |
| Average Rated Life | 49,930 hours |
| Beam Pattern | Wide cornering |
| Bezel | Powder-coated cast aluminum |
| Country of Origin | Made in USA |
| Durability | Exceeds MIL-STD-810G military-standard testing |
| Harness | Plug-and-play adaptors connect each light to the original lamp connector, and the dash fog switch keeps working |
| Housing | Black, hard-anodized and powder-coated cast aluminum |
| Impact Resistance | IK10 |
| Input Voltage | 9-28 V DC |
| Installation | No drilling or cutting |
| IP Rating | IP69K; waterproof to 9 ft (2.7 m) and pressure washable |
| LEDs | 1 LED per light with a specialized reflector |
| Lens | Clear hard-coated polycarbonate |
| Light Dimensions (L x H x D) | 2.10 x 2.10 x 2.10 in (53 x 53 x 53 mm) per light |
| Light Output | 2,320 raw lumens per light |
| Overvoltage Protection | Built-in |
| Package Dimensions | 8.00 x 8.00 x 8.00 in (203 x 203 x 203 mm) |
| Patent | US 11,273,751 |
| Shipping Weight | 4 lb (1.8 kg) |
| uService | Replaceable lenses and optics |
| Warranty | Limited lifetime |
| Watts | 19.6 W per light |
| Weight | 0.4 lb (0.2 kg) per light |

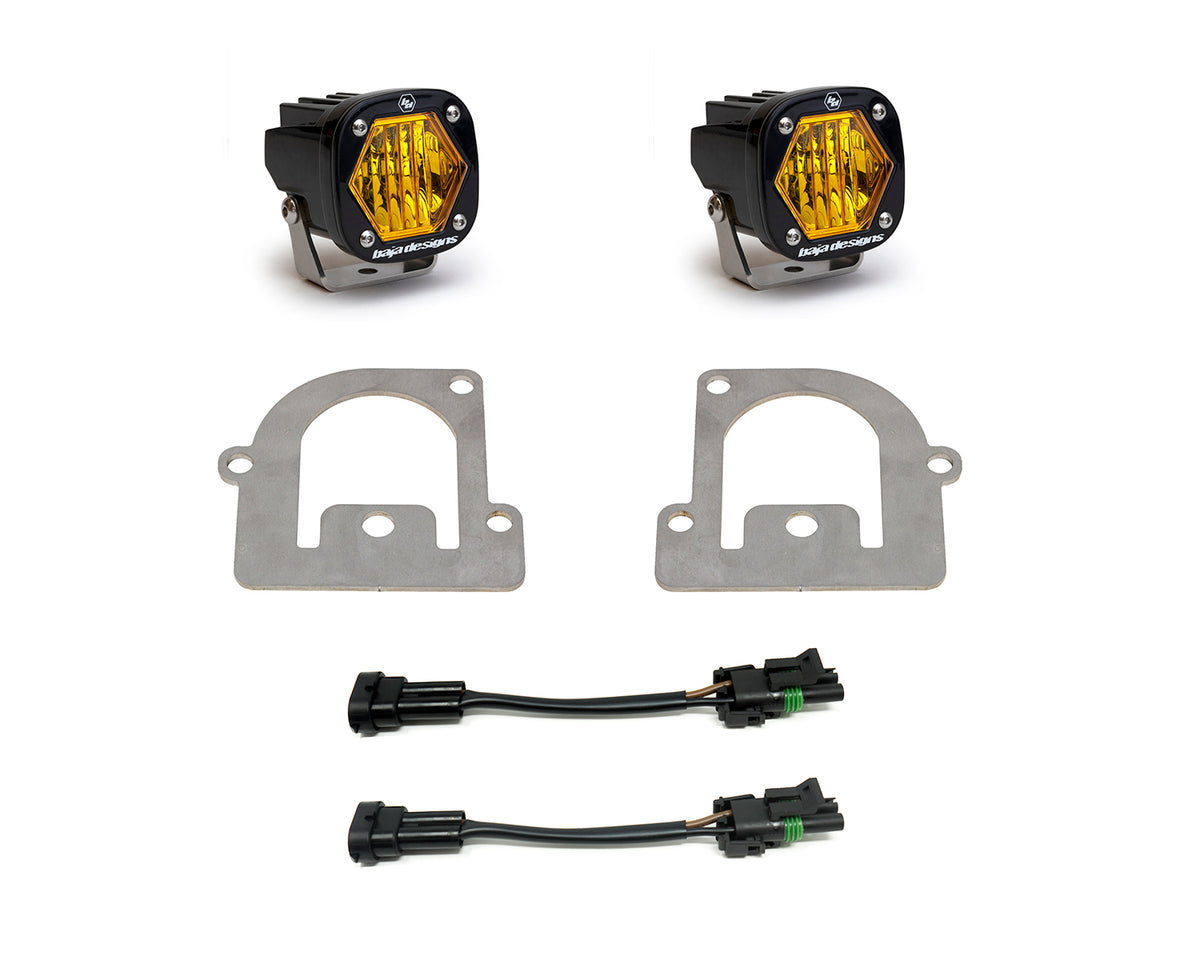

| What's Included | 2 S1 wide cornering lights, 2 fog light brackets, 2 adaptor harnesses (600035), mounting hardware |
| Amp Draw | 1.42 A per light |
| Average Rated Life | 49,930 hours |
| Beam Pattern | Wide cornering |
| Bezel | Powder-coated cast aluminum |
| Country of Origin | Made in USA |
| Durability | Exceeds MIL-STD-810G military-standard testing |
| Harness | Plug-and-play adaptors connect each light to the original lamp connector, and the dash fog switch keeps working |
| Housing | Black, hard-anodized and powder-coated cast aluminum |
| Impact Resistance | IK10 |
| Input Voltage | 9-28 V DC |
| Installation | No drilling or cutting |
| IP Rating | IP69K; waterproof to 9 ft (2.7 m) and pressure washable |
| LEDs | 1 LED per light with a specialized reflector |
| Lens | Baja Amber hard-coated polycarbonate |
| Light Dimensions (L x H x D) | 2.10 x 2.10 x 2.10 in (53 x 53 x 53 mm) per light |
| Overvoltage Protection | Built-in |
| Package Dimensions | 8.00 x 8.00 x 8.00 in (203 x 203 x 203 mm) |
| Patent | US 11,273,751 |
| Shipping Weight | 4 lb (1.8 kg) |
| uService | Replaceable lenses and optics |
| Warranty | Limited lifetime |
| Watts | 19.6 W per light |
| Weight | 0.4 lb (0.2 kg) per light |
| What's Included | 2 S1 wide cornering lights, 2 fog light brackets, 2 adaptor harnesses (600035), mounting hardware |
| 2021–2024 Ford Bronco Sport | Factory fog lights required. |
