Baja Designs S2 SAE/S2 Pro Fog Pocket Kit for 2021-2026 Ford F-150 Raptor and 2023-2026 Bronco Raptor, Clear SAE Lens
Part #: 448182
Baja Designs
$73595
This Product:
Find your
Fit
Description
Warranty
Limited Lifetime
| Amp Draw | 5.2 A with all four on |
| Beam Pattern | SAE fog (fog lights); driving/combo (off-road pods) |
| Country of Origin | Made in USA |
| Durability | Off-road pods exceed MIL-STD-810G military-standard testing |
| Fog Lights | 2 S2 SAE fogs, clear lens; 1,210 lumens, 5,712 cd (measured), 12.4 W and 0.9 A each, 5,000 K |
| Impact Resistance | Off-road pods: IK10 |
| Installation | Bolt-in with plug-in adapters; no drilling or splicing |
| IP Rating | Off-road pods: IP69K; waterproof to 9 ft (2.7 m) and pressure washable |
| Lens | Clear (fogs and pods) |
| Light Dimensions (L x H x D) | 2.93 x 1.76 x 1.68 in (74 x 45 x 43 mm) per light |
| Off-Road Pods | 2 S2 Pro driving/combo pods, clear lens; 2,245 raw lumens, 23.5 W and 1.7 A each |
| Operation | Outer pair: factory fog switch. Inner pair: first auxiliary switch |
| Optics | SAE fogs: aspheric projector |
| Package Dimensions | 8.00 x 8.00 x 8.00 in (203 x 203 x 203 mm) |
| Re-Torque | Check all fasteners after the first 100 miles (160 km) |
| SAE Compliance | S2 SAE fogs: J583 front fog lamp |
| Shipping Weight | 8 lb (3.6 kg) |
| Tools Required | 7/16 in and 9/16 in sockets (plus 8 mm and 10 mm sockets, 4 mm and 5 mm hex keys), T10 and T40 Torx bits, trim removal tools |
| uService | Off-road pods only (replaceable lenses and optics); SAE fogs are sealed and opening one voids the warranty |
| Warranty | Limited lifetime; SAE fogs repaired by return to Baja Designs |
| Watts | 71.8 W with all four on |
| Weight | 0.5 lb (0.2 kg) per light |

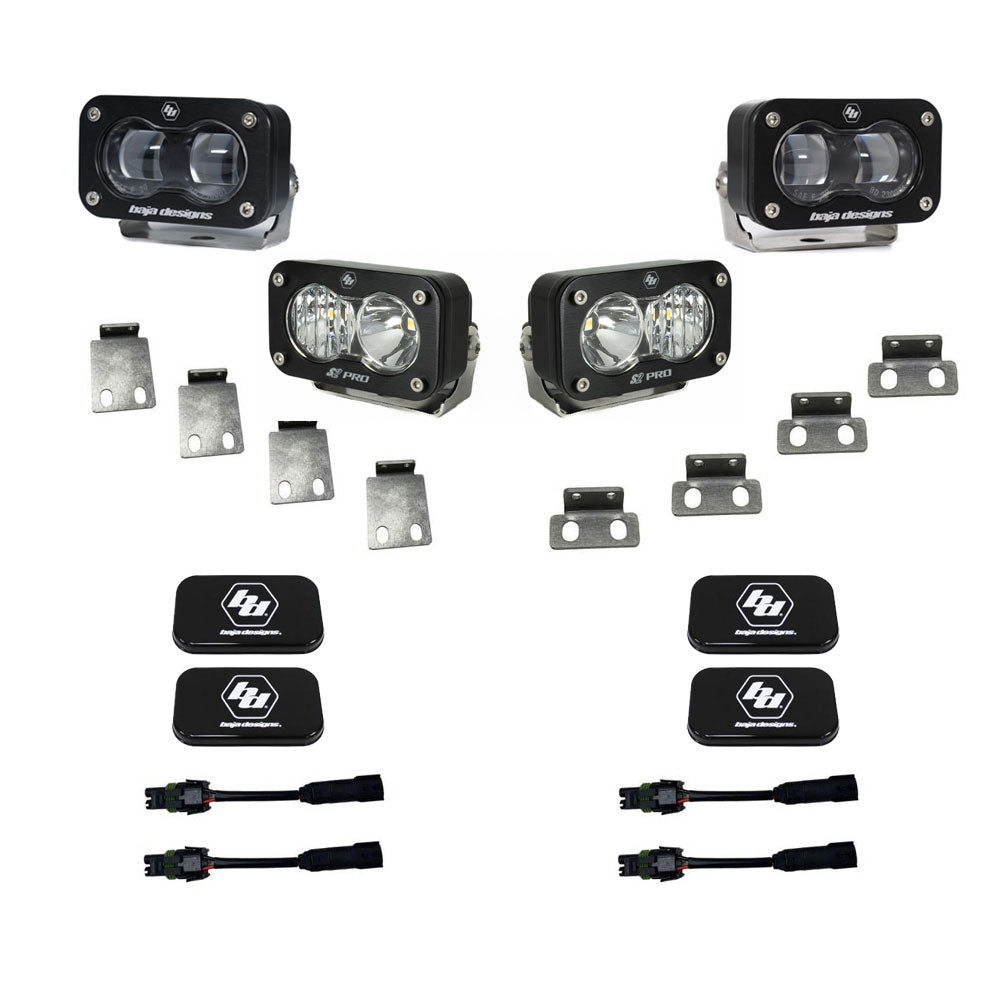

| What's Included | 2 S2 SAE fogs, 2 S2 Pro driving/combo pods, 4 harness adapters, 4 rock guards, mounting brackets, mounting hardware |
| 2021–2026 Ford F-150 | Submodel: Raptor |
| 2023–2027 Ford Bronco | Submodel: Raptor |
| 2024–2026 Ford F-150 | Submodel: Raptor R |
| 2024–2026 Ford F-150 | Submodel: Raptor |
