Baja Designs S2 Sport OEM Fog Light Replacement Kit for 2023-2026 Toyota Sequoia, Wide Cornering, Clear

Part #: 448135 | 448185

Baja Designs
$69095

Fits 2023-2026 Toyota Sequoia; the truck must already have fog lamps from the factory. Sold as a four-light kit in Clear or Baja Amber, and it replaces the factory fogs. S2 Sport lights are not SAE-rated, so this is an off-road kit; for a street-legal fog replacement, choose the S2 SAE kit, part 448163 (clear) or 448168 (amber).

Select Beam Pattern:
Call To Order (888) 723-0041
Find your Fit

Description

Baja Designs S2 Sport OEM fog light replacement kit swaps the 2023-2026 Toyota Sequoia's factory fogs for four wide cornering LED pods, two per side. Stock Sequoia fog lamps light a short patch of road right in front of the bumper. Doubling up S2 Sport pods in each opening throws a flat, wide sheet of light out to the shoulders and deep into every turn, which is what you want on a dark backroad in rain, snow or dust. Pick clear for crisp, daylight-white output, or Baja Amber to cut the glare that bounces back when the air is full of dust and moisture. Either way, the front of the truck keeps its factory look.

Features

  • Plugs into the stock fog plug, so the dash fog switch turns all four on
  • Built-in flicker fix keeps the Sequoia's CAN-bus system from strobing the LEDs
  • Work happens from underneath once the lower cover is unclipped; the front clip stays on
  • Wiring steps cover the Sequoia's rear-mounted hybrid battery
Amp Draw 0.9 A per light; 3.6 A with all four on
Average Rated Life 49,930 hours
Beam Pattern Wide cornering; flattened horizontal beam, about 42 degrees wide
Bezel Powder-coated cast aluminum
Color Temperature 5,000 K
Country of Origin Made in USA
Durability Exceeds MIL-STD-810G military-standard testing
Harness Relay harness to the battery, adapter harness for the factory fog connector, splitter harness, CAN-bus anti-flicker harness
Housing Black powder-coated cast aluminum
Impact Resistance IK10
Installation Lower bumper cover and factory fog lights come off; no drilling or trimming
IP Rating IP69K; waterproof to 9 ft (2.7 m) and pressure washable
Lens Clear hard-coated polycarbonate
Light Dimensions (L x H x D) 2.93 x 1.76 x 1.68 in (74 x 45 x 43 mm) per light
Light Output 1,581 raw lumens per light; 6,324 raw lumens with all four on
Mounting Hardware Stainless steel
Operation Factory fog light switch
Overvoltage Protection Built-in
Package Dimensions 12.00 x 10.00 x 8.00 in (305 x 254 x 203 mm)
Re-Torque Check all fasteners after the first 100 miles (160 km)
Requires Factory fog lamps (stock connector)
Shipping Weight 4 lb (1.8 kg)
Tools Required 9/16 in socket and wrench (plus a 10 mm wrench and 4 mm hex key), trim removal tool, Phillips screwdriver
uService Replaceable lenses and optics
Warranty Limited lifetime
Watts 12.4 W per light; 49.7 W with all four on
Weight 0.5 lb (0.2 kg) per light

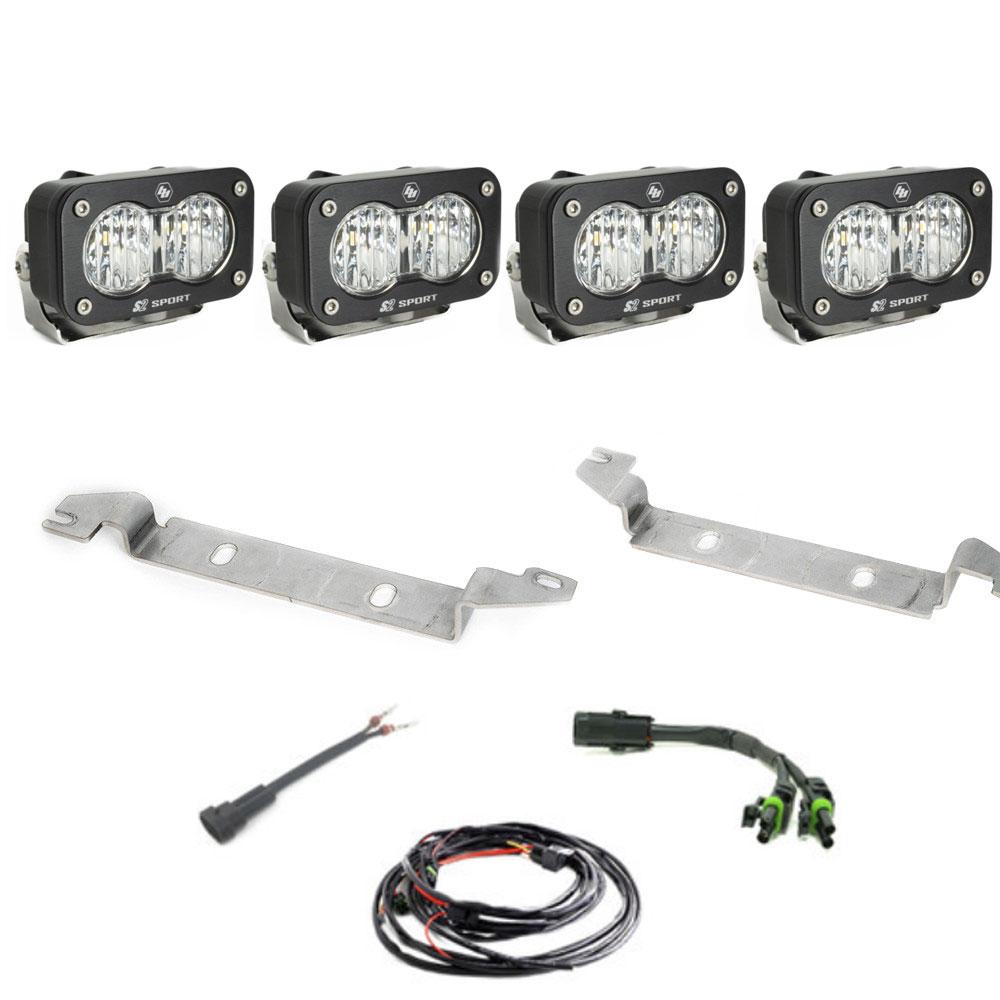

What's Included 4 S2 Sport wide cornering lights, 2 vehicle-specific mounting brackets, adapter harness, splitter harness, CAN-bus anti-flicker harness, mounting hardware
2023–2026 Toyota Sequoia Requires factory fog lights.
