(888) 723-0041Baja Designs Squadron-R SAE Fog Pocket Kit for Toyota 4Runner 2010-2024, Tacoma 2012-2023, Tundra 2014-2021, Clear
Part #: 447641
Baja Designs
Description
Baja Designs Squadron-R SAE fog pocket light kit fits the factory fog openings of the 2010-2024 Toyota 4Runner, 2012-2023 Tacoma and 2014-2021 Tundra. Toyota's stock fog lamps mostly light up the air just ahead of the bumper. These round projector pods push a wide, even band of light down the road and out to the shoulder, held under a crisp cutoff so it stays out of oncoming drivers' eyes. Rain, fog and trail dust reflect far less back at you, which makes the edge of the road easy to follow on a wet night or a dusty forest road. The round faces and black bezels look factory-made in the Toyota pockets, and the pods carry an SAE fog rating for everyday road use. Building a custom bumper instead? The square Squadron SAE pod pair is part 257801.
Features
- Separate bolt-side and non-bolt-side brackets hold each pod at the Toyota's factory fog light mounting points
- Adhesive rubber pads close the gap between pod and fog opening; trim them with scissors for a tight fit
- Angled bezels on the pods match the angle of Toyota's fog pockets
| Amp Draw | 2.1 A per light |
| Average Rated Life | 49,930 hours |
| Beam Pattern | SAE fog |
| Bezel | Powder-coated cast aluminum |
| Country of Origin | Made in USA |
| Durability | Exceeds MIL-STD-810G military-standard testing |
| Harness | H11 adapters plug into the original lamp connectors; no splicing or soldering, and the dash switch keeps control |
| Housing | Black, hard-anodized and powder-coated cast aluminum |
| Impact Resistance | IK10 |
| Installation | Stock lamps and their brackets come out through the inner fender or splash guard; no bumper removal or drilling |
| IP Rating | IP69K; waterproof to 9 ft (2.7 m) and pressure washable |
| LEDs | 4 Cree LEDs per light |
| Lens | Clear hard-coated polycarbonate |
| Light Dimensions (L x H x D) | 3.07 x 3.07 x 2.77 in (78 x 78 x 70 mm) per light |
| Light Output | 2,420 raw lumens per light |
| Optics | Aspheric projector |
| Overvoltage Protection | Built-in |
| Package Dimensions | 12.00 x 12.00 x 12.00 in (305 x 305 x 305 mm) |
| Peak Intensity | Up to 15,800 candela per light |
| Re-Torque | Check all fasteners after the first 100 miles (160 km) |
| SAE Compliance | J583 front fog lamp |
| Shipping Weight | 8 lb (3.6 kg) |
| Warranty | Limited lifetime; repair by return to Baja Designs |
| Watts | 29 W per light |
| Weight | 0.75 lb (0.3 kg) per light |

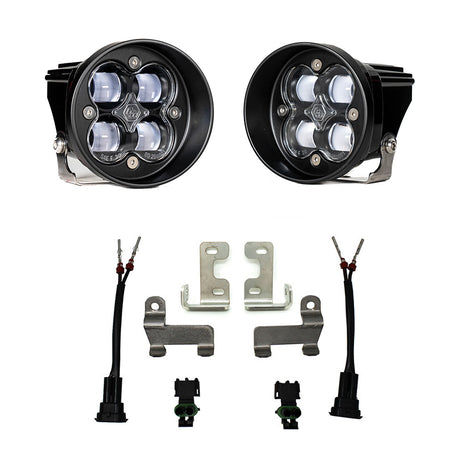

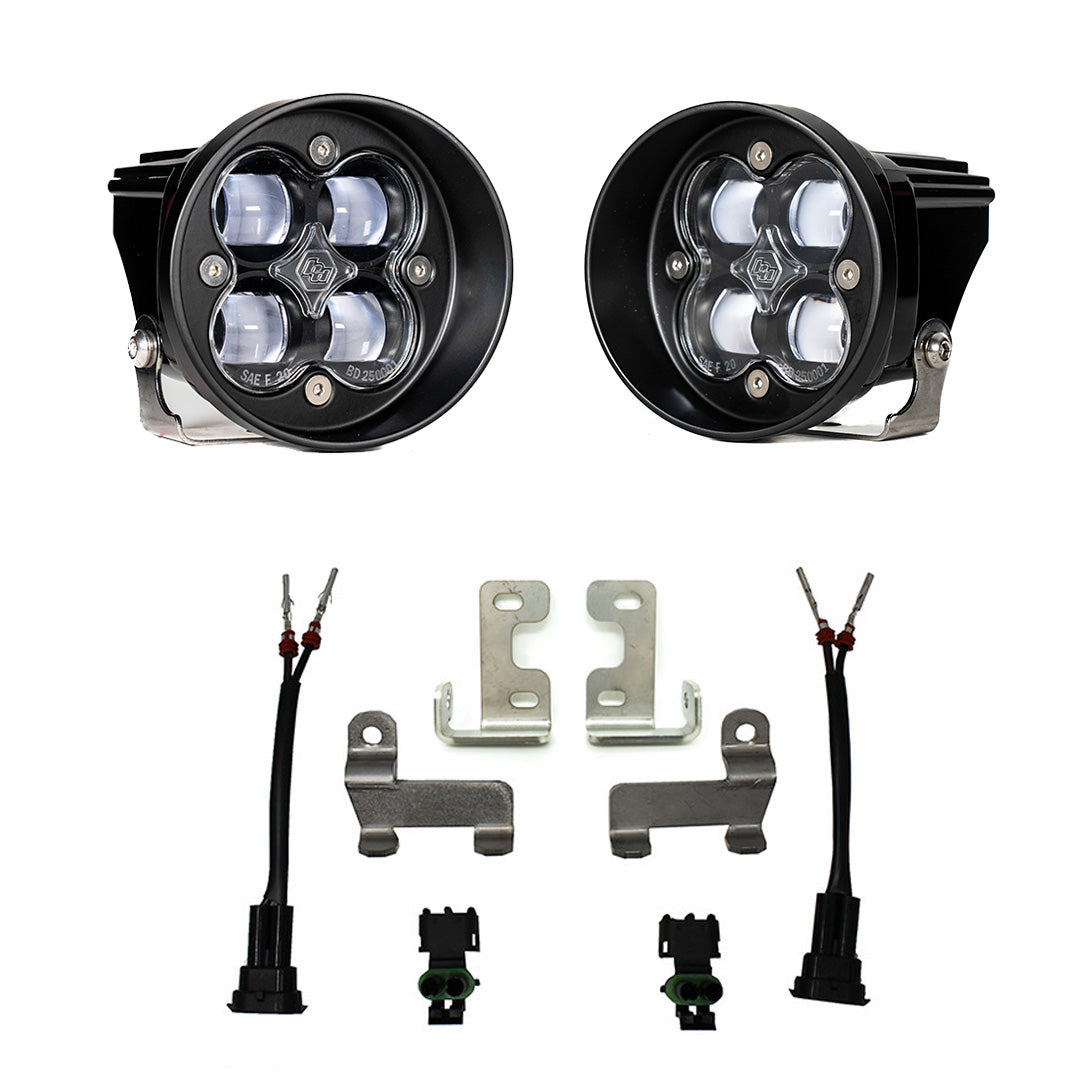

| What's Included | 2 Squadron-R SAE lights, 2 bolt-side brackets, 2 non-bolt-side brackets, 2 H11-to-weather-pack adapters, mounting hardware |
| 2010–2024 Toyota 4Runner | |
| 2012–2023 Toyota Tacoma | |
| 2014–2021 Toyota Tundra |
