(888) 723-0041Baja Designs Squadron Sport Fog Pocket Light Kit for 2019-2023 Ford Ranger and 2021-2025 Bronco
Part #: 447607
Baja Designs
Description
Baja Designs Squadron Sport fog pocket light kit swaps the factory fogs on the 2019-2023 Ford Ranger and 2021-2025 Bronco for wide LED light. Stock fog lamps light a short patch of road and little else. These round Squadron-R Sport pods throw a broad, even sheet of white light across the shoulders and ditches right in front of the bumper, which is exactly where you need to see on a dark back road, a tight trail or a campsite turn-in. The black housings sit in the factory pockets like they came from Ford, so the front end looks clean instead of modified. Want more reach? The same kit with Squadron Pro pods is part 447608. Need a street-legal fog beam? The SAE version is part 447616. Ranger owners can add long-range light with the lower grille light bar kit, part 447611.
Features
- Lenses swap out, so an optional Baja Amber lens kit can turn the pair into amber fogs later
| Amp Draw | 2.2 A per light |
| Average Rated Life | 49,930 hours |
| Beam Pattern | Wide cornering |
| Bezel | Powder-coated cast aluminum |
| Country of Origin | Made in USA |
| Durability | Exceeds MIL-STD-810G military-standard testing |
| Harness | Adaptor harnesses plug into the factory fog light connectors; the factory switch keeps control |
| Housing | Black powder-coated cast aluminum |
| Impact Resistance | IK10 |
| Installation | Front bumper comes off on the Ranger and standard-bumper Bronco; Capable-bumper Broncos swap through the fog light opening. Brackets set each pod in the factory fog pocket with no cutting or trimming |
| IP Rating | IP69K; waterproof to 9 ft (2.7 m) and pressure washable |
| LEDs | 4 per light |
| Lens | Clear hard-coated polycarbonate |
| Light Dimensions (L x H x D) | 3.07 x 3.07 x 2.77 in (78 x 78 x 70 mm) per light |
| Light Output | 3,162 raw lumens per light |
| Overvoltage Protection | Built-in |
| Package Dimensions | 8.00 x 8.00 x 8.00 in (203 x 203 x 203 mm) |
| Re-Torque | Check all fasteners after the first 100 miles (160 km) |
| Shipping Weight | 6 lb (2.7 kg) |
| uService | Replaceable lenses and optics |
| Warranty | Limited lifetime |
| Watts | 30.36 W per light |
| Weight | 0.75 lb (0.3 kg) per light |

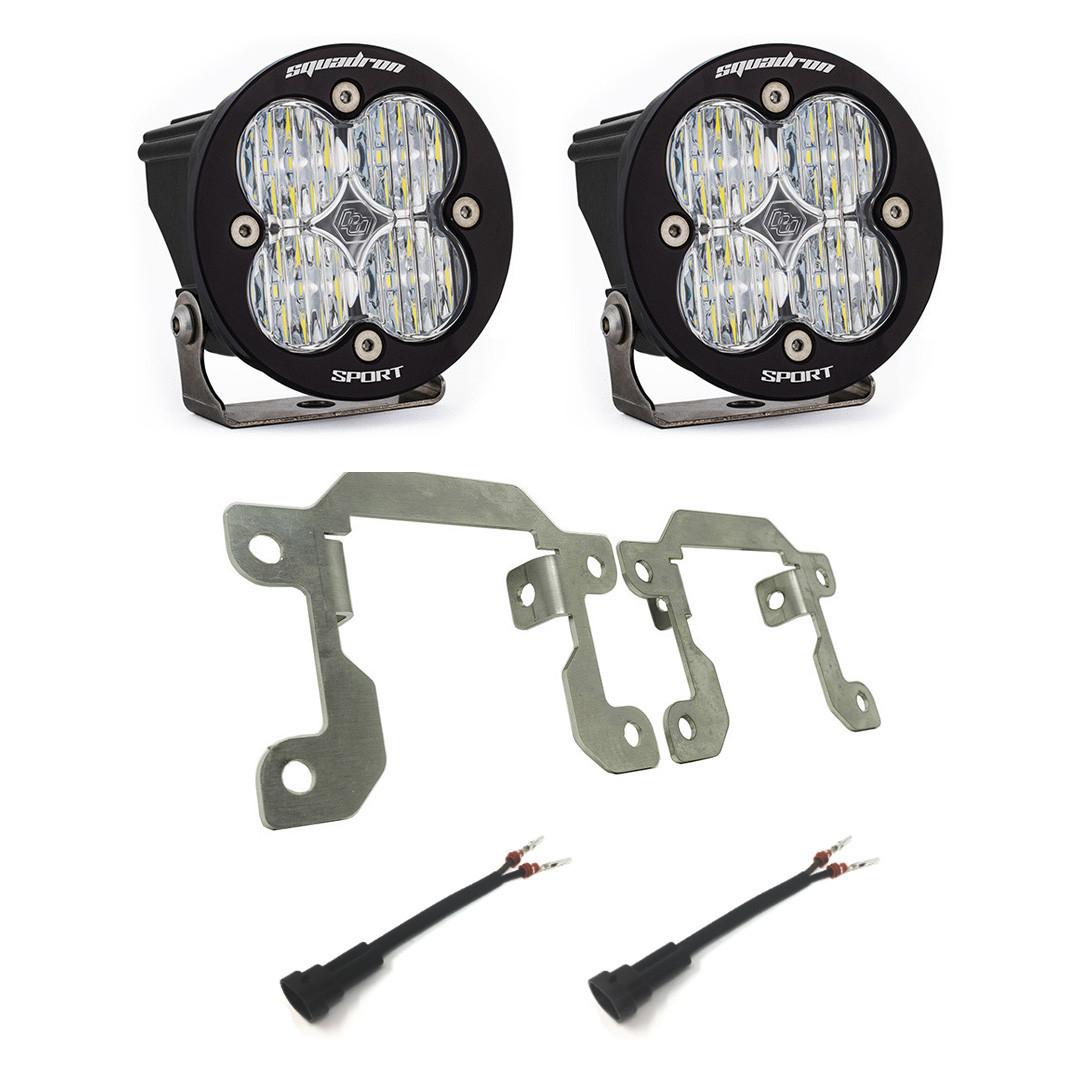

| What's Included | 2 Squadron-R Sport wide cornering lights, 2 mounting brackets, 2 adaptor harnesses, stainless steel mounting hardware |
| 2019–2023 Ford Ranger | |
| 2021–2025 Ford Bronco | Factory plastic front bumper only (standard or Capable); not for steel modular bumper or Bronco Raptor. |
