(888) 723-0041Baja Designs S2 Sport Dual Fog Pocket Light Kit for 2024-2026 Toyota Tacoma, Wide Cornering, Clear
Part #: 448238
Baja Designs
Description
Baja Designs S2 Sport dual fog pocket light kit packs four S2 Sport pods into the fog openings of the 2024-2026 Toyota Tacoma, two on each side. The new Tacoma's factory fogs are more styling than lighting. Two S2 Sport pods per side throw a wide, even sweep of light across both shoulders and into the bends, the pattern you want for a dark switchback, a dusty wash or a foggy morning on the way to the trailhead. Amber lenses earn their keep when the air turns to dust or snow; clear gives the brightest white. Nobody will know from the outside that the stock fogs are gone. Rounding out the truck? The XL Sport A-pillar kit is part 448243 and the S2 Sport reverse kit with plug-and-play wiring is part 448248.
Features
- Wiring is plug-in: each side's adapter meets the Tacoma's factory fog lead, and the existing button controls the set
- Install happens with the front clip pulled forward and off; no drilling, cutting or splicing
- Each side's pair rides on one vehicle-specific bracket that bolts where the factory lamp was
| Amp Draw | 0.9 A per light; 3.6 A with all four on |
| Average Rated Life | 49,930 hours |
| Beam Pattern | Wide cornering |
| Beam Width (ELS Blend Angle) | 72 degrees |
| Bezel | Powder-coated cast aluminum |
| Blendability (ELS) | 7.1 out of 10 |
| Country of Origin | Made in USA |
| Durability | Exceeds MIL-STD-810G military-standard testing |
| Effective Distance (ELS) | 80 ft (24 m) to 10 lux |
| Effective Output (ELS) | 1,112 effective lumens per light |
| Housing | Black powder-coated cast aluminum |
| Impact Resistance | IK10 |
| IP Rating | IP69K; waterproof to 9 ft (2.7 m) and pressure washable |
| Lens | Clear hard-coated polycarbonate |
| Light Dimensions (L x H x D) | 2.93 x 1.76 x 1.68 in (74 x 45 x 43 mm) per light |
| Light Output | 1,581 raw lumens per light; 6,324 raw lumens with all four on |
| Mounting Hardware | Stainless steel |
| Operation | Factory fog light switch |
| Overvoltage Protection | Built-in |
| Package Dimensions | 12.00 x 10.00 x 10.00 in (305 x 254 x 254 mm) |
| Re-Torque | Check all fasteners after the first 100 miles (160 km) |
| Requires | Factory fog lamps (stock connectors) |
| Shipping Weight | 7 lb (3.2 kg) |
| Tools Required | 9/16 in socket (plus a 10 mm socket and 4 mm hex key), ratchet, trim removal tool, Phillips screwdriver |
| uService | Replaceable lenses and optics |
| Warranty | Limited lifetime |
| Watts | 12.4 W per light; 49.7 W with all four on |
| Weight | 0.5 lb (0.2 kg) per light |

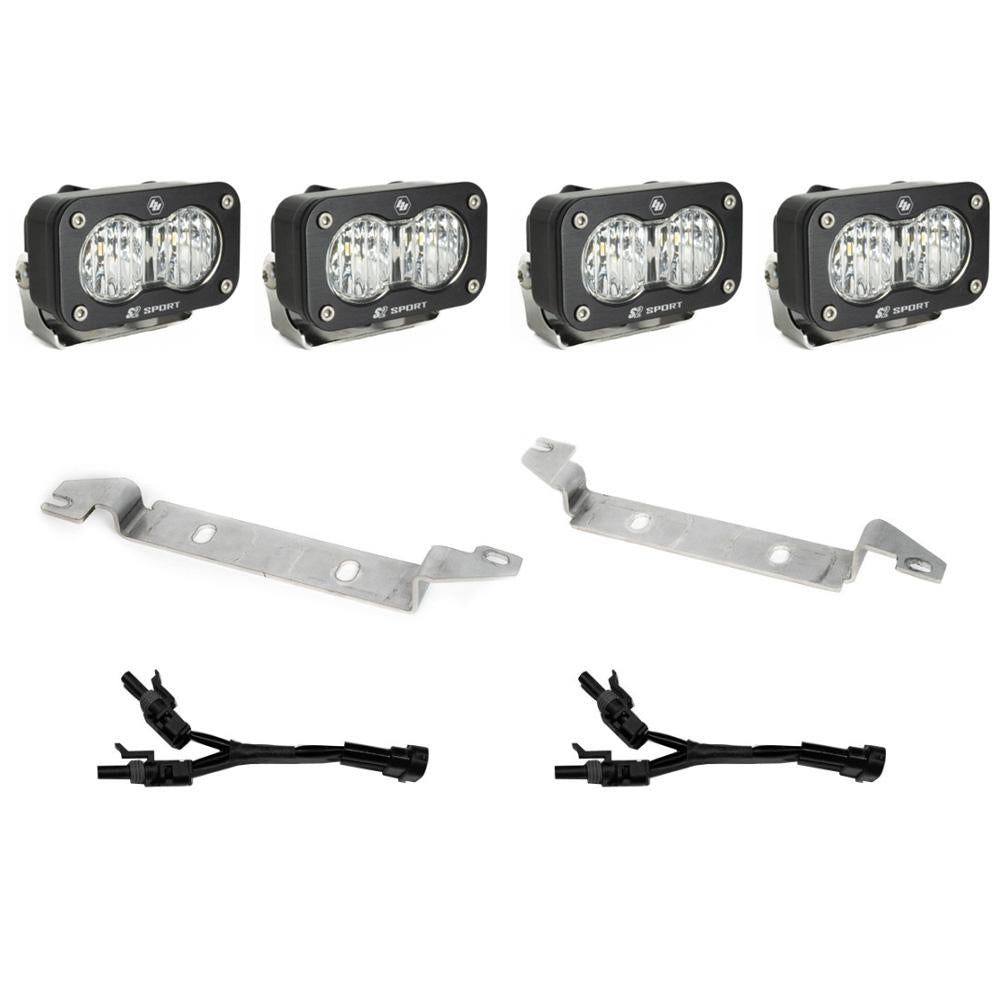

| What's Included | 4 S2 Sport wide cornering lights, 2 mounting brackets, 2 adapter harnesses, mounting hardware |
| 2024–2026 Toyota Tacoma | Submodel: TRD Off-Road |
| 2024–2026 Toyota Tacoma | Submodel: SR5 |
| 2024–2026 Toyota Tacoma | Submodel: TRD PreRunner |
| 2024–2026 Toyota Tacoma | Submodel: TRD Sport |
| 2024–2026 Toyota Tacoma | Submodel: Limited |
