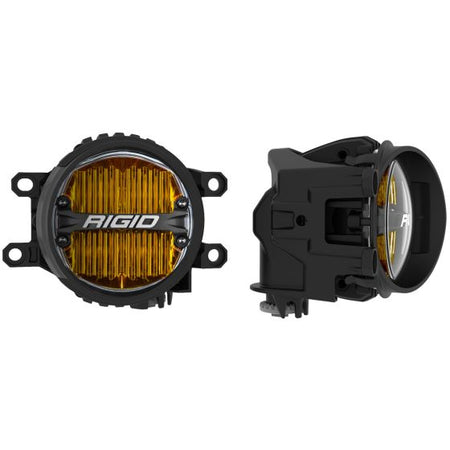

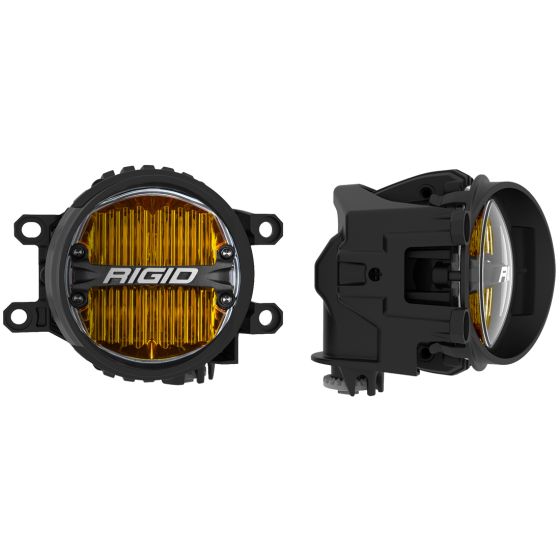

(888) 723-0041RIGID 360-Series SAE LED Fog Light Kit, Selective Yellow, for Toyota 4Runner, Tundra and Tacoma
Part #: 37117
RIGID Industries
Description
The RIGID 360-Series SAE LED fog light kit in selective yellow gives your Toyota 4Runner, Tundra or Tacoma true bad-weather fogs in the factory location. Tacoma owners from 2016-2023, Tundra owners from 2014-2021 and 4Runner owners from 2014-2024 (all trims but the Limited) get a direct swap into the stock fog pockets, with a front end that still looks factory. Yellow is the classic fog color for a reason. In heavy rain, snow, dust or real fog, white light reflects off every particle in the air and comes straight back as glare. Selective yellow cuts through with far less bounce-back, so the road edge and lane lines stay readable when the weather turns ugly. It also gives the truck that rally and overland look, and the beam meets the SAE fog lamp standard, so it is legal to run on the street. Want crisp white instead? The same kit comes in white as RIGID 37116.
Features
- The H11 plug kit mates with the factory fog connector, so the original dash fog switch keeps control of the lights
- Goes in from behind the inner wheel liner; nothing gets cut and the bumper stays on the truck
- Toyota-specific carriers and round bezels seat in the stock fog openings like they came from the factory
- Each carrier has its own adjustment screw for setting beam height after installation
- Each housing breathes through a pressure-equalizing vent, so it won't fog up from the inside
| Amp Draw at 14V DC | 2.86 A per light |
| Beam Angle, Horizontal | 68.0° |
| Beam Angle, Vertical | 8.6° |
| Beam Distance at 0.25 Lux | 641 ft (195.5 m) |
| Beam Distance at 1 Lux | 321 ft (97.8 m) |
| Beam Pattern | SAE fog |
| Compliance | SAE J583 fog lamp |
| Dimensions | W x D: 4.00 x 3.25 in (102 x 83 mm), each light |
| Finish | UV-resistant black powder coat |
| Housing | Injection-molded polycarbonate |
| Illuminance at 32.8 ft (10 m) | 96 lux |
| Input Voltage | 9-36V DC |
| Install Torque | Pivot adapter screws: 8 in-lb (0.9 N·m) |
| IP Rating | IP68 |
| LED Lifespan | 50,000 hours |
| LEDs | 4 per light |
| Light Color | Selective yellow |
| Mount Type | Factory fog light location (bumper) |
| Peak Beam Intensity | 9,559 cd |
| Quantity | 2 lights (pair) |
| Raw Lumens | 3,445 lm per light |
| Vehicle | 2014-2024 Toyota 4Runner (excludes Limited), 2014-2021 Toyota Tundra, 2016-2023 Toyota Tacoma |
| Warranty | Limited Lifetime |
| Watts | 40 W per light |
| Weight | 1.2 lb (0.5 kg) per light |
| What's Included | 2 RIGID 360-Series PRO SAE selective yellow fog lights, 2 Toyota fog carriers, 2 round light bezels, 4 pivot adapters, 2 adjustment screws, H11 plug kit, mounting hardware |
| 2014–2021 Toyota Tundra | Position: Front |
| 2014–2024 Toyota 4Runner | Position: Front · Excludes Limited trim |
| 2016–2023 Toyota Tacoma | Position: Front |
