(888) 723-0041Diode Dynamics Elite LED Headlights for 2021-2023 Ford F-150 with Projector Headlamps (Pair)
Part #: DD5178
Diode Dynamics
Description

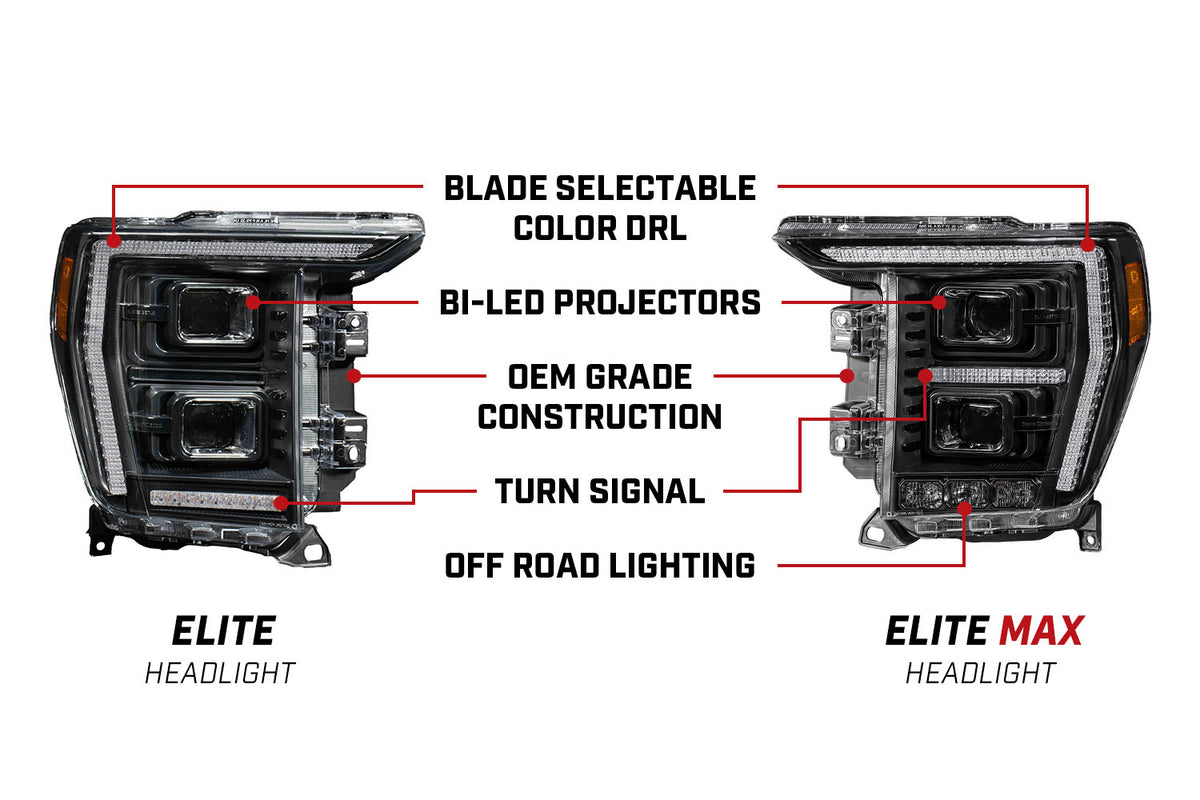

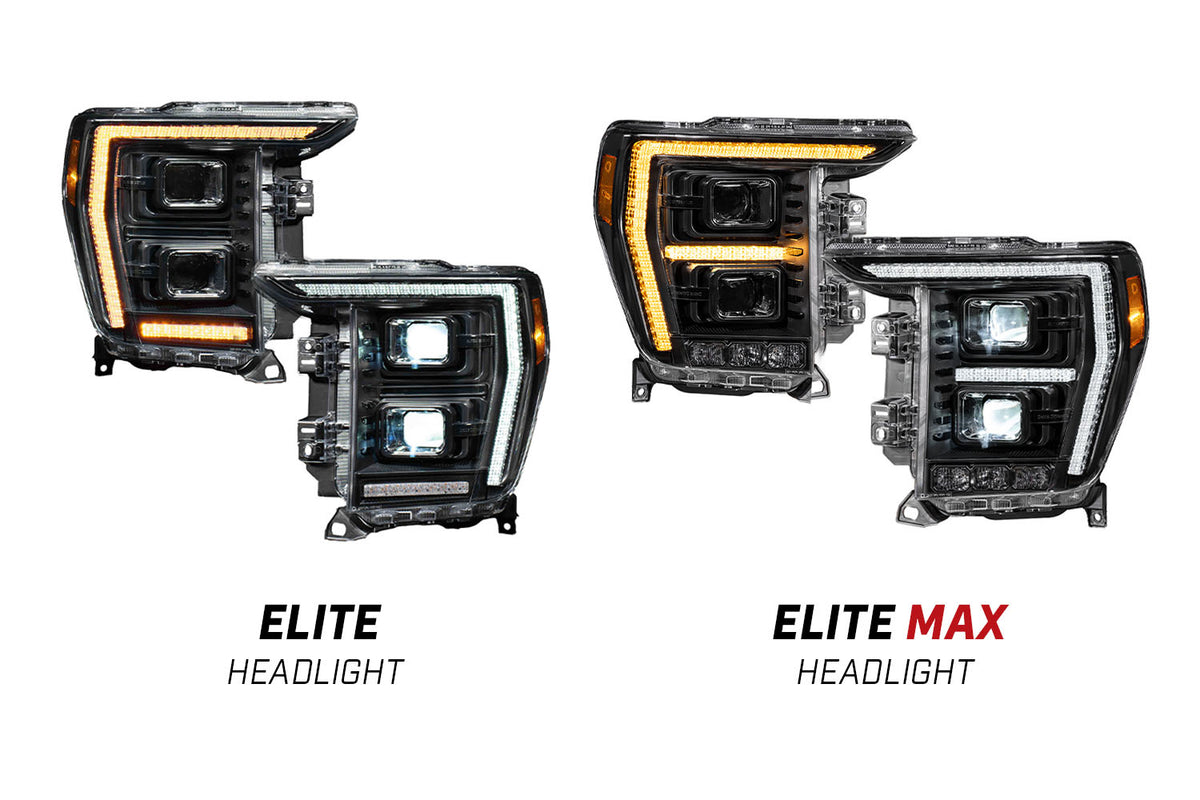

Diode Dynamics Elite LED Headlights for 2021-2023 Ford F-150 Projector Trucks give upper trims more reach and a fresher face for less than the Max. A Lariat with the 502A package or a Platinum already wears projectors from Ford, yet the Elite still lands more light down the center of the lane than either stock unit, with a crisp horizon line that respects oncoming drivers. It carries the identical optic found in the Max edition and skips only the auxiliary trail lamps and show mode, so it suits trucks that live on the street. A brighter daytime bar, flowing turn indicators and a greeting light show come standard. Reflector-lamp trucks take DD5168, while DD5177 adds the Max extras for these trucks.
Features
- White or amber daytime color, plus mode changes, are handled from the dash using buttons the truck already has
- Sealed OEM-size connectors click straight into the Ford harness, with nothing to program afterward
| Amp Draw | Low beam 2.3 A, high beam 3.4 A (at 12.8 V) |
| Beam Pattern | Low beam with sharp cutoff, high beam |
| Color Temperature | 6000K (white) |
| Compliance | DOT compliant (per Diode); SAE J575 durability test |
| Connector | OEM-size plug and play |
| Construction | Aluminum PCB, UV-coated polycarbonate lens, aluminum casting |
| Cooling | Passive heatsink |
| Country of Origin | USA (engineered and assembled) |
| Driver | Internal, linear regulated, constant current |
| Functions | Bi-LED low and high beam, selectable blade DRL, sequential turn signal, welcome sequence |
| Illuminance | Low beam 891 lux, high beam 1,062 lux at 32.8 ft (10 m) |

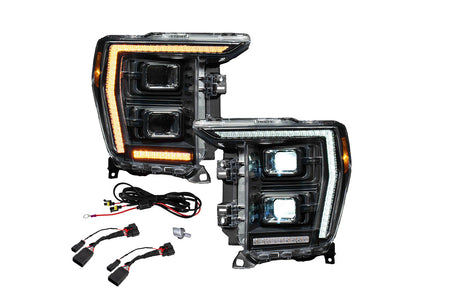

| In the Box | 2 Ford F-150 Elite headlamps, 2 plug-and-play harnesses, 2 Molex sealing plugs, 1 adjuster tool, installation guide |
| Input Voltage | 9-16 V DC |
| Intensity | Low beam 89,100 cd, high beam 106,200 cd peak |
| IP Rating | IP67 weatherproof |
| LED Emitter | Lumileds Luxeon Z ES, OE-quality LED projector, 3030 bicolor |
| Measured Lumens | Low beam 665 lm, high beam 1,210 lm |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Polarity | Polarity specific |
| Product Weight | 29 lb (13.15 kg) |
| Shipping Dimensions | 36 x 29 x 22 in (914 x 737 x 559 mm) |
| Shipping Weight | 38 lb (17.24 kg) |
| Unit Weight | 14.5 lb (6.58 kg) each |
| Warranty | 8-Year Limited |
| Watts | Low beam 30 W, high beam 43 W |
| 2021–2023 Ford F-150 |
| Product Condition | NEW |
