(888) 723-00418.7″ ADV Light Cannon (Single)
Part #: CGA-CPMH14M | CGA-CPMH14MKIT | CGA-CPMH14MSY | CGA-CPMH14MSYKIT
Vision X Lighting
Description

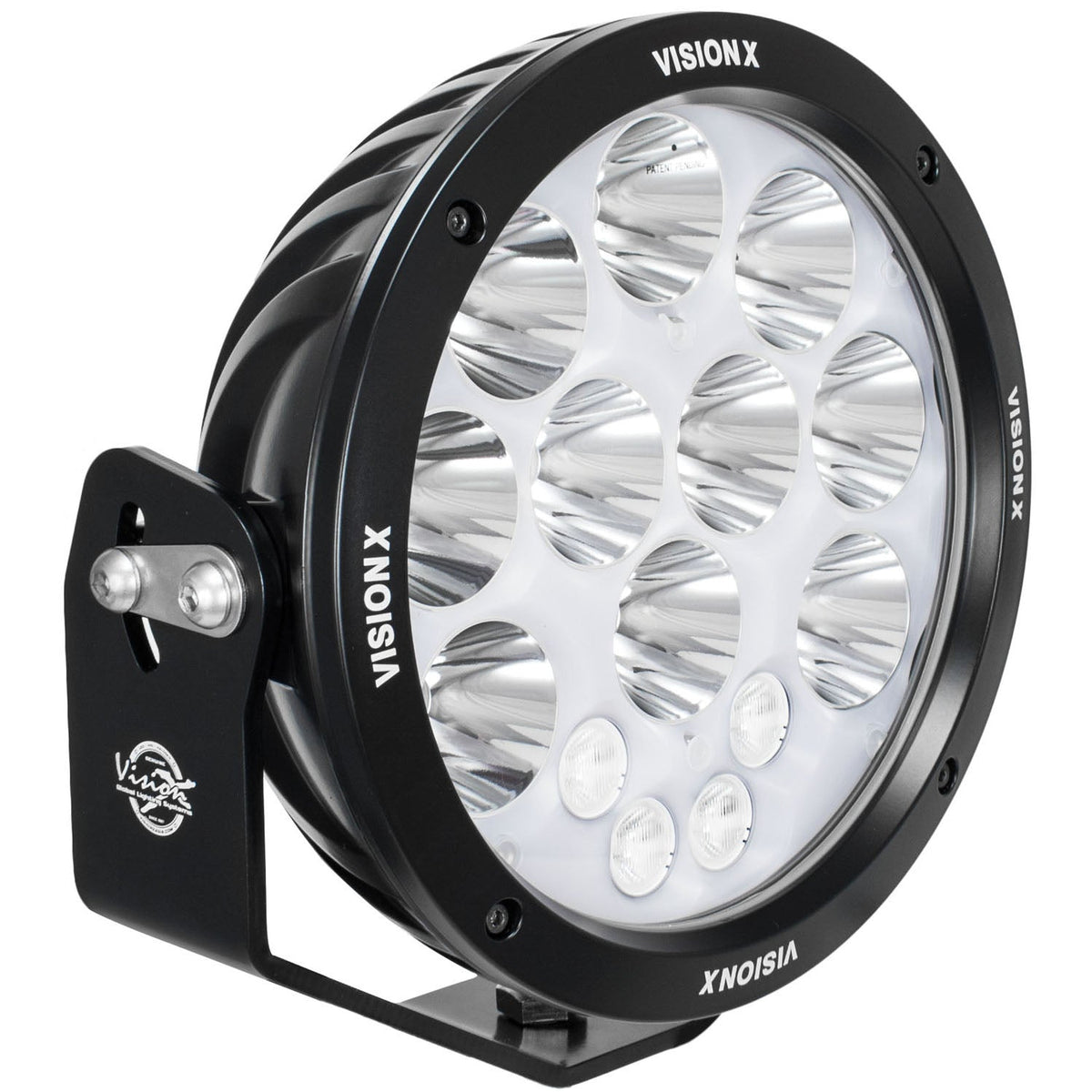

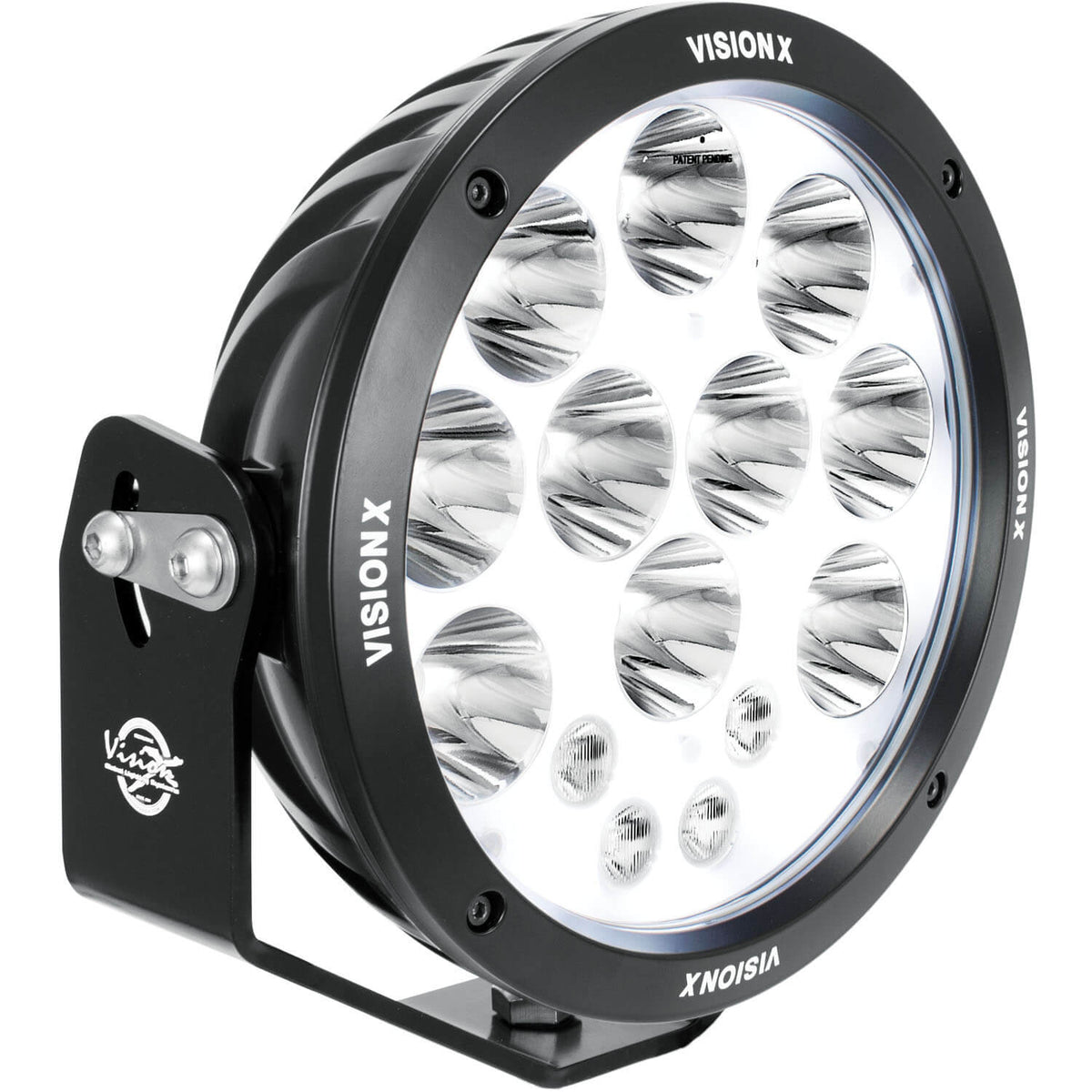

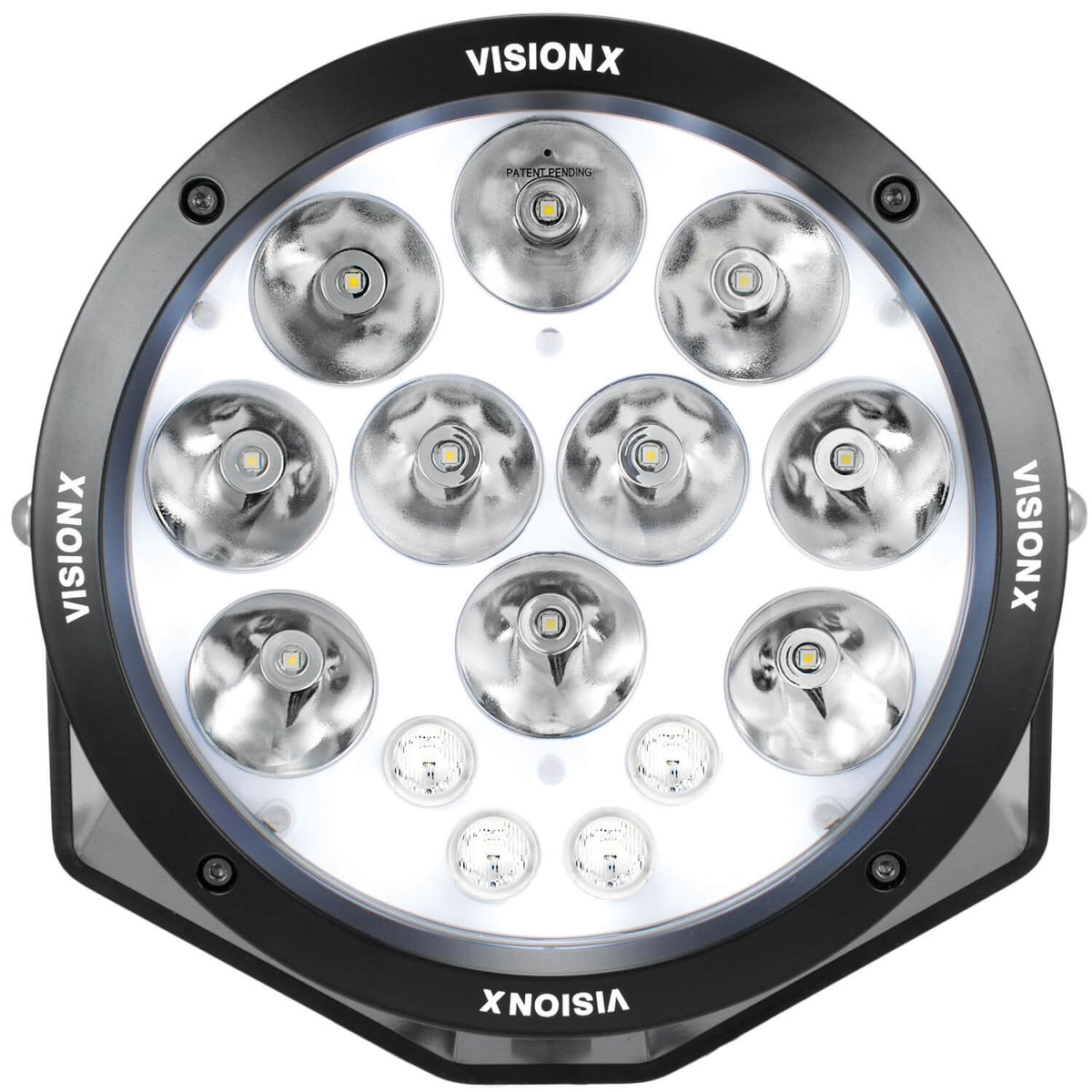

The Vision X ADV Light Cannon Series combines the superior distance of Iris Reflector technology with the spread of Elliptical optics. The ADV Light Cannon series shines a powerful combo driving beam that is optimal for all terrains. The large Iris Reflectors blast a long-distance spot beam while the smaller elliptical optics shine the light directly in front of your ride. Coupled with a smooth back-lit halo and a robust 4-bolt steel trunnion bracket the ADV Light Cannon Series was engineered to outshine and outlast the competition.

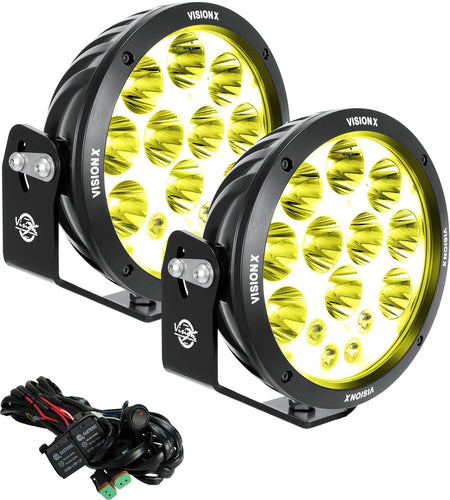

Driving through harsh weather conditions? No problem. The new Selective Yellow lens option allows you to cut through dust, rain, snow, and fog to maintain maximum visibility.

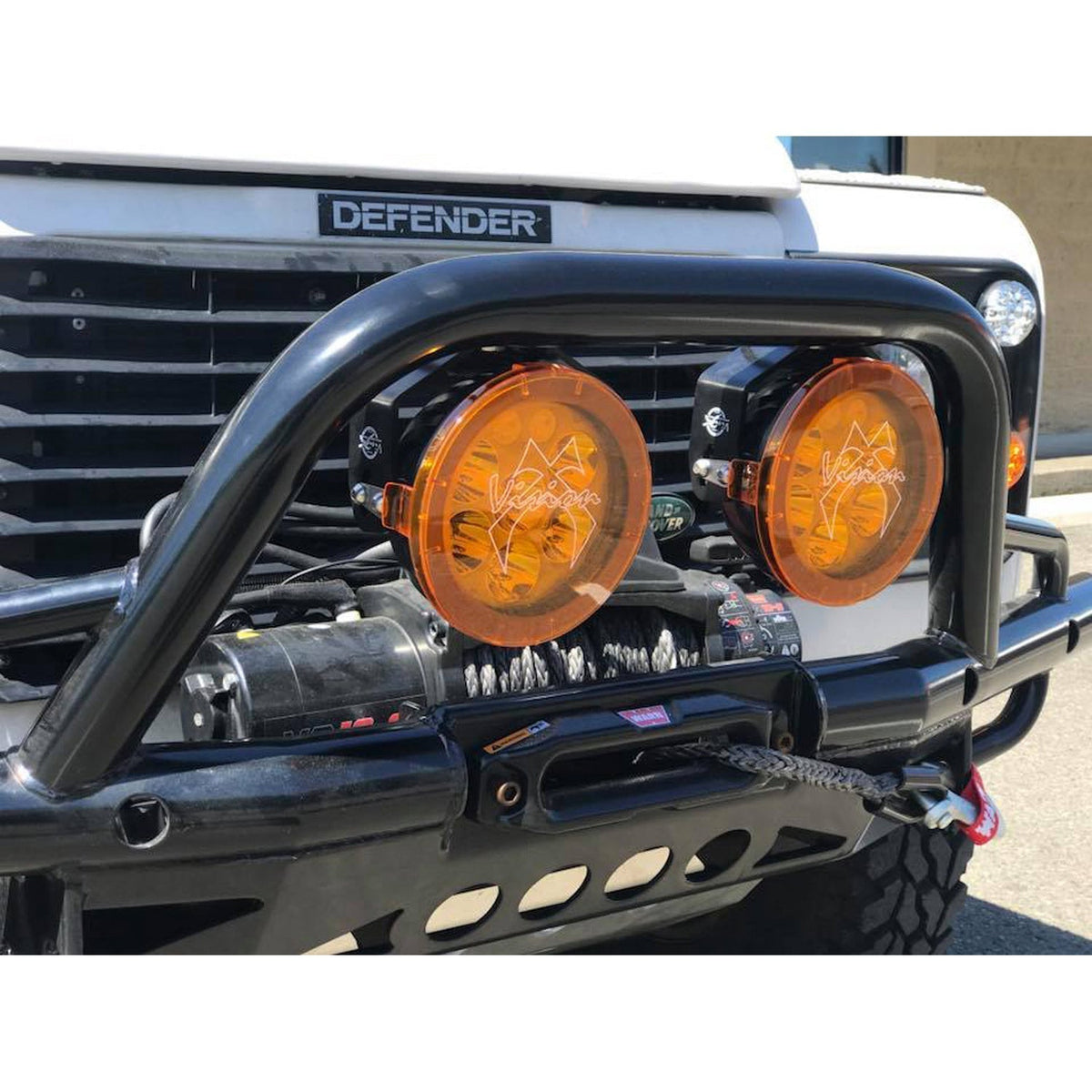

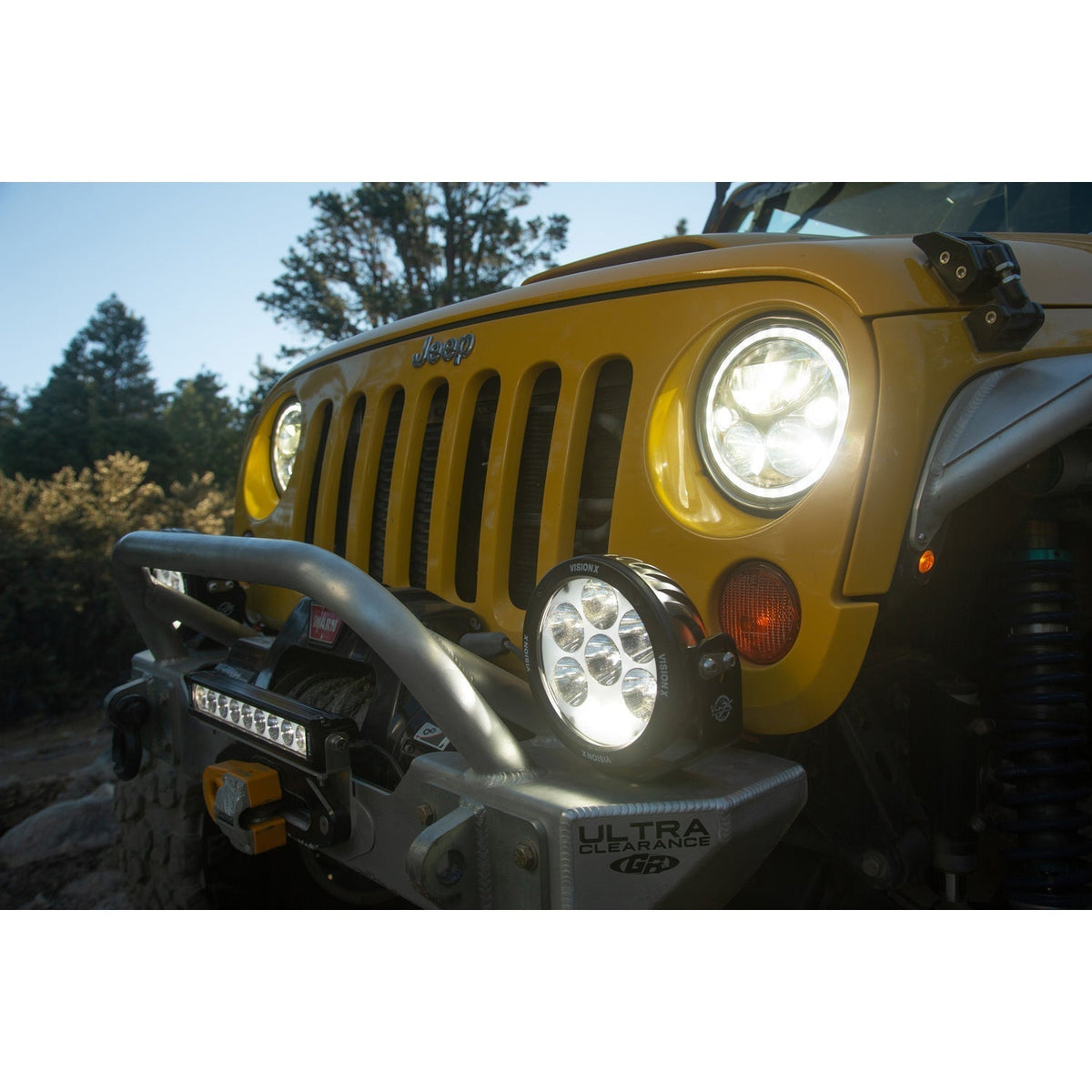

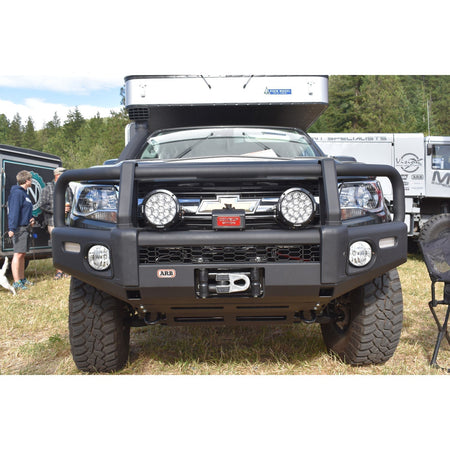

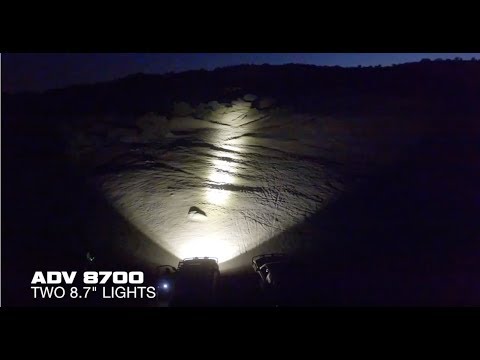

ADV Light Cannon In Action

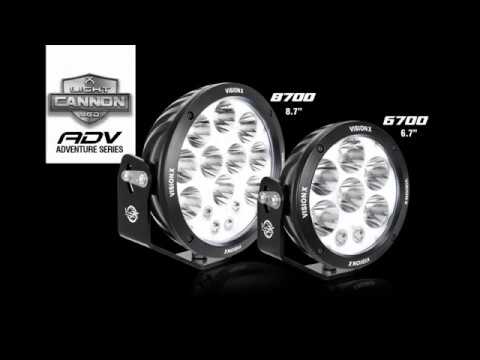

ADV Light Cannon Comparison Video
Features
- Large Iris Reflectors paired with elliptical optics in one light
- SAE-compliant backlit halo

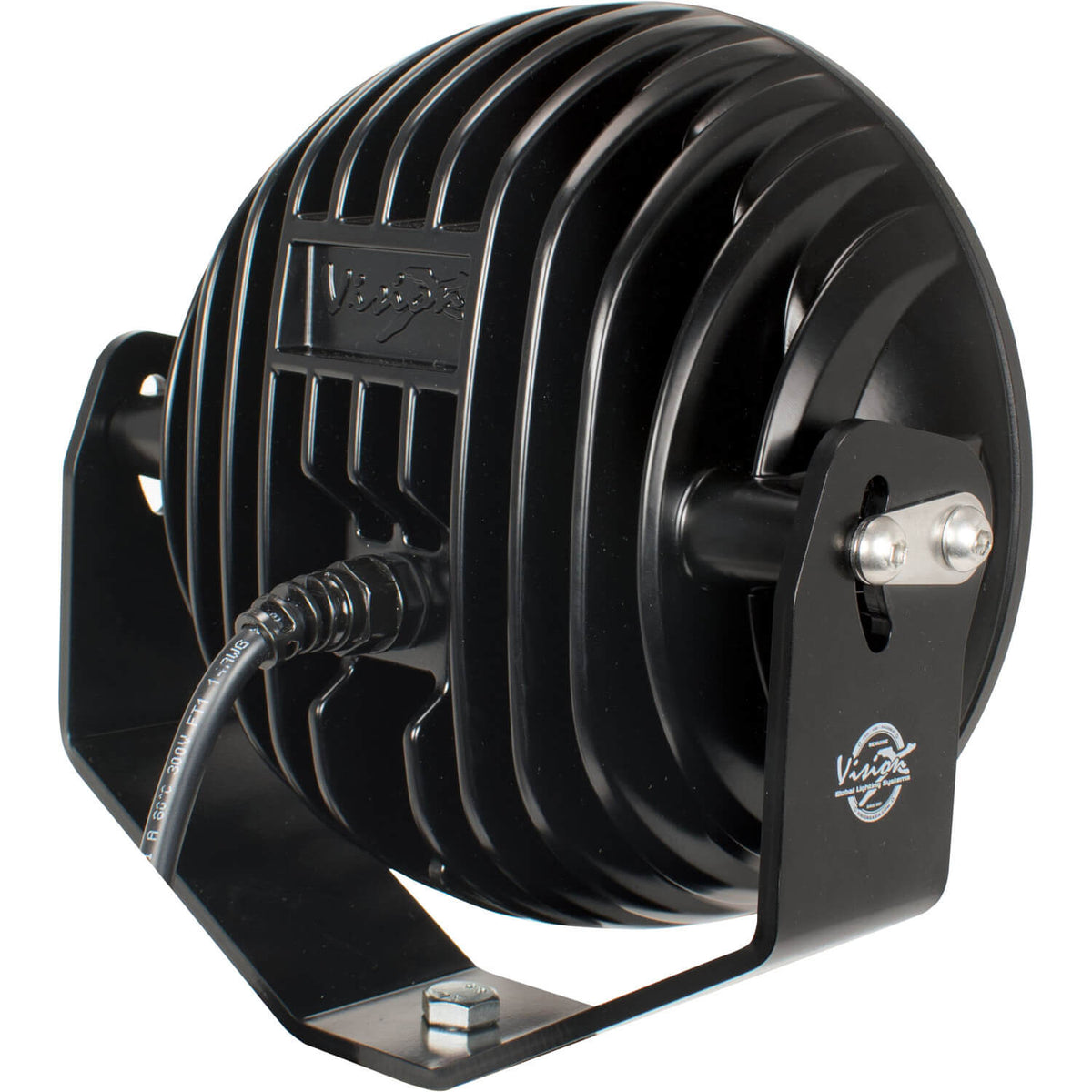

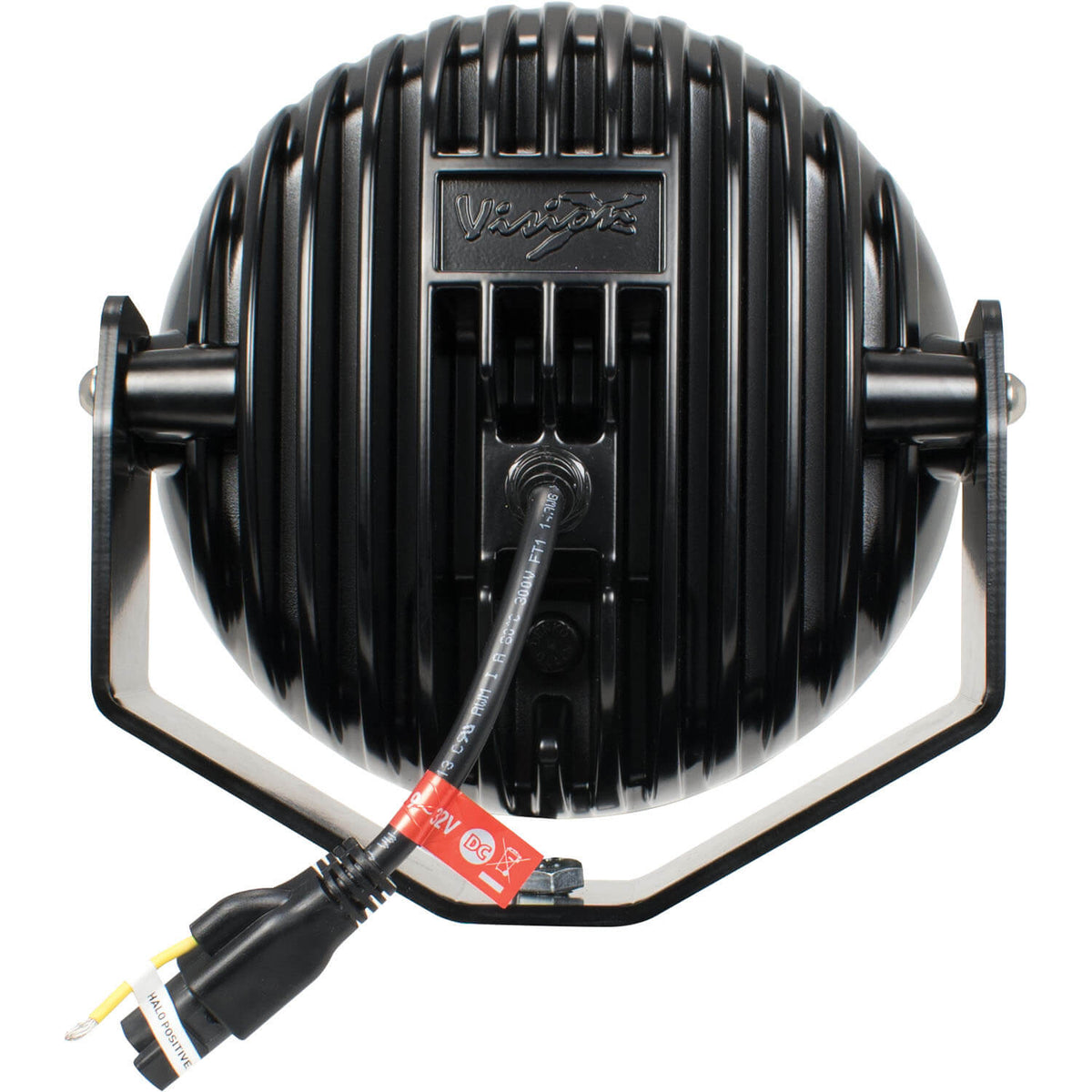

- Robust 4-bolt steel trunnion bracket
- Snap-on color and beam-changing covers available

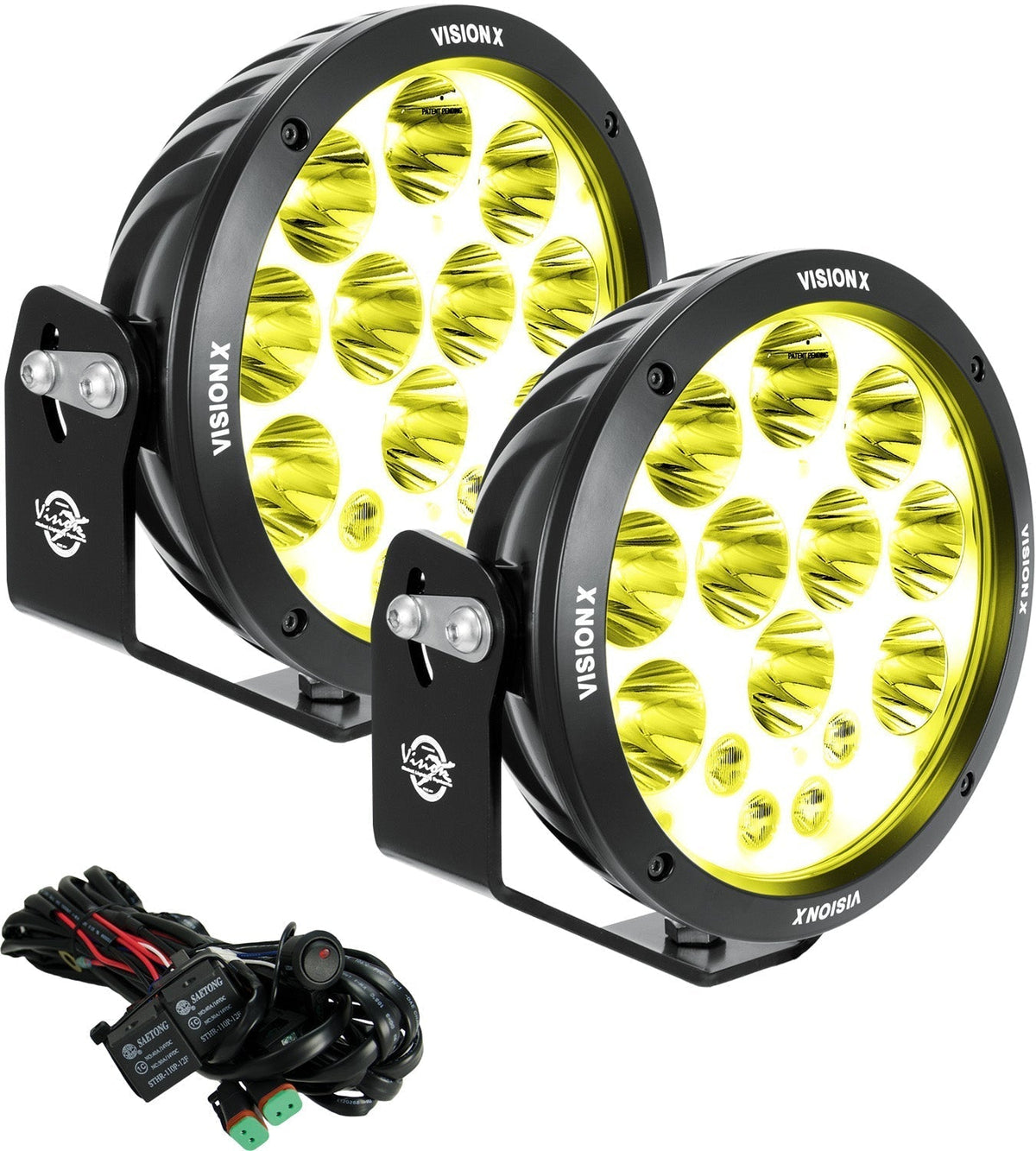

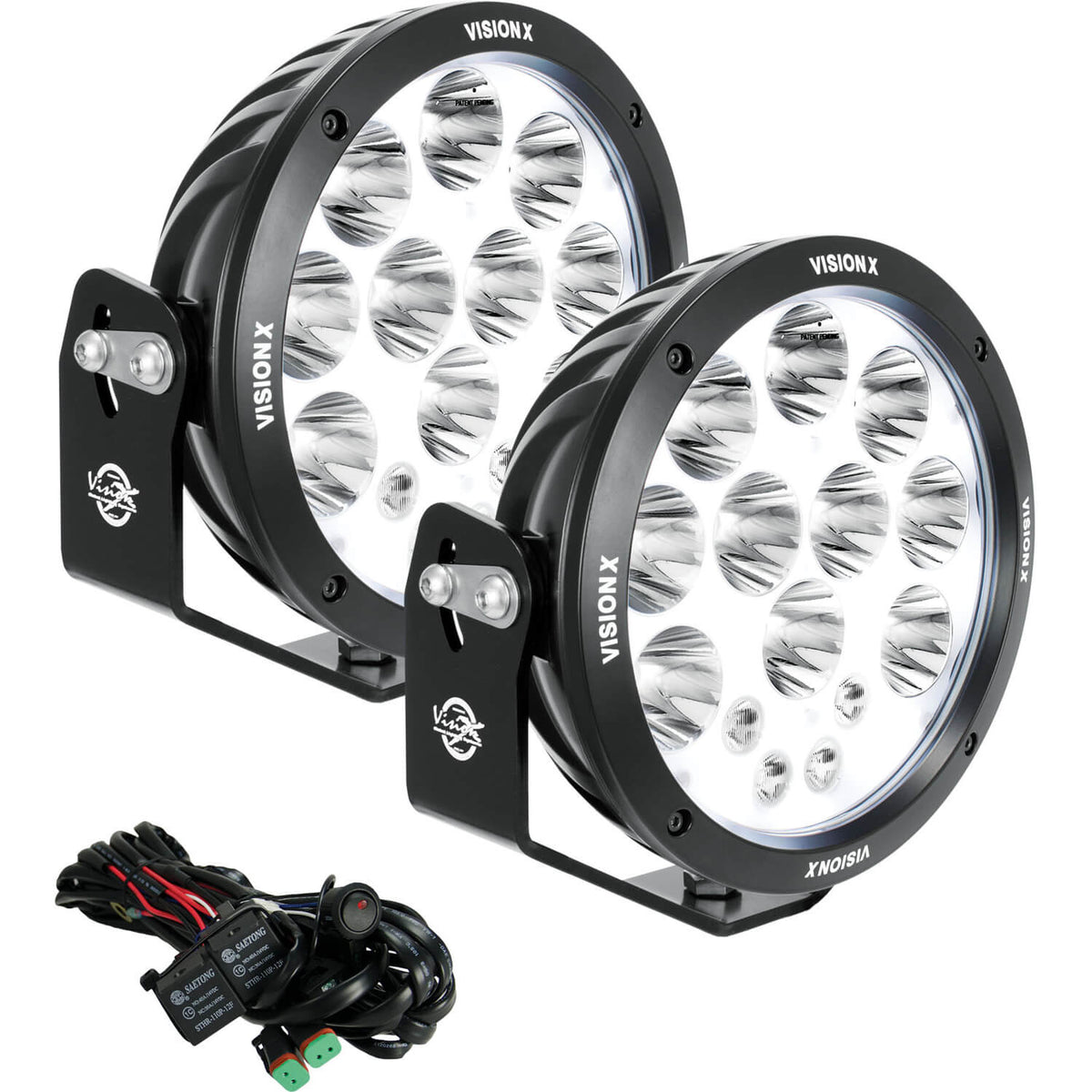

- Plug-and-play harness included with the pair kit

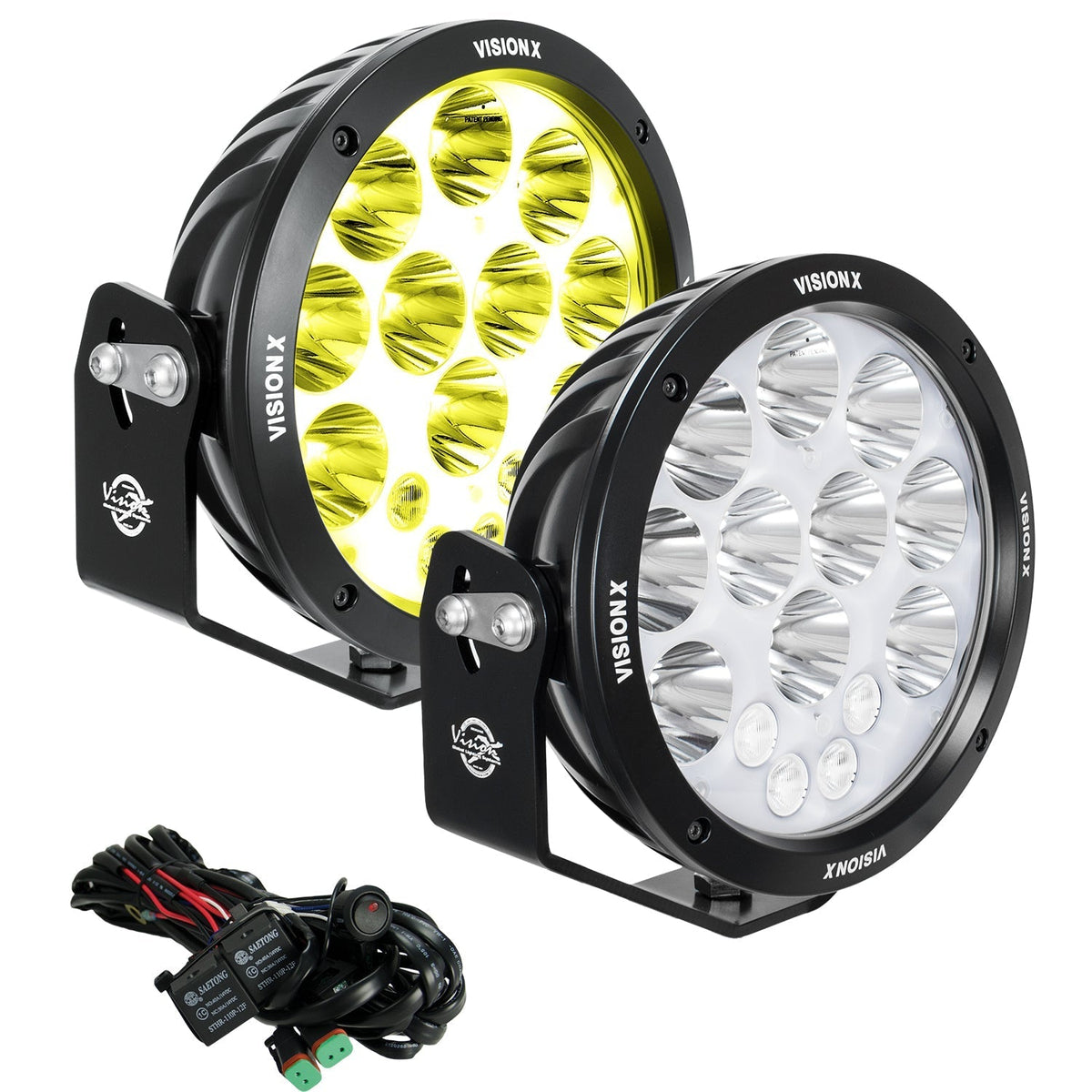

- Clear or Selective Yellow lens option
| Amp Draw | 12A |
| Beam Pattern | Driving Combo |
| Effective Lumens | 10,486 lm |
| Housing Color | Black |
| Input Voltage | 9-32V DC |
| IP Rating | IP68/69K |
| Operating Temperature | -40°C to +85°C |

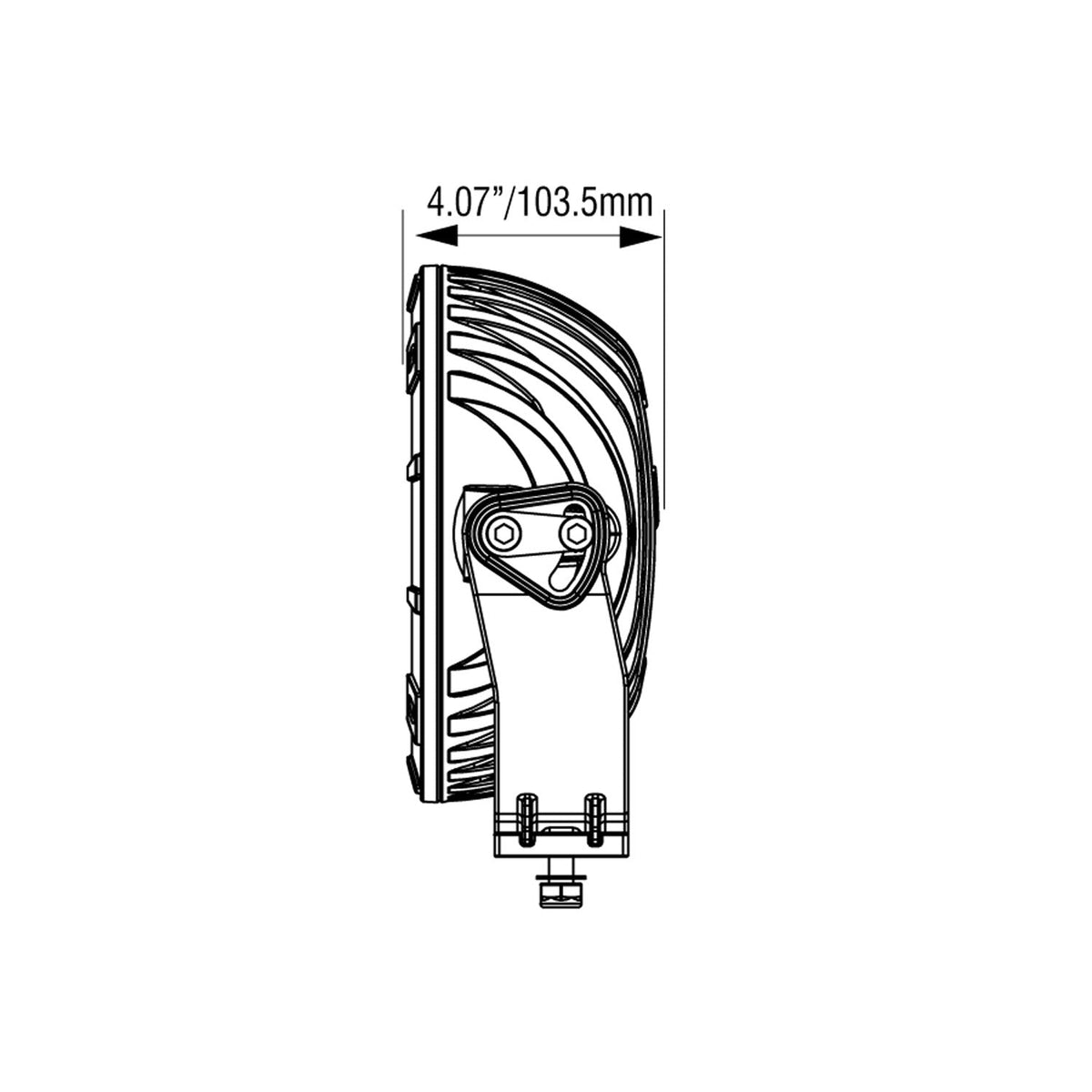

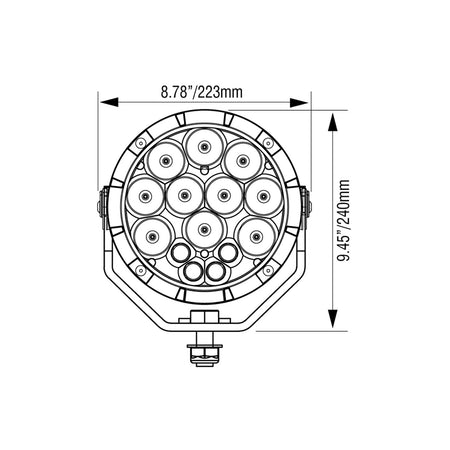

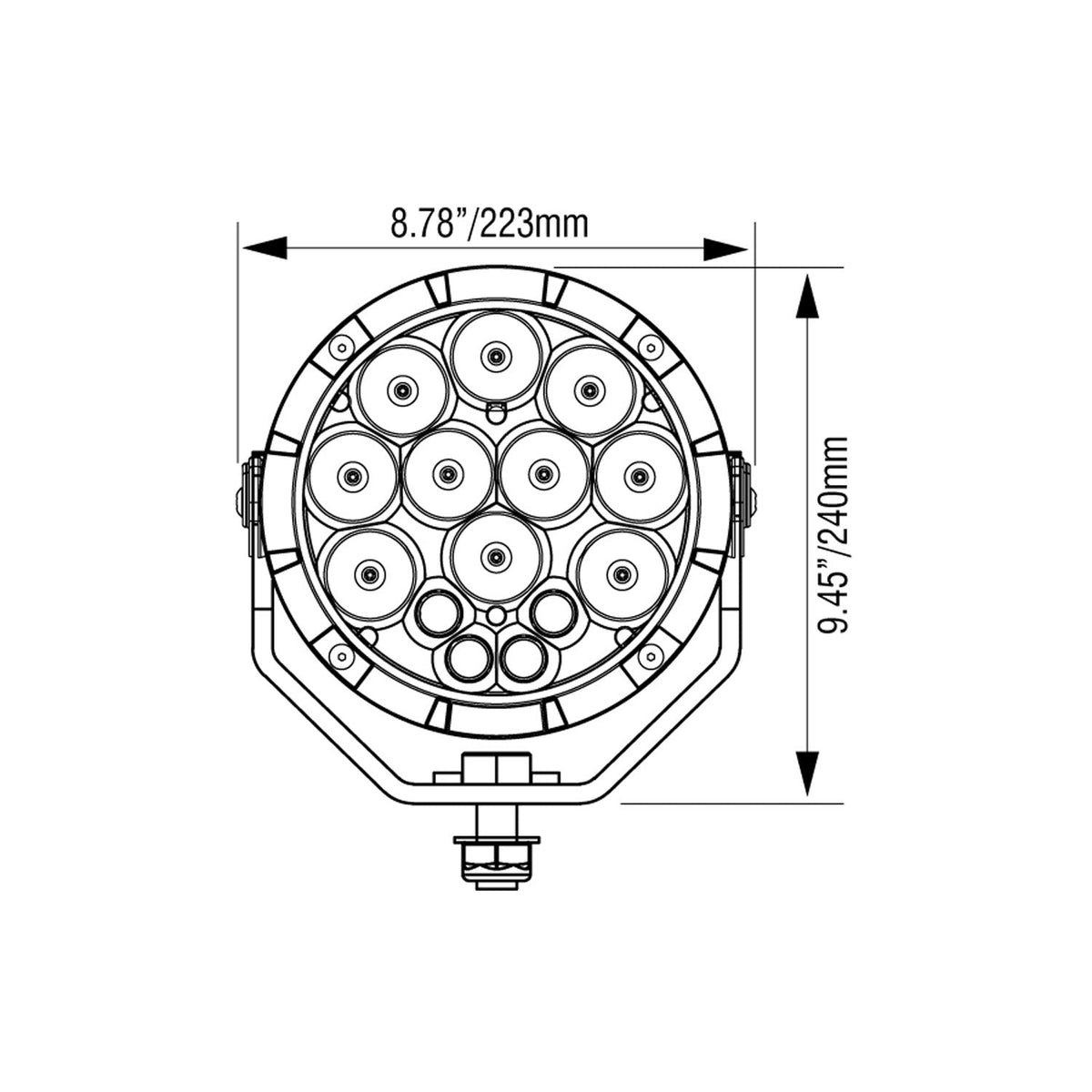

| Product Dimensions | 8.87" x 8.95" x 9.45" |
| Raw Lumens | 14,980 lm |
| Recommended Fuse | 15A |
| Vibration Rating | 21.2 G-rms |
| Warranty | Limited Lifetime |
| Watts | 120W |
| Amp Draw | 20A |
| Beam Pattern | Driving Combo |
| Effective Lumens | 20,972 lm |
| Housing Color | Black |
| Input Voltage | 9-32V DC |
| IP Rating | IP68/69K |
| Operating Temperature | -40°C to +85°C |
| Product Dimensions | 8.87" x 8.95" x 9.45" |
| Raw Lumens | 29,960 lm |
| Recommended Fuse | 25A |
| Vibration Rating | 21.2 G-rms |
| Warranty | Limited Lifetime |
| Watts | 240W |
| Amp Draw | 12A |
| Beam Pattern | Driving Combo |
| Effective Lumens | 10,486 lm |
| Housing Color | Black |
| Input Voltage | 9-32V DC |
| IP Rating | IP68/69K |
| Operating Temperature | -40°C to +85°C |
| Product Dimensions | 8.87" x 8.95" x 9.45" |
| Raw Lumens | 14,980 lm |
| Recommended Fuse | 15A |
| Vibration Rating | 21.2 G-rms |
| Warranty | Limited Lifetime |
| Watts | 120W |
| Amp Draw | 20A |
| Beam Pattern | Driving Combo |
| Effective Lumens | 20,972 lm |
| Housing Color | Black |
| Input Voltage | 9-32V DC |
| IP Rating | IP68/69K |
| Operating Temperature | -40°C to +85°C |
| Product Dimensions | 8.87" x 8.95" x 9.45" |
| Raw Lumens | 29,960 lm |
| Recommended Fuse | 25A |
| Vibration Rating | 21.2 G-rms |
