(888) 723-0041Diode Dynamics SL2 9006/9012 LED Bulbs, Cool White (Pair)
Part #: DD0465P
Diode Dynamics
Description

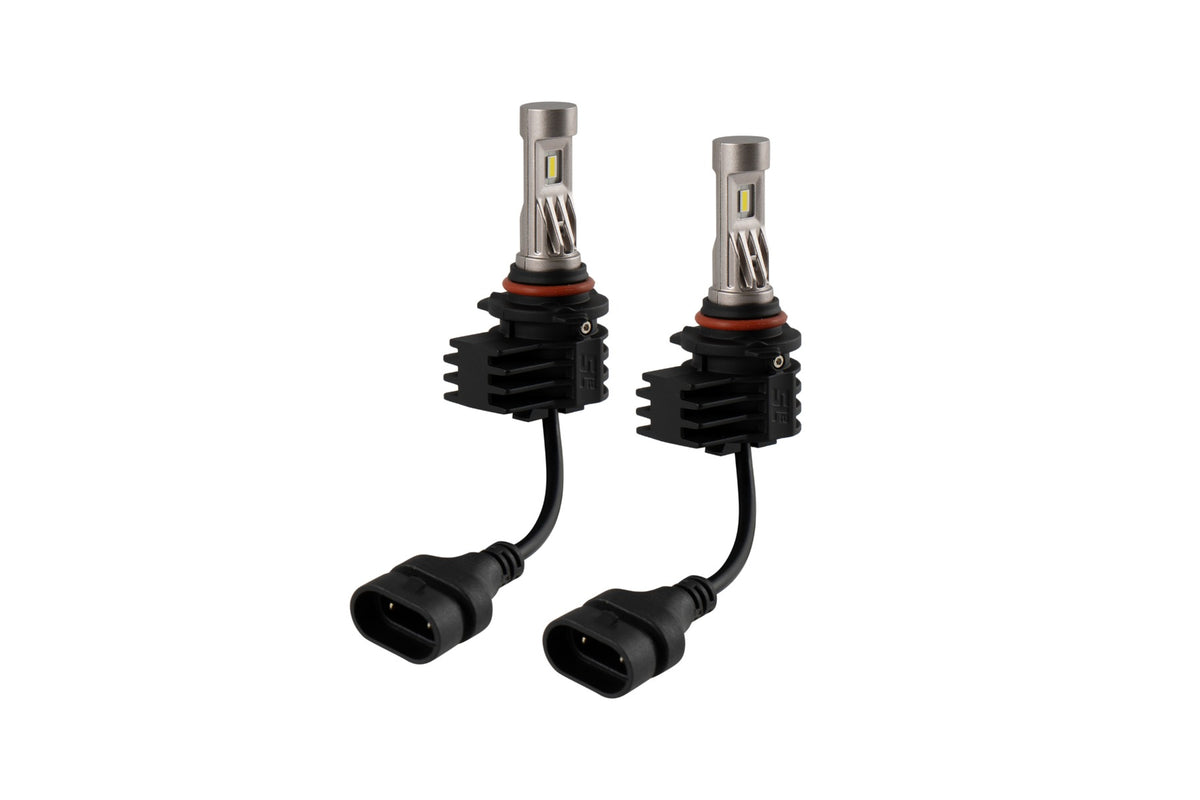

Diode Dynamics SL2 9006/9012 LED Bulbs replace dim, yellowed halogens with crisp white light that stays focused where your original beam was aimed. Plenty of LED bulbs advertise huge brightness and then scatter it, blinding oncoming drivers while lighting less road. The SL2 puts its light source in the same spot as the halogen filament it replaces, so your housing keeps its hotspot and cutoff, and the gain lands downrange instead of in the glare. There's no fan to whine, clog with road grime or quit on a washboard trail. Heat moves out through the bulb's metal body instead, so there is one less moving part waiting to fail. Prefer a warmer beam that cuts through rain and dust? The selective yellow version is DD0466P. Chasing more output from the same socket? Step up to the SL2 Pro, DD0482P. Lots of trucks pair a 9006 low beam with a 9005 high beam; the matching SL2 set for that socket is DD0463P.
Features
- Common size for halogen low beams on older full-size trucks and SUVs, and for factory fog lights on many cars, crossovers and Ram pickups
- Factory connector plugs straight onto the bulb, so the swap takes minutes with hand tools and leaves the wiring untouched
| Amp Draw | 1.1 A per bulb (at 12.8 V) |
| Bulb Size | 9006 / 9012 |
| Collar | Rotatable; clock the LEDs to 3 and 9 o'clock for a horizontal beam |
| Color Temperature | 6000K (cool white) |
| Compliance | SAE J575 durability test |
| Connector | OEM-size, plug and play |
| Country of Origin | China |
| Driver | Internal, constant current, transient protection |

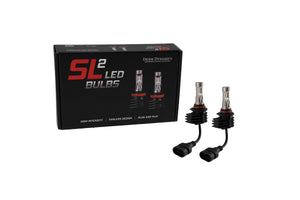

| In the Box | 2 x SL2 LED bulbs (9006/9012) |
| Input Voltage | 9-30 V DC |
| LED Emitter | Multi-die automotive emitters |
| Materials | Copper PCB, die-cast A360 aluminum housing |
| Measured Lumens | 1,400 lm per bulb |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Polarity | Polarity specific; if a bulb stays dark, flip the connector 180° and reconnect |
| Shipping Weight | 0.65 lb (0.29 kg) |
| Warranty | Limited Lifetime |
| Watts | 14 W per bulb |
| 1997–1998 Ford F-150 | |
| 1998–2000 Ford Ranger | |
| 1998–2007 Toyota Land Cruiser | Position: Low Beam · Low beam: factory halogen headlights only, not HID / xenon. |
| 1998–2011 Toyota Land Cruiser | |
| 2000–2006 Toyota Tundra | |
| 2001–2007 Toyota Sequoia | |
| 2003–2005 Toyota 4Runner | Position: Low Beam · Low beam: factory halogen headlights only, not HID / xenon. |
| 2003–2009 Toyota 4Runner |
| Product Condition | NEW |
