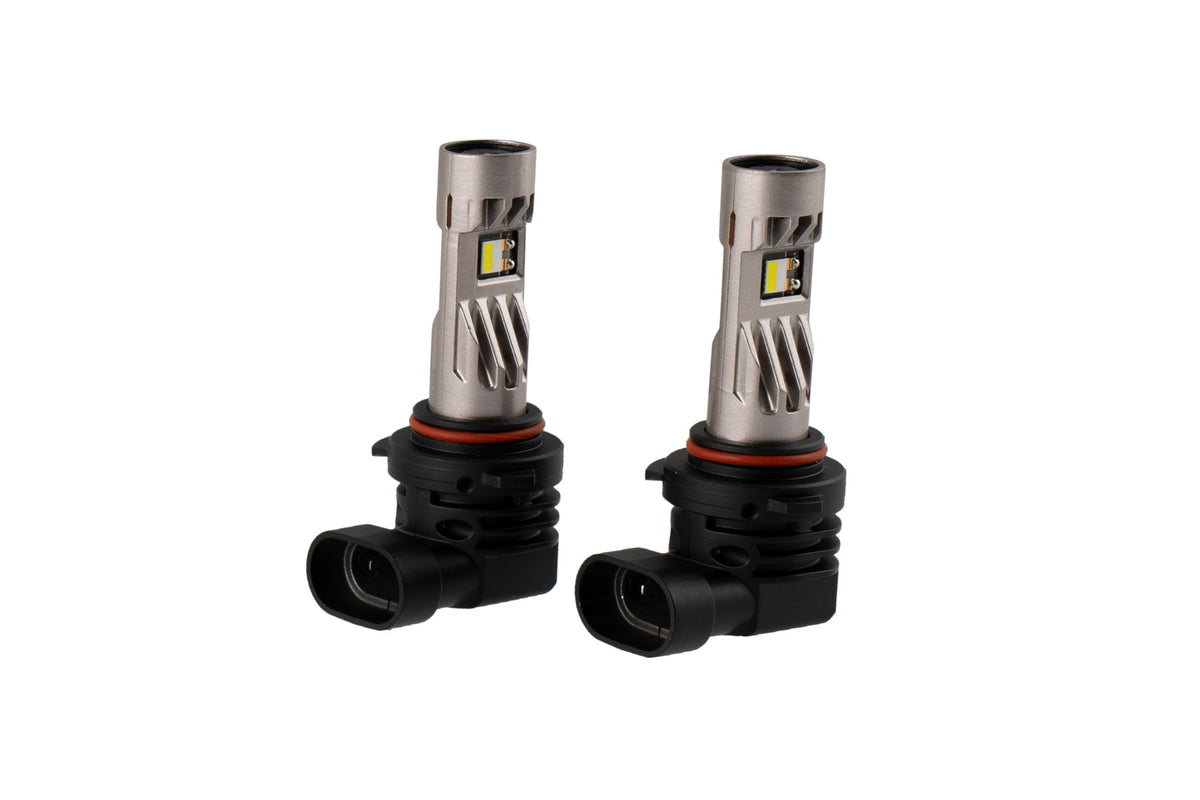

(888) 723-0041Diode Dynamics SL2 Pro 9006/9012 LED Bulbs, Cool White (Pair)
Part #: DD0482P
Diode Dynamics
Description
Diode Dynamics SL2 Pro 9006/9012 LED Bulbs pull serious output from a factory-size bulb and keep the smooth, focused beam your housing was built for. Many high-output LED bulbs chase brightness with tiny, tightly packed chips, and the payoff is streaks, dark bands and a harsh edge on the pavement. Diode Dynamics sized the SL2 Pro's emitters for an even spread, so the added light fills the lane and the shoulders without that patchy look. Its cooling works enclosed within the bulb body, out of reach of the water, dust and grit that finish off exposed designs, so it can run hard night after night on a work truck or a trail rig. Want the fanless version for less? Look at the SL2, DD0465P. Pairing new low beams with a 9005 high beam? DD0481P is the matching SL2 Pro set.
Features

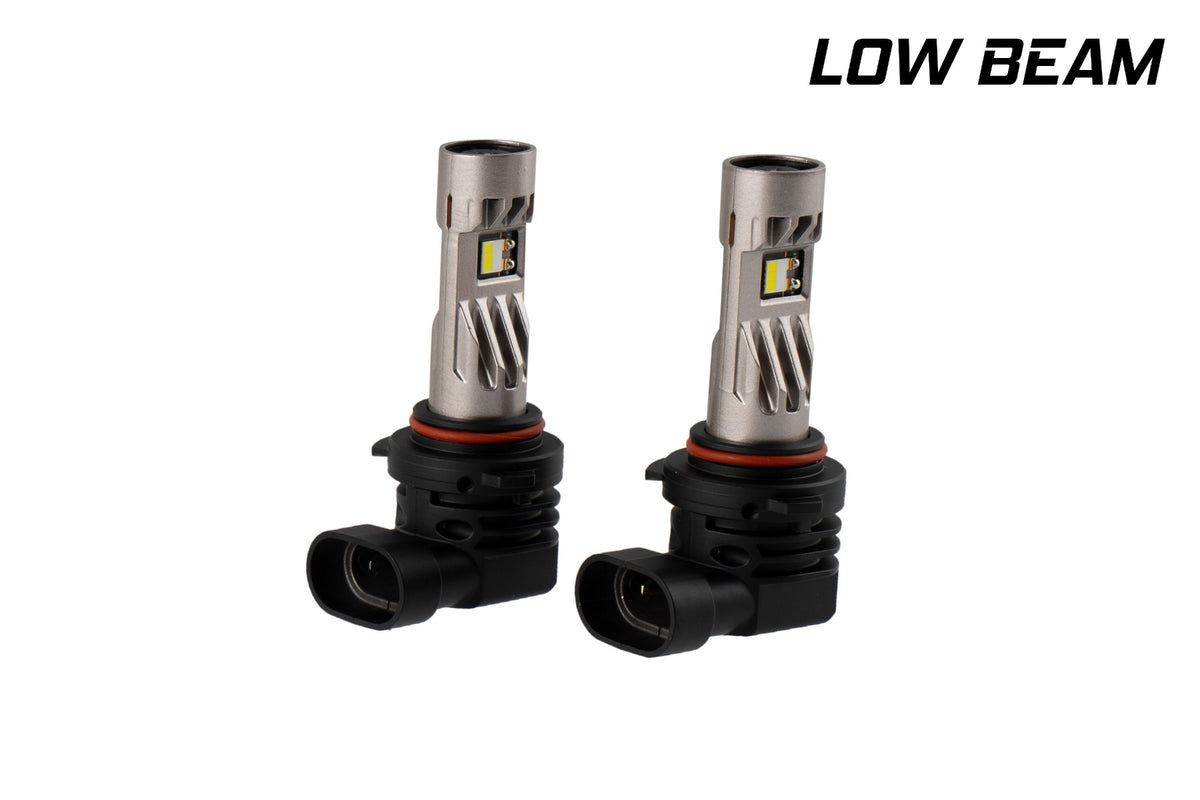

- Headlight low beam upgrade for GM, Ford and Toyota trucks and SUVs from the late nineties and two-thousands, plus Ram fog lights
| Amp Draw | 1.7 A per bulb (at 12.8 V) |
| Bulb Size | 9006 / 9012 |
| Collar | Rotatable, locked by two screws; loosen with the included hex tool, turn for a level beam, retighten |
| Color Temperature | 6000K (cool white) |
| Compliance | SAE J575 durability test |
| Connector | OEM-size, plug and play |
| Cooling | Integrated, top-mounted fan sealed inside the housing |
| Country of Origin | China |
| Driver | Internal, constant current, transient protection |
| DRL Function | Runs at full brightness in DRL mode |

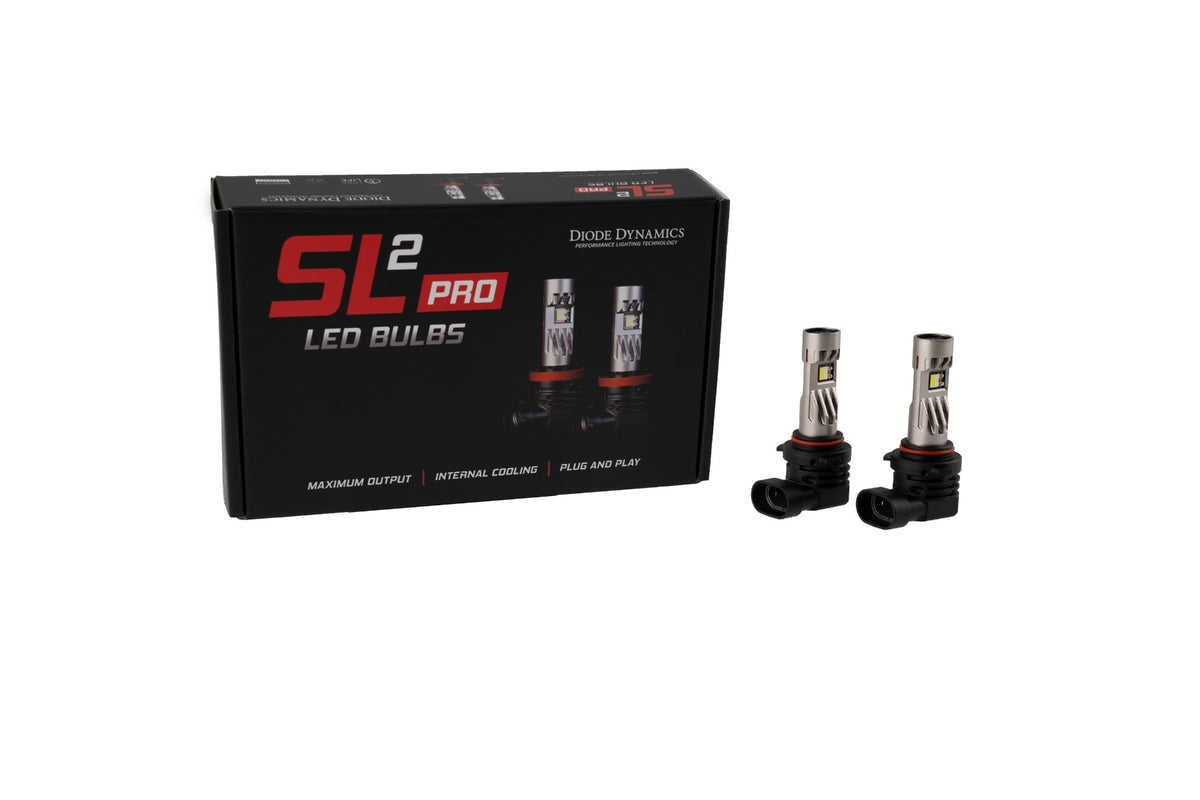

| In the Box | 2 x SL2 Pro LED bulbs (9006/9012), hex tool |
| Input Voltage | 9-30 V DC |
| LED Emitter | TST (thermal separation technology) automotive-grade LEDs |
| Materials | Copper PCB, die-cast A360 aluminum housing |
| Measured Lumens | 2,400 lm per bulb |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Polarity | Polarity specific; if a bulb stays dark, flip the connector 180° and reconnect |
| Shipping Weight | 0.55 lb (0.25 kg) |
| Warranty | Limited Lifetime |
| Watts | 22 W per bulb |
| 1998–2007 Toyota Land Cruiser | Position: Low Beam · Low beam: factory halogen headlights only, not HID / xenon. |
| 2003–2005 Toyota 4Runner | Position: Low Beam · Low beam: factory halogen headlights only, not HID / xenon. |
| Product Condition | NEW |
