(888) 723-0041Diode Dynamics Stage Series SS3 Sport Backlit LED Ditch Light Kit for 2015-2020 Ford F-150/Raptor, White Combo/Driving
Part #: DD6567
Diode Dynamics
Description

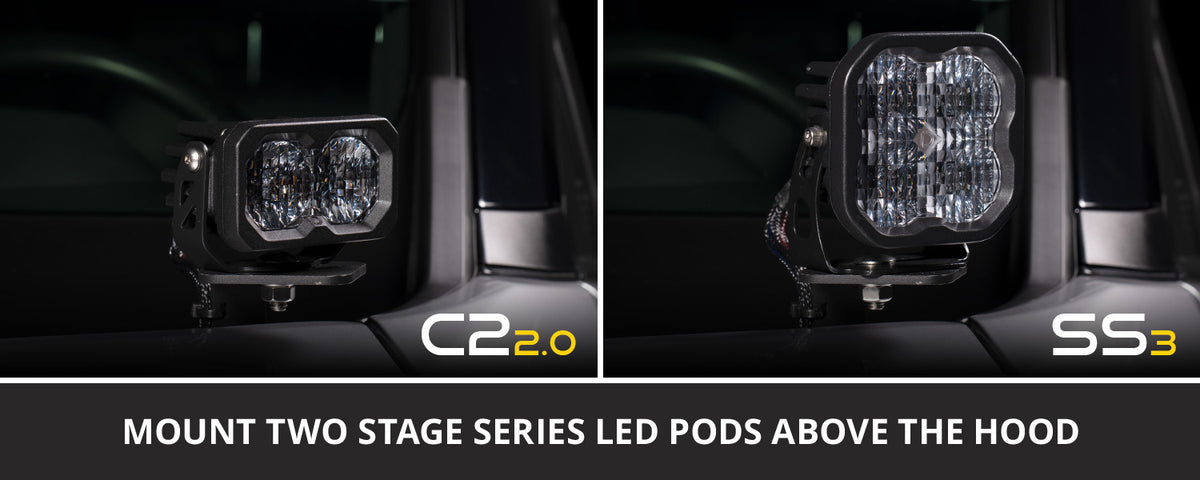

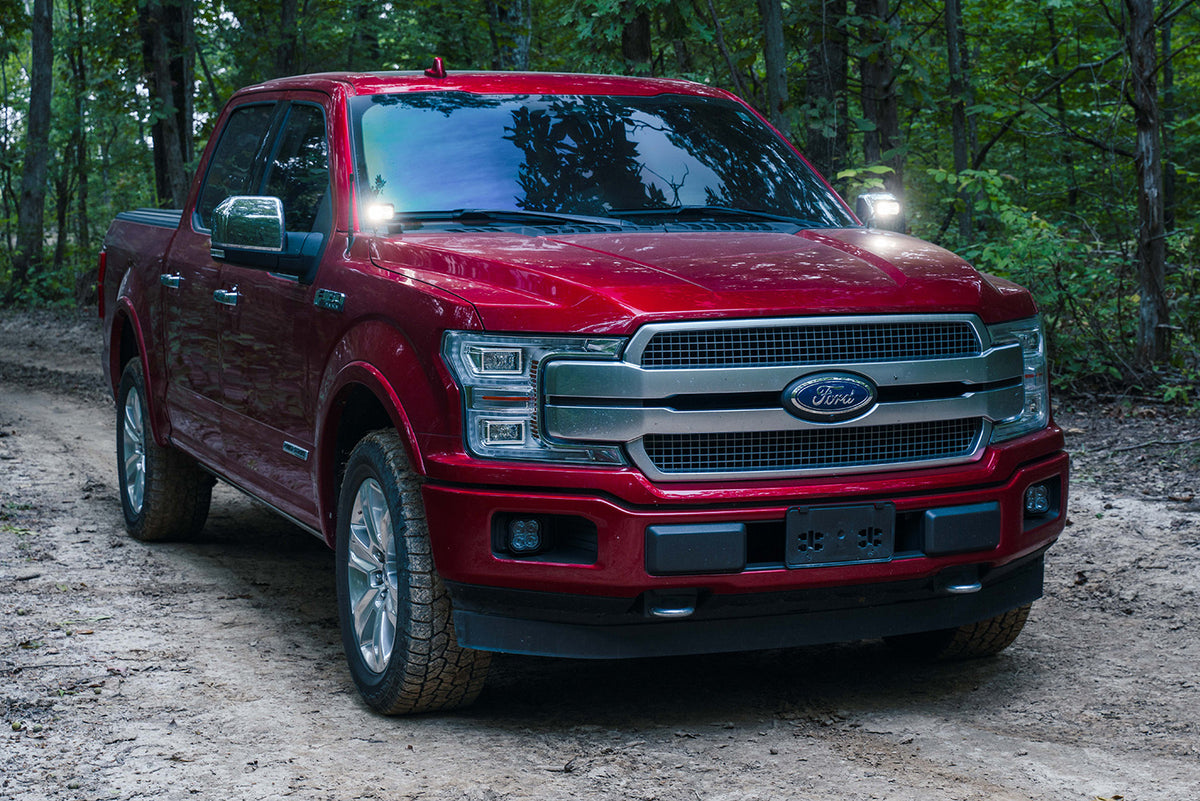

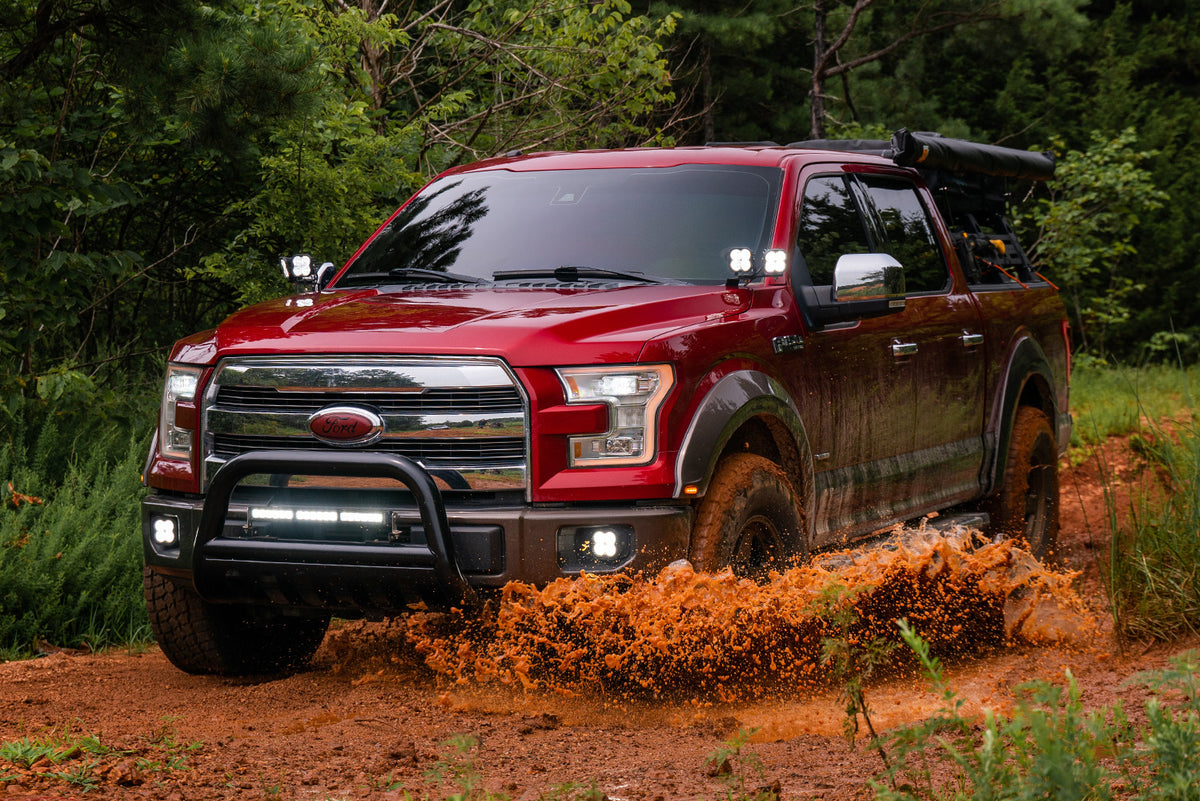

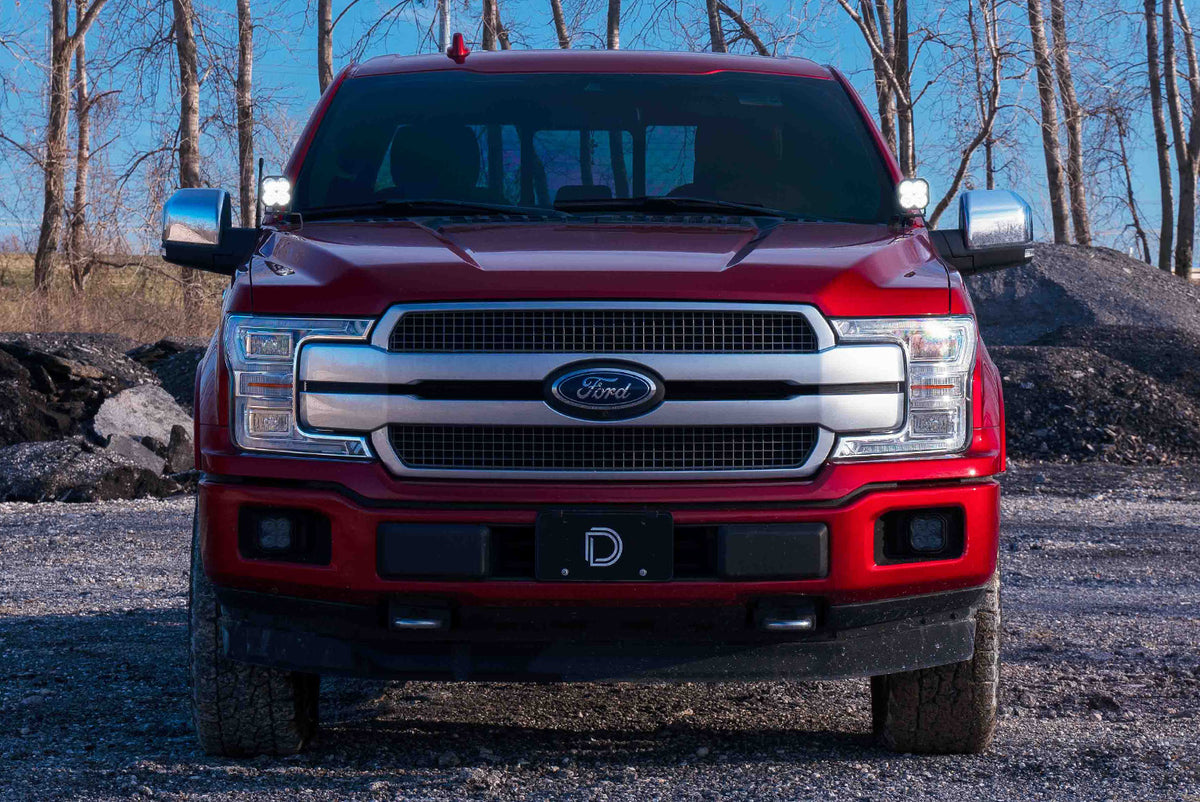

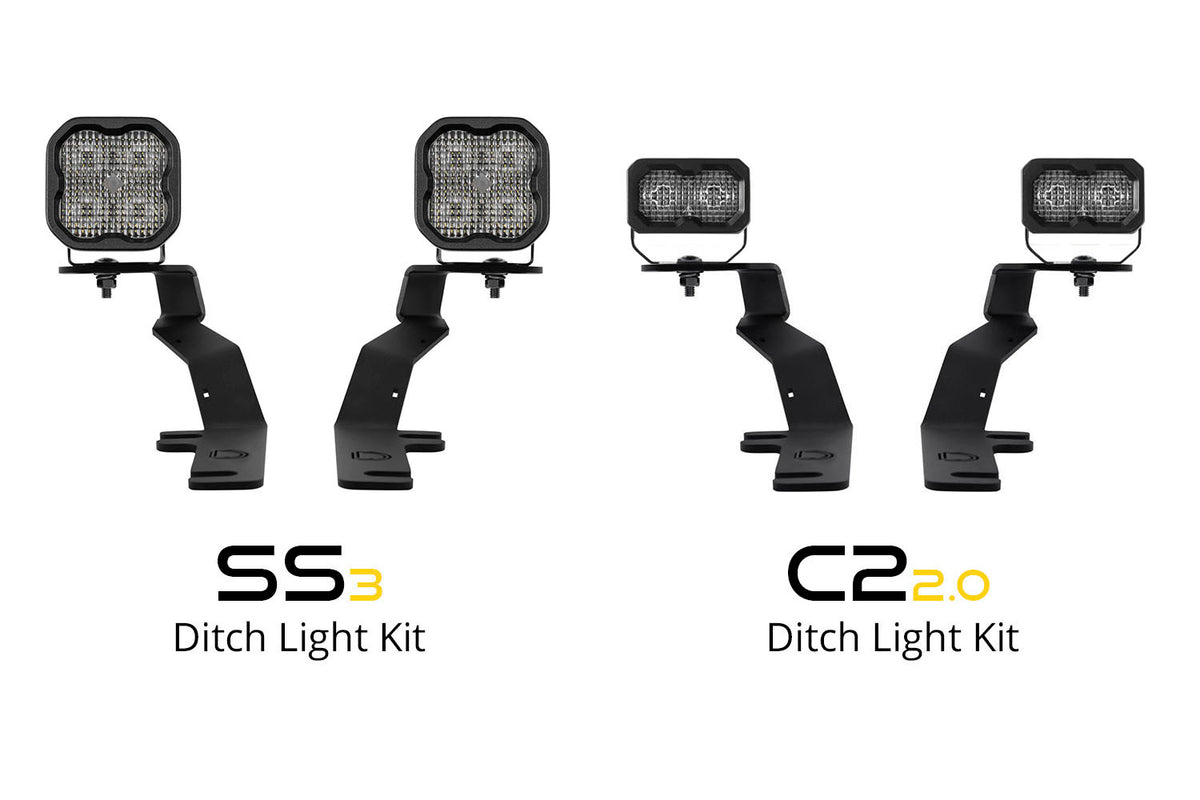

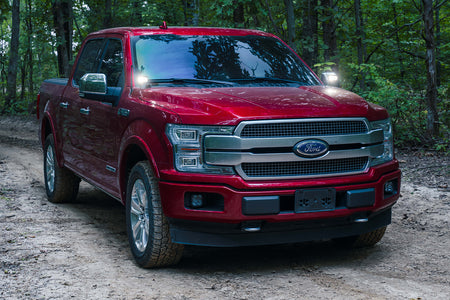

Diode Dynamics SS3 Sport Backlit LED Ditch Light Kit for 2015-2020 Ford F-150 and Raptor adds wide white side lighting to the thirteenth-generation truck. Ditch lights earned their name on the Raptor, where desert runners needed to see the edges of the course at speed. The SS3 Sport pods bring that idea to any truck from this generation, with a broad pattern that lights cattle guards, washouts and side roads as you pass them. Shoppers wanting warmth pick DD6568, Pro output comes in DD6569, and smaller C2 2.0 housings begin with DD6571.
Features

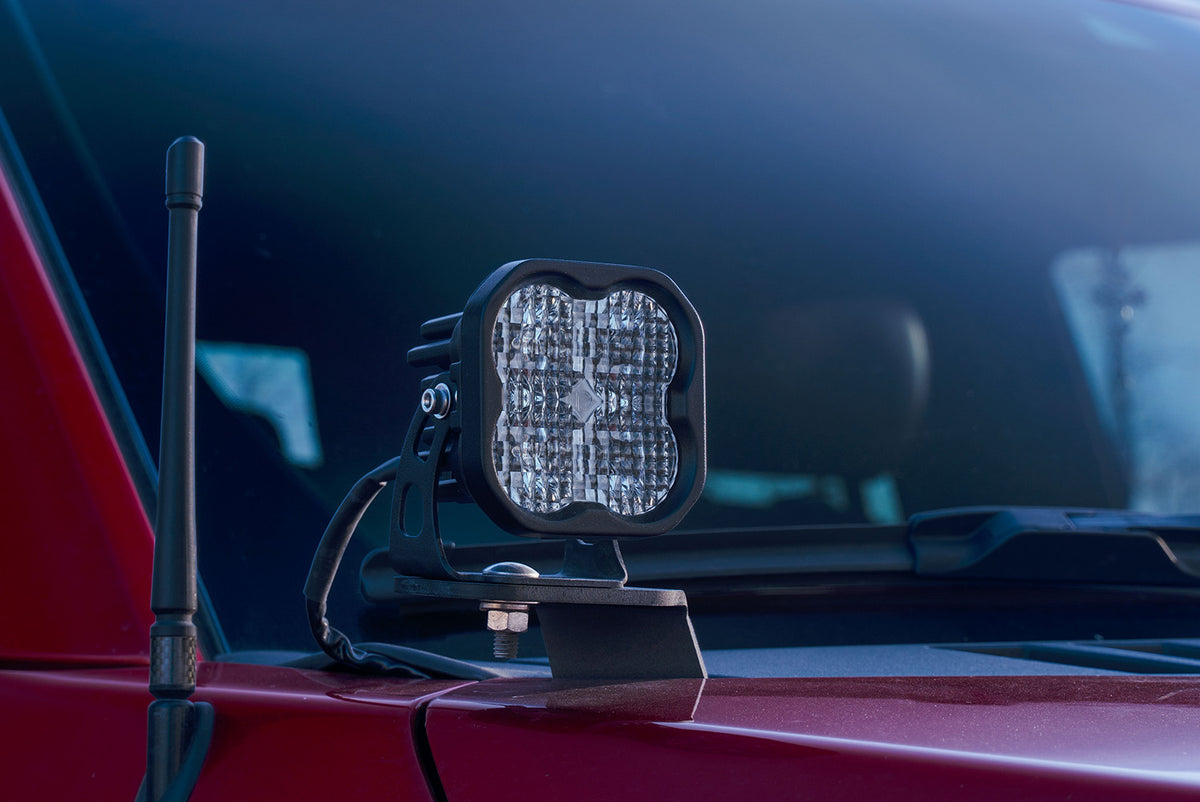

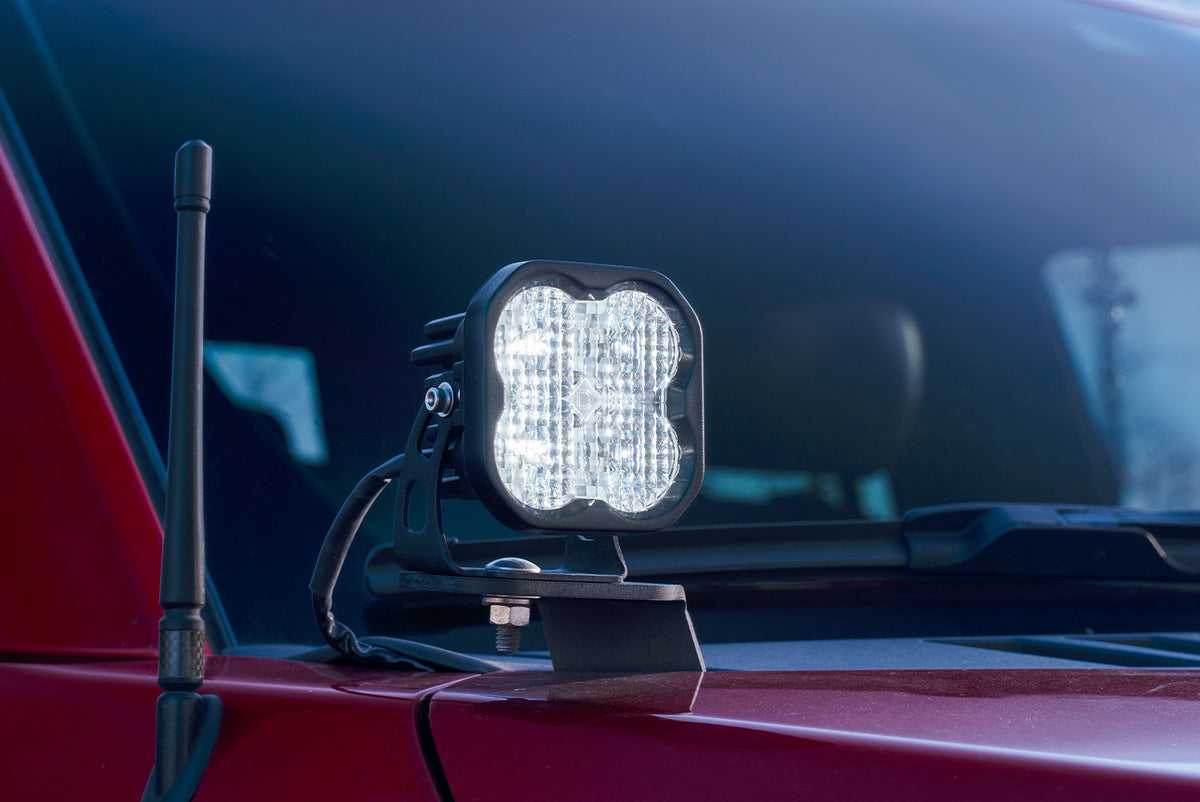

- Bolt-on brackets reuse factory fasteners, so the truck returns to stock with no holes left behind
| Amp Draw | 1.1 A per pod (at 13.2 V) |

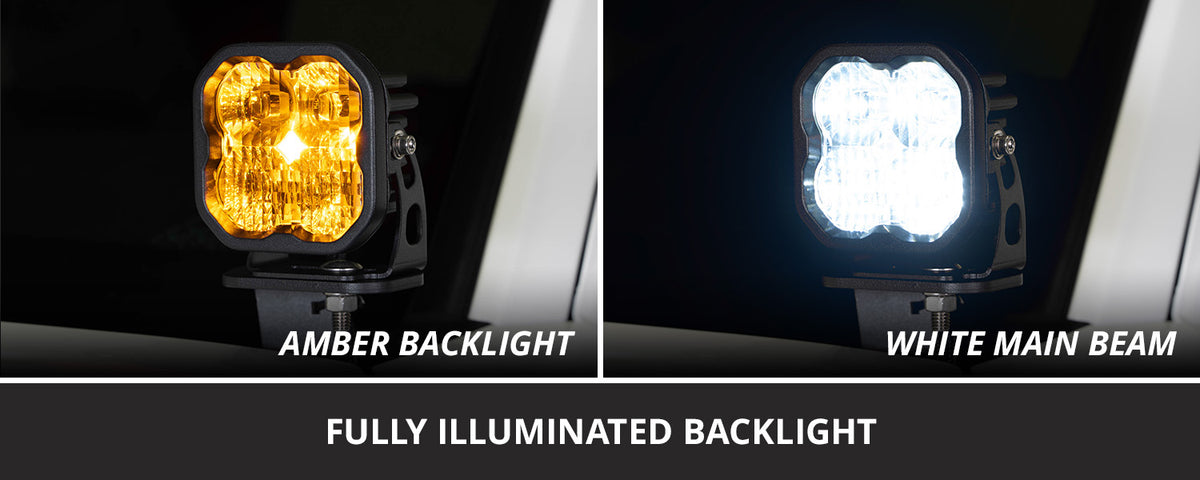

| Backlight | Amber (ABL) |
| Beam Pattern | Combo/Driving, 80° x 30° |
| Bracket | Thick-gauge stainless steel, low profile |
| Color Temperature | 6000K (white) |
| Compliance | SAE J575 durability test; off-road use |
| Connector | Deutsch DT input |
| Construction | Aluminum casting, polycarbonate lens, rubber gasket |
| Cooling | Passive pin-fin heatsink |
| Country of Origin | USA (with global materials) |
| Driver | Constant current |
| Hood Clearance | Does not interfere with raising or lowering the hood |
| Illuminance | 91 lux at 32.8 ft (10 m), per pod |

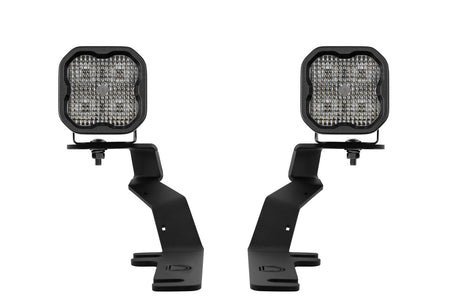

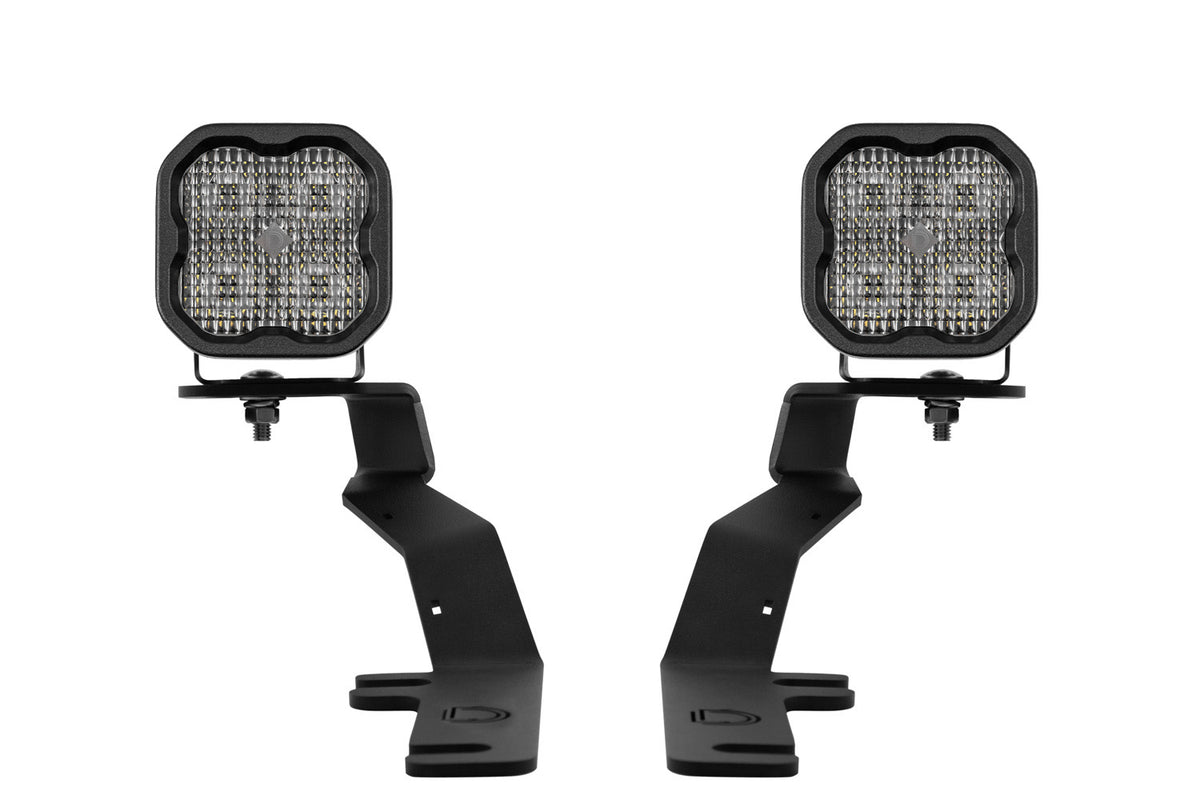

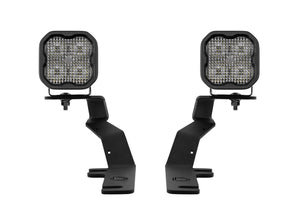

| In the Box | 2 x SS3 Sport Standard pods, 2 ditch light brackets, 2 SS3 pod mounting brackets, heavy-duty dual-output 4-pin harness, mounting hardware, mounting guide |
| Input Voltage | 9-16 V DC |
| Installation | Bolts to existing mounting points with factory hardware; no cutting or drilling |
| Intensity | 9,100 cd peak per pod |
| IP Rating | IP69K (waterproof, high-pressure wash) |
| LED Emitter | Lumileds Luxeon Z ES |
| Measured Lumens | 1,520 lm per pod |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Optic | TIR (total internal reflection) |
| Pod Size | 3 in (76 mm) class |
| Polarity | Polarity specific |
| Power Level | Sport |
| Raw Lumens | 2,262 lm per pod |
| Shipping Dimensions | 15 x 9 x 12 in (381 x 229 x 305 mm) |
| Shipping Weight | 8.68 lb (3.94 kg) |
| Warranty | Limited Lifetime |
| Watts | 14.5 W per pod |
| 2015–2020 Ford F-150 |
| Product Condition | NEW |
