(888) 723-0041Diode Dynamics Stage Series SS3 Sport Backlit LED Ditch Light Kit for 2015-2020 Ford F-150/Raptor, Yellow Combo/Driving
Part #: DD6568
Diode Dynamics
Description

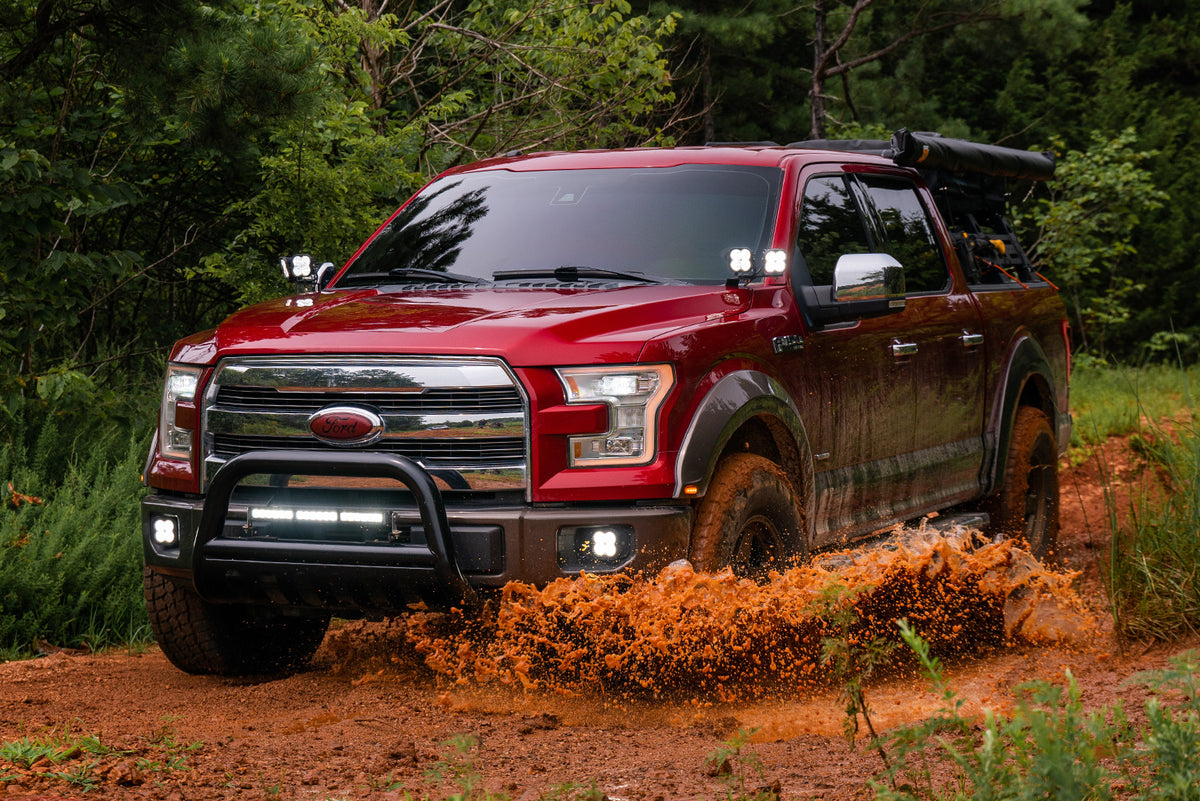

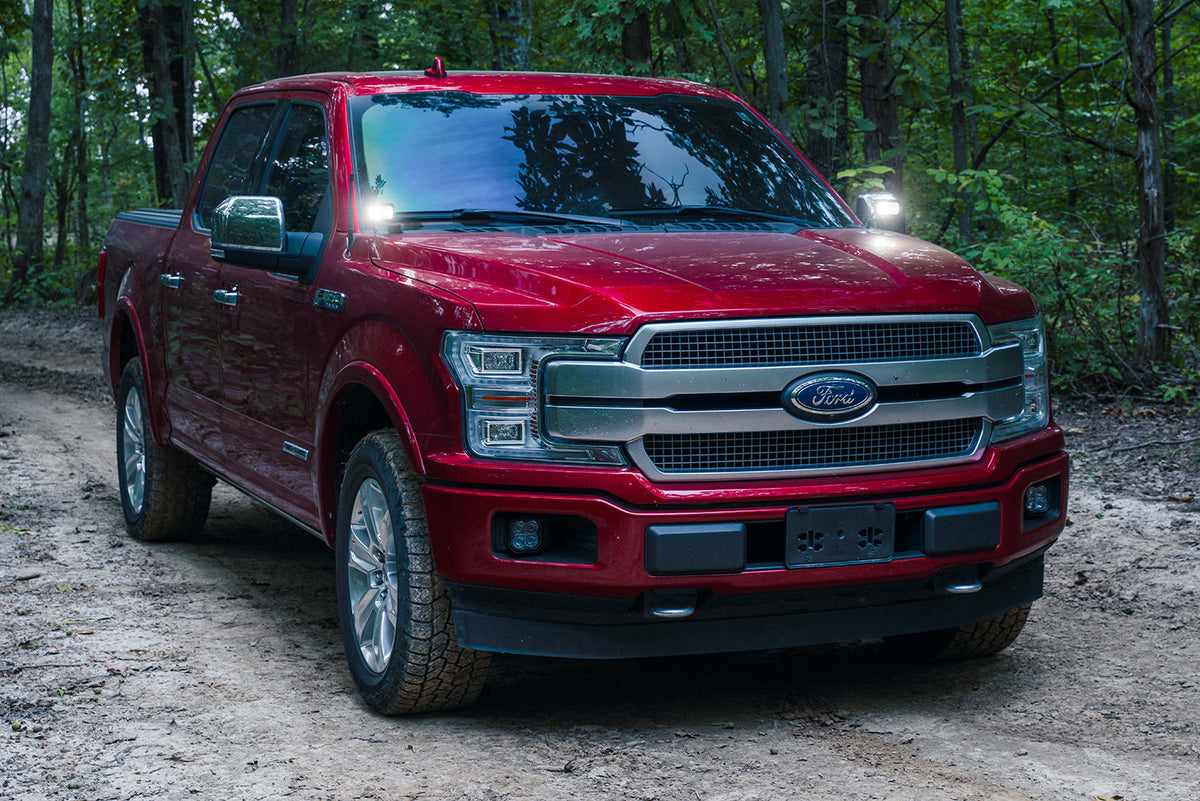

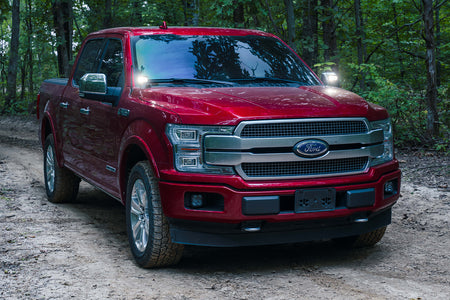

Diode Dynamics SS3 Sport Yellow Backlit LED Ditch Light Kit for 2015-2020 Ford F-150 and Raptor washes the roadside in a soft golden tone. Running the dry lake beds and dirt two-tracks Raptor owners love means driving through your own dust. Warm light slices through that haze, and the wide SS3 pattern keeps the turn-offs and ruts beside you visible. Go with DD6567 for crisp white, or DD6570 when you want the Pro yellow pair.
Features
- Selective yellow complements the amber marker lights in the Raptor grille
| Amp Draw | 1.1 A per pod (at 13.2 V) |

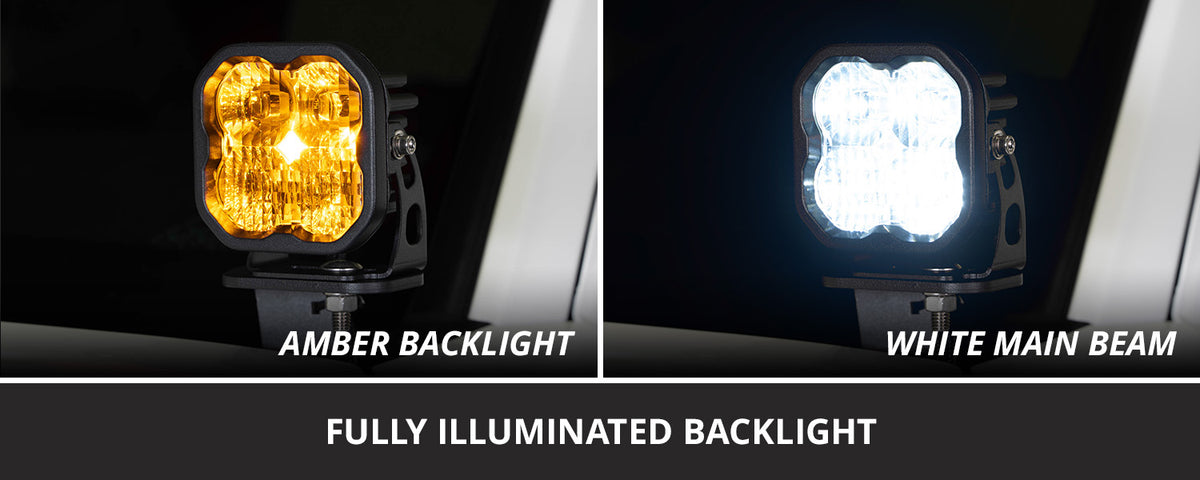

| Backlight | Amber (ABL) |
| Beam Pattern | Combo/Driving, 80° x 30° |
| Bracket | Thick-gauge stainless steel, low profile |
| Color Temperature | 3000K (selective yellow) |
| Compliance | SAE J575 durability test; off-road use |
| Connector | Deutsch DT input |
| Construction | Aluminum casting, polycarbonate lens, rubber gasket |
| Cooling | Passive pin-fin heatsink |
| Country of Origin | USA (with global materials) |
| Driver | Constant current |

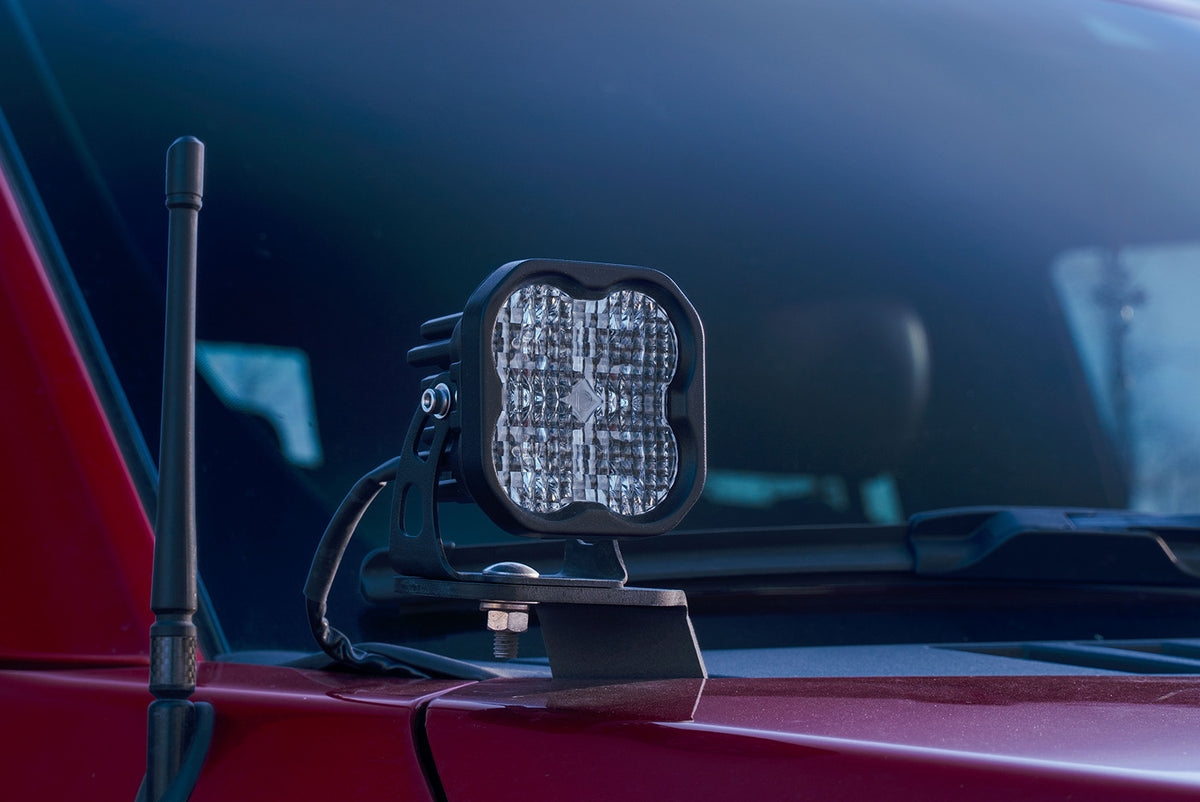

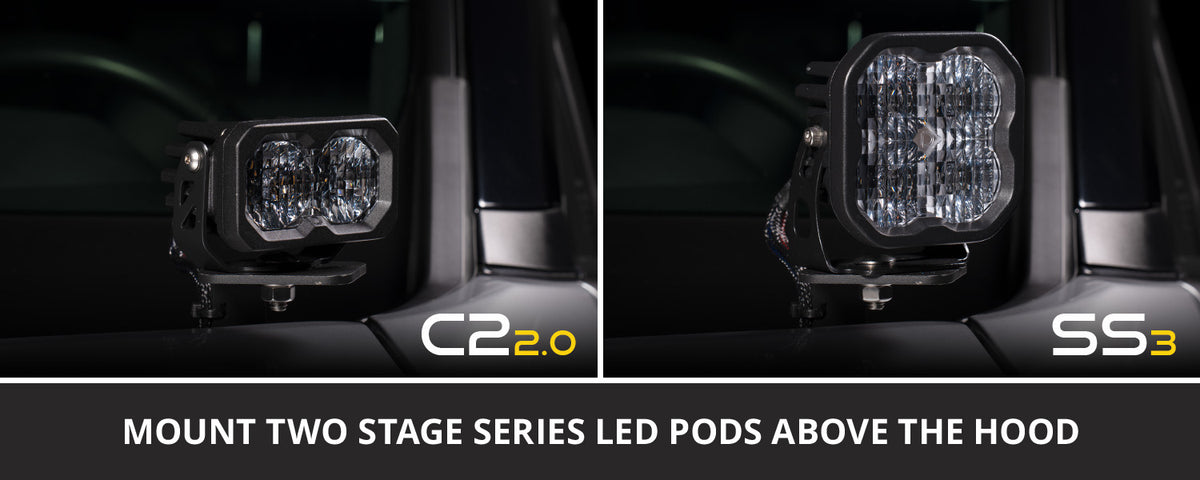

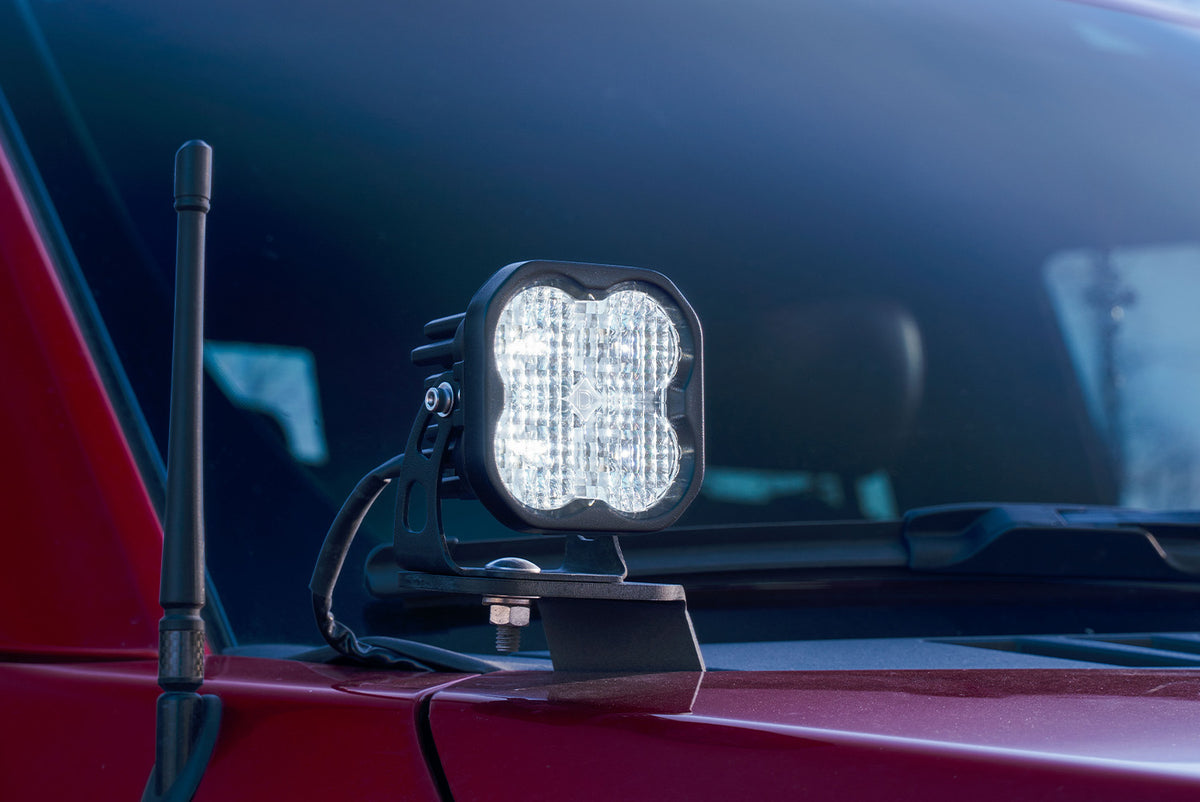

| Hood Clearance | Does not interfere with raising or lowering the hood |
| Illuminance | 65 lux at 32.8 ft (10 m), per pod |

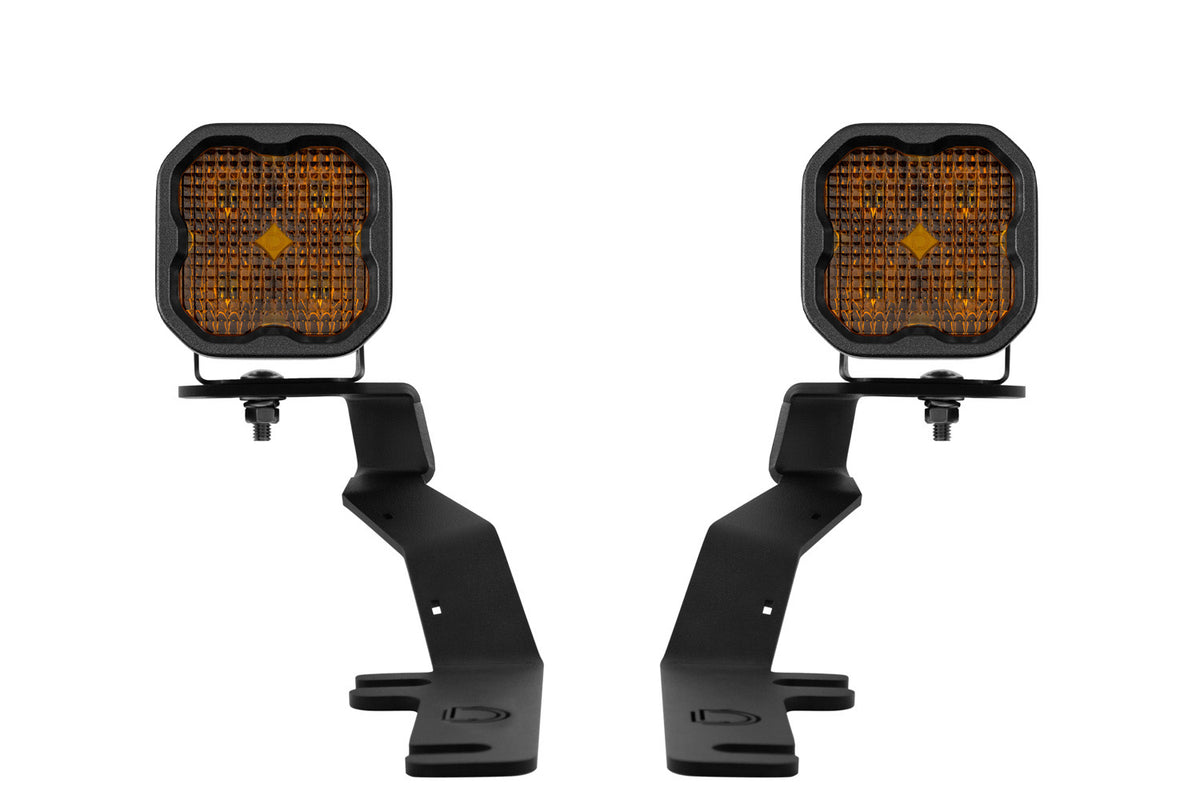

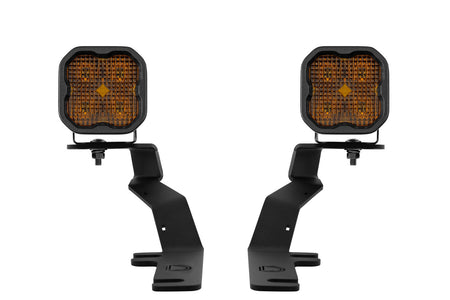

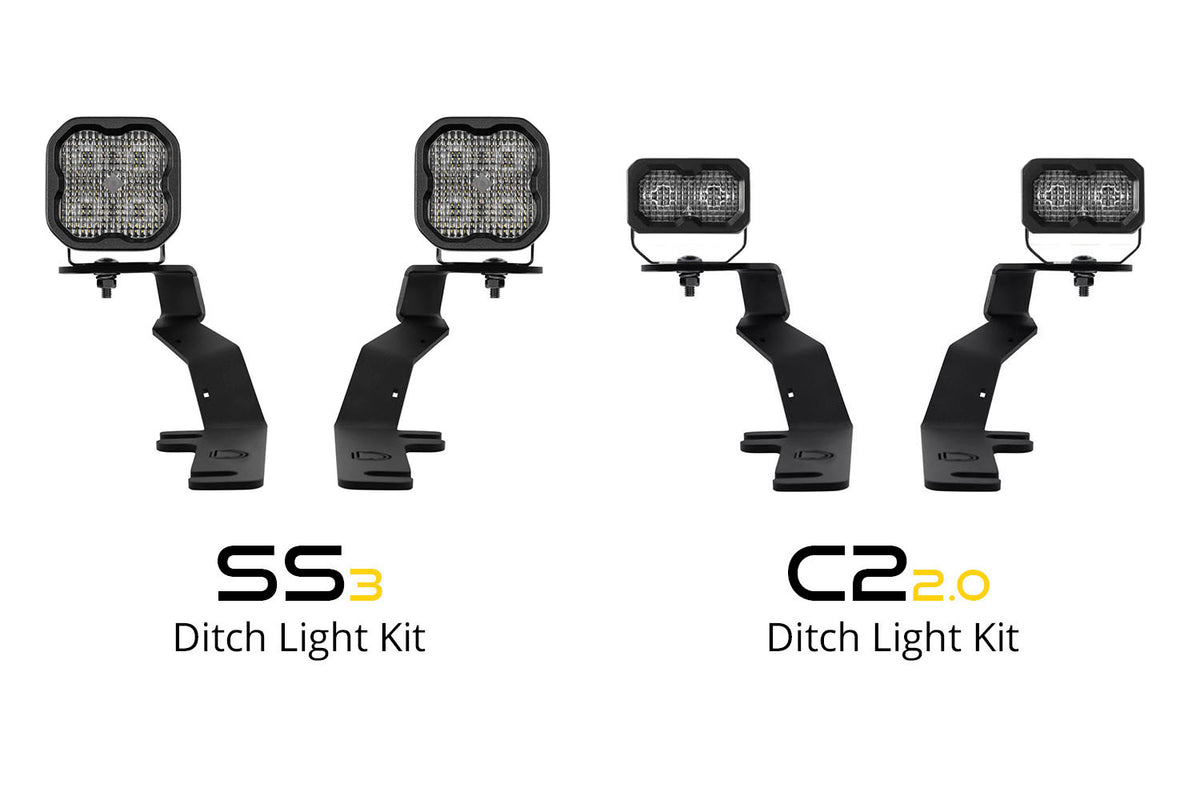

| In the Box | 2 x SS3 Sport Standard pods, 2 ditch light brackets, 2 SS3 pod mounting brackets, heavy-duty dual-output 4-pin harness, mounting hardware, mounting guide |
| Input Voltage | 9-16 V DC |
| Installation | Bolts to existing mounting points with factory hardware; no cutting or drilling |
| Intensity | 6,550 cd peak per pod |
| IP Rating | IP69K (waterproof, high-pressure wash) |
| LED Emitter | Lumileds Luxeon Z ES |
| Measured Lumens | 1,300 lm per pod |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Optic | TIR (total internal reflection) |
| Pod Size | 3 in (76 mm) class |
| Polarity | Polarity specific |
| Power Level | Sport |
| Raw Lumens | 2,262 lm per pod |
| Shipping Dimensions | 15 x 9 x 12 in (381 x 229 x 305 mm) |
| Shipping Weight | 8.68 lb (3.94 kg) |
| Warranty | Limited Lifetime |
| Watts | 14.5 W per pod |
| 2015–2020 Ford F-150 |
| Product Condition | NEW |
