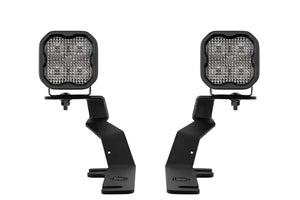

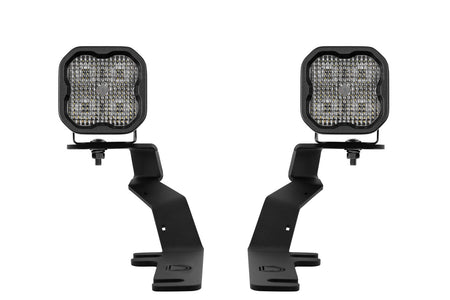

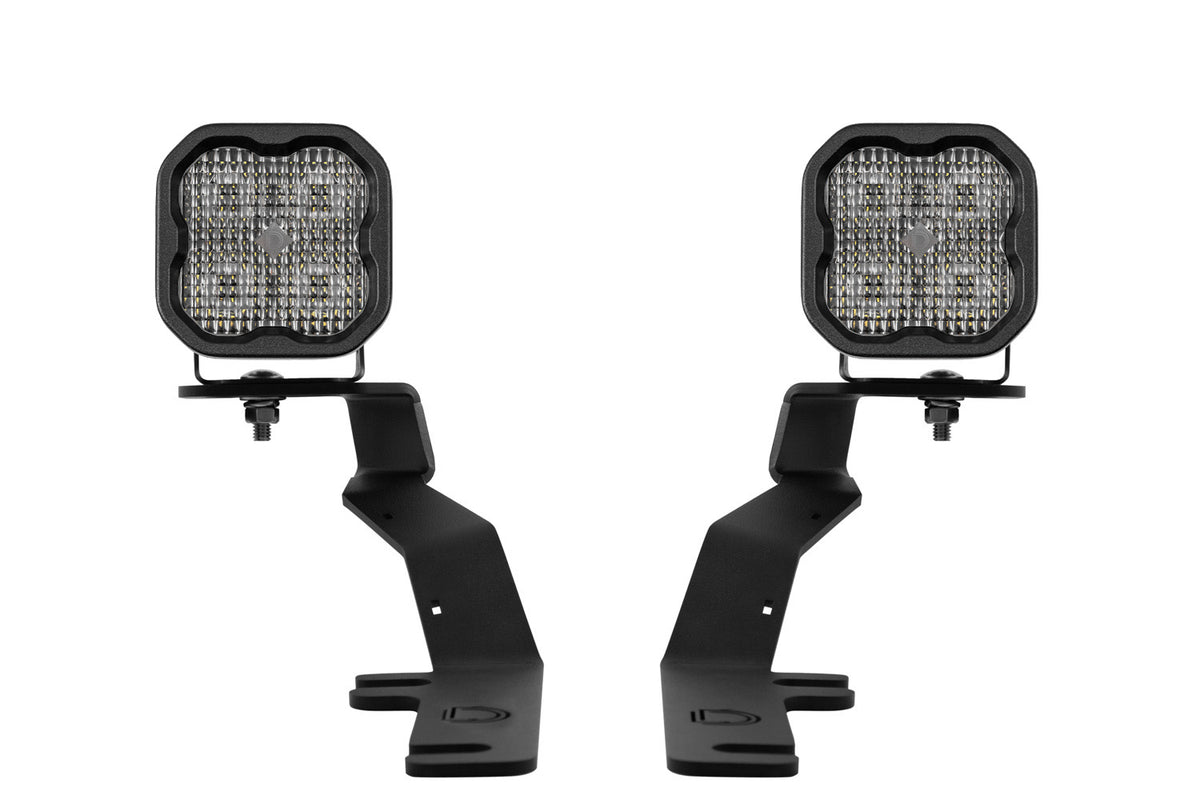

(888) 723-0041Diode Dynamics Stage Series SS3 Pro Backlit LED Ditch Light Kit for 2015-2020 Ford F-150/Raptor, White Combo/Driving
Part #: DD6569
Diode Dynamics
Description

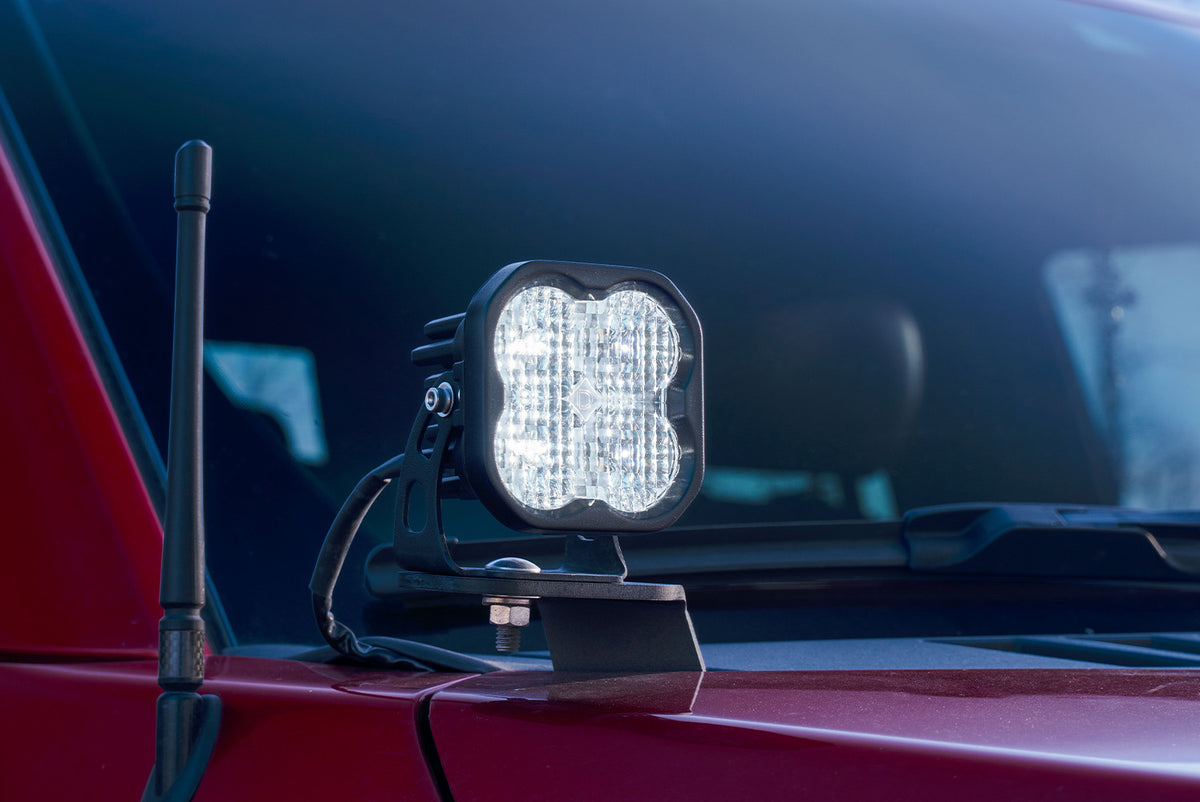

Diode Dynamics SS3 Pro Backlit LED Ditch Light Kit for 2015-2020 Ford F-150 and Raptor puts Pro-level white output on both sides of the hood. When the trail opens up and speeds climb, the Pro pods give the extra light needed to read the edges early. The big SS3 face spreads that output wide, so berms, rocks and ruts beside the line show up before your tires find them. Need yellow? DD6570 is its counterpart, and DD6567 suits lighter use.
Features
- Enough side output to match an aftermarket bumper bar without leaving dark corners
| Amp Draw | 2.7 A main beam, 0.03 A backlight, per pod (at 12.8 V) |
| Backlight | Amber (ABL) |
| Beam Pattern | Combo/Driving, 80° x 30° |
| Bracket | Thick-gauge stainless steel, low profile |
| Color Temperature | 6000K (white) |
| Compliance | SAE J575 durability test; off-road use |
| Connector | Deutsch DT input |
| Construction | Aluminum casting, polycarbonate lens, rubber gasket |
| Cooling | Passive pin-fin heatsink |
| Country of Origin | USA (with global materials) |
| Driver | Constant current |
| Hood Clearance | Does not interfere with raising or lowering the hood |
| Illuminance | 178 lux at 32.8 ft (10 m), per pod |
| In the Box | 2 x SS3 Pro Standard pods, 2 ditch light brackets, 2 SS3 pod mounting brackets, heavy-duty dual-output 4-pin harness, mounting hardware, mounting guide |
| Input Voltage | 9-16 V DC |
| Installation | Bolts to existing mounting points with factory hardware; no cutting or drilling |
| Intensity | 17,800 cd peak per pod |
| IP Rating | IP69K (waterproof, high-pressure wash) |
| LED Emitter | Cree XP-L HI |
| Measured Lumens | 3,000 lm per pod |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Optic | TIR (total internal reflection) |
| Pod Size | 3 in (76 mm) class |
| Polarity | Polarity specific |
| Power Level | Pro |
| Raw Lumens | 5,796 lm per pod |
| Shipping Dimensions | 15 x 9 x 12 in (381 x 229 x 305 mm) |
| Shipping Weight | 8.68 lb (3.94 kg) |
| Warranty | Limited Lifetime |
| Watts | 36 W main beam, 0.4 W backlight, per pod |
| 2015–2020 Ford F-150 |
| Product Condition | NEW |
