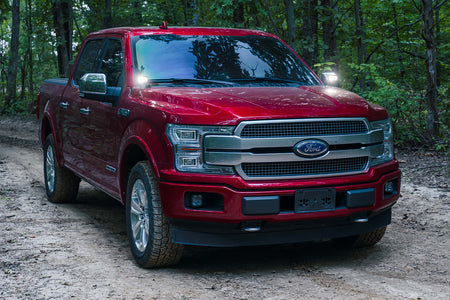

(888) 723-0041Diode Dynamics Stage Series SS3 Pro Backlit LED Ditch Light Kit for 2015-2020 Ford F-150/Raptor, Yellow Combo/Driving
Part #: DD6570
Diode Dynamics
Description

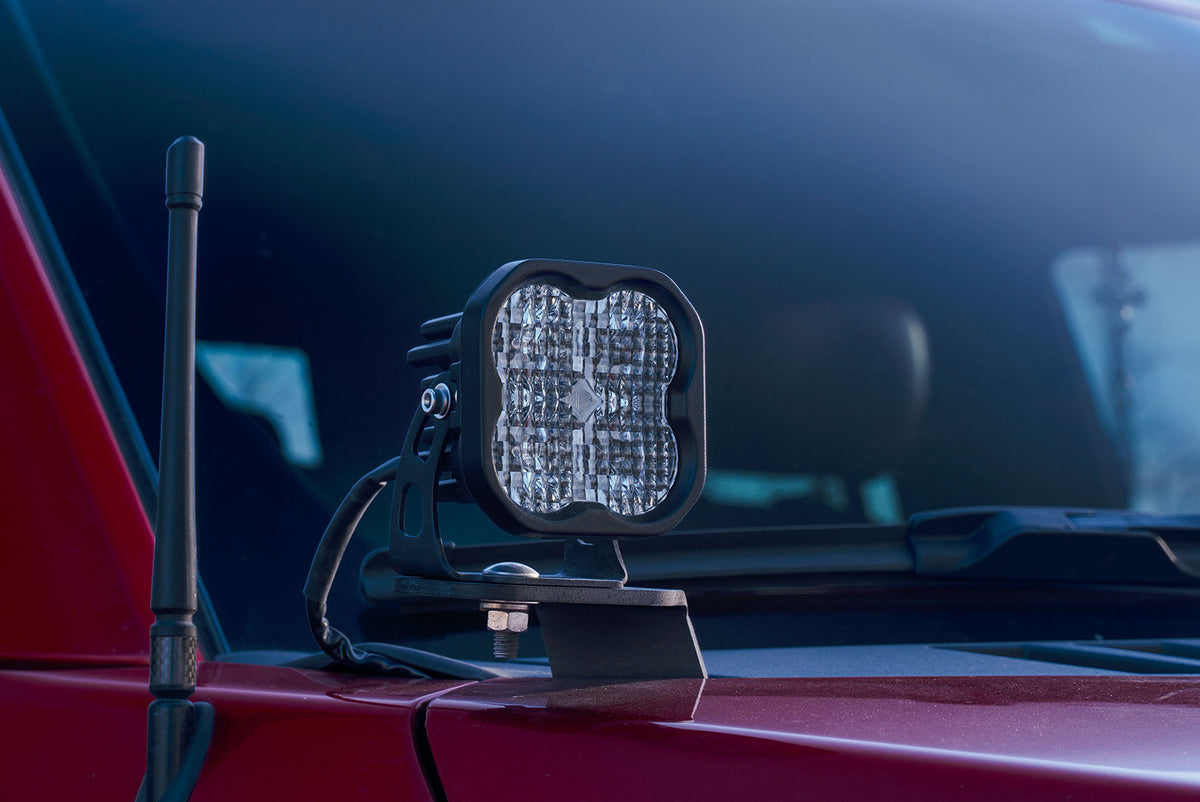

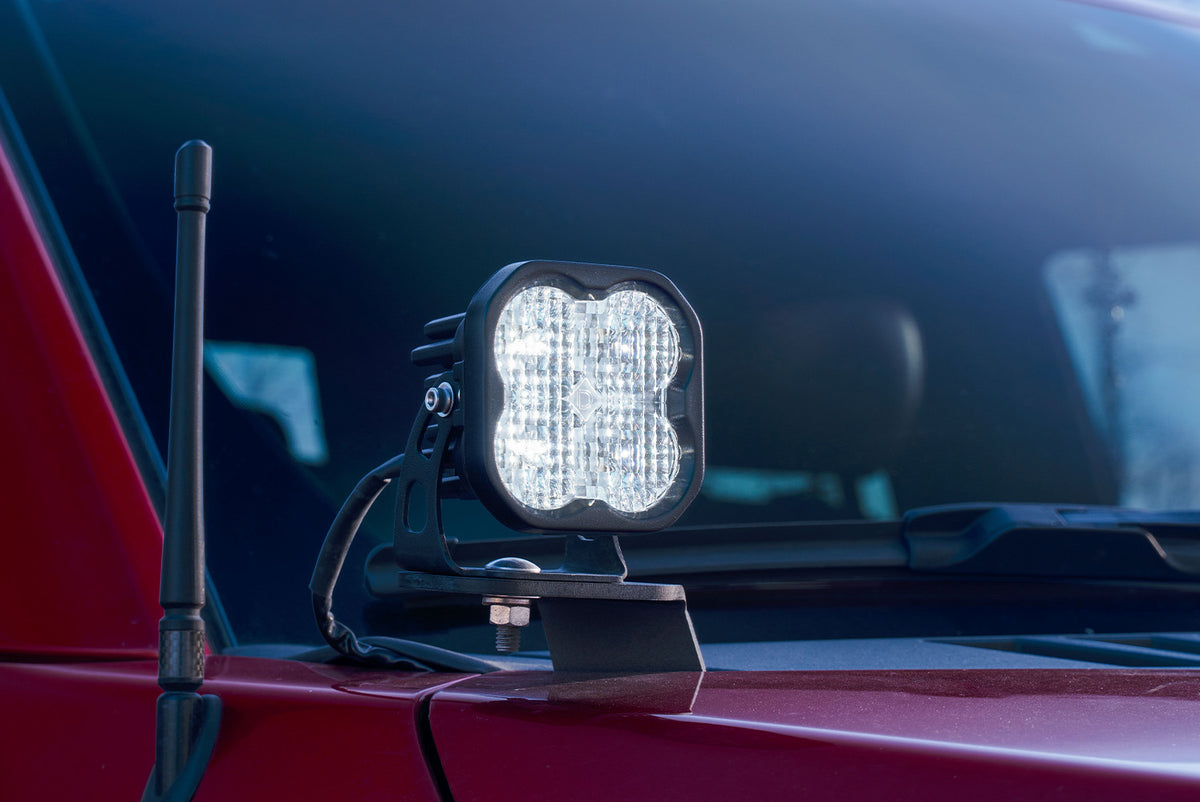

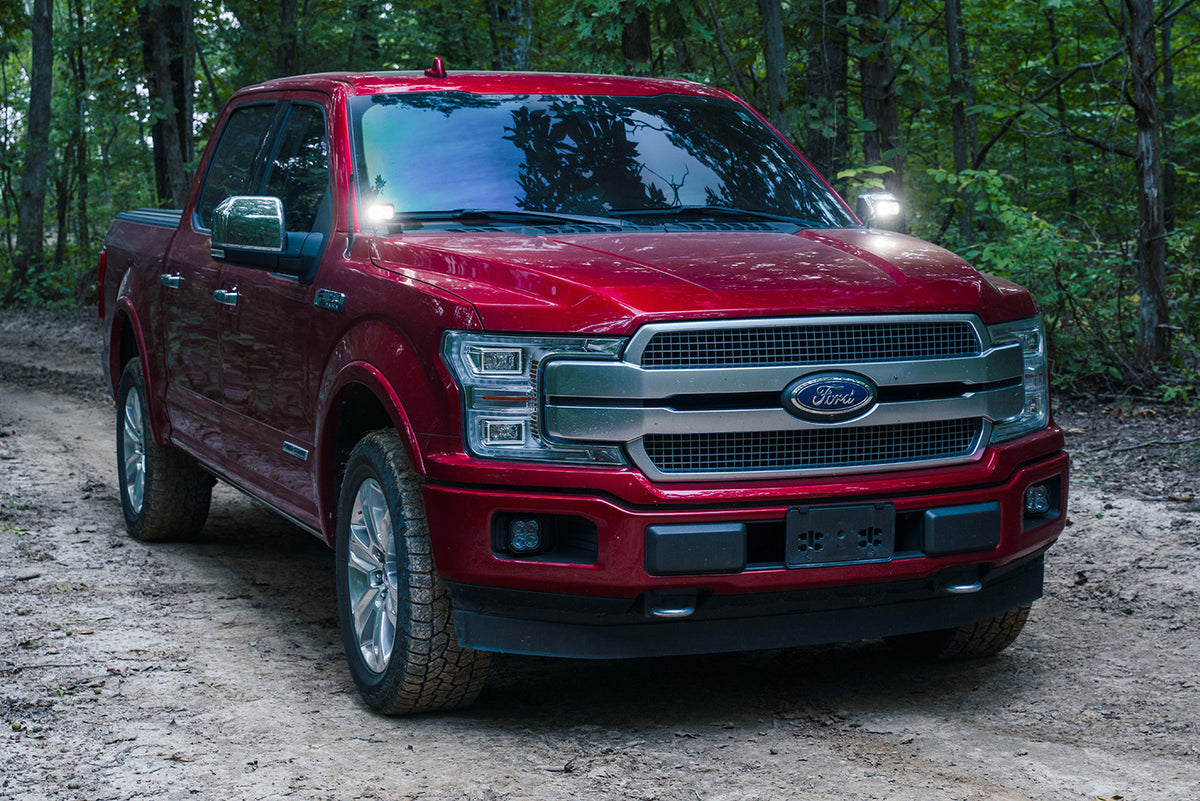

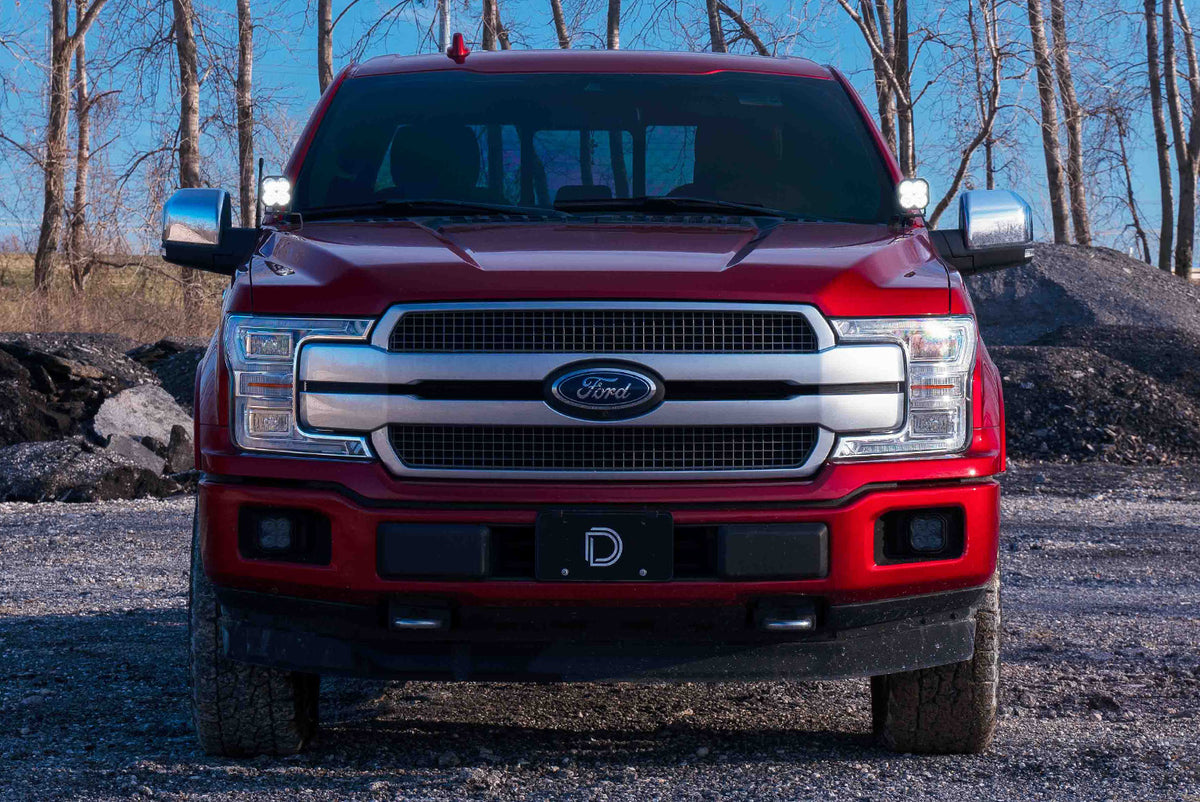

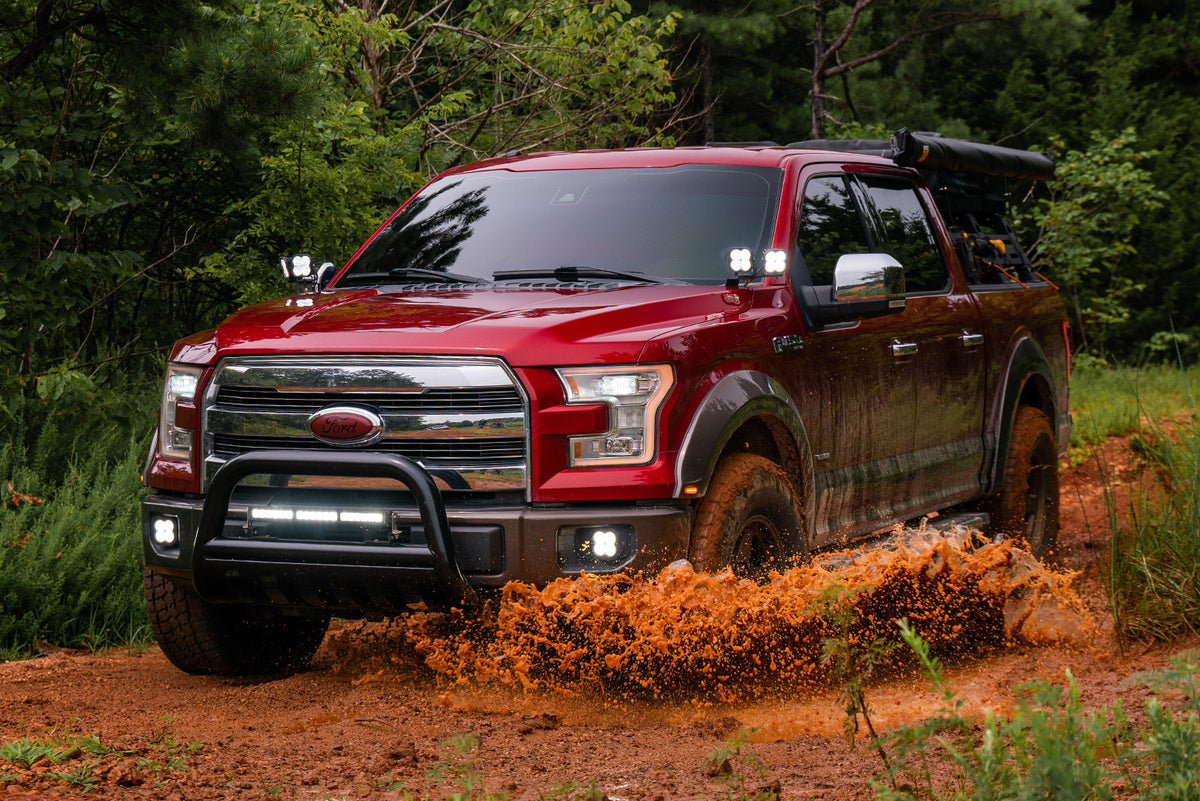

Diode Dynamics SS3 Pro Yellow Backlit LED Ditch Light Kit for 2015-2020 Ford F-150 and Raptor is built for dusty desert nights. This is the classic prerunner setup: high output, wide spread and a color that stays useful when the air fills with dust. Mounted high at the hood corners, the pods see over the fenders and light terrain the headlights miss. Its crisp white sibling is DD6569, and Sport yellow comes as DD6568 for lighter duty.
Features
- A favorite for chase trucks and pit crews who work in clouds of dust after dark
| Amp Draw | 2.7 A main beam, 0.03 A backlight, per pod (at 12.8 V) |
| Backlight | Amber (ABL) |
| Beam Pattern | Combo/Driving, 80° x 30° |
| Bracket | Thick-gauge stainless steel, low profile |
| Color Temperature | 3000K (selective yellow) |
| Compliance | SAE J575 durability test; off-road use |
| Connector | Deutsch DT input |
| Construction | Aluminum casting, polycarbonate lens, rubber gasket |
| Cooling | Passive pin-fin heatsink |
| Country of Origin | USA (with global materials) |
| Driver | Constant current |
| Hood Clearance | Does not interfere with raising or lowering the hood |
| Illuminance | 125 lux at 32.8 ft (10 m), per pod |

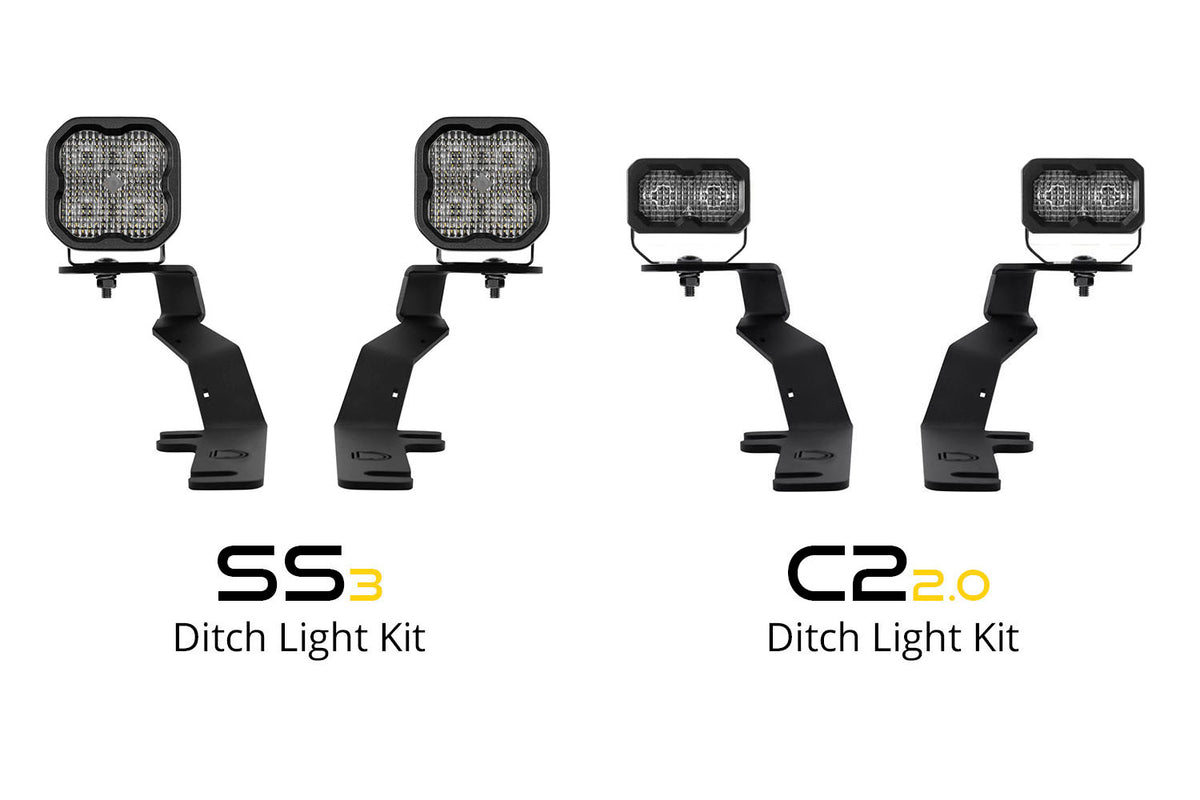

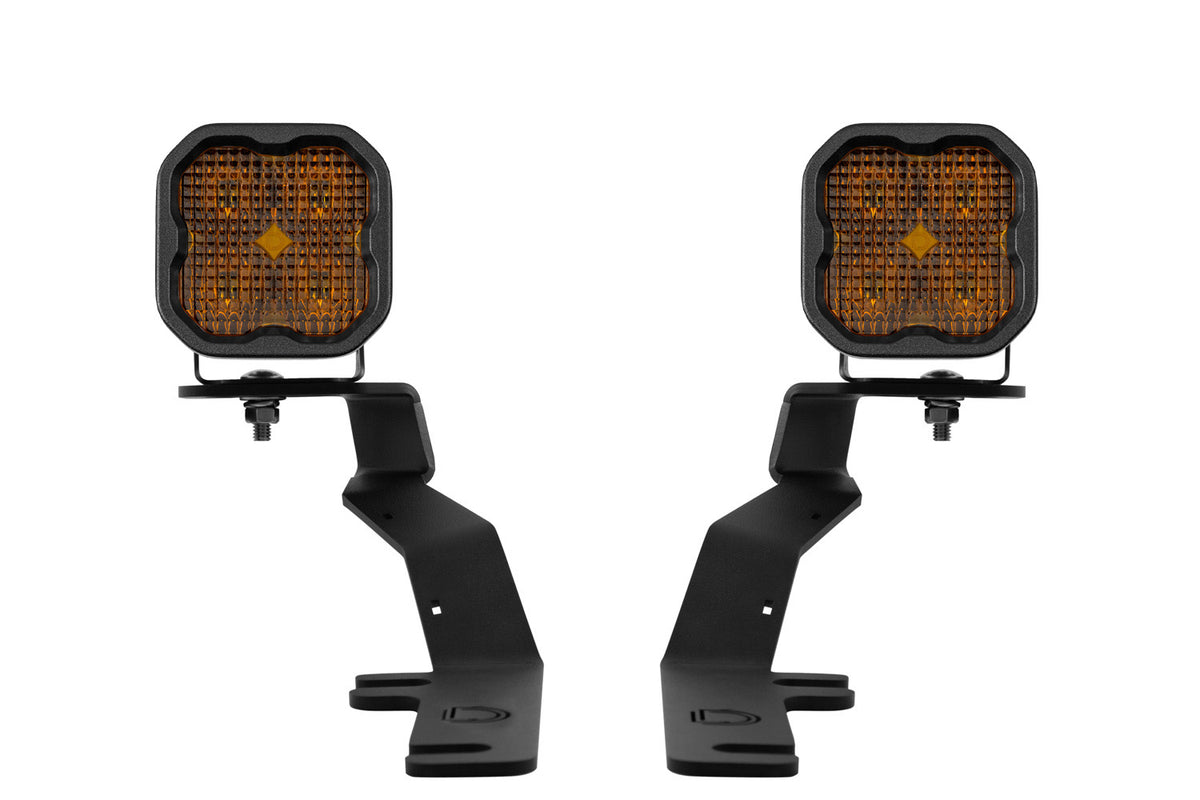

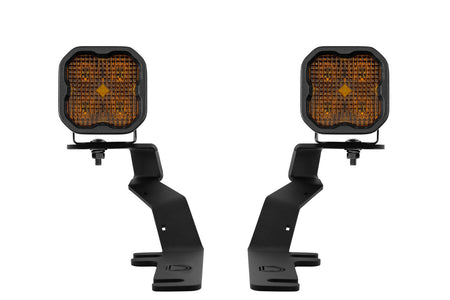

| In the Box | 2 x SS3 Pro Standard pods, 2 ditch light brackets, 2 SS3 pod mounting brackets, heavy-duty dual-output 4-pin harness, mounting hardware, mounting guide |
| Input Voltage | 9-16 V DC |
| Installation | Bolts to existing mounting points with factory hardware; no cutting or drilling |
| Intensity | 12,550 cd peak per pod |
| IP Rating | IP69K (waterproof, high-pressure wash) |
| LED Emitter | Cree XP-L HI |
| Measured Lumens | 2,700 lm per pod |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Optic | TIR (total internal reflection) |
| Pod Size | 3 in (76 mm) class |
| Polarity | Polarity specific |
| Power Level | Pro |
| Raw Lumens | 5,796 lm per pod |
| Shipping Dimensions | 15 x 9 x 12 in (381 x 229 x 305 mm) |
| Shipping Weight | 8.68 lb (3.94 kg) |
| Warranty | Limited Lifetime |
| Watts | 36 W main beam, 0.4 W backlight, per pod |
| 2015–2020 Ford F-150 |
| Product Condition | NEW |
