(888) 723-0041Diode Dynamics Stage Series C2 2.0 Sport Backlit LED Ditch Light Kit for 2015-2020 Ford F-150/Raptor, White Combo/Driving
Part #: DD6571
Diode Dynamics
Description
Diode Dynamics C2 2.0 Sport Backlit LED Ditch Light Kit for 2015-2020 Ford F-150 and Raptor fits compact pods with a reach-focused beam. The C2 2.0 pod is smaller than the SS3, but its tighter pattern reaches farther, so it suits drivers who want to spot animals and turns well ahead rather than flood the shoulder. The small housings also keep the hood line looking clean. For gold-toned light pick DD6572, and for Pro power pick DD6573.
Features
- Compact pods leave the windshield view clear for both front seats
| Amp Draw | 1.17 A main beam, 0.03 A backlight, per pod (at 12.8 V) |
| Backlight | Amber (ABL) |
| Beam Pattern | Combo/Driving, 55° x 20° |
| Bracket | Thick-gauge stainless steel, low profile |
| Color Temperature | 6000K (white) |
| Compliance | SAE J575 durability test; off-road use |
| Connector | Deutsch DT input |
| Construction | Aluminum casting, polycarbonate lens, rubber gasket |
| Cooling | Passive pin-fin heatsink |
| Country of Origin | USA (with global materials) |
| Driver | Constant current |
| Hood Clearance | Does not interfere with raising or lowering the hood |
| Illuminance | 340 lux at 32.8 ft (10 m), per pod |

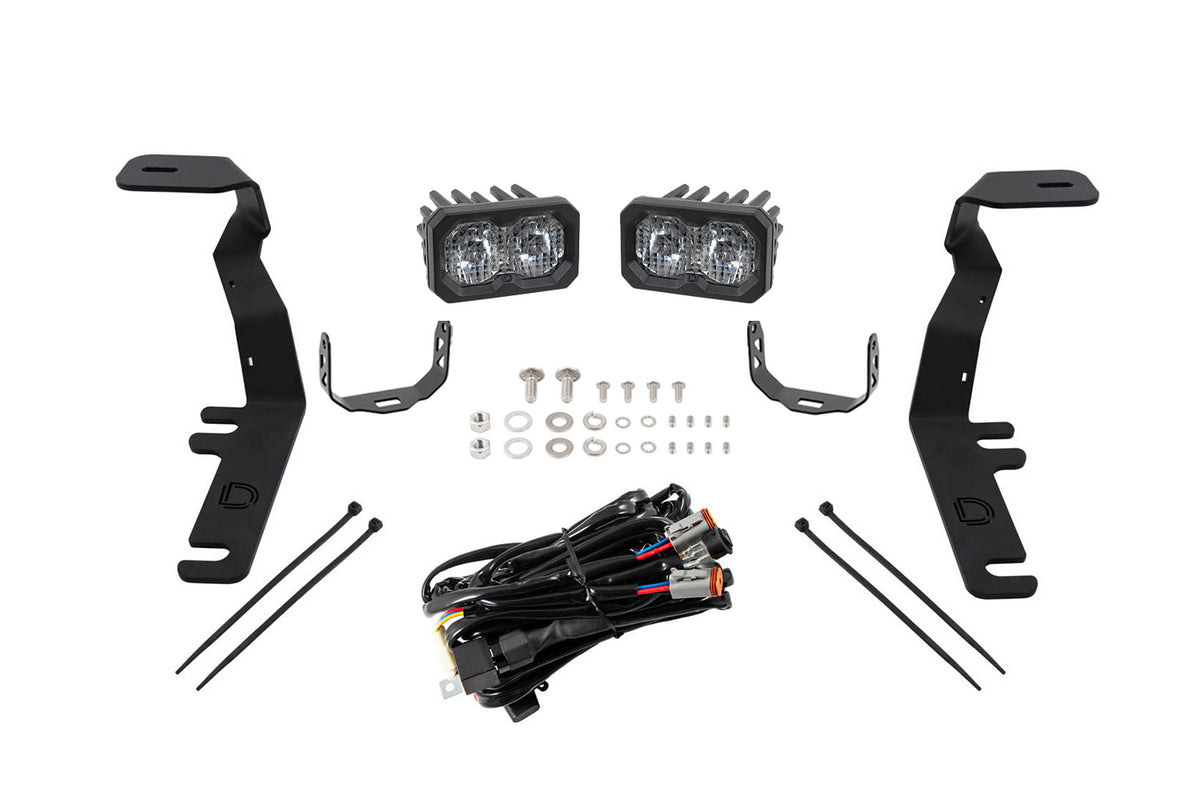

| In the Box | 2 x C2 2.0 Sport Standard pods, 2 ditch light brackets, 2 C2 2.0 pod mounting brackets, heavy-duty dual-output 4-pin harness, mounting hardware, mounting guide |
| Input Voltage | 9-30 V DC |
| Installation | Bolts to existing mounting points with factory hardware; no cutting or drilling |
| Intensity | 34,000 cd peak per pod |
| IP Rating | IP69K (waterproof, high-pressure wash) |
| LED Emitter | Lumileds automotive grade |
| Measured Lumens | 1,130 lm per pod |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Optic | TIR (total internal reflection) |
| Pod Size | 2 in (51 mm) class |
| Polarity | Polarity specific |
| Power Level | Sport |
| Raw Lumens | 1,186 lm per pod |
| Shipping Dimensions | 15 x 9 x 12 in (381 x 229 x 305 mm) |
| Shipping Weight | 11.59 lb (5.26 kg) |
| Warranty | Limited Lifetime |
| Watts | 15 W main beam, 0.38 W backlight, per pod |
| 2015–2020 Ford F-150 |
| Product Condition | NEW |
