(888) 723-0041Diode Dynamics Stage Series C2 2.0 Sport Backlit LED Ditch Light Kit for 2015-2020 Ford F-150/Raptor, Yellow Combo/Driving
Part #: DD6572
Diode Dynamics
Description
Diode Dynamics C2 2.0 Sport Yellow Backlit LED Ditch Light Kit for 2015-2020 Ford F-150 and Raptor tucks small gold-toned pods at the hood corners. A small pod with a warm, long-reaching beam is a smart pick for rain-soaked back roads and foggy river bottoms, where white light reflects back and yellow keeps details sharp. Crisp white from this compact pod is DD6571; for maximum yellow reach, look at DD6574.
Features
- Subtle size and warm color give a factory-accessory look on a daily-driven truck
| Amp Draw | 1.17 A main beam, 0.03 A backlight, per pod (at 12.8 V) |
| Backlight | Amber (ABL) |
| Beam Pattern | Combo/Driving, 55° x 20° |
| Bracket | Thick-gauge stainless steel, low profile |
| Color Temperature | 3000K (selective yellow) |
| Compliance | SAE J575 durability test; off-road use |
| Connector | Deutsch DT input |
| Construction | Aluminum casting, polycarbonate lens, rubber gasket |
| Cooling | Passive pin-fin heatsink |
| Country of Origin | USA (with global materials) |
| Driver | Constant current |
| Hood Clearance | Does not interfere with raising or lowering the hood |
| Illuminance | 340 lux at 32.8 ft (10 m), per pod |

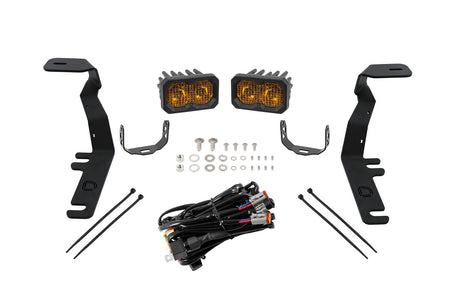

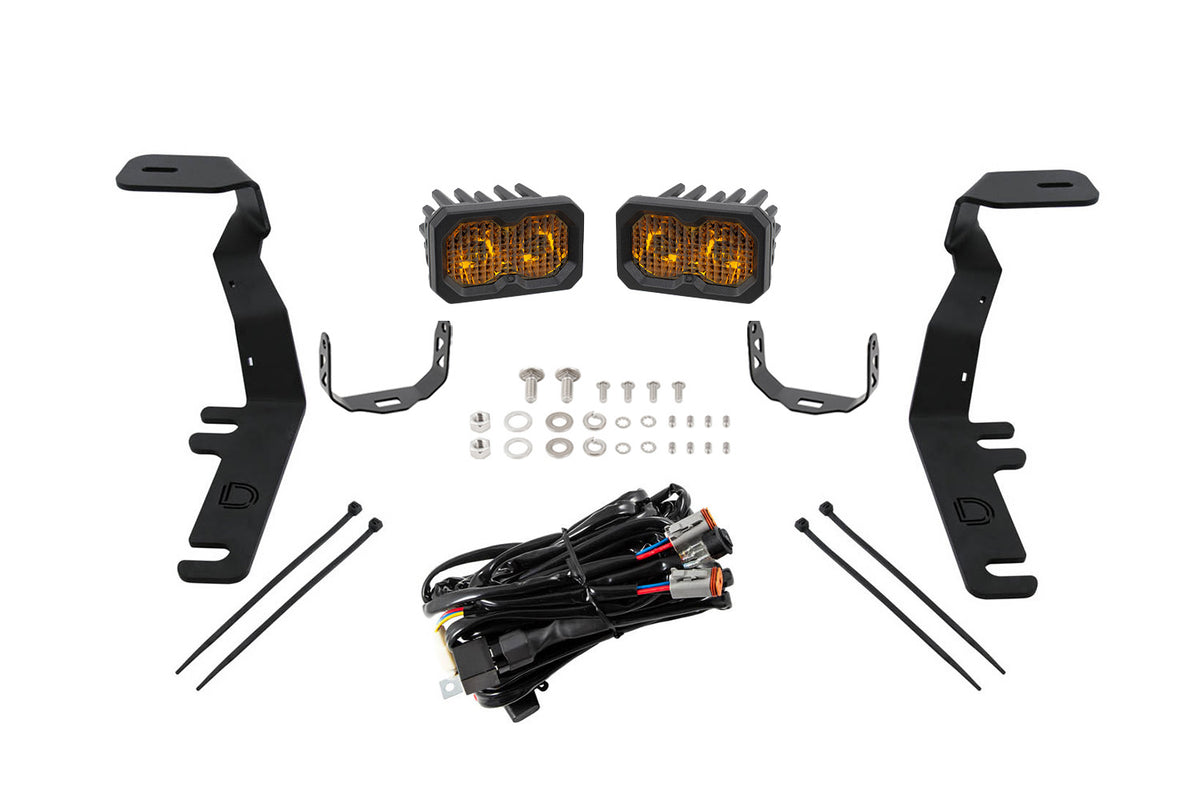

| In the Box | 2 x C2 2.0 Sport Standard pods, 2 ditch light brackets, 2 C2 2.0 pod mounting brackets, heavy-duty dual-output 4-pin harness, mounting hardware, mounting guide |
| Input Voltage | 9-30 V DC |
| Installation | Bolts to existing mounting points with factory hardware; no cutting or drilling |
| Intensity | 34,000 cd peak per pod |
| IP Rating | IP69K (waterproof, high-pressure wash) |
| LED Emitter | Lumileds automotive grade |
| Measured Lumens | 777 lm per pod |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Optic | TIR (total internal reflection) |
| Pod Size | 2 in (51 mm) class |
| Polarity | Polarity specific |
| Power Level | Sport |
| Raw Lumens | 1,186 lm per pod |
| Shipping Dimensions | 15 x 9 x 12 in (381 x 229 x 305 mm) |
| Shipping Weight | 11.59 lb (5.26 kg) |
| Warranty | Limited Lifetime |
| Watts | 15 W main beam, 0.38 W backlight, per pod |
| 2015–2020 Ford F-150 |
| Product Condition | NEW |
