(888) 723-0041Diode Dynamics Stage Series C2 2.0 Pro Backlit LED Ditch Light Kit for 2015-2020 Ford F-150/Raptor, White Combo/Driving
Part #: DD6573
Diode Dynamics
Description
Diode Dynamics C2 2.0 Pro Backlit LED Ditch Light Kit for 2015-2020 Ford F-150 and Raptor squeezes serious reach out of two small pods. Pro power turns the small C2 2.0 into a surprisingly strong ditch light, with a beam that reaches well ahead and still spreads enough to catch turn-ins. It is the choice when you want maximum reach without bulky housings on the hood. Order DD6574 for warm color, or DD6571 to keep the cost down.
Features
- Strong reach from small housings helps you spot reflectors, signs and animals early on fast gravel
| Amp Draw | 1.8 A main beam, 0.03 A backlight, per pod (at 12.8 V) |
| Backlight | Amber (ABL) |
| Beam Pattern | Combo/Driving, 55° x 20° |
| Bracket | Thick-gauge stainless steel, low profile |
| Color Temperature | 6000K (white) |
| Compliance | SAE J575 durability test; off-road use |
| Connector | Deutsch DT input |
| Construction | Aluminum casting, polycarbonate lens, rubber gasket |
| Cooling | Passive pin-fin heatsink |
| Country of Origin | USA (with global materials) |
| Driver | Constant current |
| Hood Clearance | Does not interfere with raising or lowering the hood |
| Illuminance | 545 lux at 32.8 ft (10 m), per pod |

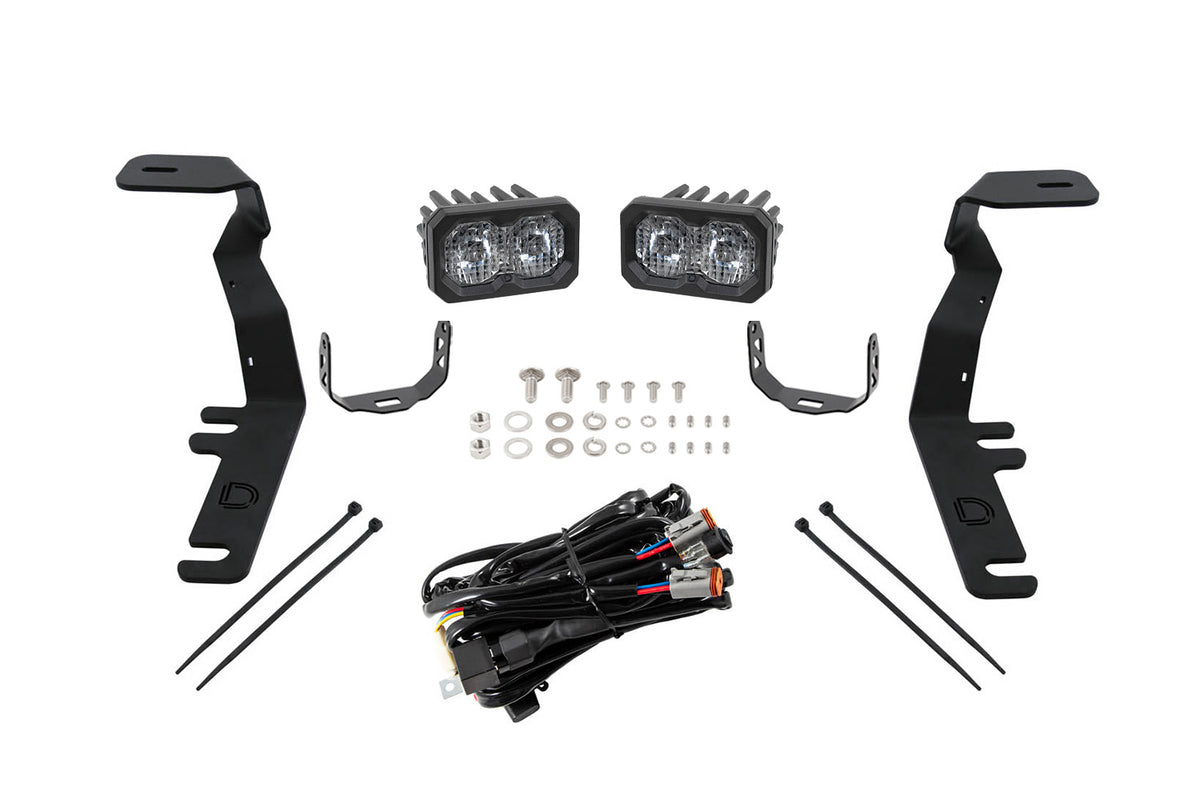

| In the Box | 2 x C2 2.0 Pro Standard pods, 2 ditch light brackets, 2 C2 2.0 pod mounting brackets, heavy-duty dual-output 4-pin harness, mounting hardware, mounting guide |
| Input Voltage | 9-30 V DC |
| Installation | Bolts to existing mounting points with factory hardware; no cutting or drilling |
| Intensity | 54,500 cd peak per pod |
| IP Rating | IP69K (waterproof, high-pressure wash) |
| LED Emitter | Osram Ostar Projection Compact |
| Measured Lumens | 1,988 lm per pod |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Optic | TIR (total internal reflection) |
| Pod Size | 2 in (51 mm) class |
| Polarity | Polarity specific |
| Power Level | Pro |
| Raw Lumens | 3,136 lm per pod |
| Shipping Dimensions | 15 x 9 x 12 in (381 x 229 x 305 mm) |
| Shipping Weight | 11.59 lb (5.26 kg) |
| Warranty | Limited Lifetime |
| Watts | 23 W main beam, 0.38 W backlight, per pod |
| 2015–2020 Ford F-150 |
| Product Condition | NEW |
