(888) 723-0041Diode Dynamics Stage Series SS3 Sport Backlit LED Ditch Light Kit for 2019-2021 Ford Ranger, White Combo/Driving
Part #: DD6583
Diode Dynamics
Description

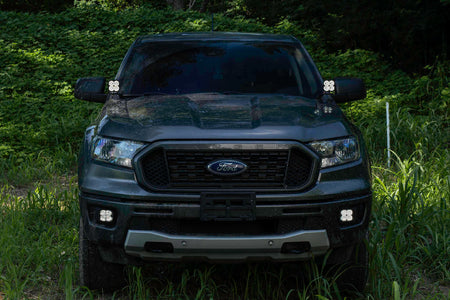

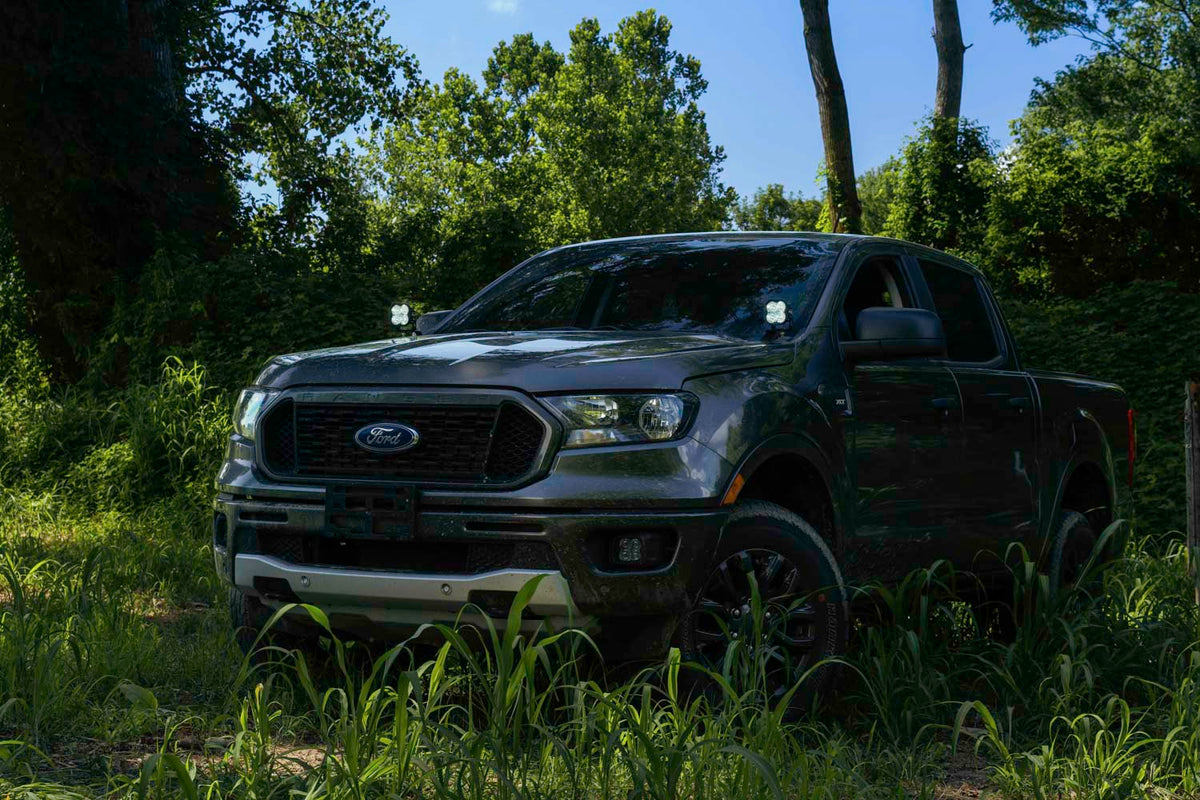

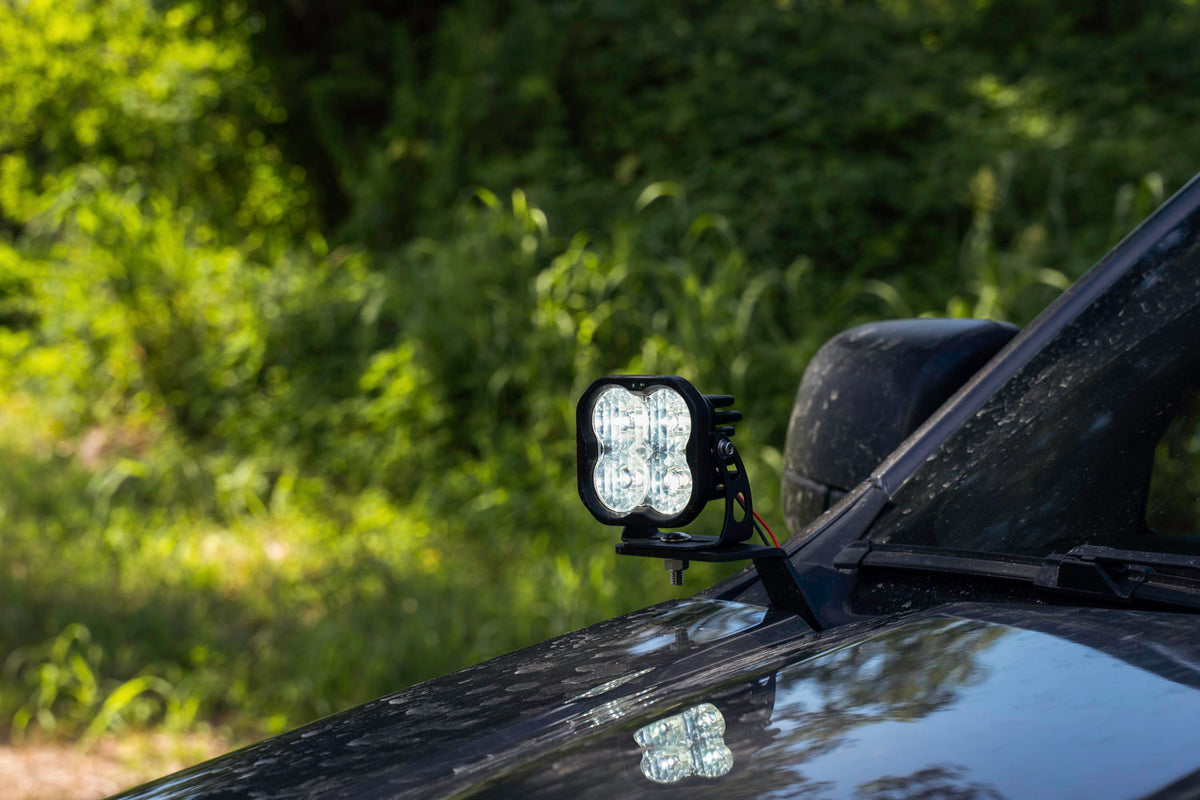

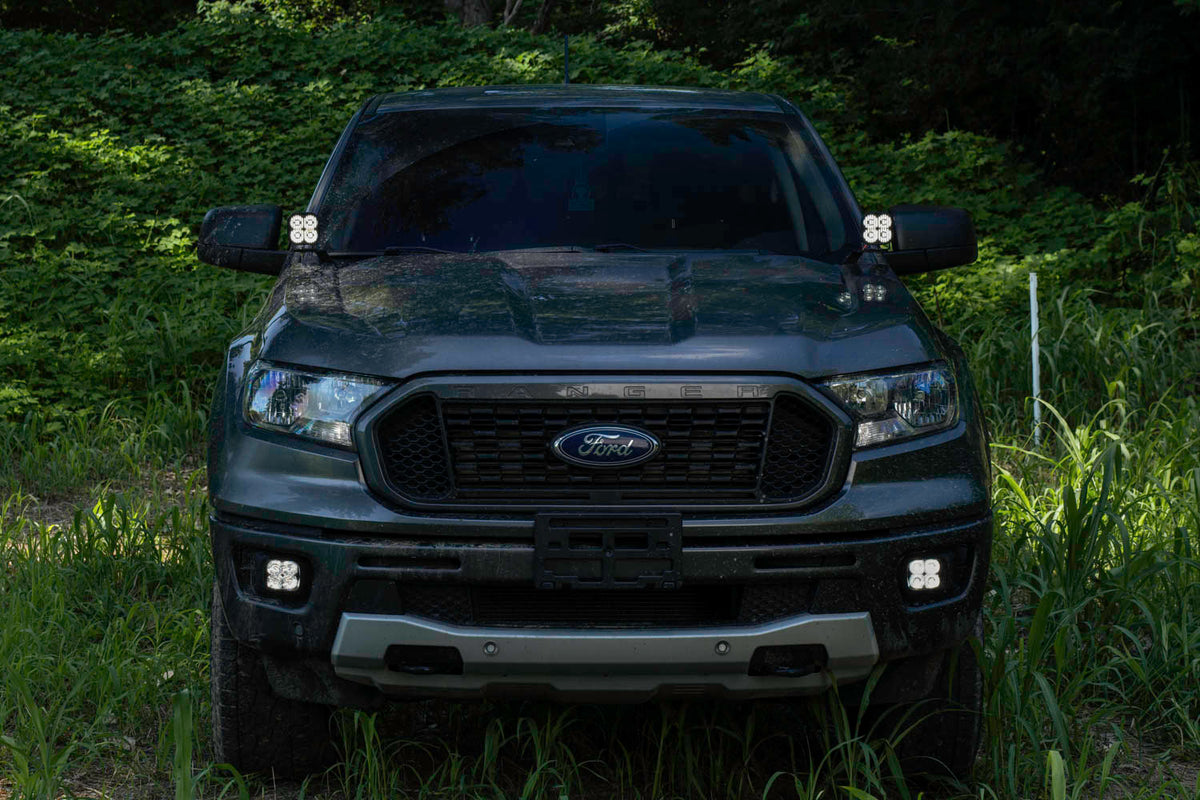

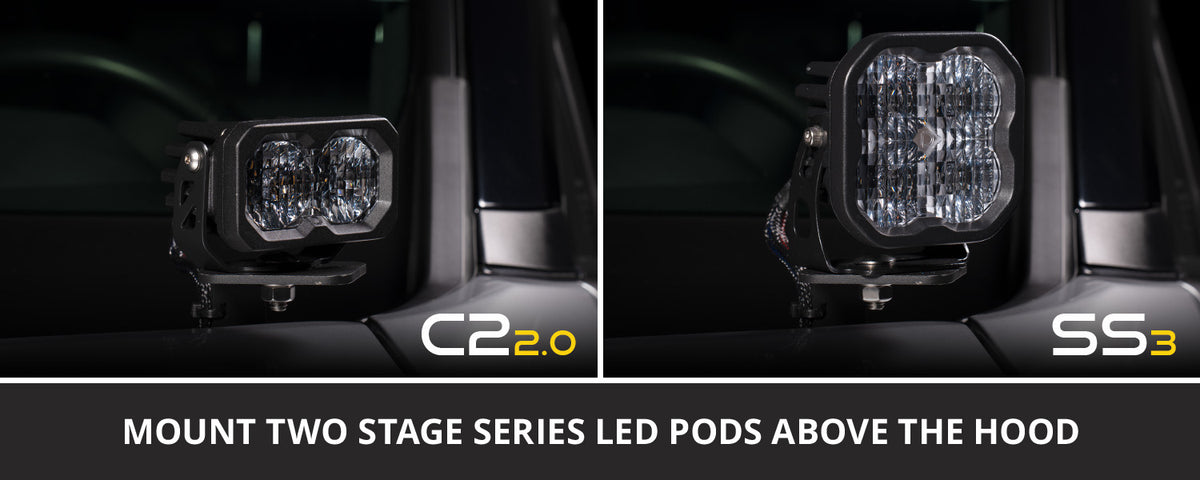

Diode Dynamics SS3 Sport Backlit LED Ditch Light Kit for 2019-2021 Ford Ranger mounts wide-pattern white pods at the base of the A-pillars. Ranger owners who head down forest roads after work want to see what is lurking beside the truck, not just ahead of it. These Sport pods throw a wide, tall pattern that lights trail junctions, campsites and the brush on either side. Warm light buyers want DD6584, and DD6585 adds Pro output.
Features
- Pillar-height placement keeps the pods above tall grass on overgrown trails
| Amp Draw | 1.1 A per pod (at 13.2 V) |

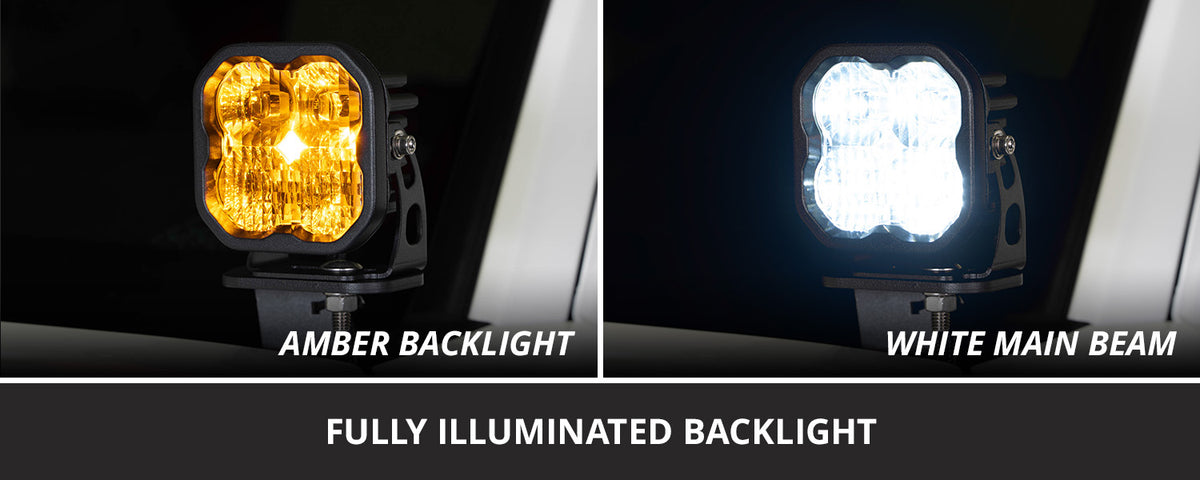

| Backlight | Amber (ABL) |

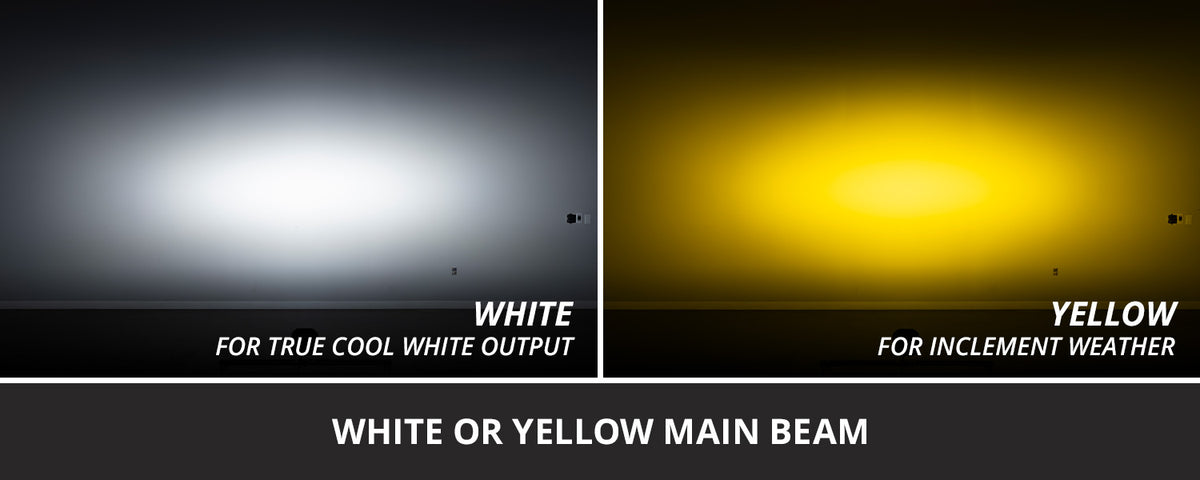

| Beam Pattern | Combo/Driving, 80° x 30° |
| Bracket | Thick-gauge stainless steel, low profile |
| Color Temperature | 6000K (white) |
| Compliance | SAE J575 durability test; off-road use |
| Connector | Deutsch DT input |
| Construction | Aluminum casting, polycarbonate lens, rubber gasket |
| Cooling | Passive pin-fin heatsink |
| Country of Origin | USA (with global materials) |
| Driver | Constant current |
| Hood Clearance | Does not interfere with raising or lowering the hood |
| Illuminance | 91 lux at 32.8 ft (10 m), per pod |

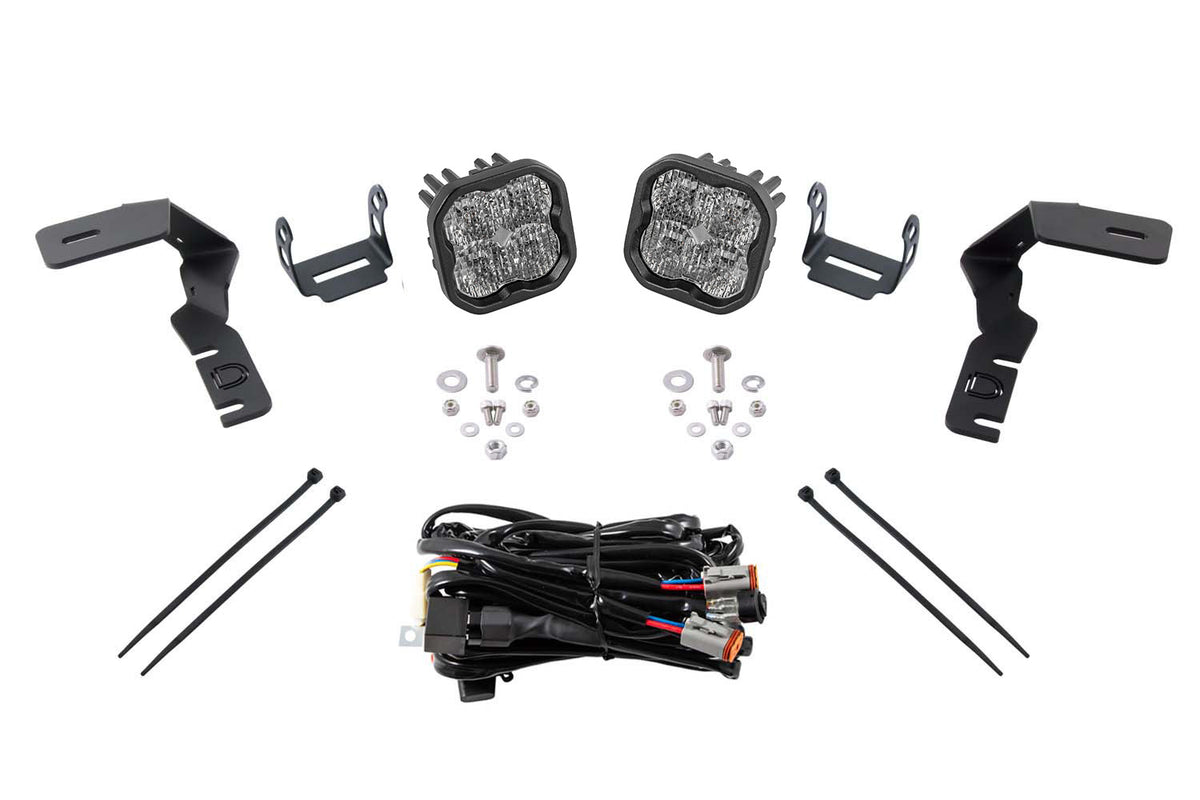

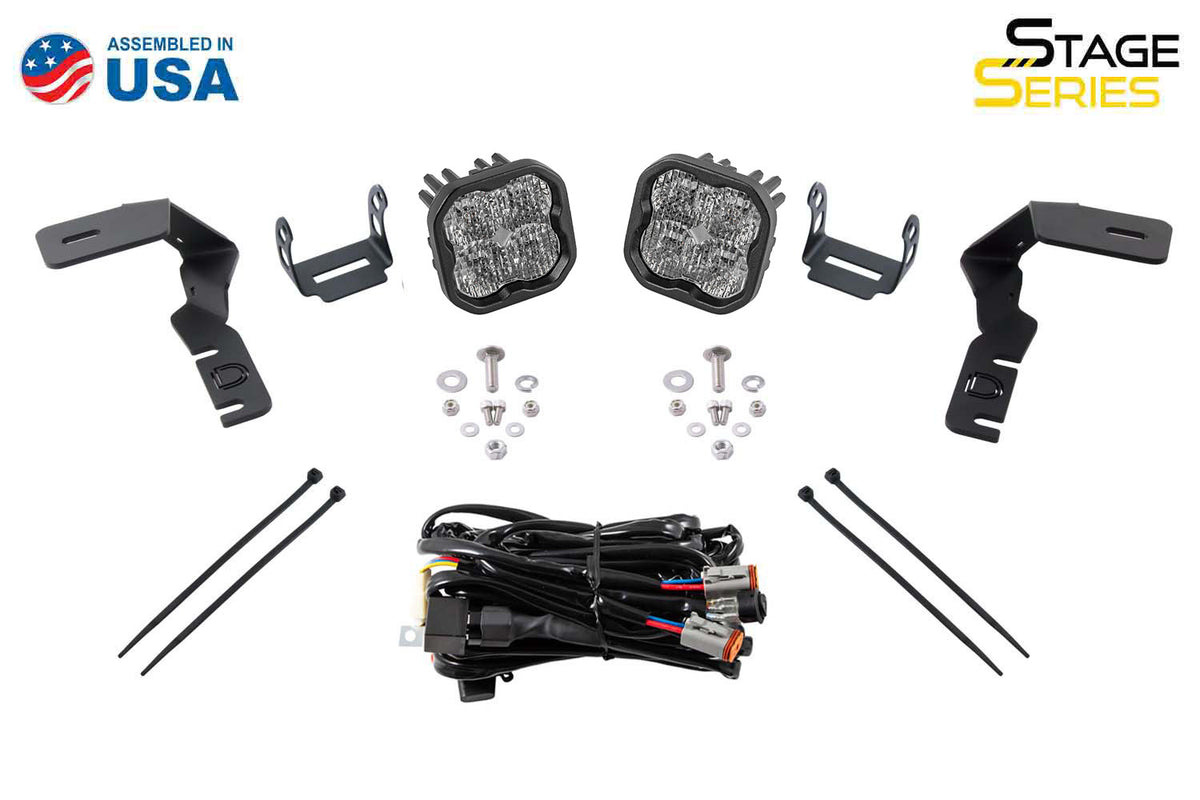

| In the Box | 2 x SS3 Sport Standard pods, 2 A-pillar ditch light brackets, 2 SS3 pod mounting brackets, heavy-duty dual-output 4-pin harness, mounting hardware, mounting guide |
| Input Voltage | 9-16 V DC |
| Installation | Bolts to existing mounting points with factory hardware; no cutting or drilling |
| Intensity | 9,100 cd peak per pod |
| IP Rating | IP69K (waterproof, high-pressure wash) |
| LED Emitter | Lumileds Luxeon Z ES |
| Measured Lumens | 1,520 lm per pod |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Optic | TIR (total internal reflection) |
| Pod Size | 3 in (76 mm) class |
| Polarity | Polarity specific |
| Power Level | Sport |
| Raw Lumens | 2,262 lm per pod |
| Shipping Dimensions | 15 x 9 x 12 in (381 x 229 x 305 mm) |
| Shipping Weight | 8.07 lb (3.66 kg) |
| Warranty | Limited Lifetime |
| Watts | 14.5 W per pod |
| 2019–2023 Ford Ranger |
| Product Condition | NEW |
