(888) 723-0041Diode Dynamics Stage Series SS3 Sport Backlit LED Ditch Light Kit for 2019-2021 Ford Ranger, Yellow Combo/Driving
Part #: DD6584
Diode Dynamics
Description

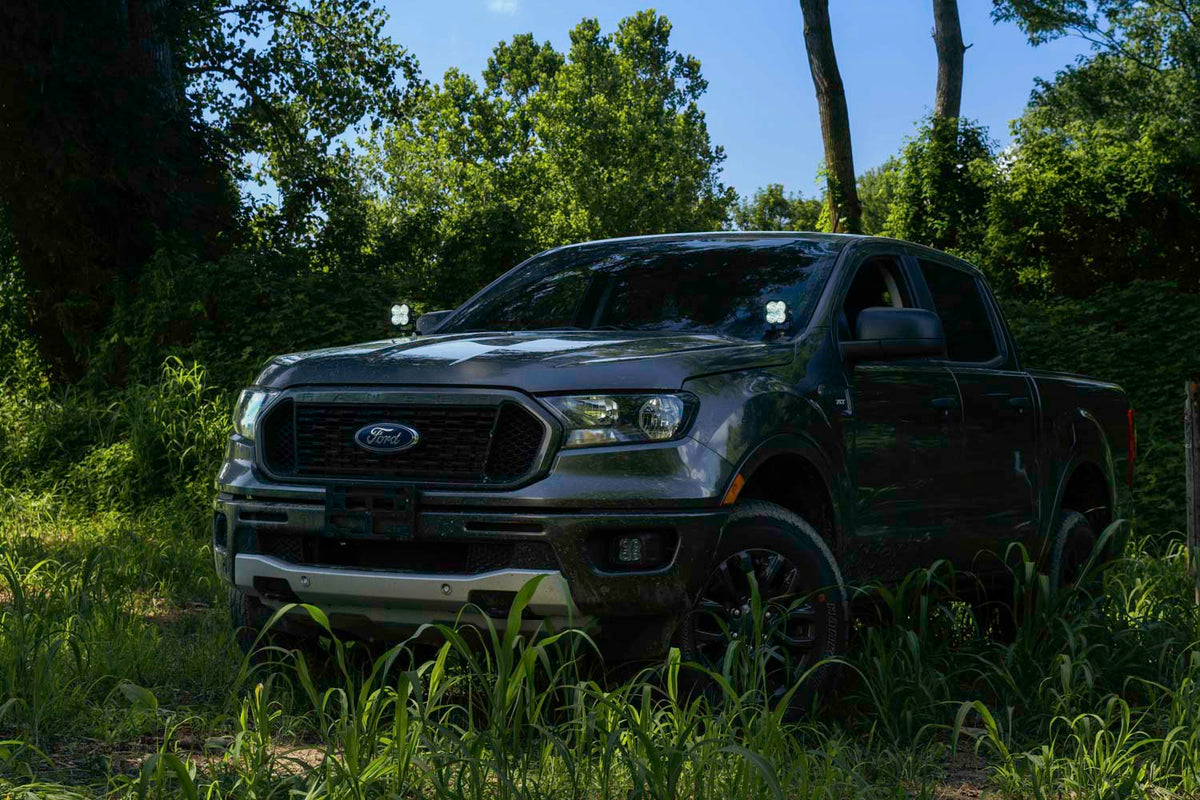

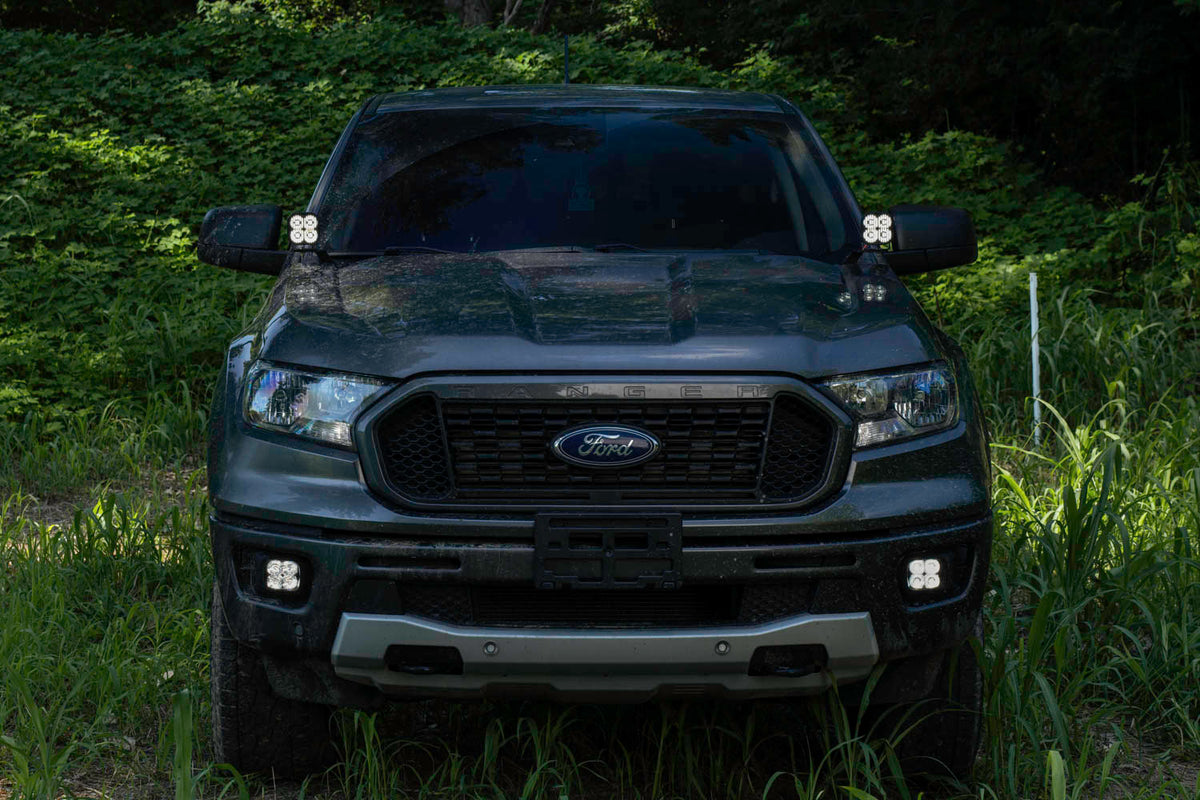

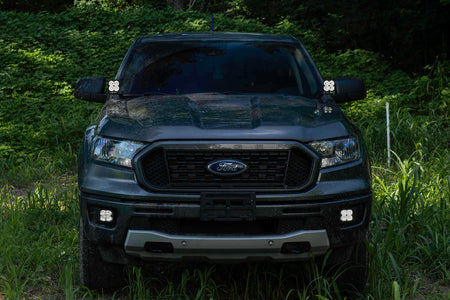

Diode Dynamics SS3 Sport Yellow Backlit LED Ditch Light Kit for 2019-2021 Ford Ranger frames the midsize truck's hood with warm, wide selective yellow. Yellow pods fit wet Pacific Northwest logging roads and dusty Southwest washes alike, keeping glare down while the broad SS3 pattern lights the edges of the track. Prefer white? Order DD6583. Want more yellow punch? Look at DD6586.
Features
- Matches the warm look of yellow fog upgrades, including the Ranger SS6 yellow fog kits
| Amp Draw | 1.1 A per pod (at 13.2 V) |

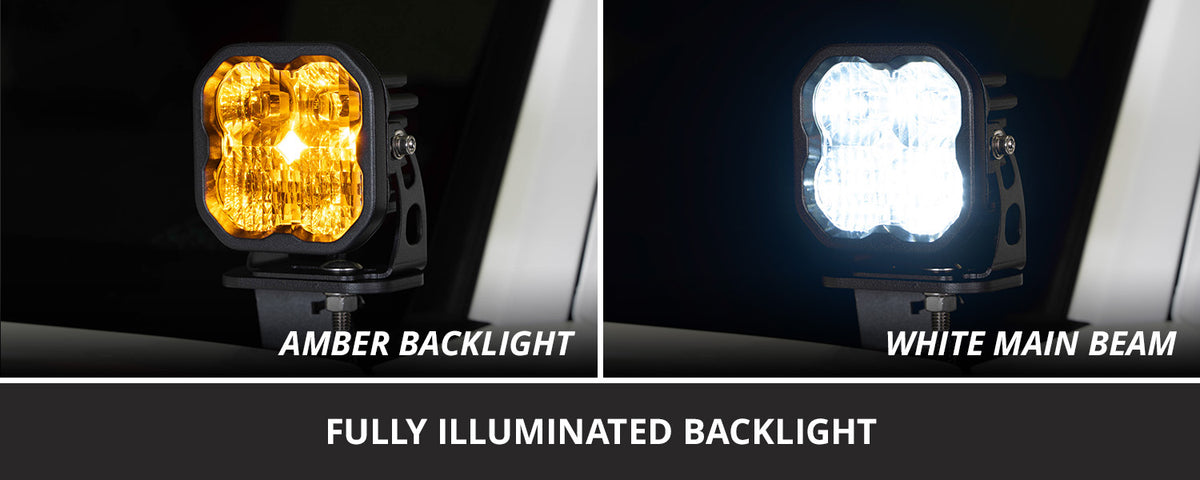

| Backlight | Amber (ABL) |

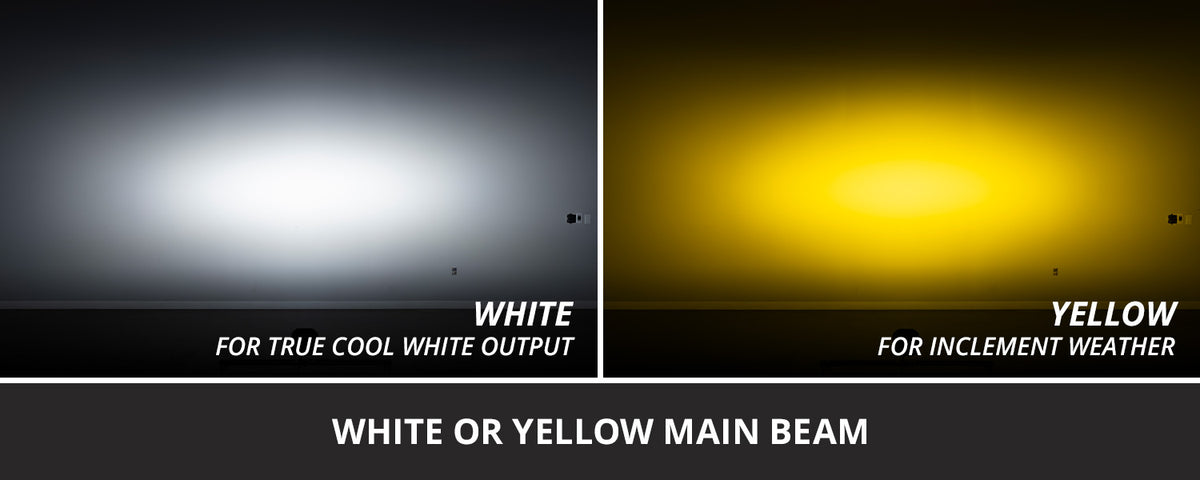

| Beam Pattern | Combo/Driving, 80° x 30° |
| Bracket | Thick-gauge stainless steel, low profile |
| Color Temperature | 3000K (selective yellow) |
| Compliance | SAE J575 durability test; off-road use |
| Connector | Deutsch DT input |
| Construction | Aluminum casting, polycarbonate lens, rubber gasket |
| Cooling | Passive pin-fin heatsink |
| Country of Origin | USA (with global materials) |
| Driver | Constant current |

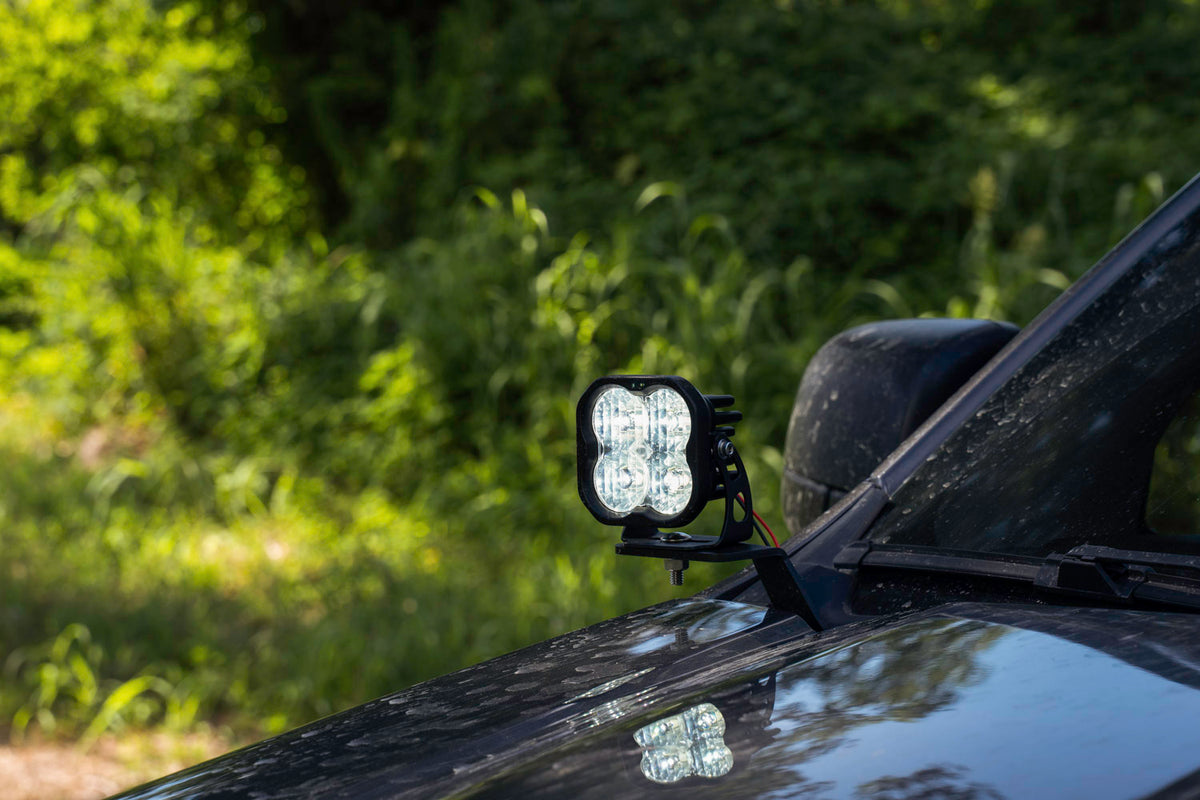

| Hood Clearance | Does not interfere with raising or lowering the hood |
| Illuminance | 65 lux at 32.8 ft (10 m), per pod |

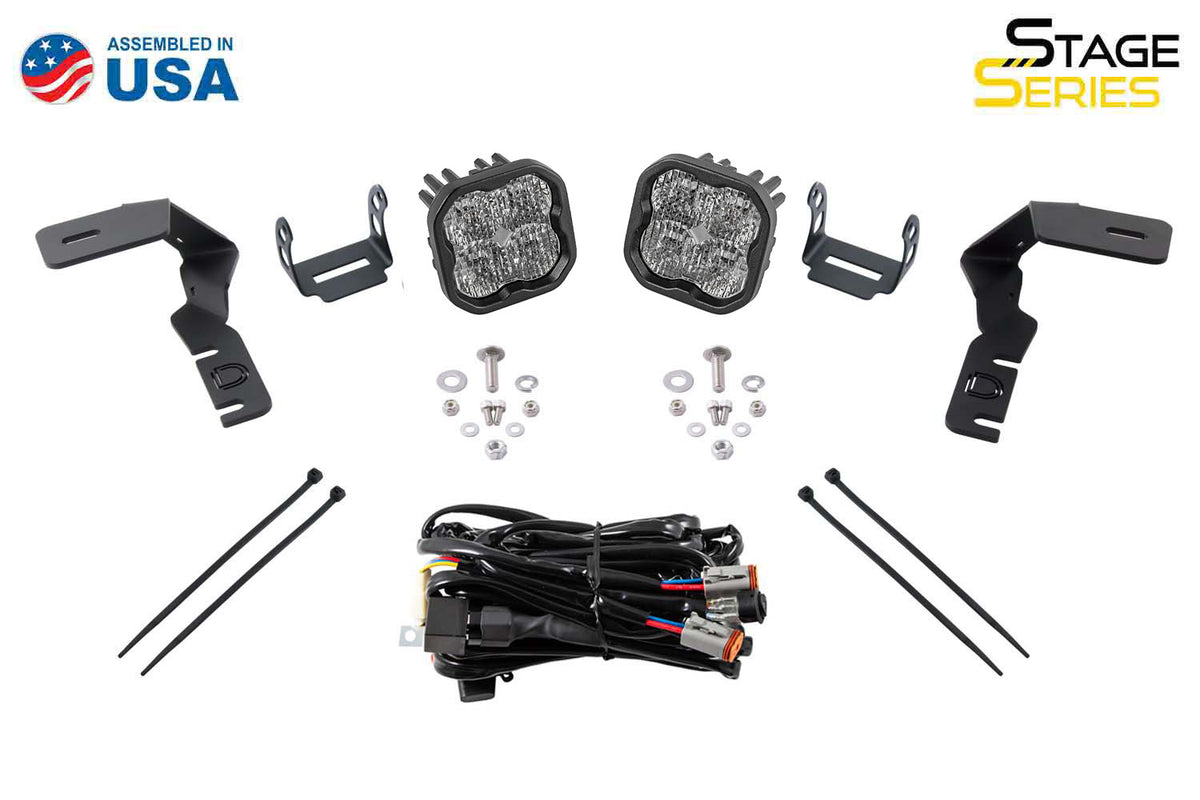

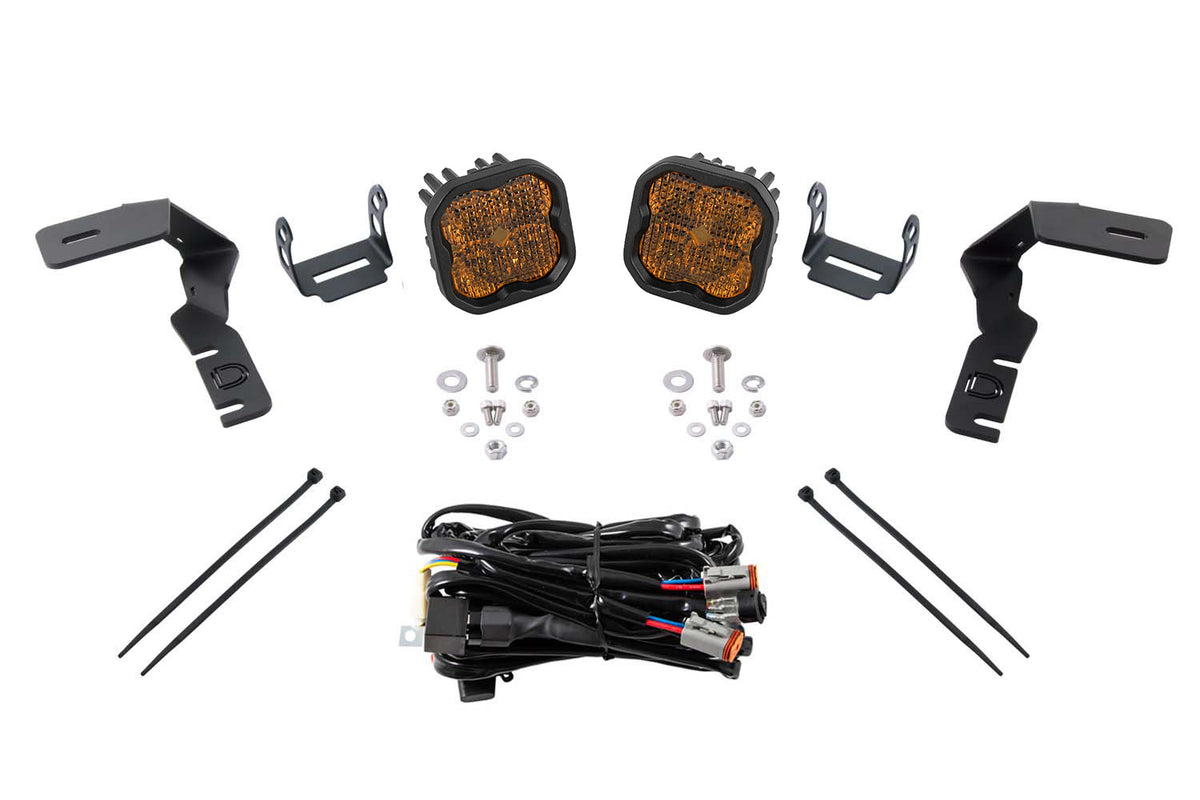

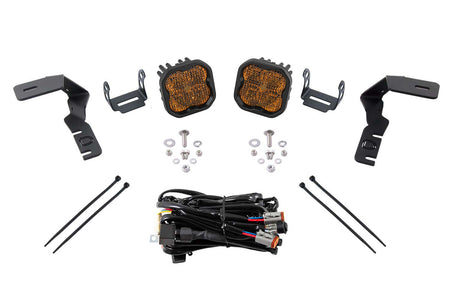

| In the Box | 2 x SS3 Sport Standard pods, 2 A-pillar ditch light brackets, 2 SS3 pod mounting brackets, heavy-duty dual-output 4-pin harness, mounting hardware, mounting guide |
| Input Voltage | 9-16 V DC |
| Installation | Bolts to existing mounting points with factory hardware; no cutting or drilling |
| Intensity | 6,550 cd peak per pod |
| IP Rating | IP69K (waterproof, high-pressure wash) |
| LED Emitter | Lumileds Luxeon Z ES |
| Measured Lumens | 1,300 lm per pod |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Optic | TIR (total internal reflection) |
| Pod Size | 3 in (76 mm) class |
| Polarity | Polarity specific |
| Power Level | Sport |
| Raw Lumens | 2,262 lm per pod |
| Shipping Dimensions | 15 x 9 x 12 in (381 x 229 x 305 mm) |
| Shipping Weight | 8.07 lb (3.66 kg) |
| Warranty | Limited Lifetime |
| Watts | 14.5 W per pod |
| 2019–2023 Ford Ranger |
| Product Condition | NEW |
* Disclaimer: Product information on this page is supplied by the manufacturer and may change without notice. Many parts fit specific vehicle makes, models, years and trims, so please confirm fitment before you buy. We work hard to present the most accurate data available, but Parts2Drive cannot guarantee the completeness or accuracy of manufacturer-provided content and is not responsible or liable for errors or omissions in it.
