(888) 723-0041Diode Dynamics Stage Series SS3 Pro Backlit LED Ditch Light Kit for 2019-2021 Ford Ranger, White Combo/Driving
Part #: DD6585
Diode Dynamics
Description
Diode Dynamics SS3 Pro Backlit LED Ditch Light Kit for 2019-2021 Ford Ranger gives the Ranger high-output white side lighting from SS3 pods. The Pro SS3 is the brightest white pod in the Ranger ditch lineup by raw output, and its wide pattern turns the area around the truck into usable light for scouting turns, setting up camp or checking a trail fork. Selective yellow fans can choose DD6586, while DD6583 handles lighter use at a lower price.
Features
- Plenty of output to double as scene lighting when you stop for the night
| Amp Draw | 2.7 A main beam, 0.03 A backlight, per pod (at 12.8 V) |
| Backlight | Amber (ABL) |
| Beam Pattern | Combo/Driving, 80° x 30° |
| Bracket | Thick-gauge stainless steel, low profile |
| Color Temperature | 6000K (white) |
| Compliance | SAE J575 durability test; off-road use |
| Connector | Deutsch DT input |
| Construction | Aluminum casting, polycarbonate lens, rubber gasket |
| Cooling | Passive pin-fin heatsink |
| Country of Origin | USA (with global materials) |
| Driver | Constant current |
| Hood Clearance | Does not interfere with raising or lowering the hood |
| Illuminance | 178 lux at 32.8 ft (10 m), per pod |

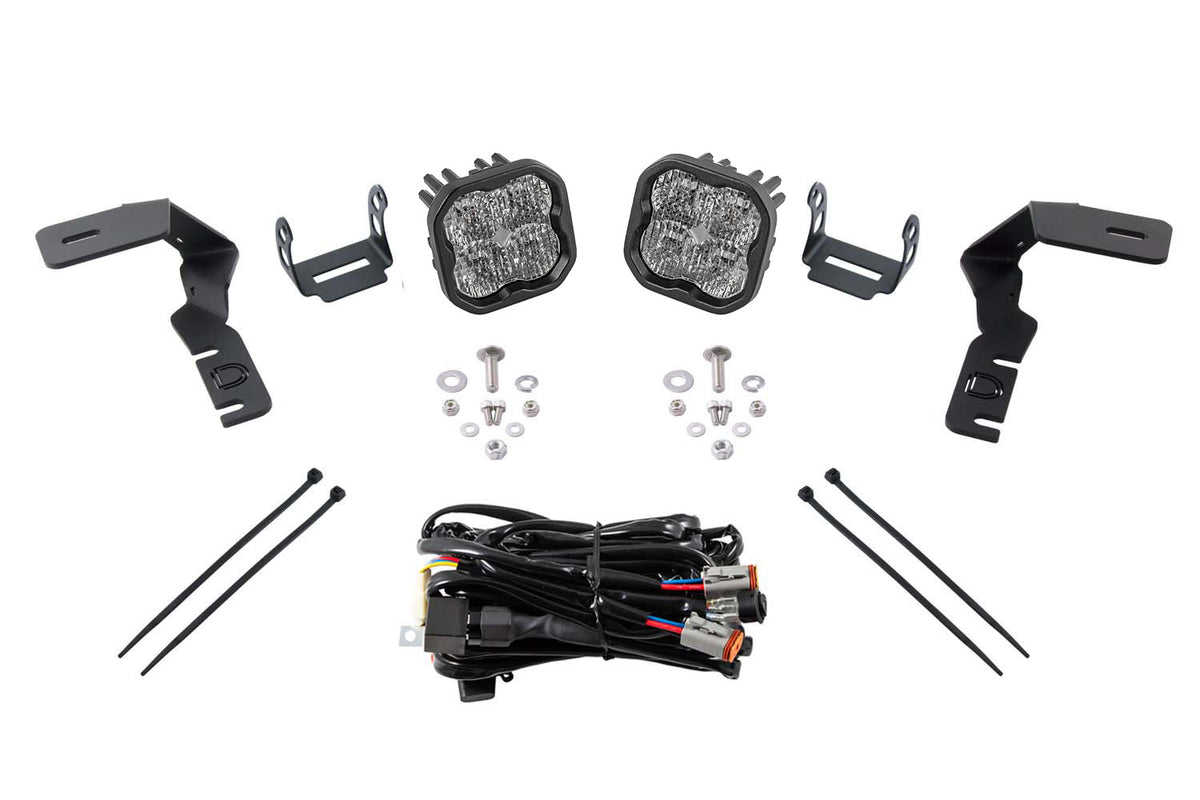

| In the Box | 2 x SS3 Pro Standard pods, 2 A-pillar ditch light brackets, 2 SS3 pod mounting brackets, heavy-duty dual-output 4-pin harness, mounting hardware, mounting guide |
| Input Voltage | 9-16 V DC |
| Installation | Bolts to existing mounting points with factory hardware; no cutting or drilling |
| Intensity | 17,800 cd peak per pod |
| IP Rating | IP69K (waterproof, high-pressure wash) |
| LED Emitter | Cree XP-L HI |
| Measured Lumens | 3,000 lm per pod |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Optic | TIR (total internal reflection) |
| Pod Size | 3 in (76 mm) class |
| Polarity | Polarity specific |
| Power Level | Pro |
| Raw Lumens | 5,796 lm per pod |
| Shipping Dimensions | 15 x 9 x 12 in (381 x 229 x 305 mm) |
| Shipping Weight | 8.07 lb (3.66 kg) |
| Warranty | Limited Lifetime |
| Watts | 36 W main beam, 0.4 W backlight, per pod |
| 2019–2023 Ford Ranger |
| Product Condition | NEW |
